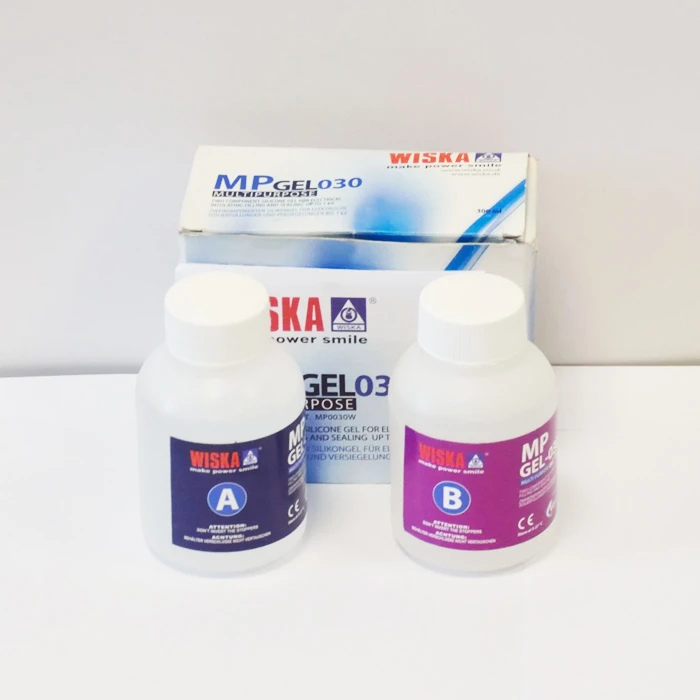

WISKA MP Gel 030 – 300ml Multipurpose Gel For Electrical Insulation

This electrical gel sets in just under 10 minutes and also benefits from a zero shelf life resulting in less waste to the
customer. The MP Gel has many advantages such as it’s completely non toxic (unlike conventional potting materials) and
therefore no need for protective gloves. It can be used safely in unventilated and confined areas. When mixed, the Wiska
MP Gel is more fluid than some resins which enables it to reach confined areas within an enclosure with ease. The gel
can be re-entered and partially removed if necessary and can be resealed by topping up the gel, the gel has a high resistance
to shock because of its flexibility, and increases resistance to water ingress as submersion depth increases. It has
an ingress of IP68.

Technical Specifications:

• Kit: 300ml (2x 150ml bottles)
• Dielectric Strength: 24,5kV/mm
• Mixing Ratio: 1:1
• Pot life at 23 C: 8 min
• Cure time at 23 C: 20 min
• Colour: Clear
• IP Rating: IP68

Advantages:

• Non toxic (directive CE 67/548/CEE o 1999/45/CE)
• Re-enterable
• Pours easily
• Environmentally friendly
• Long Lasting – no shelf life
