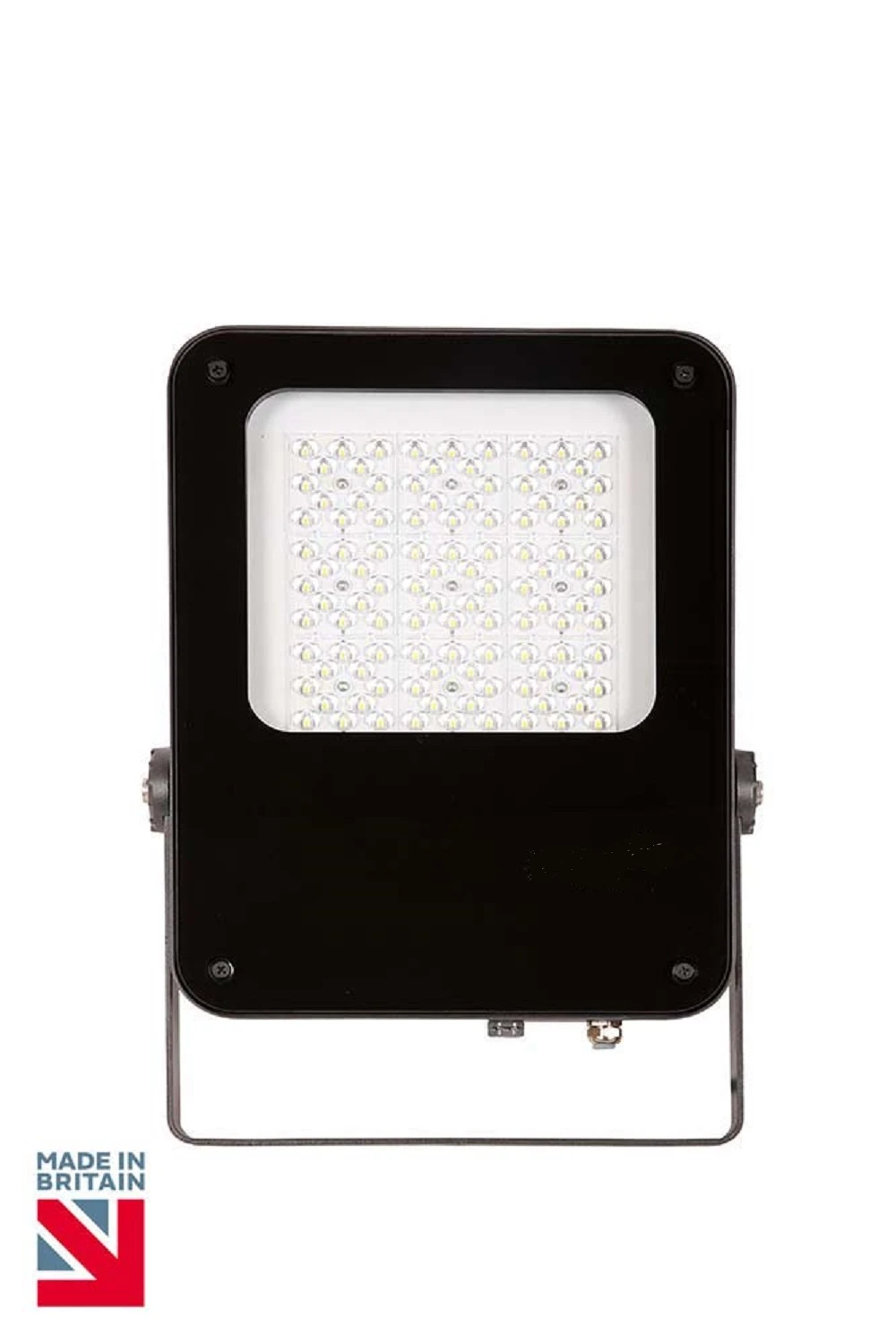

Whitstable Black 150w IP65 LED Flood Light

The Whitstable LED Floodlight is from a range of British manufactured floodlight fittings. manufactured with die-cast aluminium body, 4mm thick toughened glass panel and pre-wired with 700mm of cable.

MANUFACTURED TO ORDER AND CANNOT BE RETURNED.

Suitable for Security Lighting, Gantry, Car Parks, Perimeter Fences, Canopies, and Façade

They come in a choice of wattages, 50w, 100w, 150w and 200w.

Dimensions of the 150w LED flood are Width 353.4mm x Height 449mm x Depth 60.84mm Weight 8.0Kg.

Each floodlight is available with CCT 3000K (warm white) or 4000K (neutral white) colour temperature LED module and with a choice of 3 optics types offering Symmetrical and Asymmetrical light distributions.

They are as follows:

Optic 1 –  Symmetrical 90 x 90 degree beam

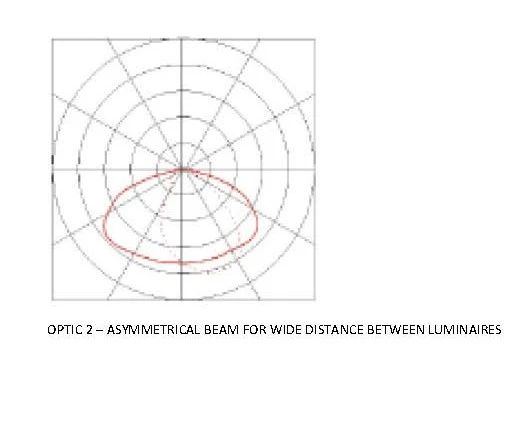

Optic 2 – Asymmetrical beam for wide distance between luminaires.

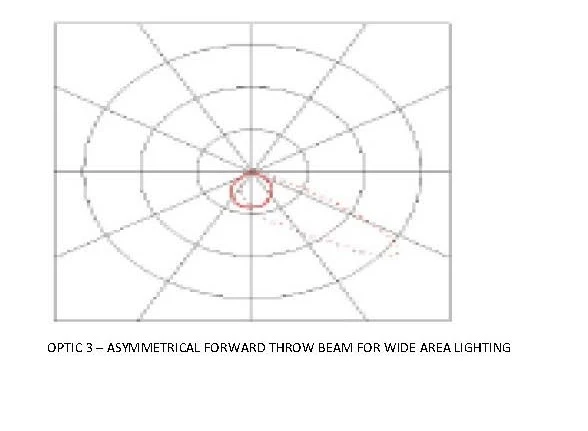

Optic 3 – Asymmetrical forward throw beam for wide area lighting.

See instruction data sheet page 3 for diagram of these optic choices

Nema socket option available for dusk to dawn switching.

• LED rating 18,500lm (4000K).
• LED rating 15,633lm (3000K).
• Luminaire flux 17,575lm (4000K).
• Luminaire flux 14,851lm (3000K).
• Total wattage 150W.
• 4000K (NW) and 3000K (WW) colour temperature.
• -20 to +40°C operating temperature.

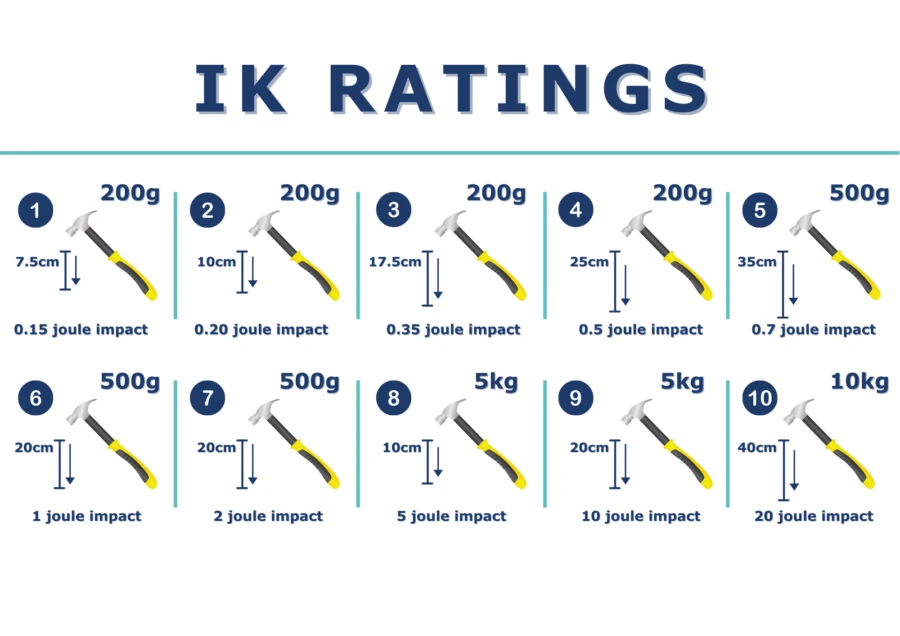

• IP65/IK08 rated.
• LED life span > 65,000hrs.
• Universal bracket for T/Bar bracket and wall fixing.
• 4mm thick toughened glass panel.
• Pre-wired with 700mm of cable.
• 3 optics types offering Symmetrical and Asymmetrical light distributions.
