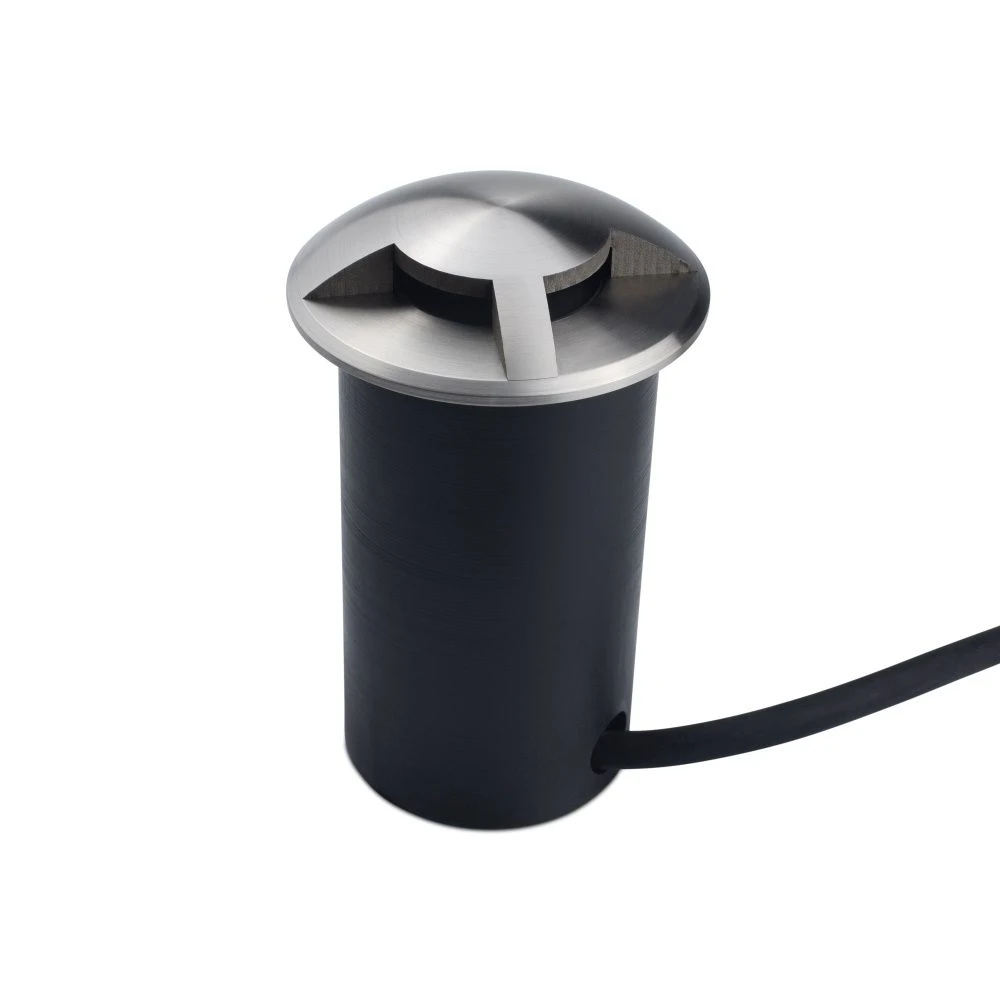

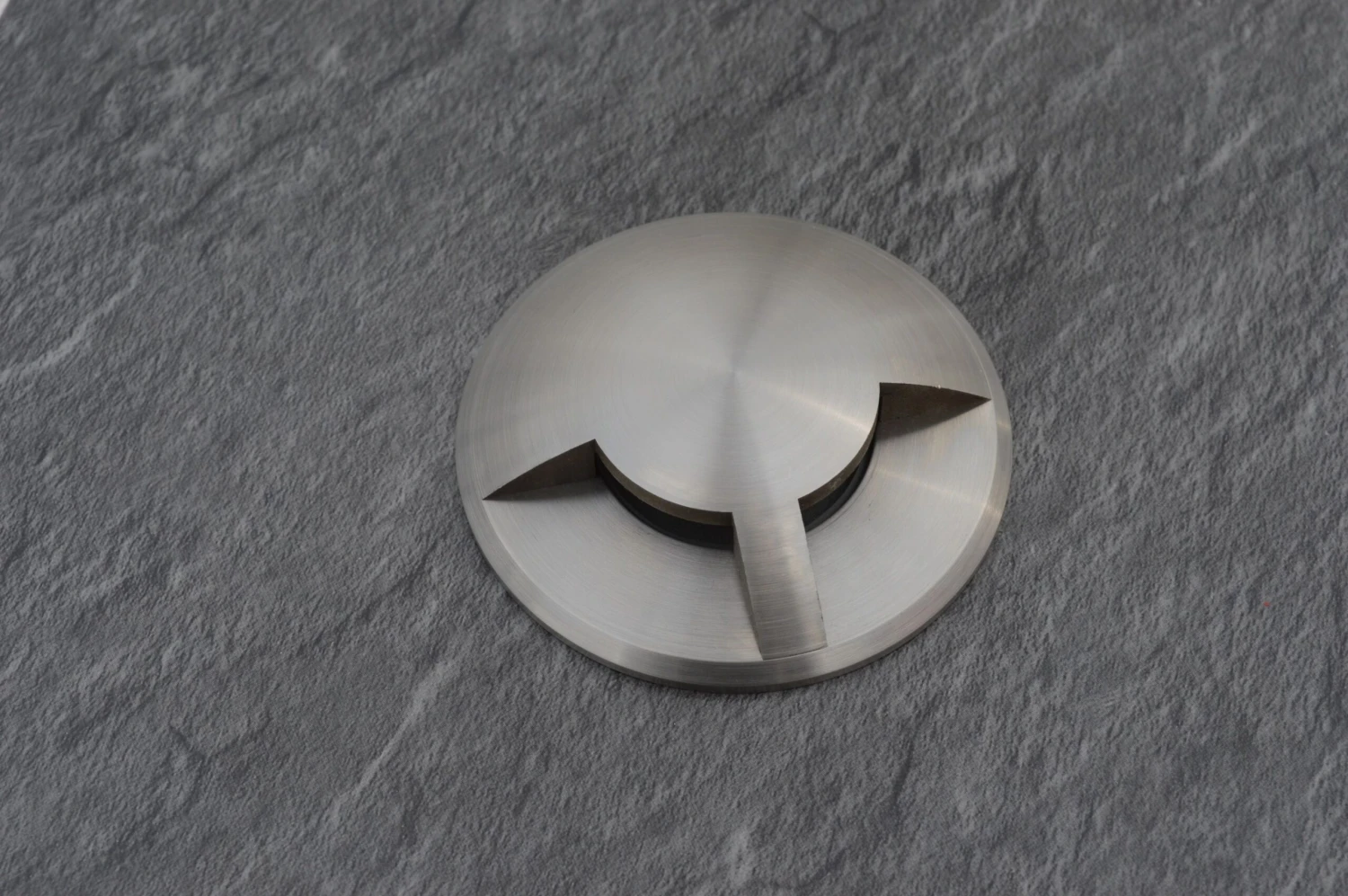

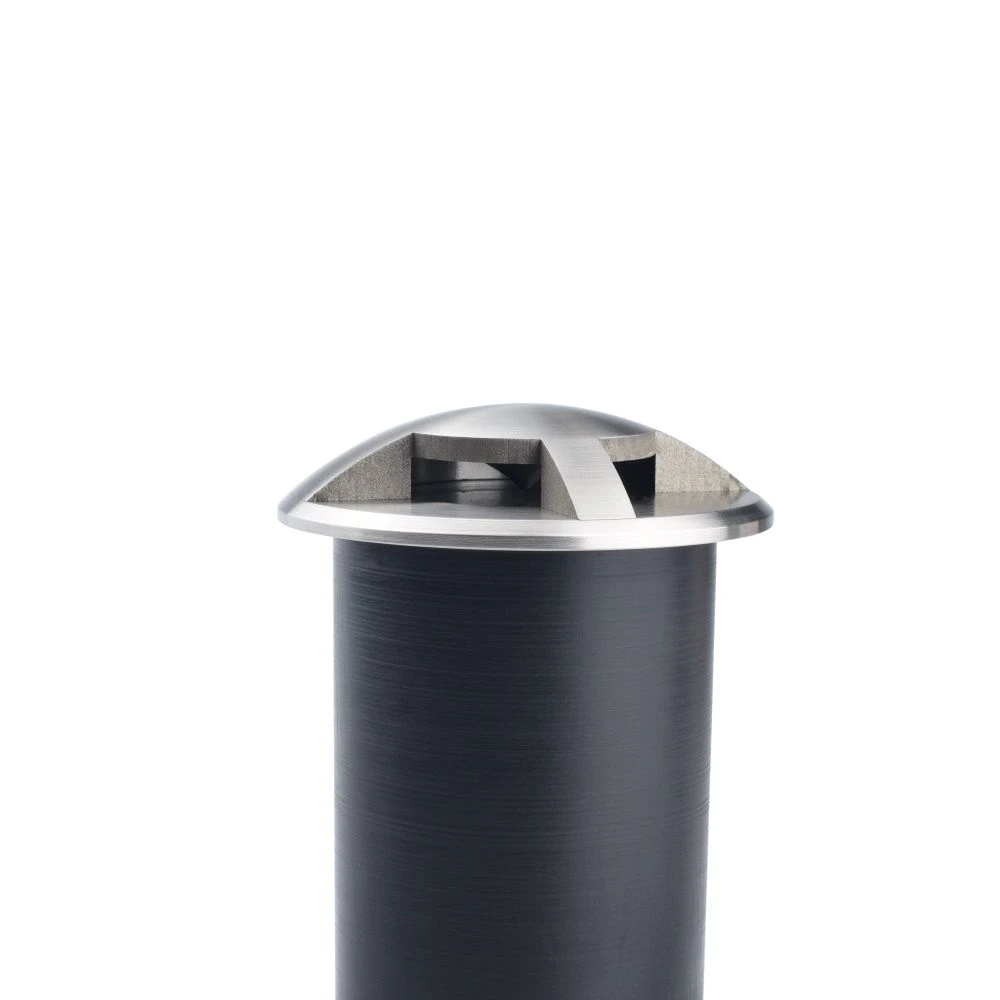

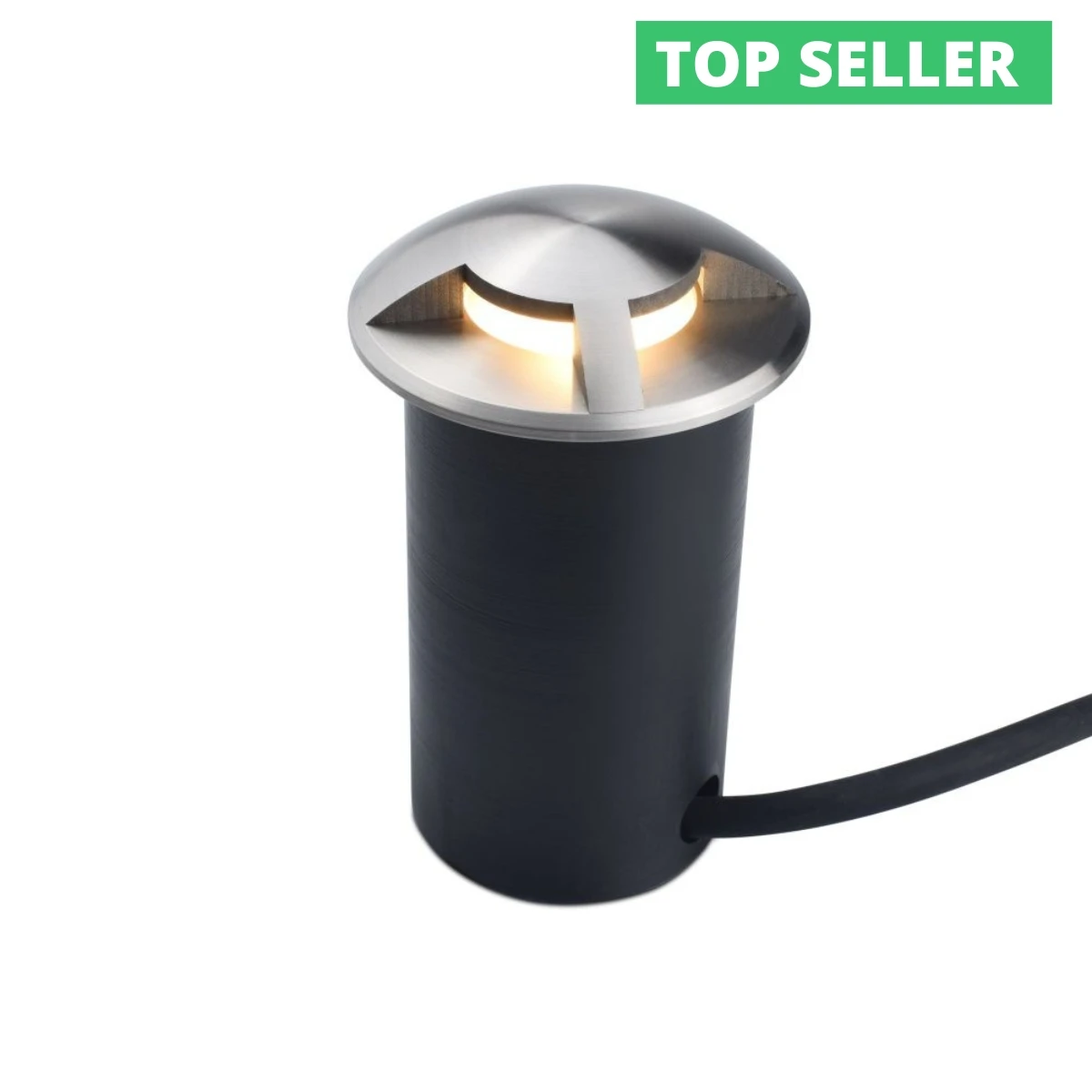

Waymarker 180 – Outdoor Recessed Light – 240v 316 Stainless Steel GU10 IP66 With 2 Windows 180 Degree

The Elipta code E8312SS is a stylish 240v recessed up-light with 2 windows providing 180 degree lighting to one side of the top plate. It
is useful where you want to cast a corona of light across a path or drive edge without casting light backwards onto planting
or other finishes behind. Ideal as walkover decking lights and drive over lights.

The light is located by an “O” ring on the body into a sleeve tube so that no external screw fixings are visible. It may
also be used as a deck light. The stainless steel single piece body Improves the IP rating properties of this product
and is more suited to in-ground environments; proving more water resistant than its aluminium cousin in damp locations. Always allow for 20cm of shingle for drainage.

Not for use in areas prone to water-logging or flooding

Will take the weight of a standard vehicle but  NOT SUITABLE FOR AREAS WITH HEAVY GOODS VEHICLES.

Colour/Finish:	Smart 316 grade stainless steel is a popular choice for modern garden settings
IP Rating:	IP66

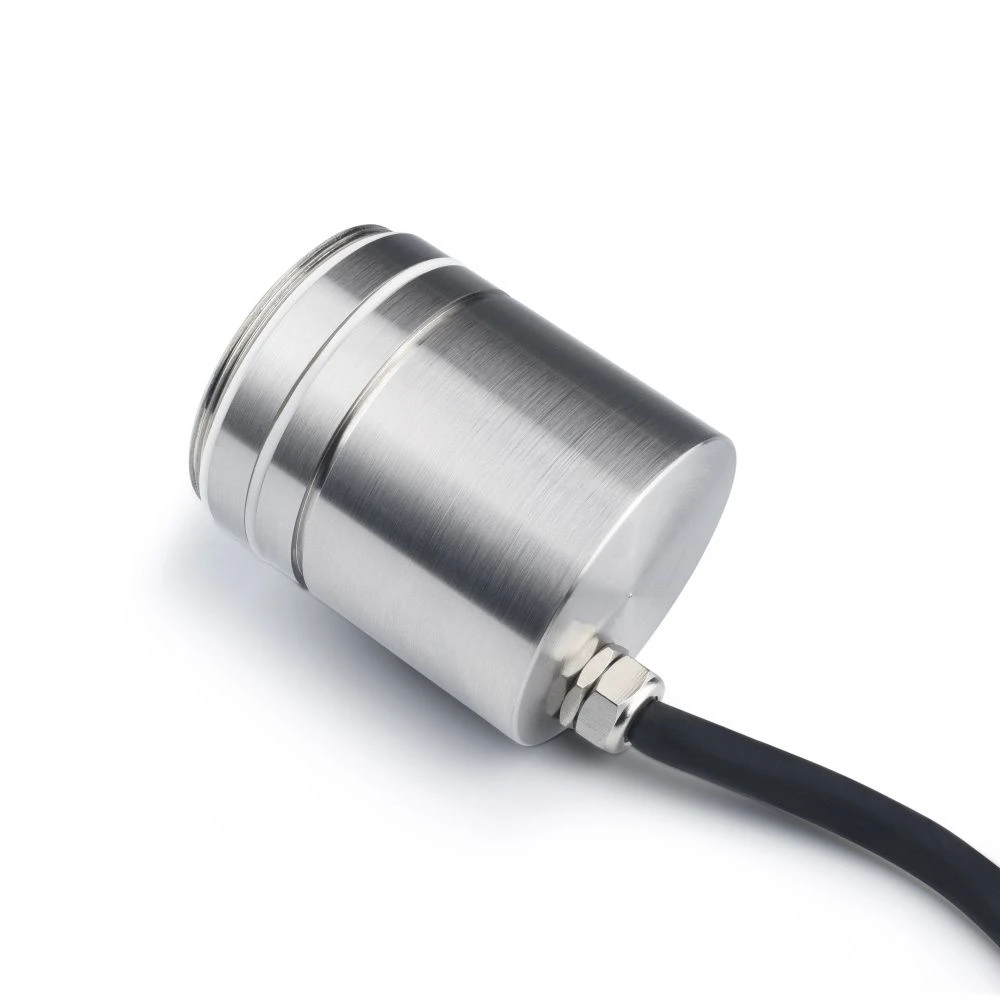

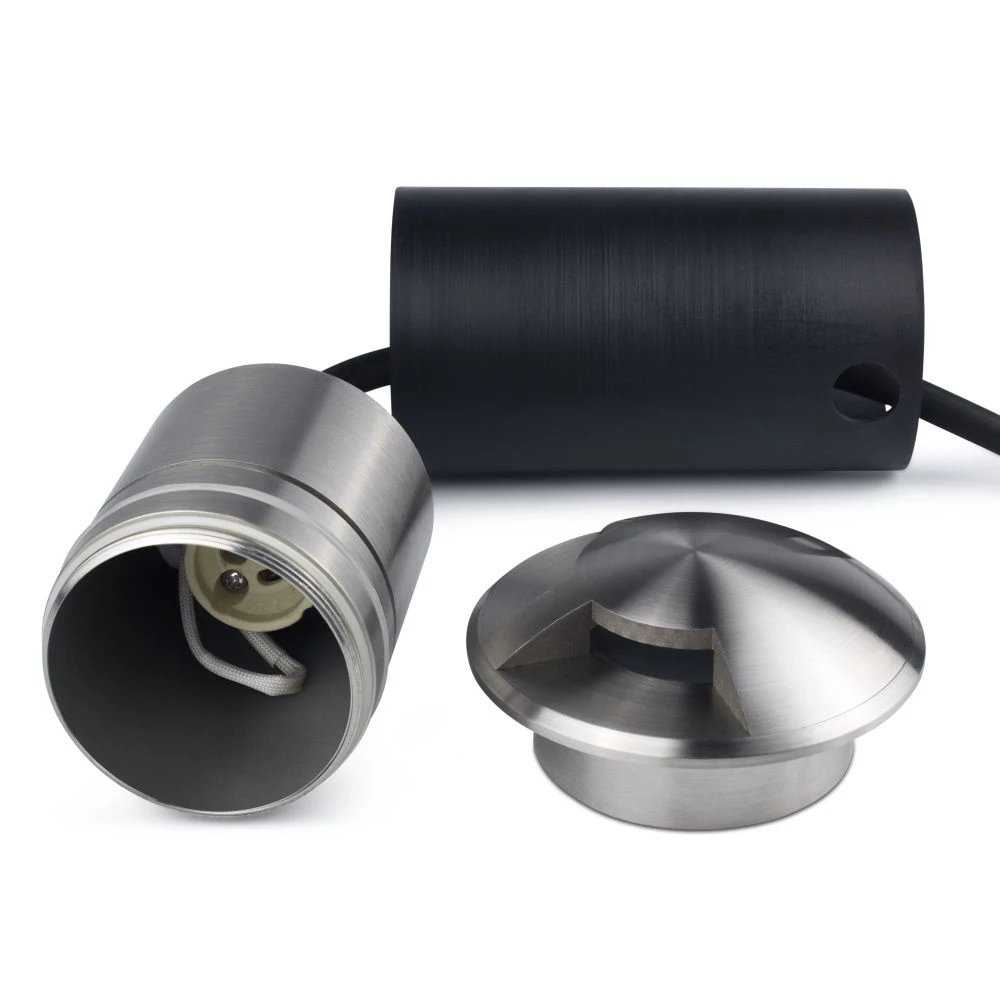

Construction:	Top plate is attached to tubular single piece 316 stainless steel body which unscrews into 2 halves without the need for tools for easy lamp changing. 2m cable via rear entry cable
Input Voltage:	240v
Lamp Type:	GU10 LED lamps

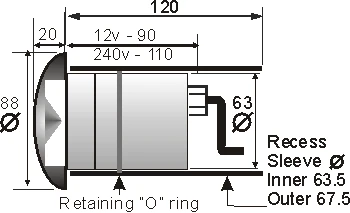

Installation:	The plastic sleeve is built into the wall during construction: the light pushes into the tube, where it is held firmly in place by an O-ring, leaving a front plate with no visible fixing screws. Suitable drainage should be provided below each fitting to prevent water logging. Waymarker’s should not be installed in ground subject to water logging, an IP68 light such as a Neptune Recessed light should be considered.

Lamp colour (Kelvins)

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix.
