Vulcan – 316 Stainless Steel 24v LED Recessed Spotlight IP67 DC 15w 1380lm 3000k 40 Degree Or 60 Degree

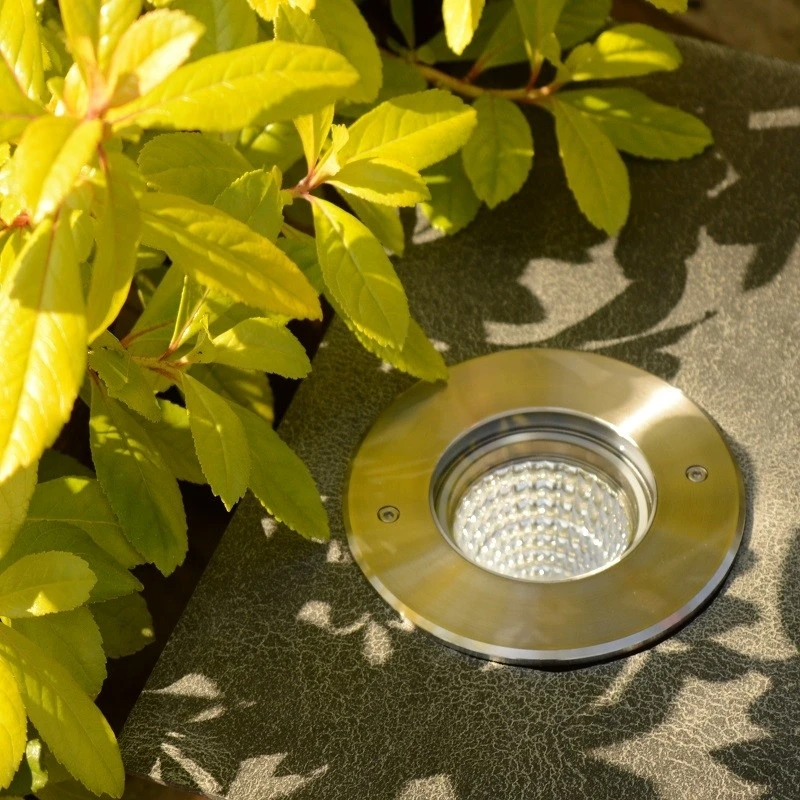

Vulcan LED recessed light combines a cool toughened glass lens, long lamp life (built-in LED) and energy efficiency for uplighting
trees from lawns or paving. This outdoor recessed LED light provides a powerful 40° or a wider 60° uplighting beam, using 1 x 15w cree LED

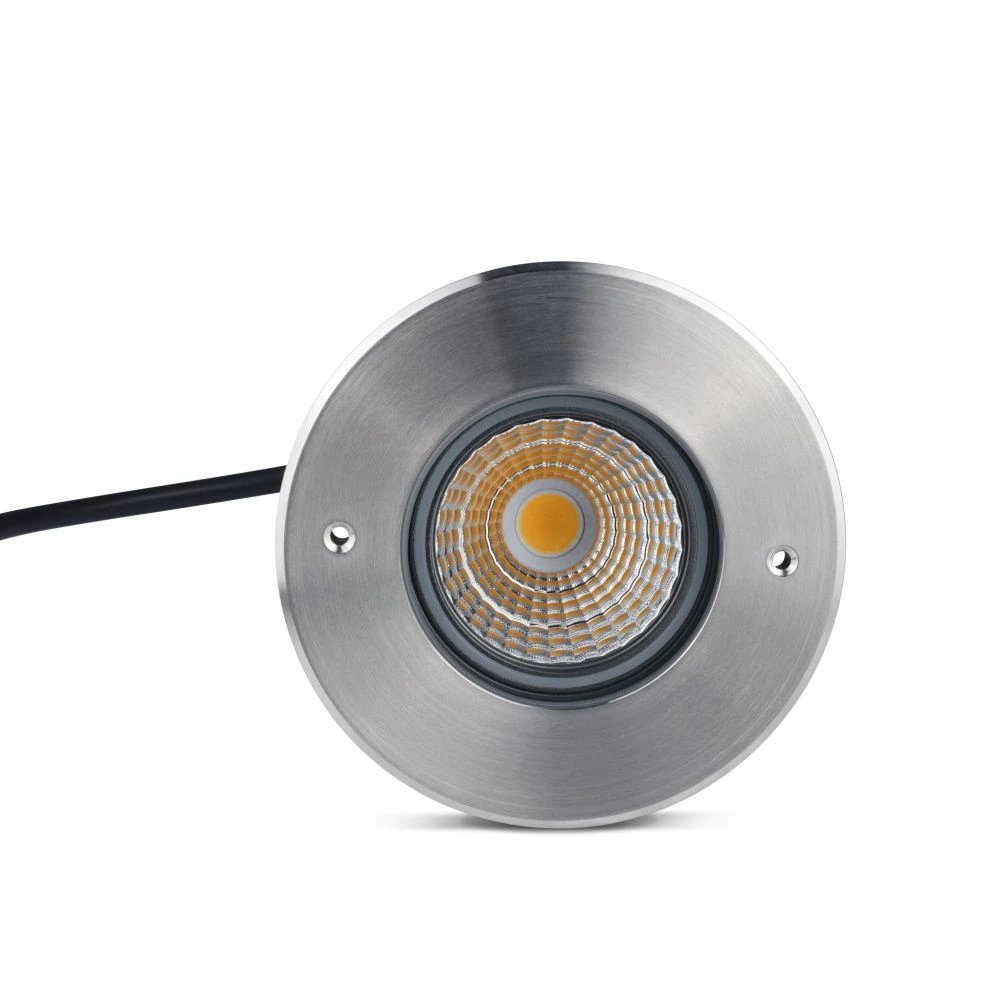

featuring a tempered glass lens that’s cool to touch (under 40°C) allowing the Vulcan to be installed safely in walkover
areas to uplight trees with an open canopy and branch structure from directly below. The shallow depth and no need to enter
the Vulcan fitting for lamp installation or replacement make outdoor recessed LED lighting quick and easy to fit unlike its
metal halide cousins. Vulcan has a 316 stainless steel lens rim, a cast aluminium body and a polymer sleeve for recessing
into the ground.

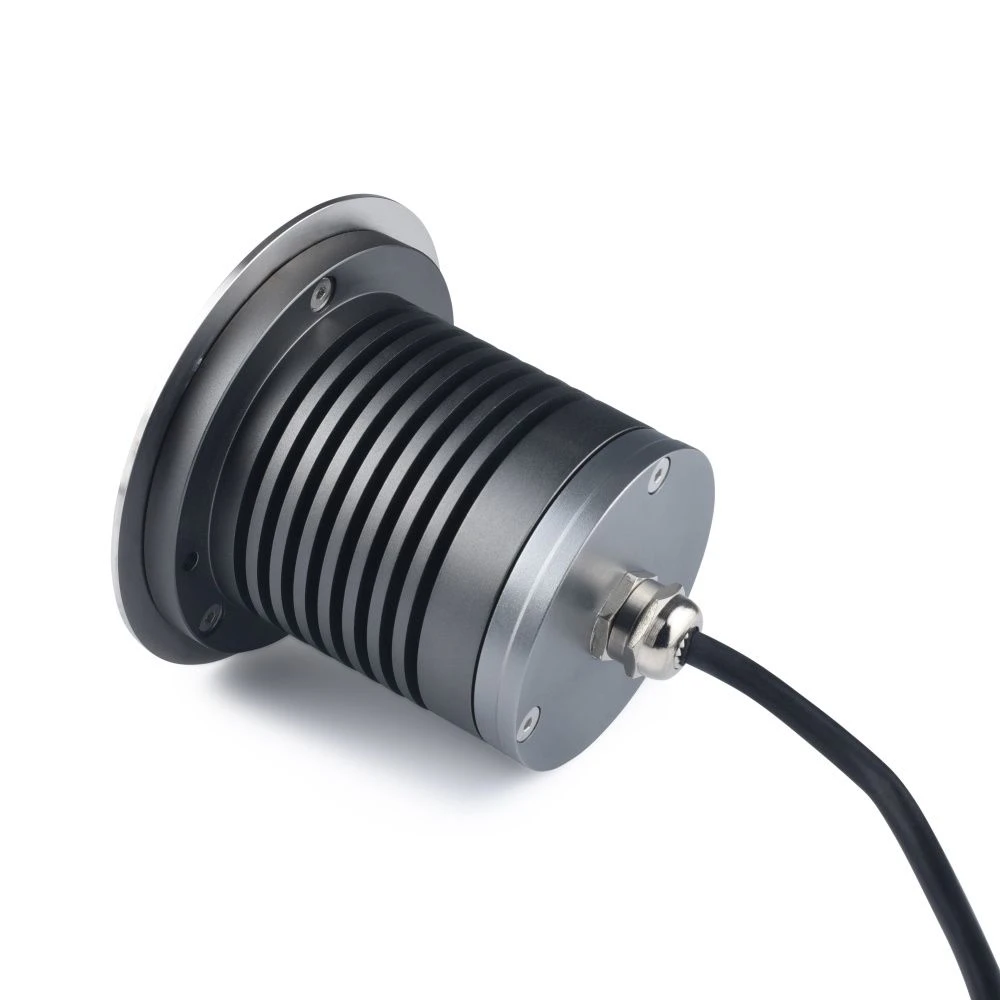

Constructed from aluminium. The 316 stainless steel top (bezel) is attached to the tubular aluminium body.  It has a 2m 2 core cable via rear entry cable gland.

This ground light gives out an amazing 1380 lumens in a warm white  3000k colour temperature 15w CREE LED module. The bulb life is approximatelyn 50,000 hours.

The 40 degree beam angle gives a medium beam of light flow and ideal for lighting the open canopy structure from trees and also to wash light onto buildings.

The sleeve depth 123mm x 102mm diameter.

Fitting depth 100mm. Bezel diameter 108mm.

The installation allows direct burial into the ground.  It comes pre-wired with 2m 2 core rubber cale and a 20mm IP68 cable gland to connect to a 24v DC (Constant voltage) transformer via a separate undergroung joint kit (see related items at bottom of page). e.g. code T9969.

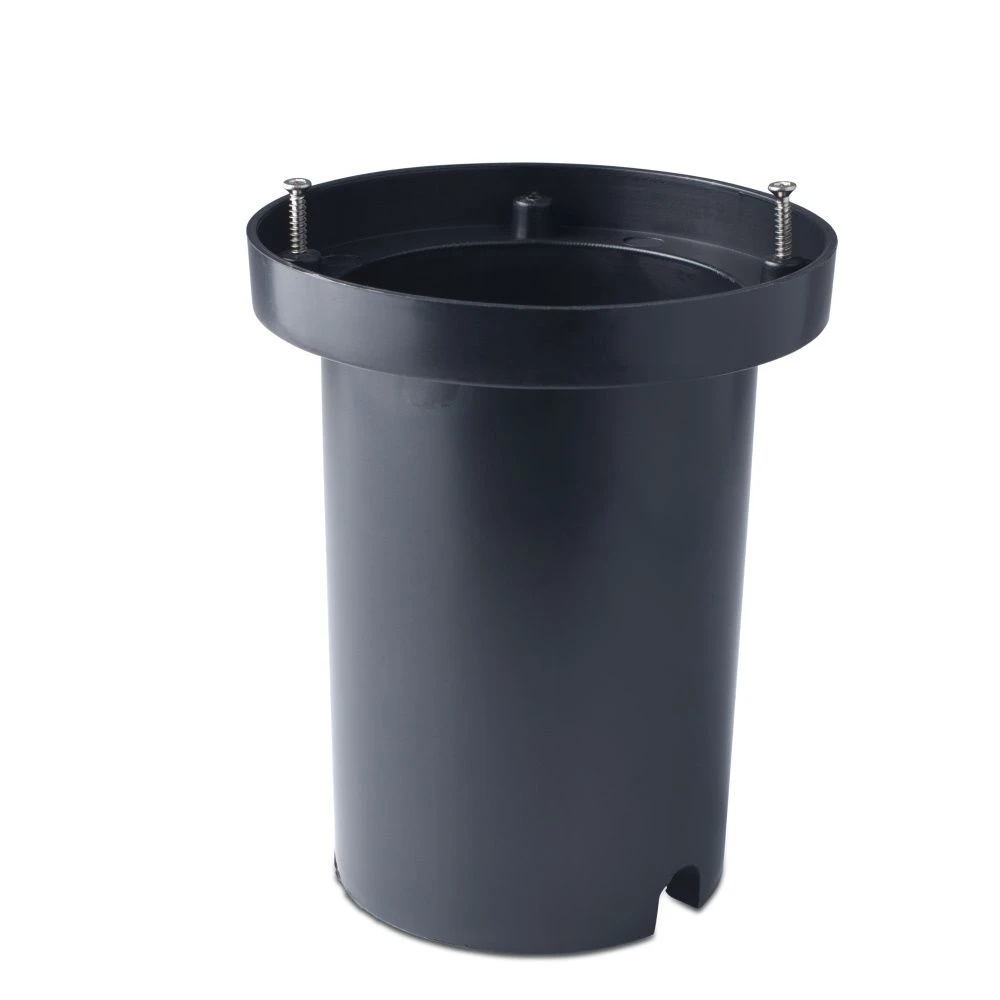

The installation sleeve is built into the floor/paving during construction or retrofitted into a hole cut with a coring bit:

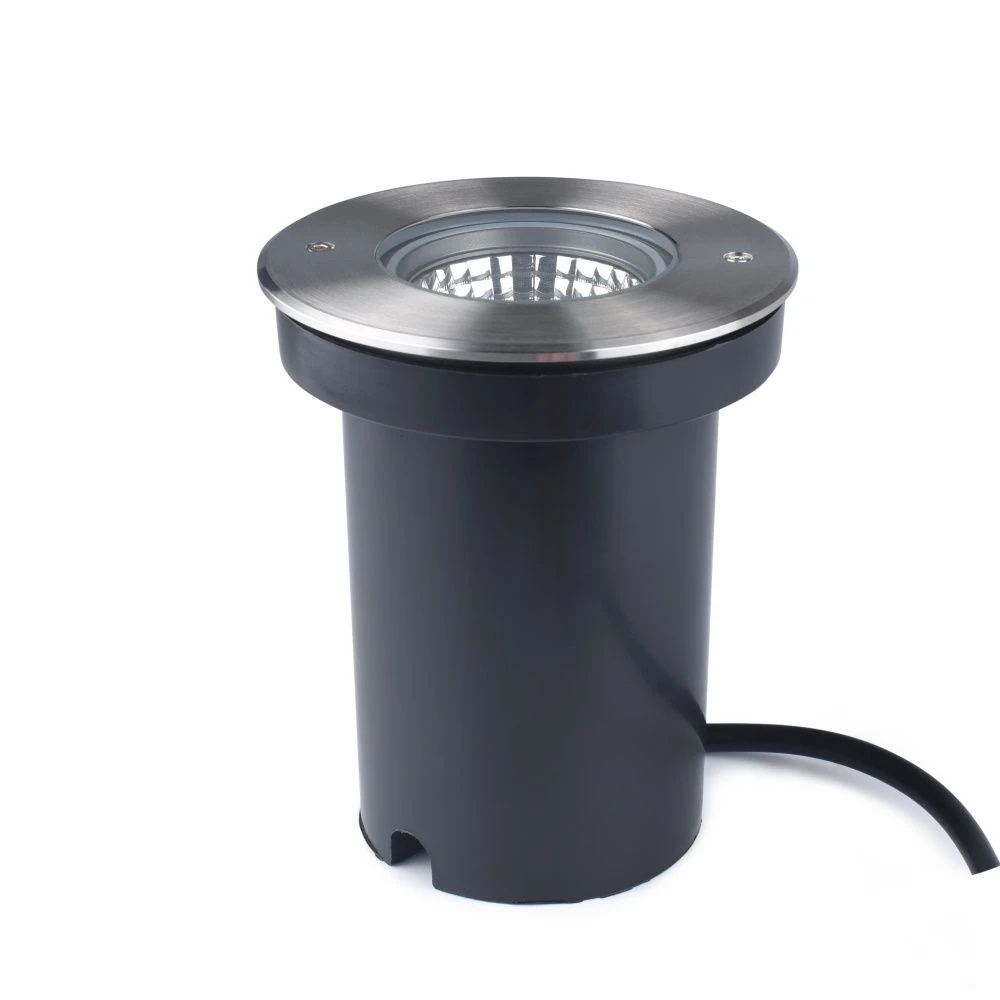

the light pushes into the tube, where it is held firmly in place by an o-ring, leaving a front plate with no visible fixing
screws.

It has a 3 year warranty however the exclusions include damage by machinery, animals or the use of incorrect cleaning materials.
Damage due to incorrect installation practices. Responsibility for 3rd party cost: indirect or consequential loss.

24v DC – Installation – See Instructions & Data Sheets Tab

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement. These 24v DC fittings must use a 24v DC transformer.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
