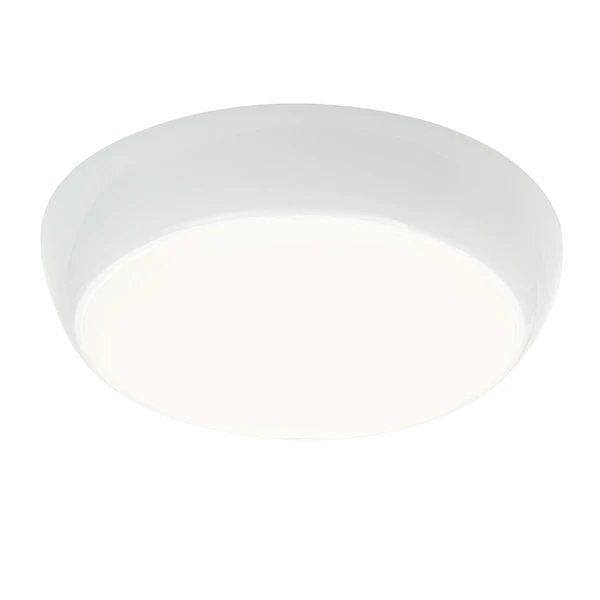

Vigor Microwave Sensor – Outdoor Security Wall Light – 240v White Polycarbonate LED 16w 4200k IP65

Vigor LED Microwave – 240v White Polycarbonate 16w 4200k 1200 Lumens IP65 Security Light

The high quality Vigor internal or external bulkhead is built to last, manufactured from a strong thermoplastic with a shatterproof
polycarbonate diffuser making it suitable for both commercial and domestic applications. Featuring a twist and lock design,
these fittings are quick and easy to install. Avaialable with Maintained Emergency battery using code number 50952.

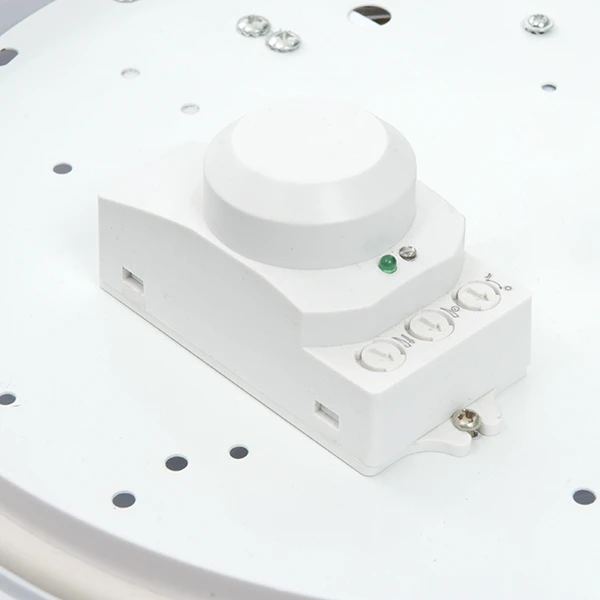

A nicrowave sensor works in the same way as PIR’s meaning they will illuminate by movement and these can be used in daylight conditions too.  See the attached instructions for more information.

• Suitable for indoor or outdoor use
• Complete with built in Microwave sensor
• 360 /160 detection angle, 0 to 50lux sensitivity, 10% to 100% adjustable range with a 5 sec – 15 min timer function
• Gloss white & opal pc
• Constructed from polycarbonate
• Complete with LED driver
• 16W LED module (SMD 5630) Cool White (Included)
• K: 4200 Lm: 1200 Lm/W: 75
• Can be wall mounted
• Proj: 110mm Dia: 325mm
• Class 1
• 2+3YR Extended Warranty
• Weight: 1.4 Kg
• Complete with LED driver
• 16W LED module (SMD 5630) Cool White (Included)
• K: 4200 Lm: 1200 Lm/W: 75
• Can be wall mounted
• Proj: 110mm Dia: 325mm
• Class 1
• 2+3YR Extended Warranty
• Weight: 1.4 Kg

    Installation 220 – 240v – See Instructions & Data Sheets Tab

Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting,
carefully note the position of each set of wires. Note that the switch is turned off before installation. Undo screws
and set aside. Hold the product in place and mark the position of the holes. Ensure the wall is capable of holding
the weight of the product, or if fitting into a ceiling, ensure there is a joist at the point of fixing to support
the weight of the product.

Take care to avoid damaging any concealed wiring and pipes. The correct fixings should be used for brick, cavity walls
or plasterboard. Fix into position. Piece the hole in the grommet, and pull the cable through. Wire as details in
the download.

Ensure that the screws and cable entry points are sealed to maintain the IP rating of the product. Refit the shade ensuring
the seals are correctly located. Replace fuse or circuit breaker and switch on. Your light is now ready for use.
