ViaMAX Dominium Solar LED Street Light – 6000K Cool White 3000 Lumens IP65 – 76mm Spigot

The Dominium is a high output, solar-powered street light designed with professionals in mind. The latest energy-saving LED technology ensures the Dominium lasts up to 5 nights (from full charge), reaching brightness levels of up to 3000lms. Install in Private roads, Golf Courses, Hotels, Holiday parks or Commercial premises. For use as a solar street light, install at a height of 3-5m. Alternatively, the head can be tilted downwards over a road sign to create a solar sign light.  Collar size 60mm.

Pole Mount Depth: 95-100mm.

Installation Height: 3-5m, Installation spacing:  10-15m appox.

The LED is a Bridgelux 5050 LED Chip with an expected life up to 50,000 hours. Light Control Voltage is DC5V.

Materials: Die Cast Aluminium, Glass Solar Panel.

Working time is up to 5 nights..

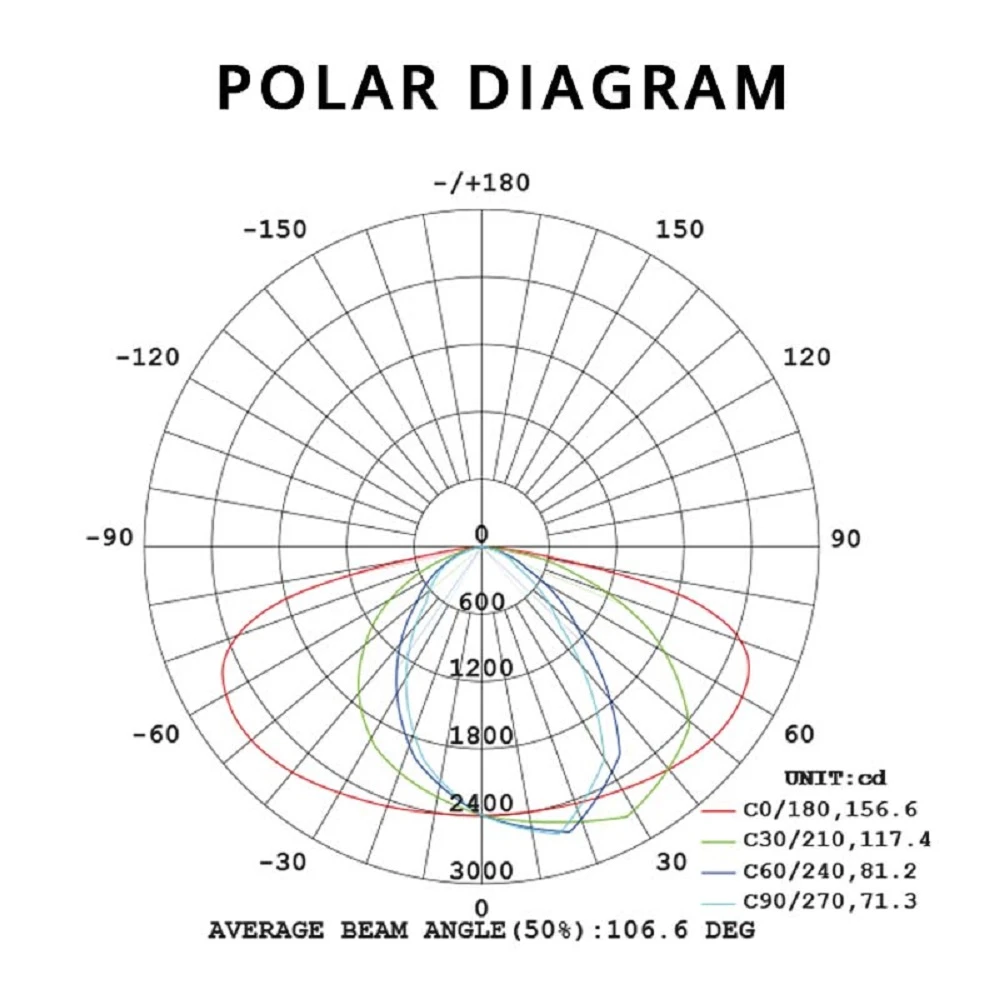

Light distribution – Beam Angle Type ll 150 x 70 view angle.

:Lux level is 47 based on 3m height.

Solar Panel is Monocrystalline Silicon 50w DC 18v, With expected life of 20 – 25 years. Adjustable (Horizontal :360 degrees, Vertical:180 degrees.

The Battery is a LiFePO4, 153.6WH/DC12.8V 12AH.. Expected life 8 years/over 2000 deep cycles.

Charging Time is 5-7 hours in full sunshine.

Discharge time : up to 12 hours, Power Saving Mode: 12 hours per night (4-5 rainy days).

Working Modes: Light Control 2 hours at 100%, 2 hours at 70% and 8 hours at 20%.

Time Control: 1 hour 50%,, 4 hours 100%, 3 hours 50% and 4 hours 25%.

Super brightness 6 hours 100% and 6 hours 50%.

Microwave Sensor: 100% when movement detected. 30% resting brightness.

Time & Microwave Control: 2 hours 100%, 2 hours 70%, 2 hours 50%, Then Sensor Mode until dawn 50% when movement detected 20% resting brightness.

Remote Control : Infar Red Range 6-8m.  Working Temperature-25c <65c (Charging), -20c < 75c (Discharge), -20 < 45c (Storage).

Certification: CE (EN 55015:2013/A1:2015/EN61547:2009, RoHS, FCC Photometric Data Available.

If installing in public areas, the microwave motion sensor allows for use as a solar security light. With the motion sensor mode activated via the remote, the LEDs will illuminate brighter once movement is detected. Microwave sensors utilise the latest motion sensor technology, detecting a full 360 degrees compared to 90 degrees from a PIR sensor. A faster response time and detection through objects such as walls are also key benefits of this type of sensor.

The die-cast aluminium head protects the fitting from accidental damage whilst maintaining a lightweight and compact design. Both the monocrystalline solar panel and LiFePO4 battery are highly efficient, reaching a full charge in up to 7 hours of UK sunlight. Once fully charged, the Dominium will last up to 5 nights.

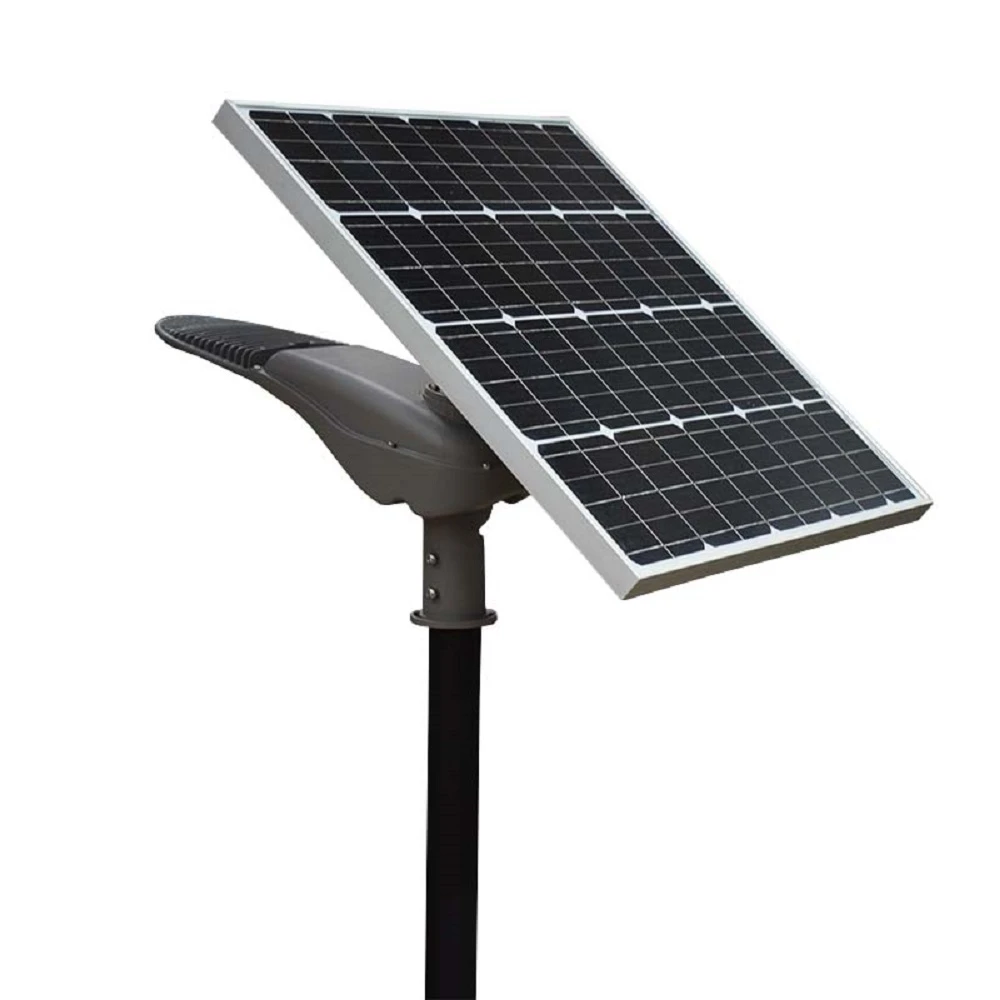

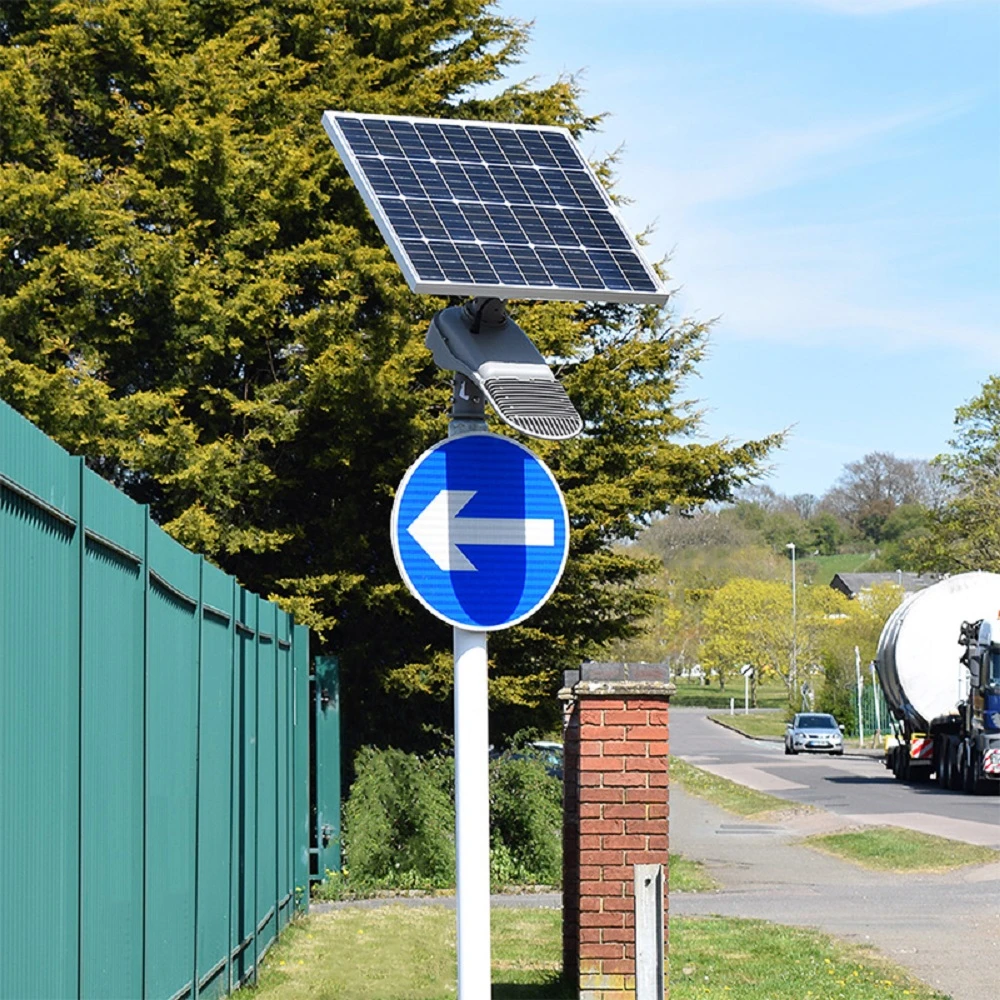

The lamp head and solar panel are fully adjustable. Adjust the angle of the lamp head and solar panel by loosening a single Allen screw. Mount onto vertical or horizontal 60mm poles (3m 60mm surface-mount pole available from Lumena). Alternatively, the Dominium can be mounted onto 76mm poles with a 60-76mm adaptor (available from Lumena). For lighting street signs, angle the head downwards approx 30 degrees to optimise sign illumination.

Choose between 6 intelligent light modes to best suit your lighting needs via the remote control:

Light Modes:

Light Control: 100% brightness for 2 hours, 70% brightness for 2 hours, 20% brightness for 8 hours

Timing Control: 50% brightness for 1 hour, 100% brightness for 4 hours, 50% brightness for 3 hours, 25% brightness for 4 hours

Super Brightness: Light remains at 100% brightness for 6 hours, then reduces to 50% brightness for the remaining 6 hours

Microwave Control: When the motion sensor detects movement, brightness increases to 100%, else emits light at 30% brightness

Timing + Microwave: 100% brightness for 2 hours, 70% brightness for 2 hours, 50% brightness for 2 hours

ON: Stays on for 12 hours (in darkness) if no mode selected
