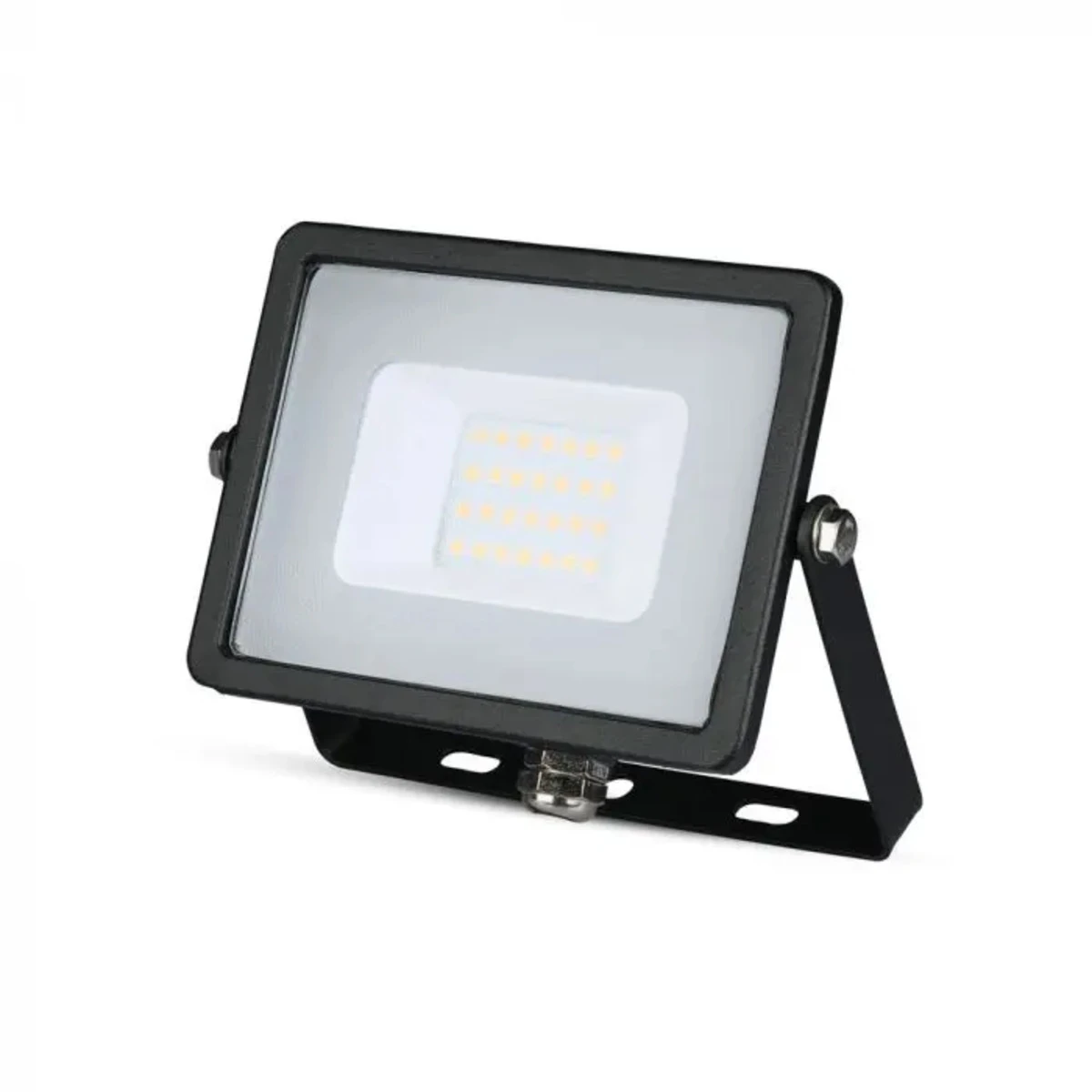

V-Tac Slimline LED Floodlight 20w 220- 240v 3000k Warm White Black Frame IP65 1600 Lumens

20W LED Floodlight SMD Samsung Chip

V-Tac’s all-new SMD slim floodlight is manufactured with cutting-edge components to deliver exceptional performance. Together with its new sleek design, its durability and water resistance, the 20W Floodlight presents as extremely sturdy and perfect for outdoor applications. As with all LED lights, floodlight brightness is most accurately measured in Lumens, rather than Watts. For instance, this 20w slimline floodlight will give out the same brightness (1600 lumens) as a 200W halogen floodlight while consuming far less energy. Furthermore, with 30,000 hours/9 years (8-hr usage a day) of average lamp life, this 20W façade light presents the best alternative for traditional halogen floodlights.

Product benefits

• Long Term Solution – 20W Floodlight features 30,000 hours life span.

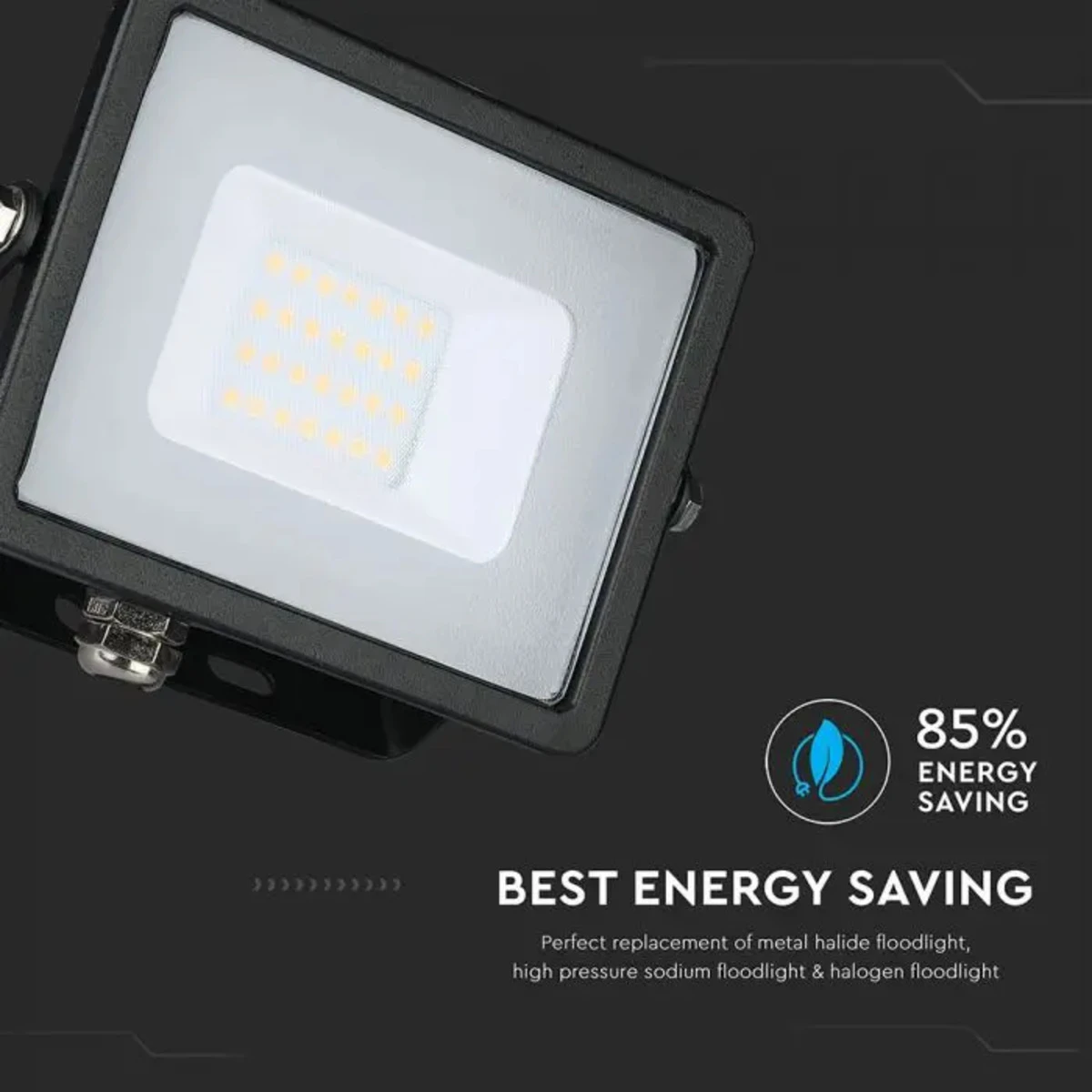

• Energy Efficiency – SMD slim floodlight is supplied by V- Tac who uses the best of Samsung LED chips. Therefore you will save up to 80% on your electricity cost!
• Wide Beam Angle– The V-Tac’s 20w slimline floodlight features a 100° beam angle. Therefore, it provides excellent lighting conditions and high uniformity across their coverage.

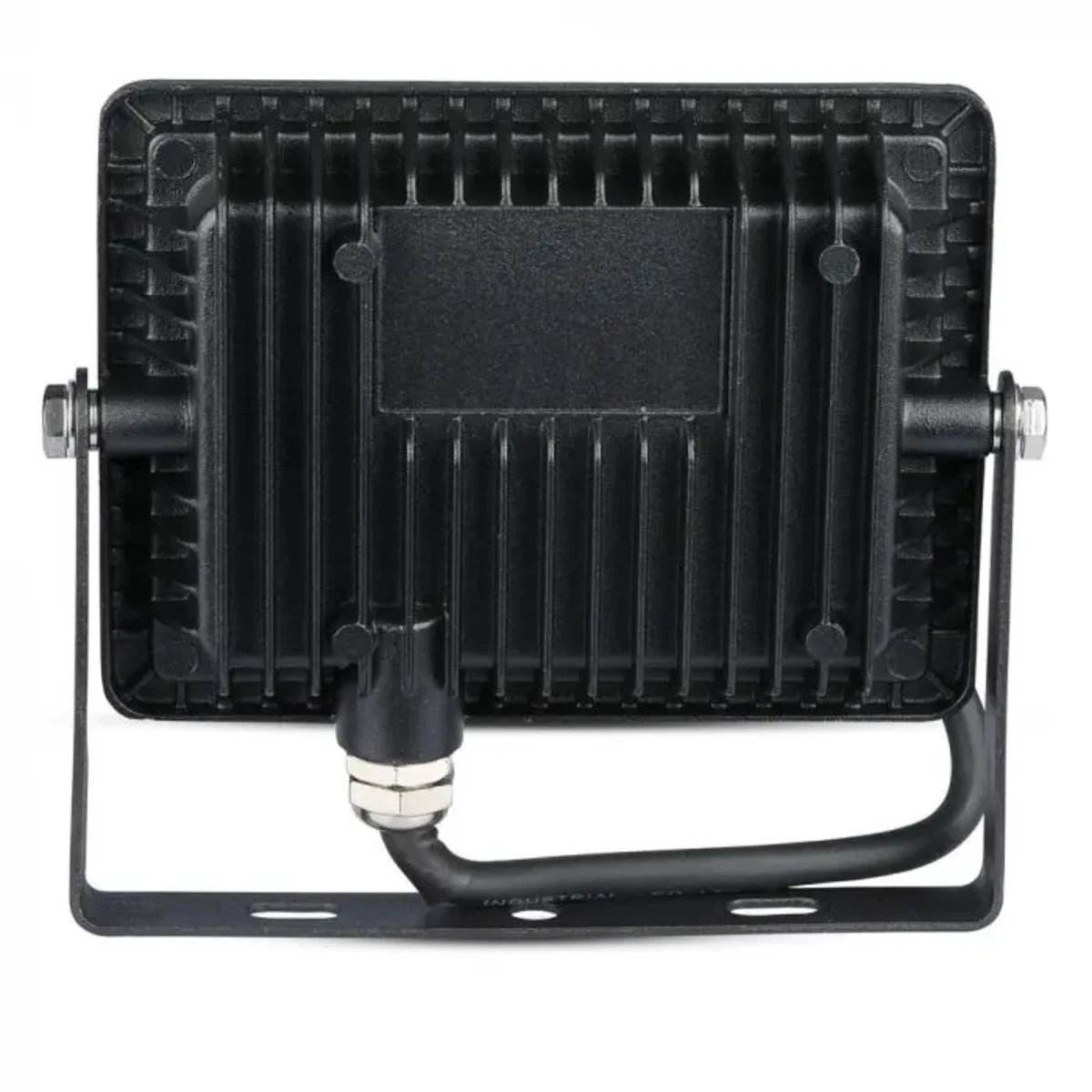

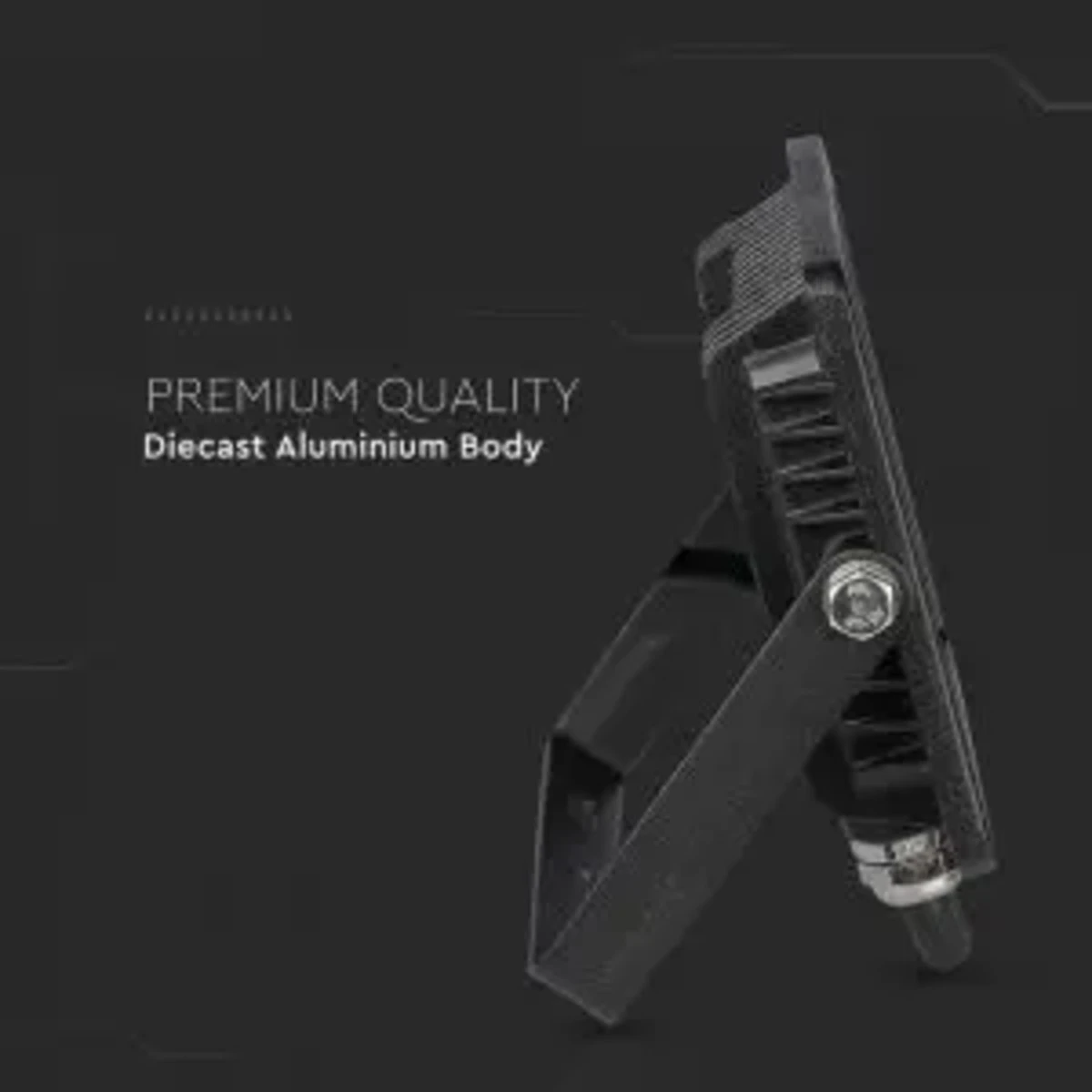

• Durability –  20W façade light is designed with Premium Quality Aluminium body that is Corrosion Resistant.

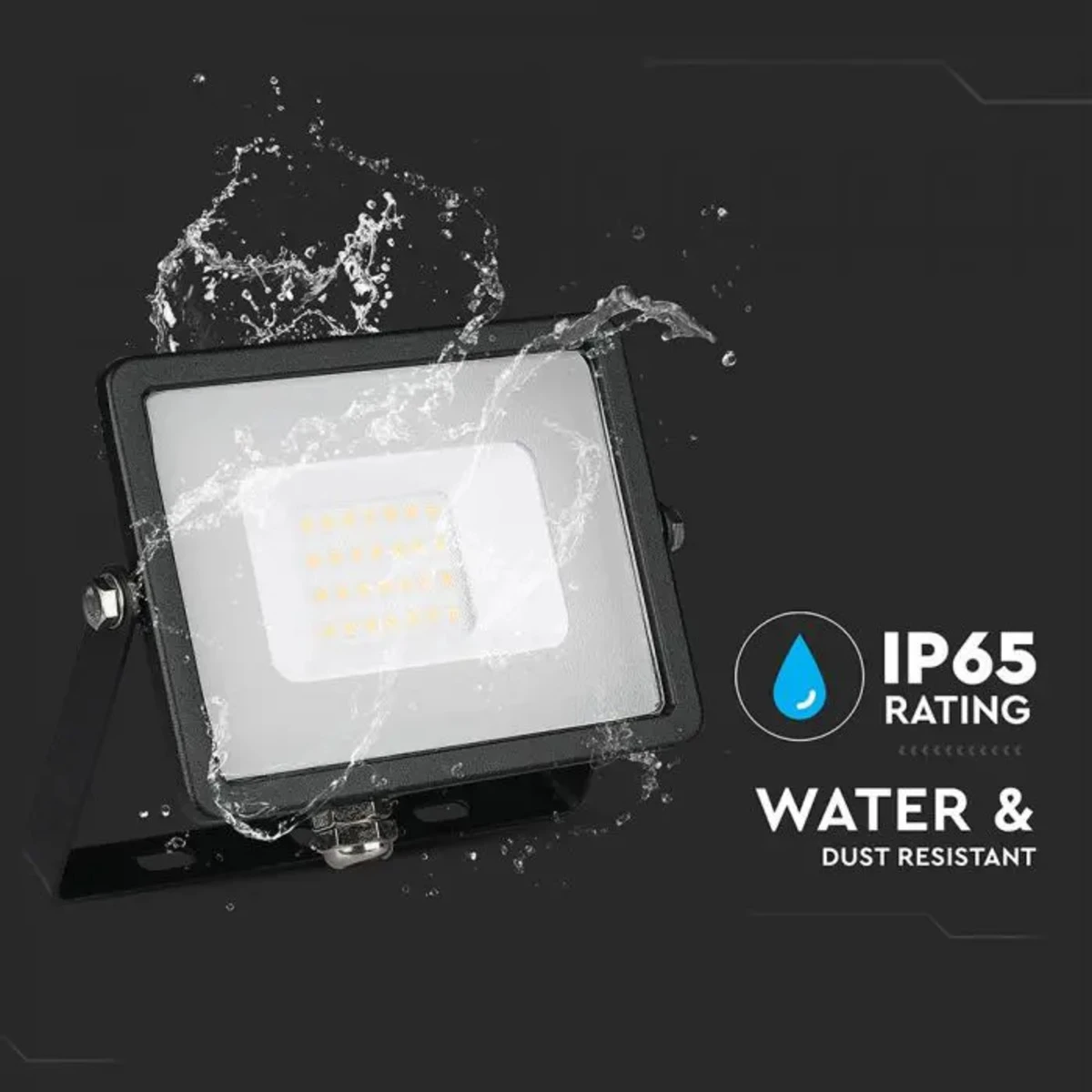

• Weatherproof body – V-Tac SMD slim floodlight is covered with Fascia glass and sealed with silicone rubber ensuring superior waterproof/airtight performance.

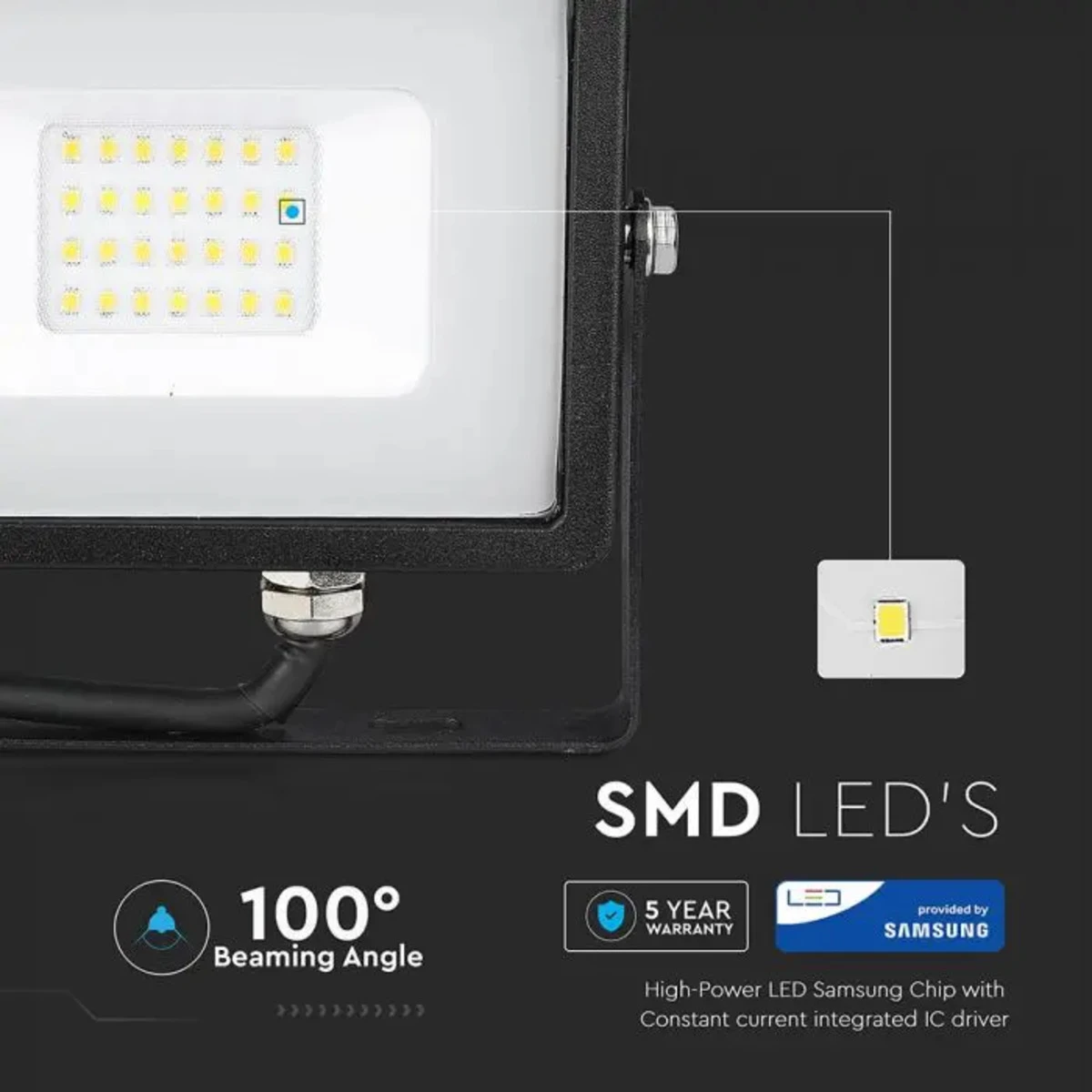

• Highest Quality Components – The V-Tac Floodlights combine High Power Samsung LED chips and Built-in constant current driver.
• Easy Installation – These Floodlights are designed with Built-in Power supply, therefore there is no need for external ballast.
• 5 Years Warranty– V-Tac slim floodlight 20W comes with 5 years protection cover. However, recommended maximum daily use is 10-12 hour and usage beyond this would void the warranty.

Applications

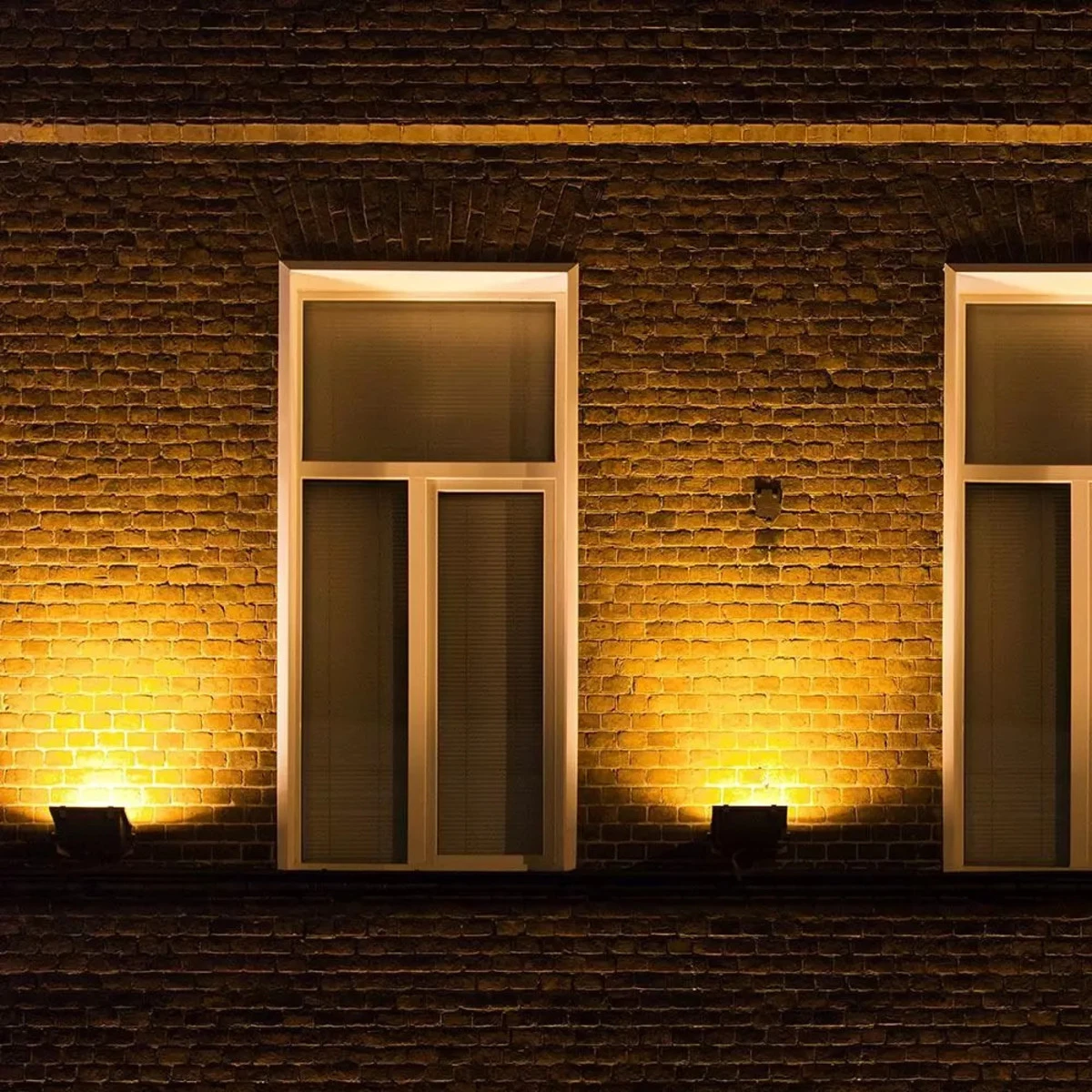

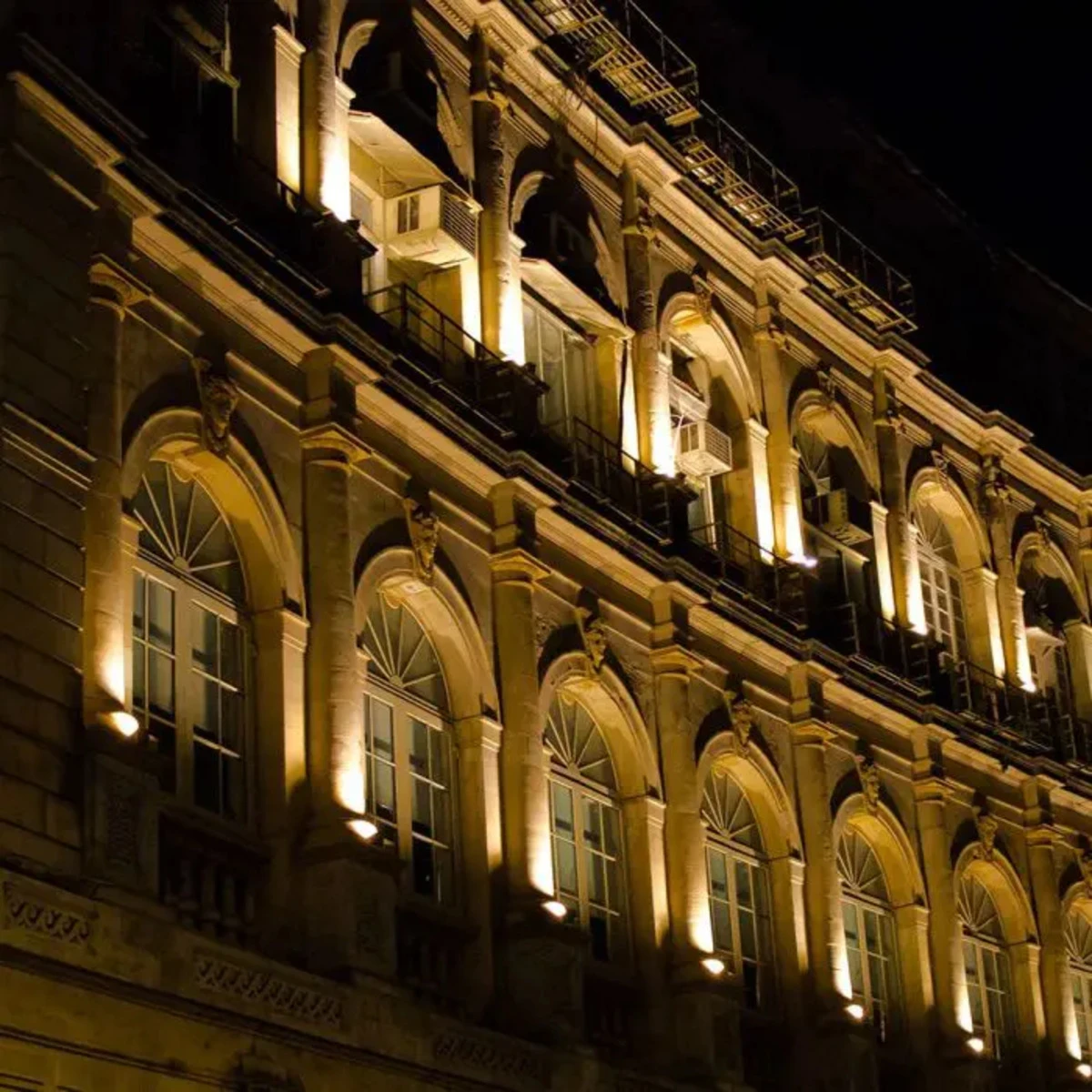

V-Tac Floodlights are widely used for security lighting purpose for residential, commercial or industrial areas. Therefore, our floodlights will make a perfect choice for Façade lighting, Lobby area, Garages, Walkways, Parking Lots etc.

20W Floodlight Installation guide (now easier to install with just basic knowledge):

V-Tac’s floodlights are now easier to install with just basic knowledge. For best results, please follow the steps below:

1. Choose your location to fix the sensor floodlight.

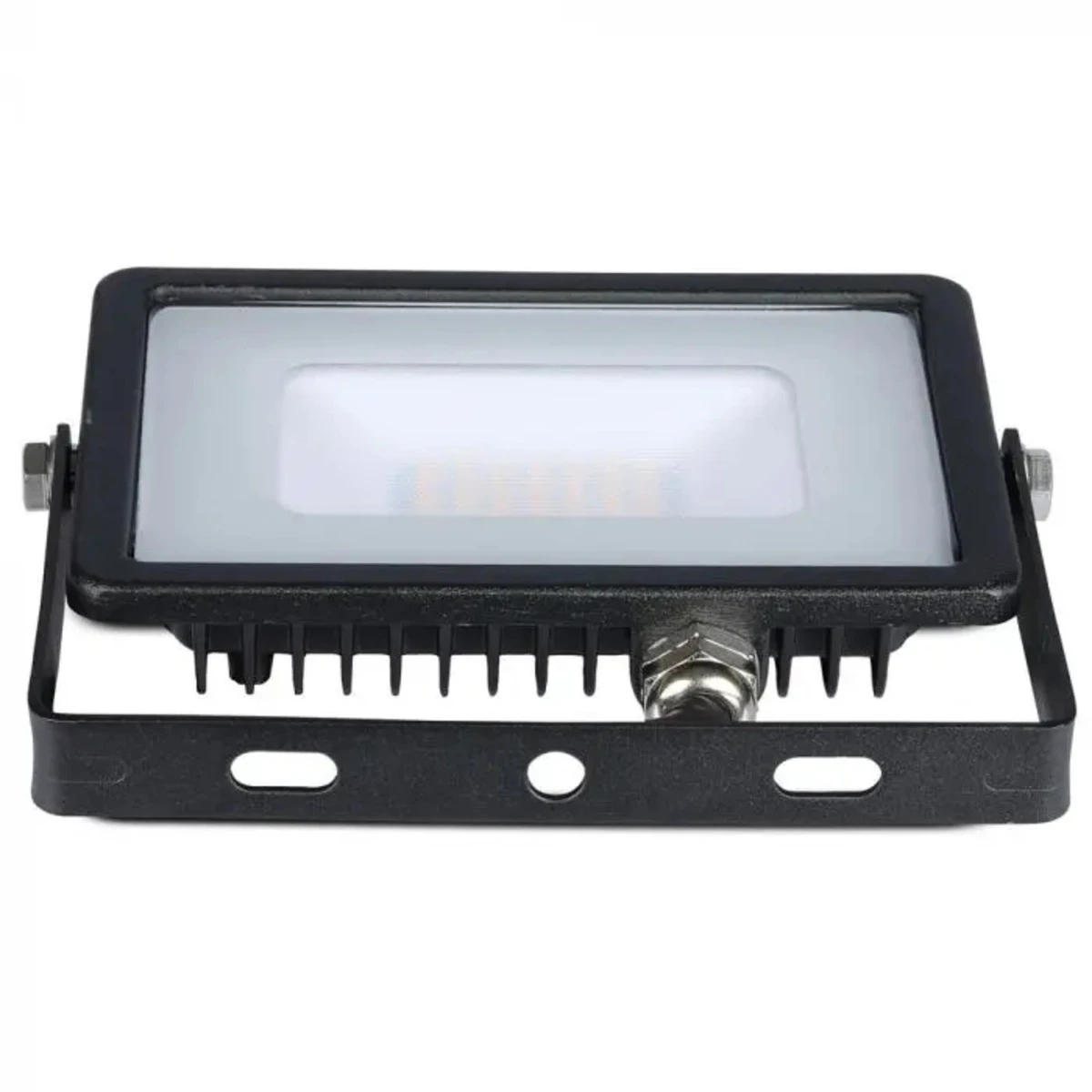

2. Use the 20W façade light bracket to mark the position of the fixing holes.
3. Drill the fixing holes, and fix the floodlight into position.
4. Connect the mains lead from the 20W Floodlight with sensor to an IP68 connection boxand ensure that the correct polarities for Live, Earth and Neutral are observed i.e.
   • Connect the green/yellow earth wire to the earth terminal ‘E’.
   • Then, connect the brown live wire to the live terminal ‘L’.
   • Finally, connect the blue neutral wire to the neutral terminal ‘N’.
5. After wiring, check that there are no bare wires, all the wires have been correctly connected and that the cable restraint has been tightened.
6. Switch on the electricity to check that floodlight illuminates.
7. Finally, tighten the floodlight brackets and you are all set up!

V-Tac outdoor floodlights come in a variety of versions in terms of:

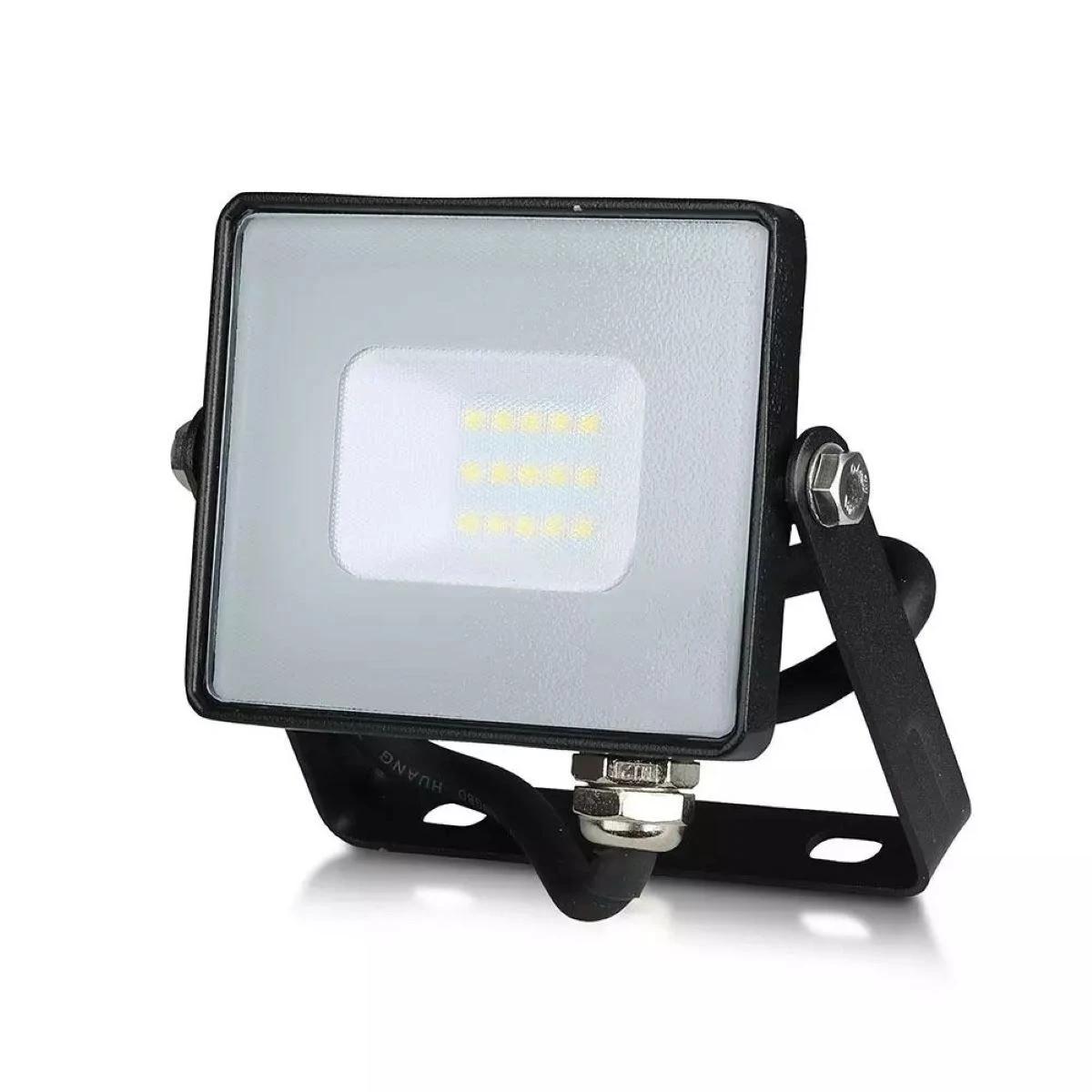

• Power Consumption – 10W, 20W, 30W, 50W, 100W, 150W, 200W, 300W, 400W, 500W and 1000W;
• Light Colour Temperature – Warm White, Day White and Cool White;
• Body Colour – White, Black and Grey Body colours available.

What really sets these floodlights apart from the rest of the competition is the look and modern design. The aluminium alloy construction is slim instead of bulky, angular and attractive instead of ugly, making all the expectations you would normally have of how a floodlight should look.

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
