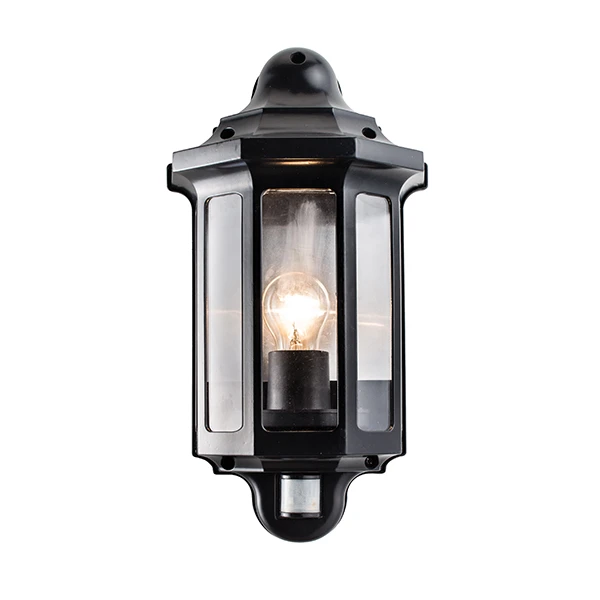

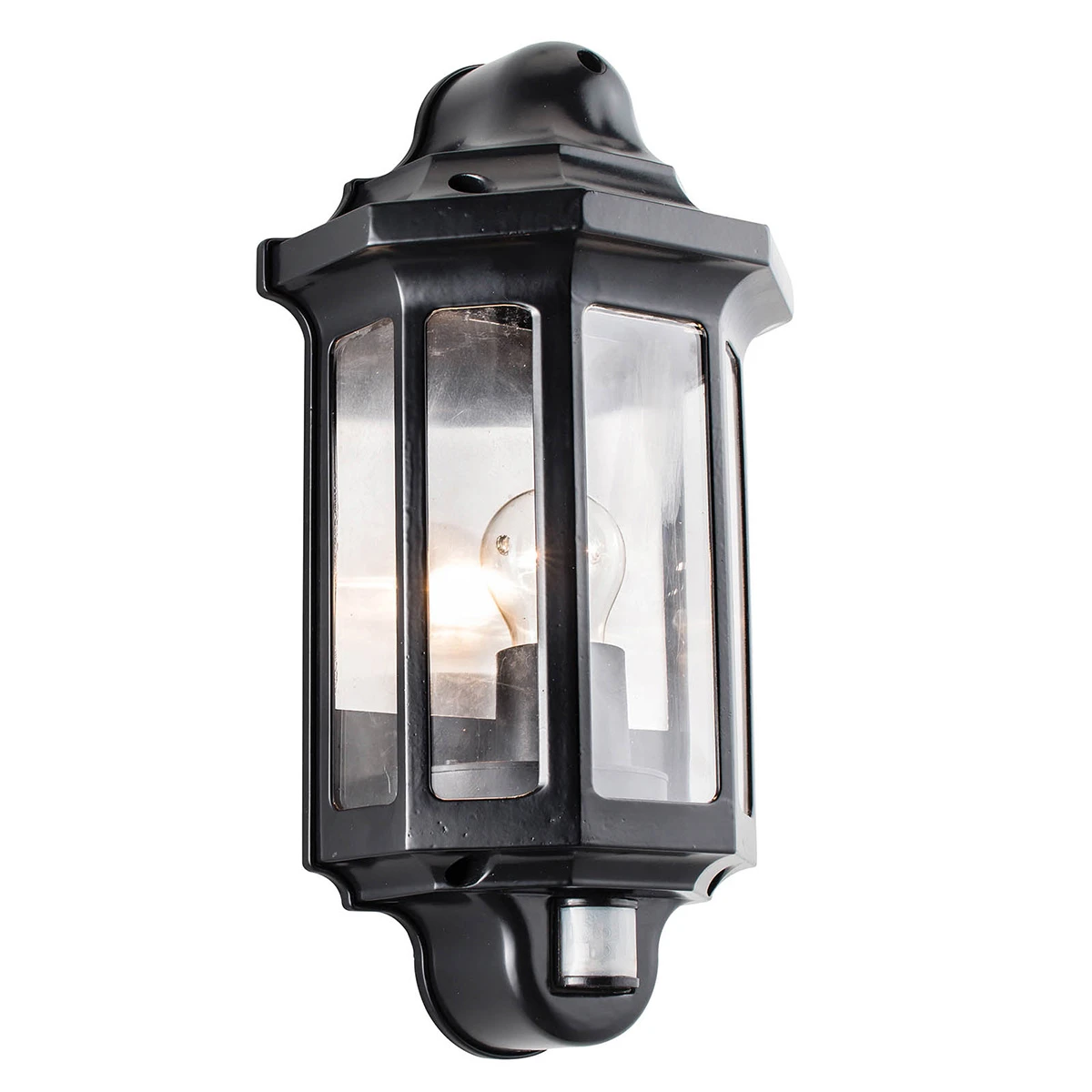

Traditional PIR Half Lantern 240v – Satin Black Polycarbonate E27 IP44 Security Wall Light With PIR Sensor
A traditional exterior wall lantern in a satin black finish with PIR sensor technology, meaning it can be activated
by movement. Designed to be practical and aesthetically pleasing, it also aids security and is perfect for lighting doorways
and paths. IP44 rated making it suitable for outdoor use.
- Complete with built in PIR
- 120° detection angle, 8m maximum range with a 5 sec – 8 min timer function
- Satin black & clear pc
- Constructed from die cast aluminium alloy & polycarbonate
- 60W E27 GLS (bulb not included) The Fitting in non dimmable but you can still use dimmable bulbs but not to dim them.
- IP44
- Proj: 126mm H: 400mm W: 215mm
- Class 1
- 2YR Warranty
- Weight: 1.5 Kg
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would
be 2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very
cold white spectrum.
Installation – See Download for pdf instructions
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting,
carefully note the position of each set of wires.
Undo the top & bottom screws and remove the front section.
Hold the rear plate in place and mark the position of the holes. Ensure that the product is level. Ensure the wall
is capable of holding the weight of the product.
Take care to avoid damaging any concealed wiring and pipes. The correct fixings should be used for brick, cavity walls or plasterboard.
Pull supply wires through rubber grommet on wall back
Fix the wall back to the wall using screws and plugs.
Slide the PIR out of the way, and undo the screw holding the plastic cover under the lamp holder to expose the lamp holder,
and set aside.
The unit must be installed in a vertical position, and fitted 1.8m – 2.5m above the ground.
The PIR sensor can be adjusted, allowing the detection distance to be altered to suit the location. The detection
angle is set at 120 degrees. The duration that the lamp
stays on can also be altered from 5 seconds – 5 minutes. Use a small screwdriver to adjust the ‘TIME’ and ‘SENS’ screws.
When adjusting the sensitivity (detection distance) in daylight it will be necessary to cover the sensor to simulate night
time.
