Titan 26 Black 240v – LED 26w 3000k 2272 Lumens 36 Degree Beam Angle Mains IP65 Spotlight

Titan26 LED Spotlight – 240v – 26w Warm White

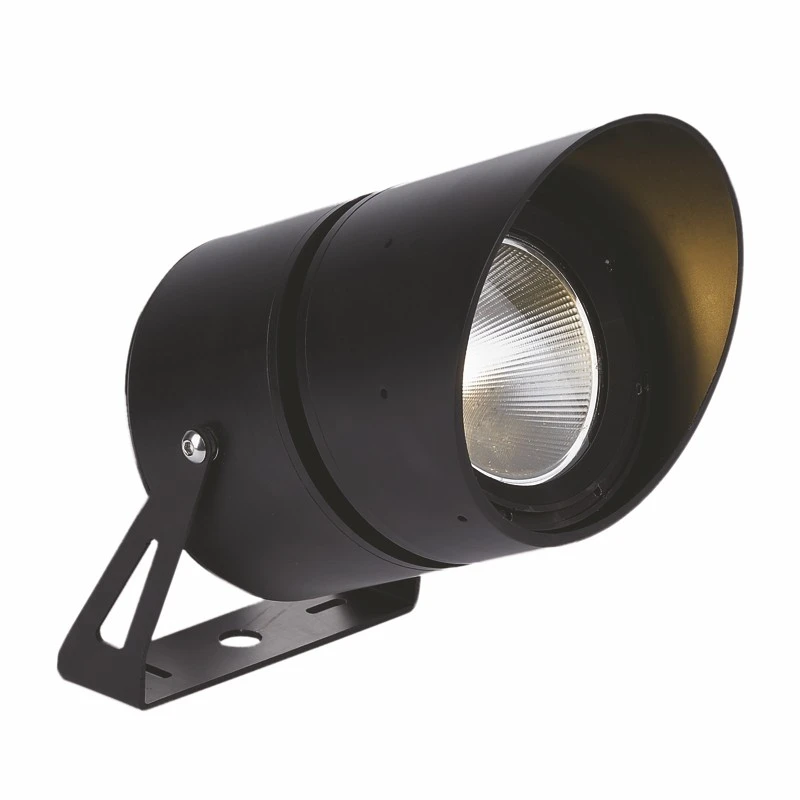

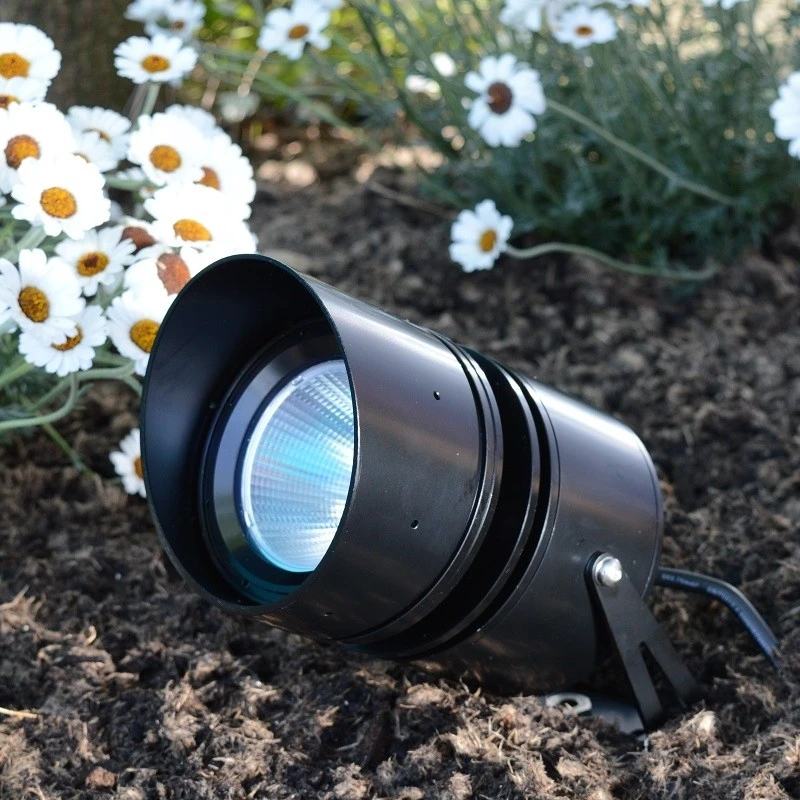

 Titan26 is a powerful, adjustable spike-mount 240v LED spotlight, ideal for up lighting trees. The high-efficiency
26w COB LED produces a focused beam of warm white light and the built in glare shield can be rotated and locked into position

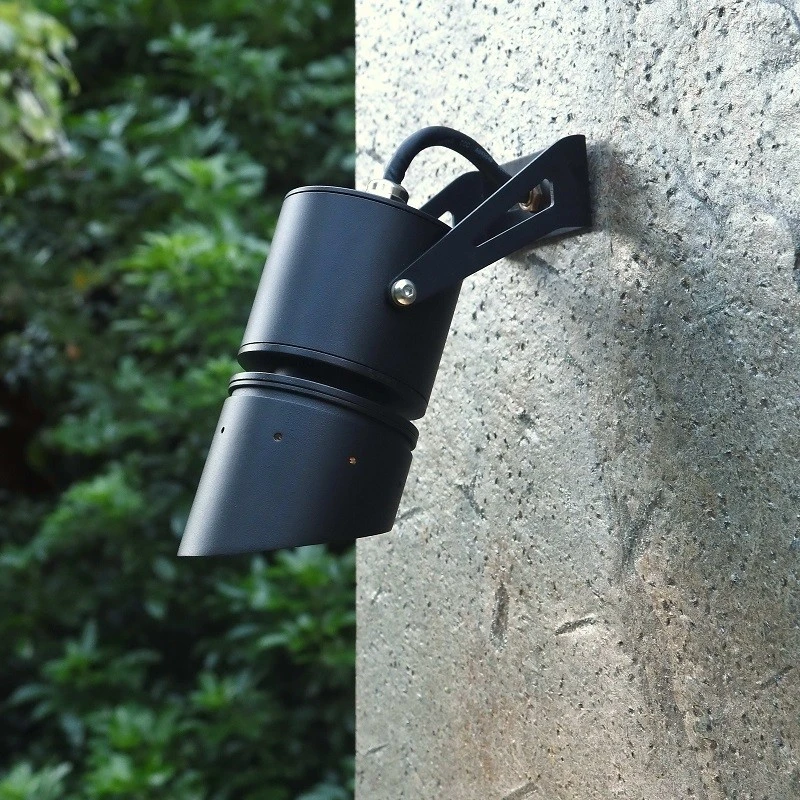

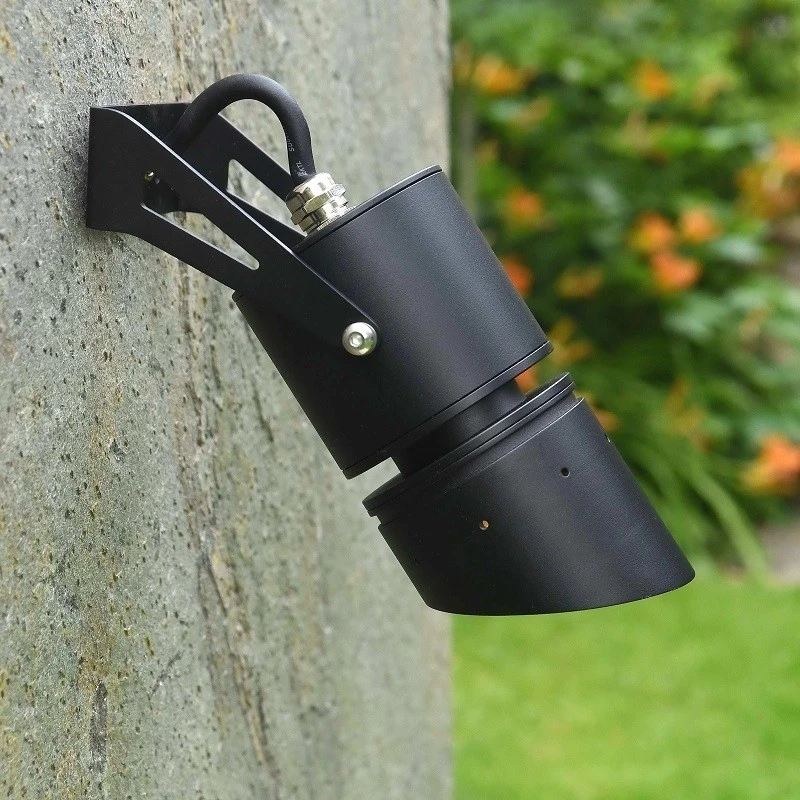

for optimum glare protection. It can also be used as a downlighter for wall or tree mounting. Built-in CREE LED 60,000 hours.

240v Spike spotlights need their own circuit from an existing or new fuse box. The box must be protected by a residual current
device (RCD) and controlled with a double-pole isolating switch. As a general rule of thumb, the armoured cables need
to be run underground- at least 450mm with weatherproof junction boxes. Use an electrician qualified under ‘Part P’ building
regulations to install any mains electricity outdoors who will certify the work properly.

IP rating	IP65
Construction	Black-powder coated aluminium body with glare shield and mounting spike
Input	240v
Light source	Integral Bridgelux 26w warm white 3000K COB LED Non dimmable
Light output	2272 lumens (Equivalent to 200w halogen lamp)
Beam angle	36 degrees
Installation	Stirrup bracket mounts on walls or the ground spike supplied. A 2m input cable is provided for connection to the mains supply via a separate weatherproof junction box or underground joint kit (not supplied). Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD.

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.

=”center”>

Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”>

All exterior lighting products on our website have an IP rating which is explained further in our Technical Help/Products section but
in simple terms the IP rating is appropriate to each light fitting and its intended application and is therefore fit
for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the installation
as the weakest point is always cable joints. All joints must be made 100% water tight and this can be done using IP68
inline connectors, waterproof junction boxes which are then filled with a resin or gel mix. All joints where possible
should be made above ground for easy access and reduced water ingress. When installing ground buried lights adequate
drainage systems should be put in place especially in clay based soil areas.
