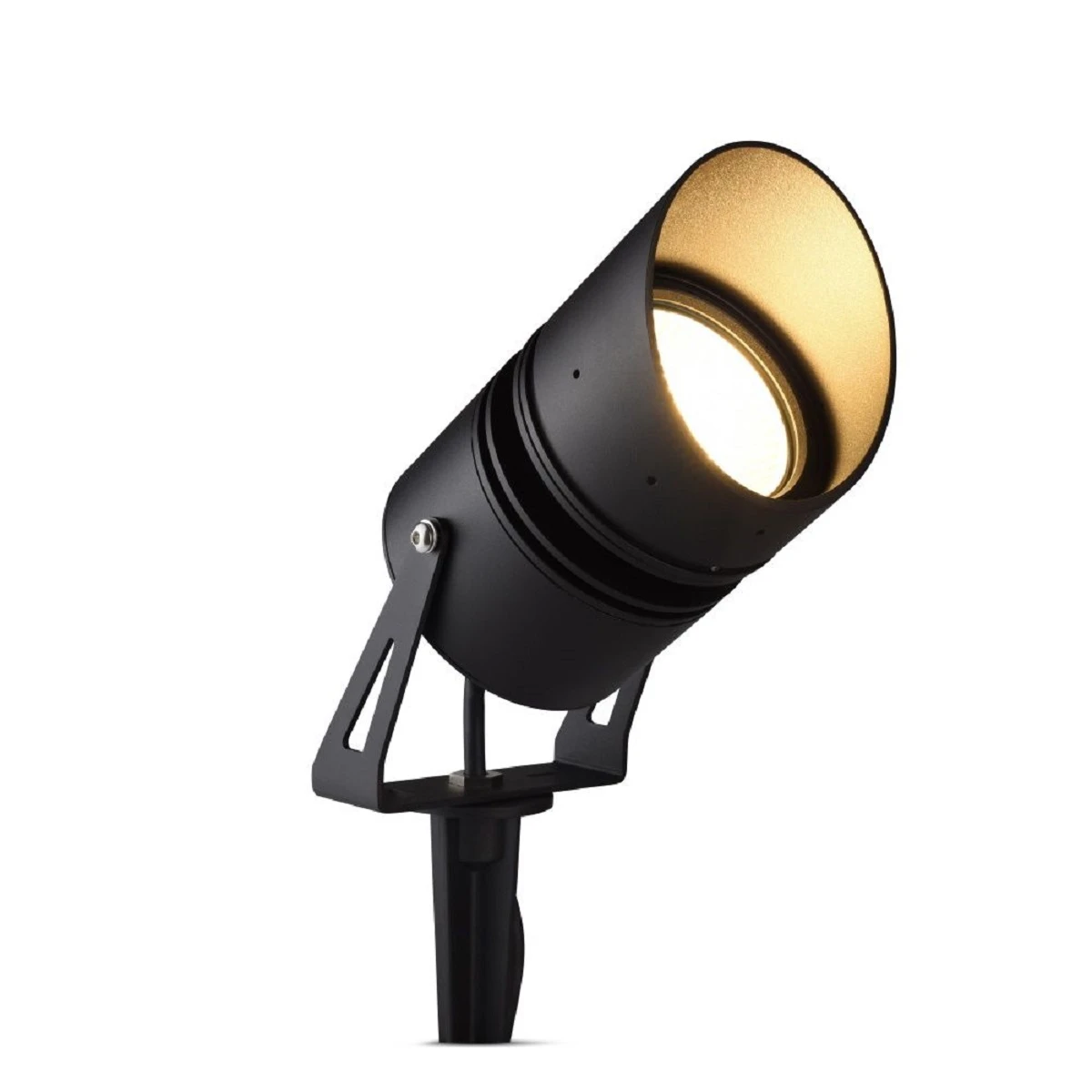

Titan 15 – 240v 15W IP65 3000K Black 15 Degree Spike Light

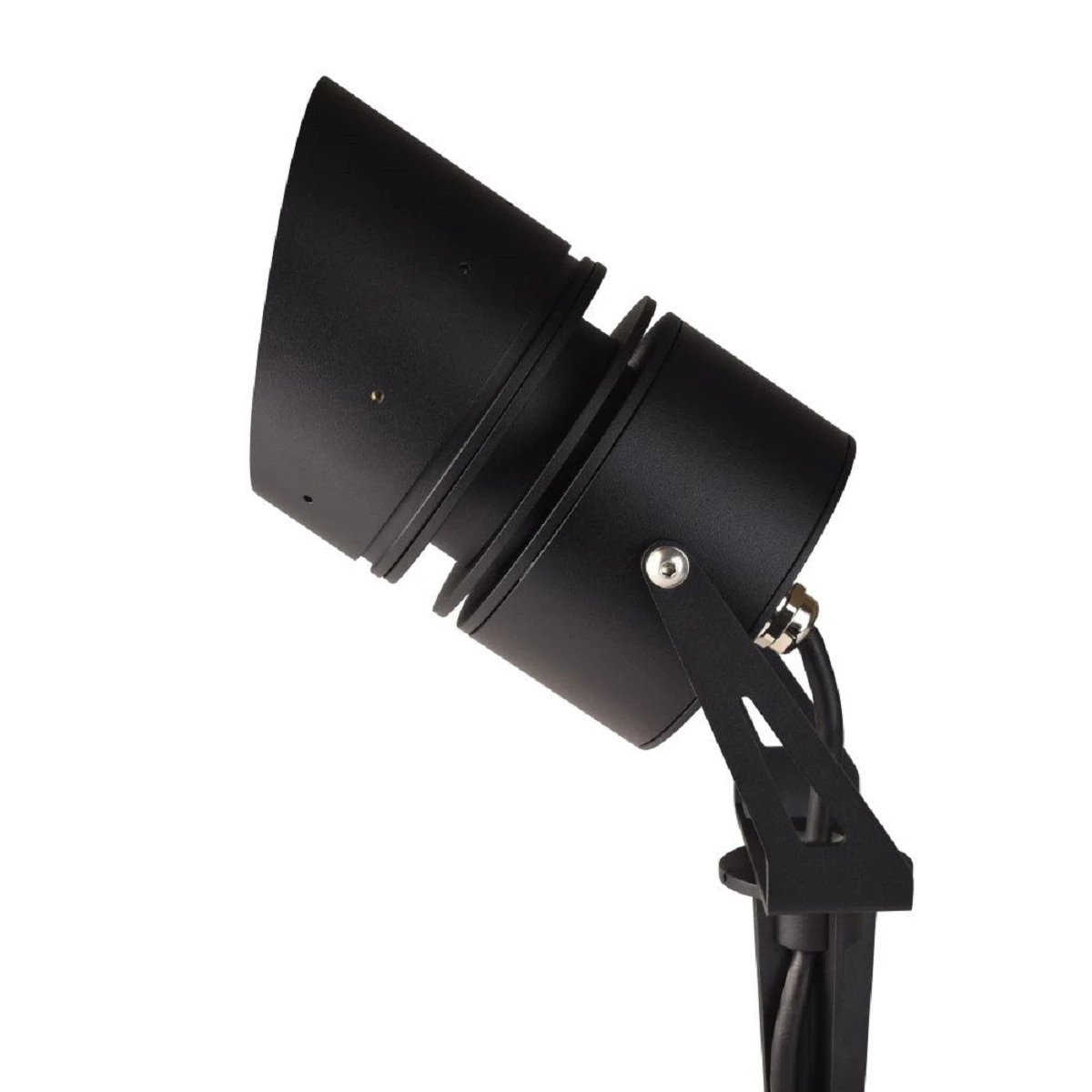

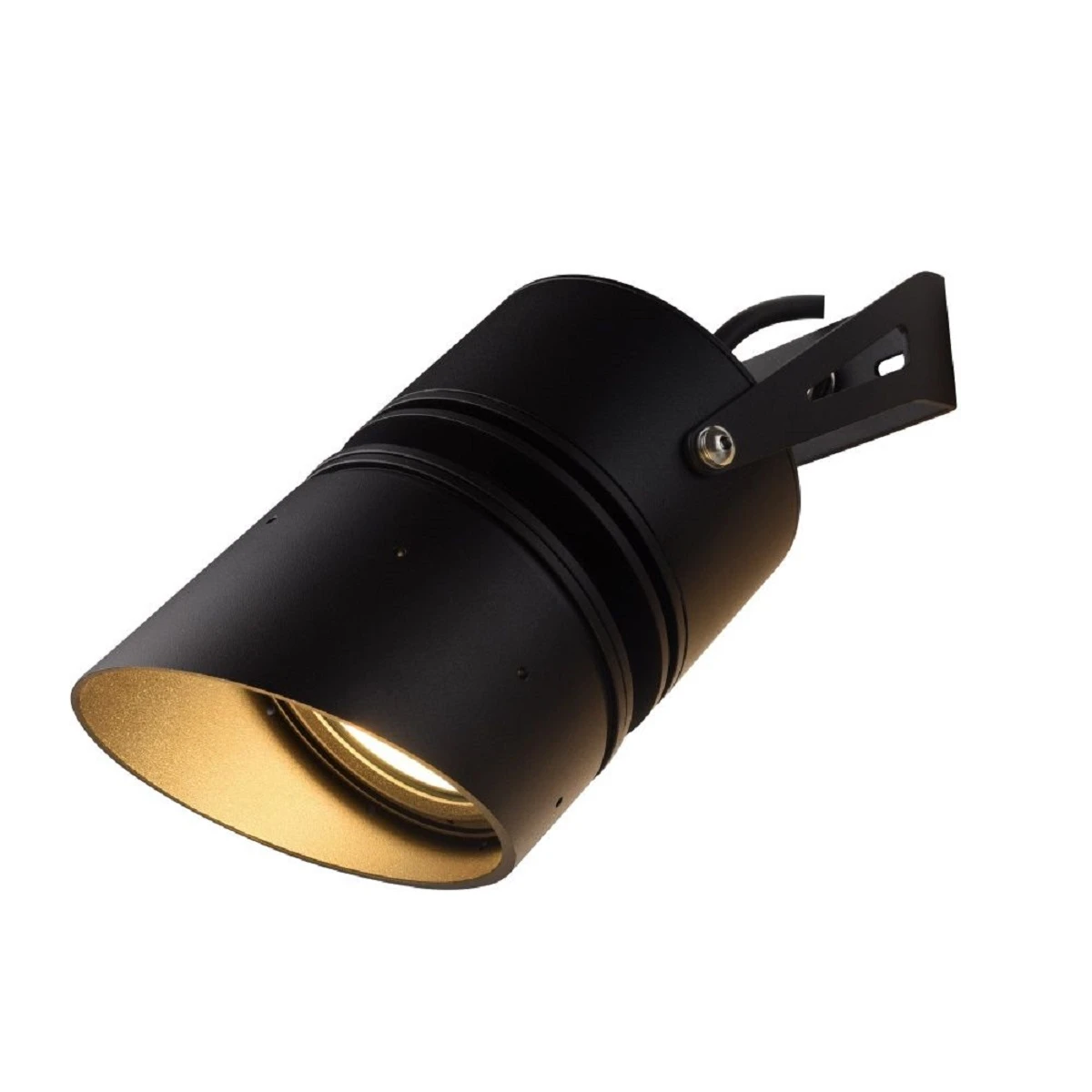

The Titan15 is an adjustable spike-mount 240v LED spotlight with an aluminium body and glare shield powder-coated in black.

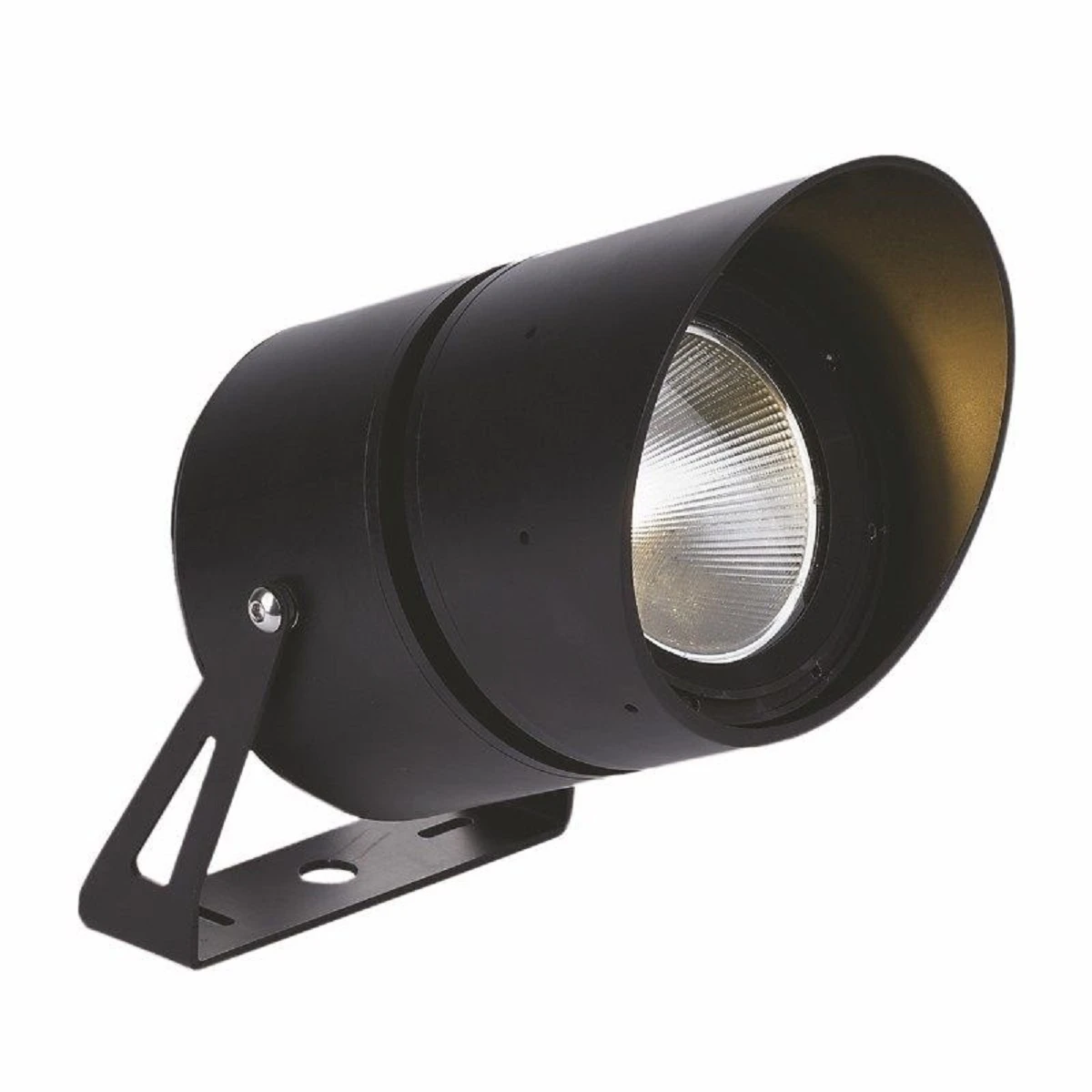

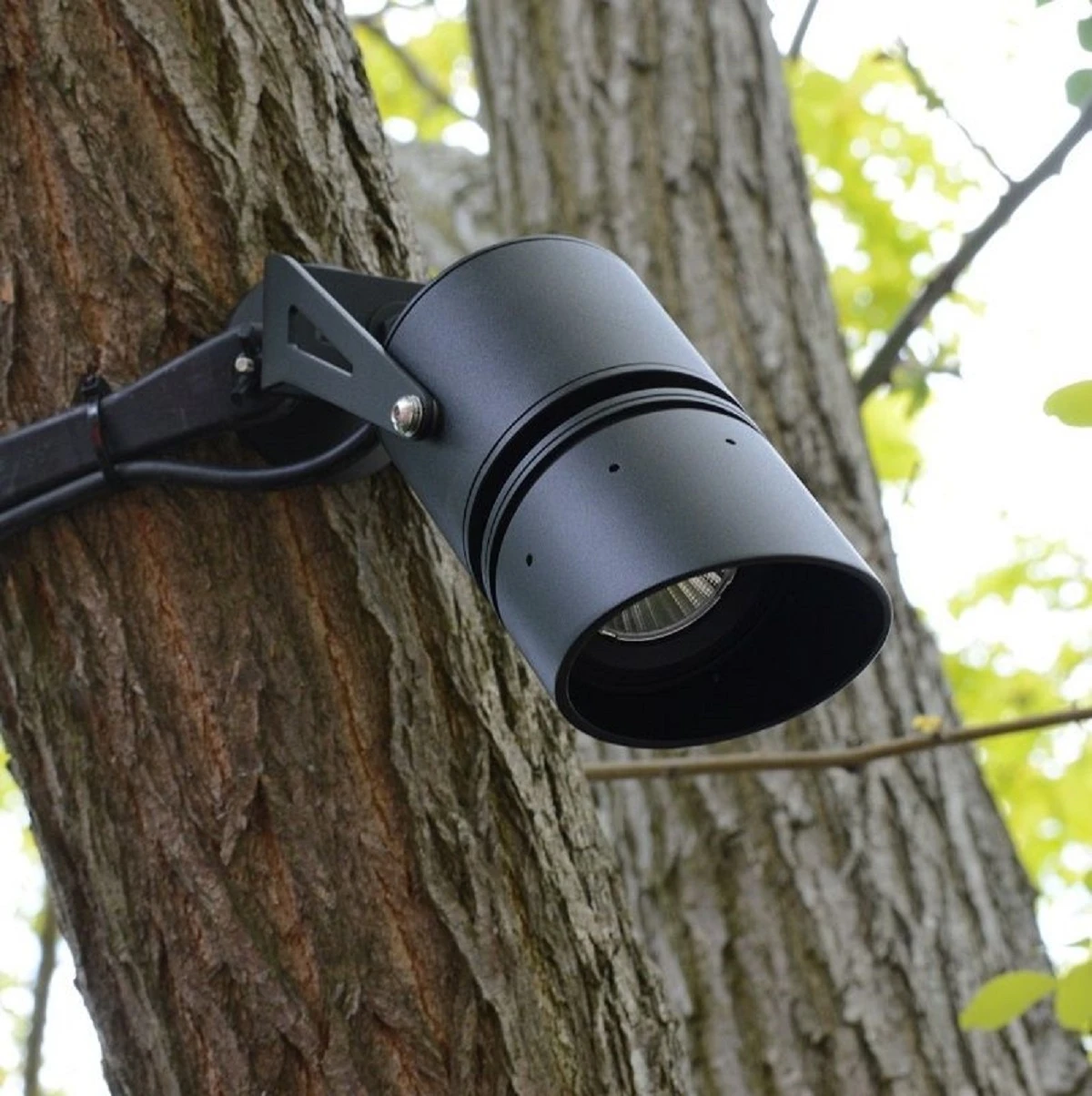

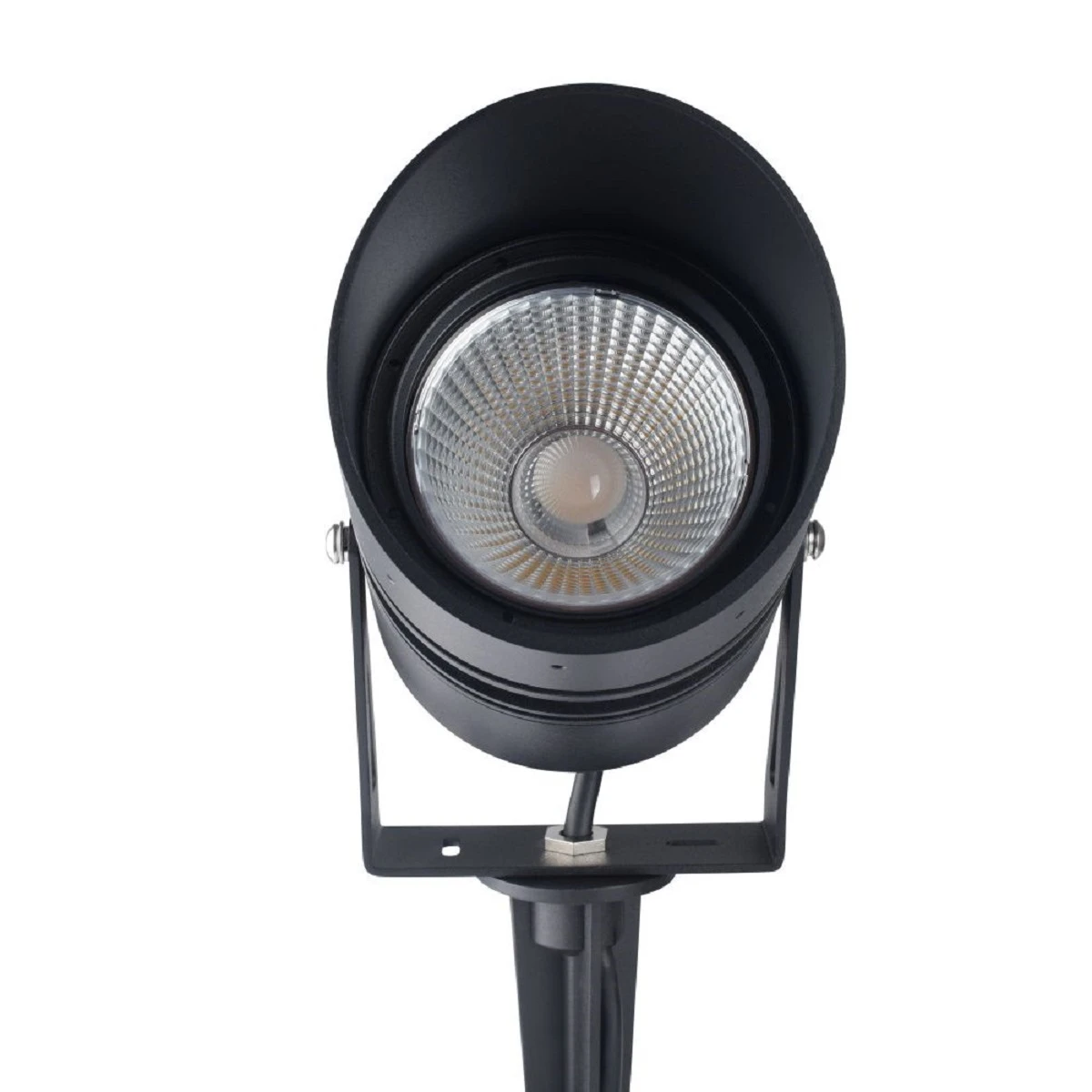

It has a high-efficiency COB led in a focused 36 degree beam for up-lighting trees and focal points. Built-in CREE LED 60,000 hours.

Also available with a 36 degree beam angle using code E9815WW36

240v Spike spotlights need their own circuit from an existing or new fuse box.

The box must be protected by a residual current device (RCD) and controlled with a double-pole isolating switch.

As a general rule of thumb, the armoured cables need to be run underground- at least 450mm with weatherproof junction boxes.

Use an electrician qualified under ‘Part P’ building regulations to install any mains electricity outdoors who will certify the work properly.

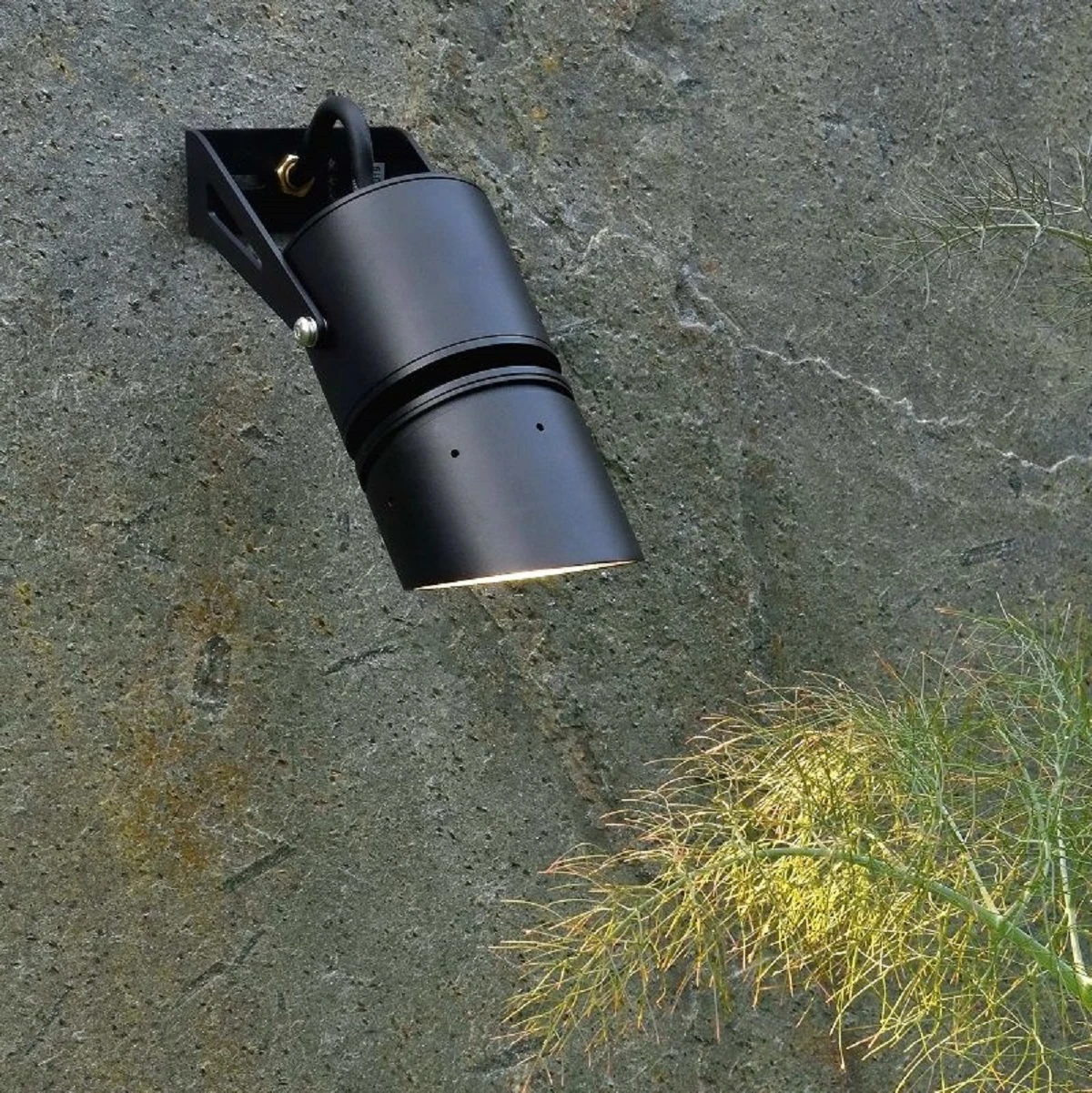

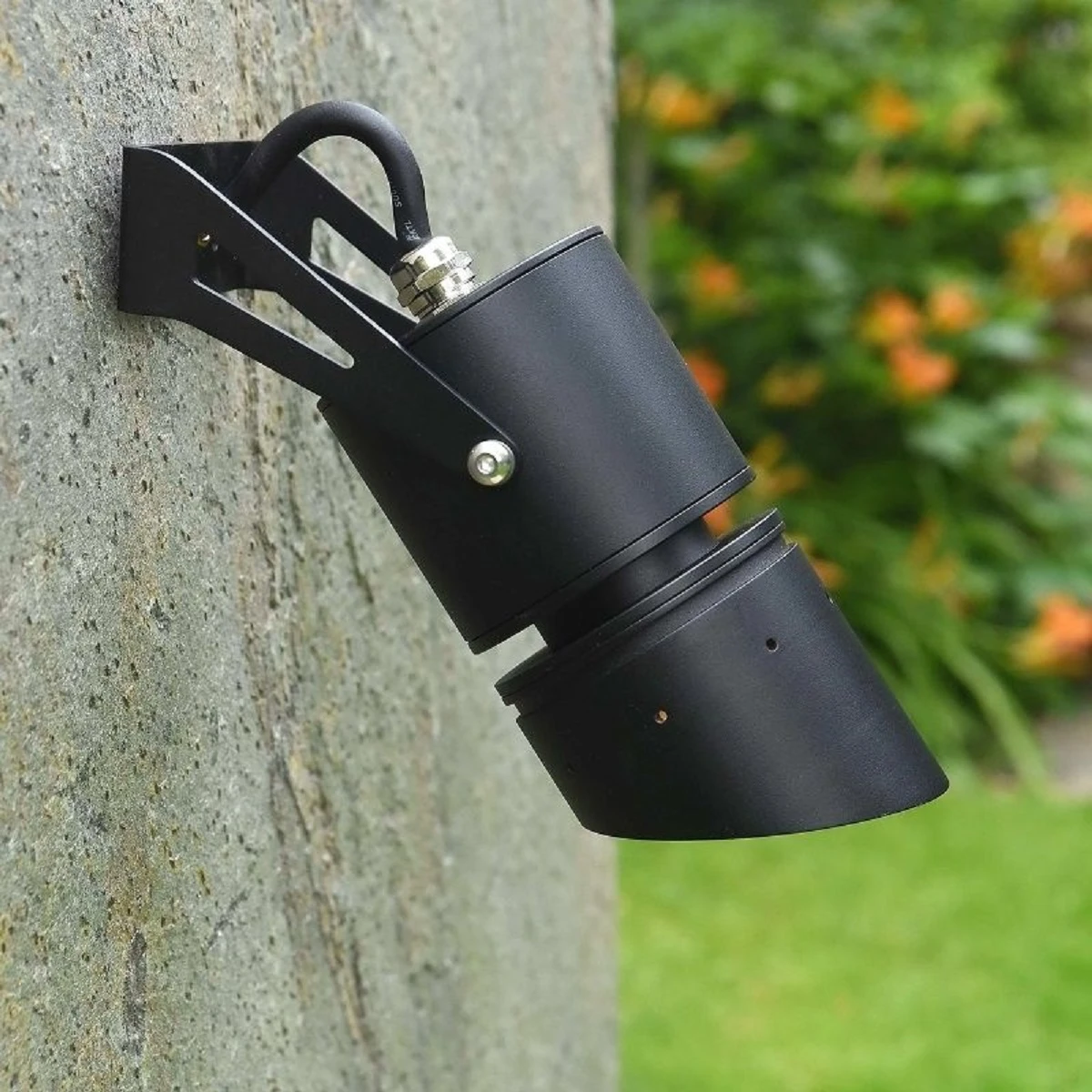

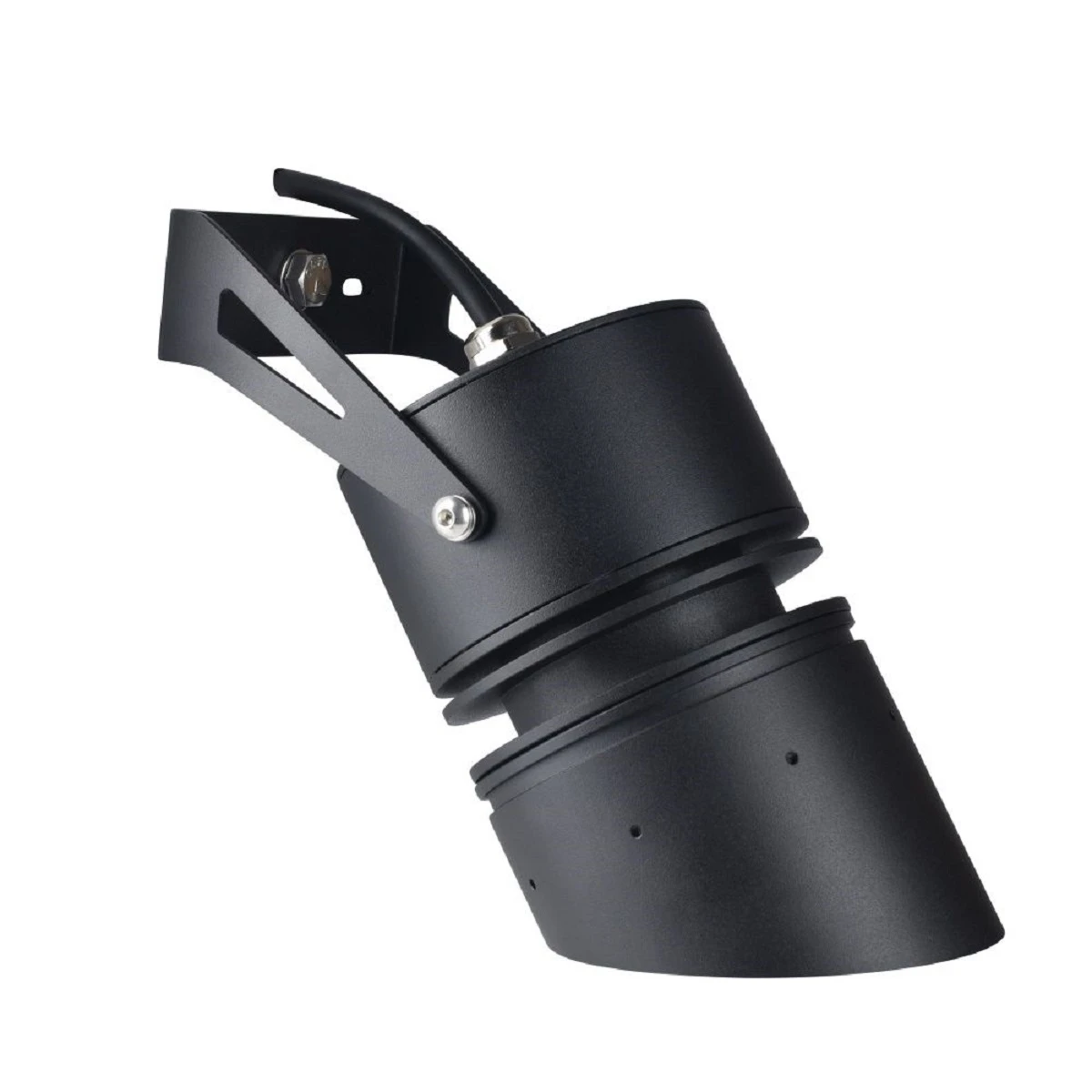

Stirrup bracket mounts on walls or the ground spike supplied. A 2m input cable is provided for connection to the mains supply via a separate weatherproof junction box or underground joint kit (not supplied).

Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD.
