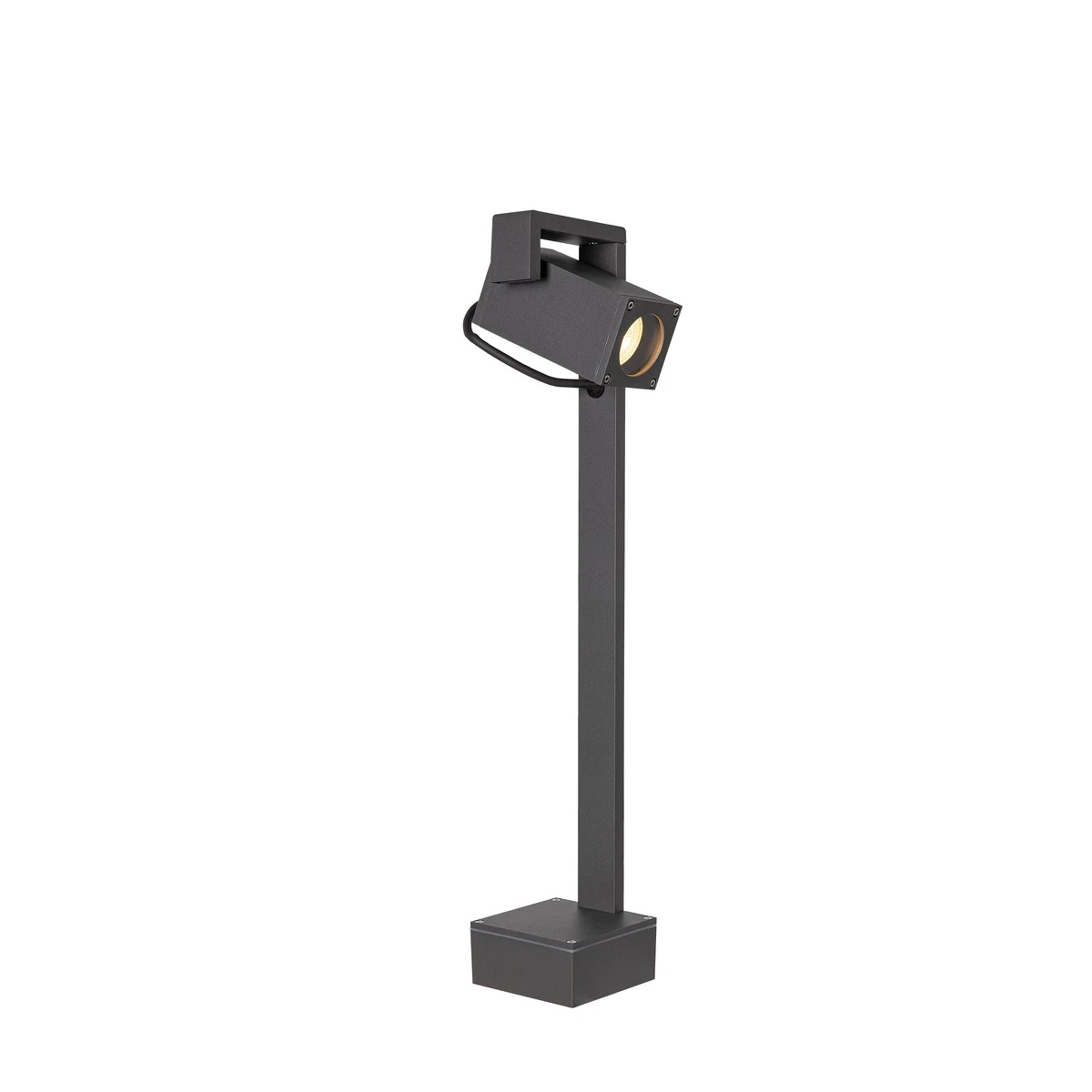

Theo Bracket 70 – Adjustable Path Light – 240v IP65 -Anthracite Aluminium GU10 Max 7w – Available In 2 Heights
Just added to our range of What’s New is this adjustable path light and part of the Theo range of products. Comes in Matt Anthracite and made from Aluminium and glass. It is rated as IP65 So complete protection
against ingress of dust and projection against low pressure water jets from any angle.
It comes with a 5 year warranty and the fitting uses GU10 max 7w LED bulbs (not supplied). It comes in two heights, code 1004654 is 50cm tall and code 1004655 stands 70cm tall.

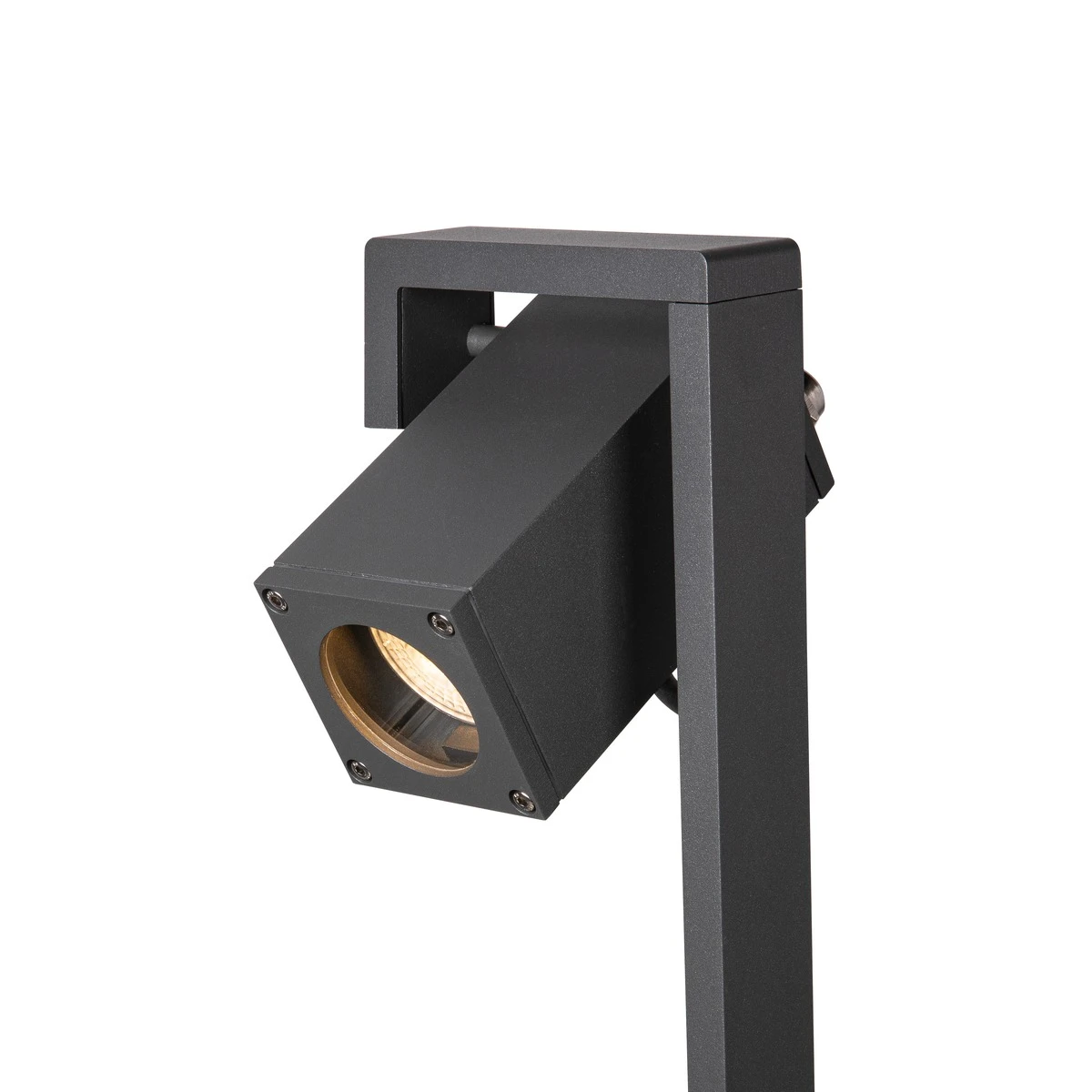

The beauty of this fitting is that the head can be angled and point pretty much where you want it with it 70° tilt.
It is surface mounted and the base is 11cm x 11cm.
The voltage on this fitting is from 220-240v 50/60Hz.
Lamp colour (Kelvins)
2,700 kelvins or 2700k which is in the warm colour spectrum and a lamp with 5,000 kelvins or 5000k would be at the
very cold white spectrum.
Installation – See attached Instructions & Data Sheets
and diagram supplied.
section but in simple terms the IP rating is appropriate to each light fitting and its intended application
and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only
as good as the installation as the weakest point is always cable joints. All joints must be made 100% water tight
and this can be done using IP68 inline connectors, waterproof junction boxes which are then filled with a resin or
gel mix.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. all cable joints must be 100% watertight. There are a selection of waterproof jointing kits
and boxes available on this web site although your electrician will probably supply these.
H07RN-F H07 3 Core Rubber Sheathed Mains Cable 1.5mm is recommended but do not use PVC flex cable as this can cause poor connections for the cable glands/joints and will lead to capillary action.
