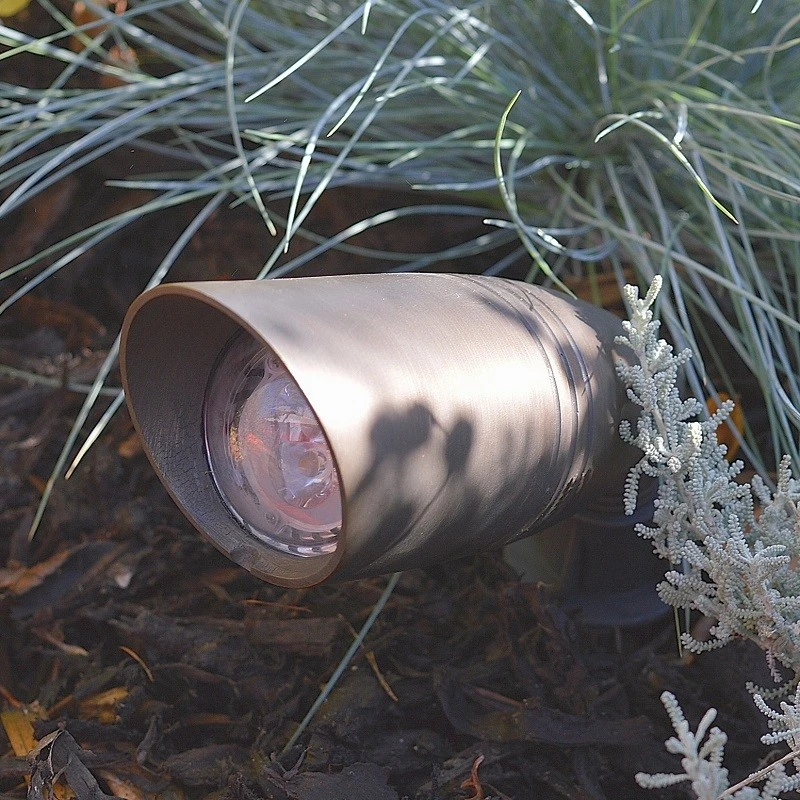

Taurus Spike Spotlight – 12v – Bronze Finished Brass Body
from view. Features an adjustable knuckle joint that can be screw-locked in position, and comes complete with a polycarbonate
finned spike to resist rotation in soil. Lens bezel twists off to allow lamp replacement without the need for tools. Typical

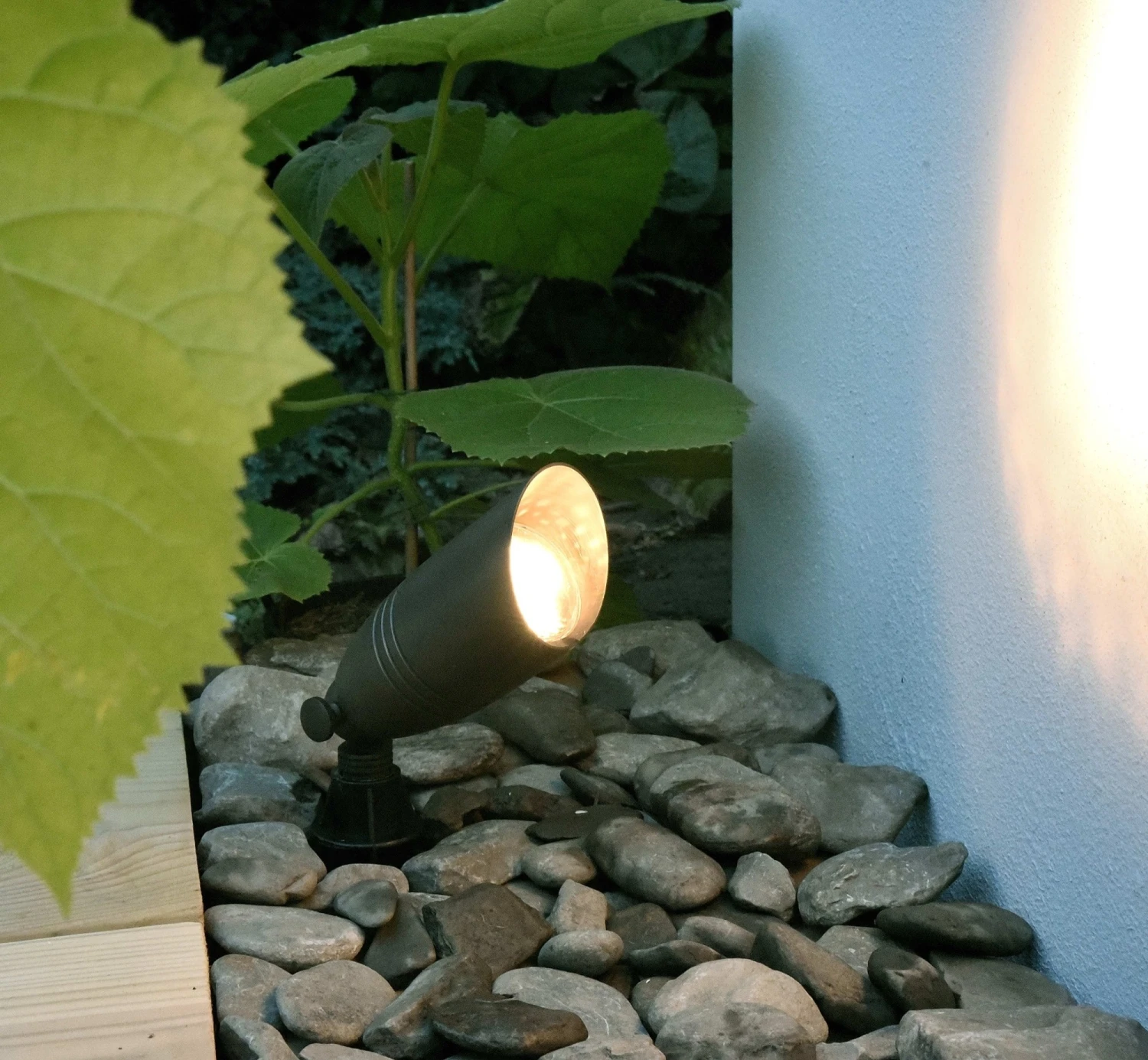

applications include up lighting small trees and shrub border lighting. MR16 clip-on honeycomb glare louvres, frosted or spread
lens or colour filters can be fitted internally on the front of a choice of LED lamps. The cable enters through the spike-mount,
a useful feature in reducing animal damage where urban foxes, or squirrels can be a nuisance. Fitted with a 1.5m cable for
connection to Elipta Plug & Play transformers, connectors, extension cables and junction boxes.
| Finish: | Bronze finish |
|---|---|
| IP Rating: | IP56 with IP44 cable connector |
| Construction: | Bronze finished brass body and glare shield. Adjustable knuckle joint can be screw-locked in position, polycarbonate finned spike resists accidental rotation in soil. Lens bezel twists off to allow lamp replacement without the need for tools. |
| Input Voltage: | 12 volts; requires supply from a Plug & Play transformer |
| Lamp Type: | MR16 LED lamp. |
| Installation: | 1.5m input cable with male IP44 2-pin input connector to plug into a Plug & Play transformer, extension cable, connector or junction box outside the water feature: an IP68 connection may be achieved by using either the GLWJB IP68 junction box or GLWCC waterproof cable connector |
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
12v Installation See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light. Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
