Stelled – 316 Stainless Steel E27 220- 240v IP65 – Surface Mounted Bollard – Choice Of 800mm Or 1m Height & LED Lamp

The Stelled has a more stylish appearance than many other commercial style bollards, made from 3mm thick marine grade
stainless steel which has been polished by hand. This makes it ideal for use in more homely areas such as garden seating
areas and driveways, as well amenity lighting for larger, commercial or public areas, including car parks, lakes,

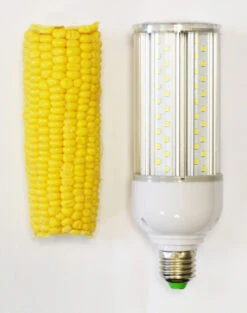

golf courses etc, where a high level of light is required. A specially designed head allows extra room for a large 20W
LED corn bulb with an incredibly high lumen output (brightness), which is supplied as standard with each bollard, ideal
for use with most PIR and Photocell systems.

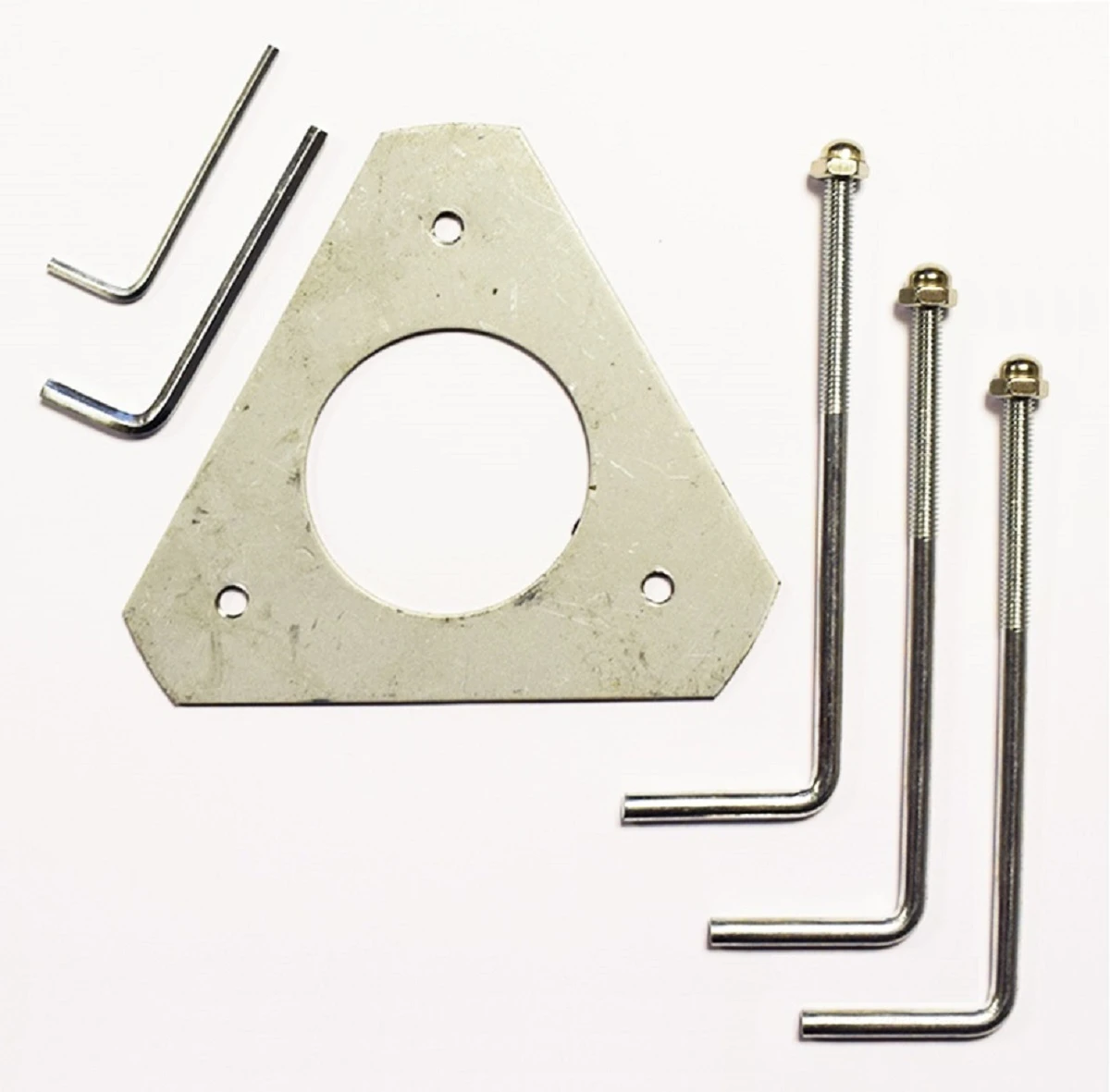

Each bollard is supplied complete with a removable internal mounting base as standard, which can be mounted onto
any flat surface or used alongside the supplied root mount J-Bolts. Expanding anchor bolts are also available. Alternatively,
a Professional Root Mounting System is available

A clear, UV stop polycarbonate diffuser surrounds the majority of the head (spares available) and silver aluminium
internal louvres add character to the bollard as well as acting as anti-glare shields  / protecting the LED
bulb. All external screws are allen (socket) type made from stainless steel, resulting in a completely rustproof and non-corrosive product.

BOLLARD SPECIFICATIONS

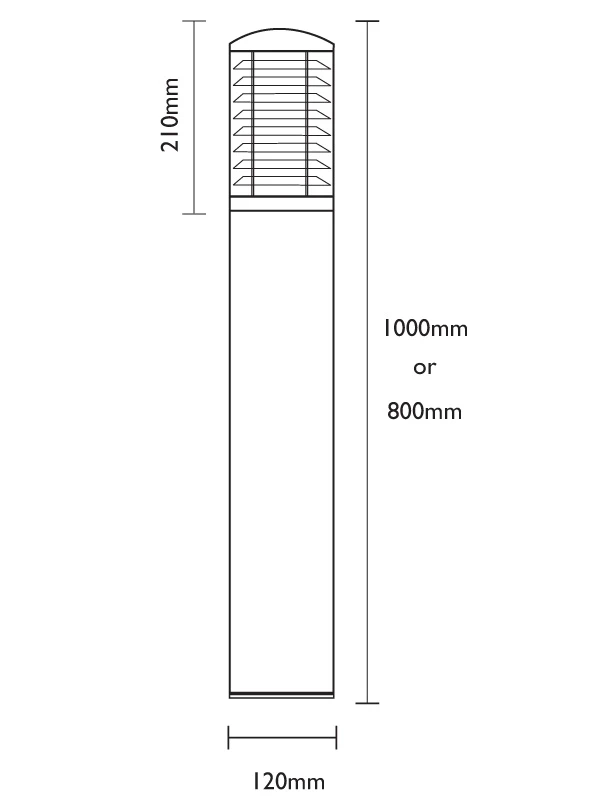

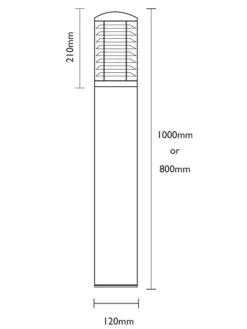

• Height (choice): 0.8m or 1m
• Materials: Marine Grade Stainless Steel (316) / Polycarbonate
• IP Rating: IP65
• Bulb Holder: ES / E27 Screw Cap
• Max Wattage: 60W
• Mounting: Internal Mounting Base
• Included: J-Bolts / Allen Keys
• Guarantee: Bollard = 5 Years / Bulb = 1 Years*

LED SPECIFICATIONS

• Voltage: 220-240V
• Lamp Type: LED (Epistar 2835)
• Number of LEDs: 135
• Wattage: 20W
• Colour Temperature: 6500K (Daylight White) / 3000K (Warm White)
• Lumen Output: 2300 lumens (Daylight) / 1800 lumens (Warm)
• Cap Type: ES / E27
• Average Life: 30,000 hours

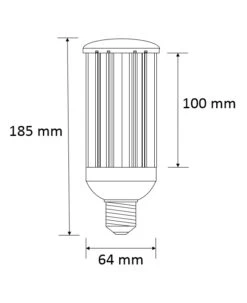

• Dimensions: 185mm x 64mm

How far apart should bollards be mounted?

The distance between bollards will vary depending on what light output the bulbs used have, what sort of area is being
lit and how much light is required. Below are some guidelines to determine how many bollards may be required for your
project based on our recommended bulbs, providing a constant light between each fitting:

• 20W LED Corn Bulb (DAYLIGHT WHITE)  –  6m to 8m apart
• 20W LED Corn Bulb (WARM WHITE)  –  5m to 7m apart
