Stelled – 316 Stainless Steel E27 220 – 240v IP65 – Root Mounted Bollard – Choice Of 2 Height Options & LED Lamp

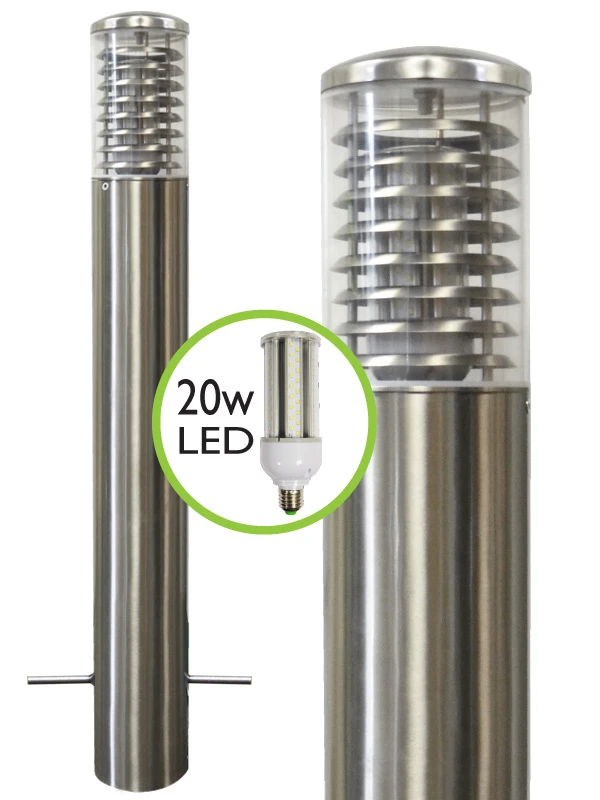

The Stelled LED bollard light is available with a Professional ‘In-Ground’ Root Mount System,
recommended for areas where extra security and permanence is required. The root mount bollard tubes have been extended
in length so that at least 40cm can be securely concreted in place.
The bollard does not lose any height above ground due to the longer tubes (they replace the standard tubular body and mounting
base). A strong mounting bar is supplied and will act as an anchor when set into concrete.

BOLLARD SPECIFICATIONS

• Height (choice): 0.8m or 1m (Above ground)
• Materials: Marine Grade Stainless Steel (316) / Polycarbonate
• IP Rating: IP65
• Bulb Holder: ES / E27 Screw Cap
• Max Wattage: 60W
• Mounting: In Ground Tubular Root Mount System
• Included: Allen Keys / Root Mount Bar with 2 x Locating Nuts
• Guarantee: Bollard = 5 Years / Bulb = 1 Years

LED SPECIFICATIONS

• Voltage: 220-240V
• Lamp Type: LED (Epistar 2835)
• Number of LEDs: 135
• Wattage: 20W
• Colour Temperature: 6500K (Daylight White) / 3000K (Warm White)
• Lumen Output: 2300 lumens (Daylight) / 1800 lumens (Warm)
• Cap Type: ES / E27
• Average Life: 30,000 hours

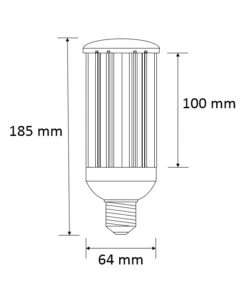

• Dimensions: 185mm x 64mm

The Stelled has a more stylish appearance than many other commercial style bollards, made from 3mm thick marine grade stainless steel
which has been polished by hand. This makes it ideal for use in more homely areas such as garden seating areas and driveways,
as well amenity lighting for larger, commercial or public areas, including car parks, lakes, golf
courses etc, where a high level of light is required. A specially designed head allows extra room for a large 20W LED corn bulb with
an incredibly high lumen output (brightness), which is supplied as standard with each bollard.

A clear, UV stop polycarbonate diffuser
surrounds the majority of the head (spares available) and silver aluminium internal louvres add character to the bollard
as well as acting as anti-glare shields  / protecting the LED bulb. All external screws are Allen (socket) type made from stainless steel, resulting in a completely rustproof and non-corrosive product.

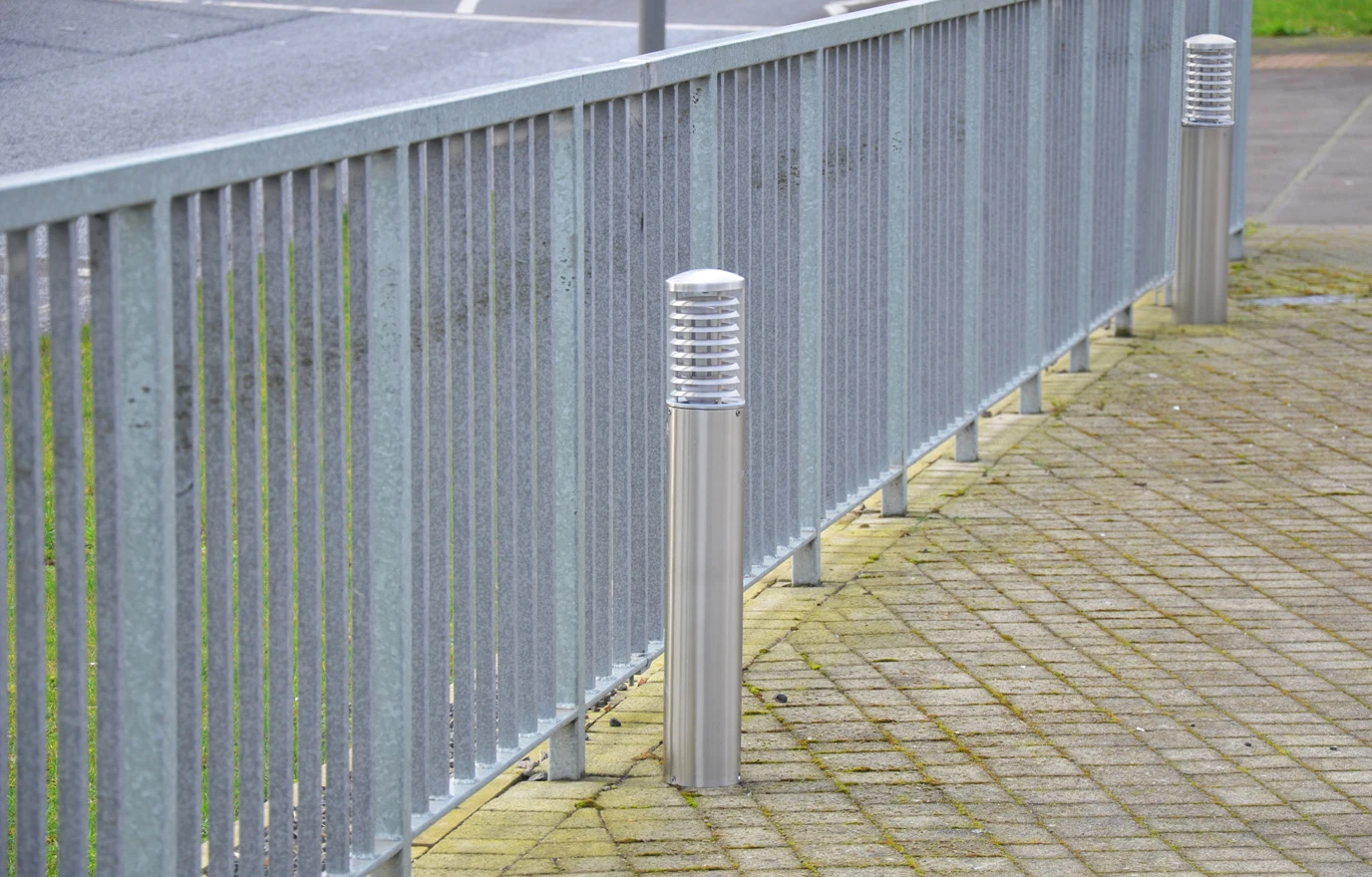

How far apart should bollards be mounted?

The distance between bollards will vary depending on what light output the bulbs used have, what sort of area is bing
lit and how much light is required. Below are some guidelines to determine how many bollards may be required for your
project based on our recommended bulbs, providing a constant light between each fitting:

• 20W LED Corn Bulb (DAYLIGHT WHITE)  –  6m to 8m apart
• 20W LED Corn Bulb (WARM WHITE)  –  5m to 7m apart
