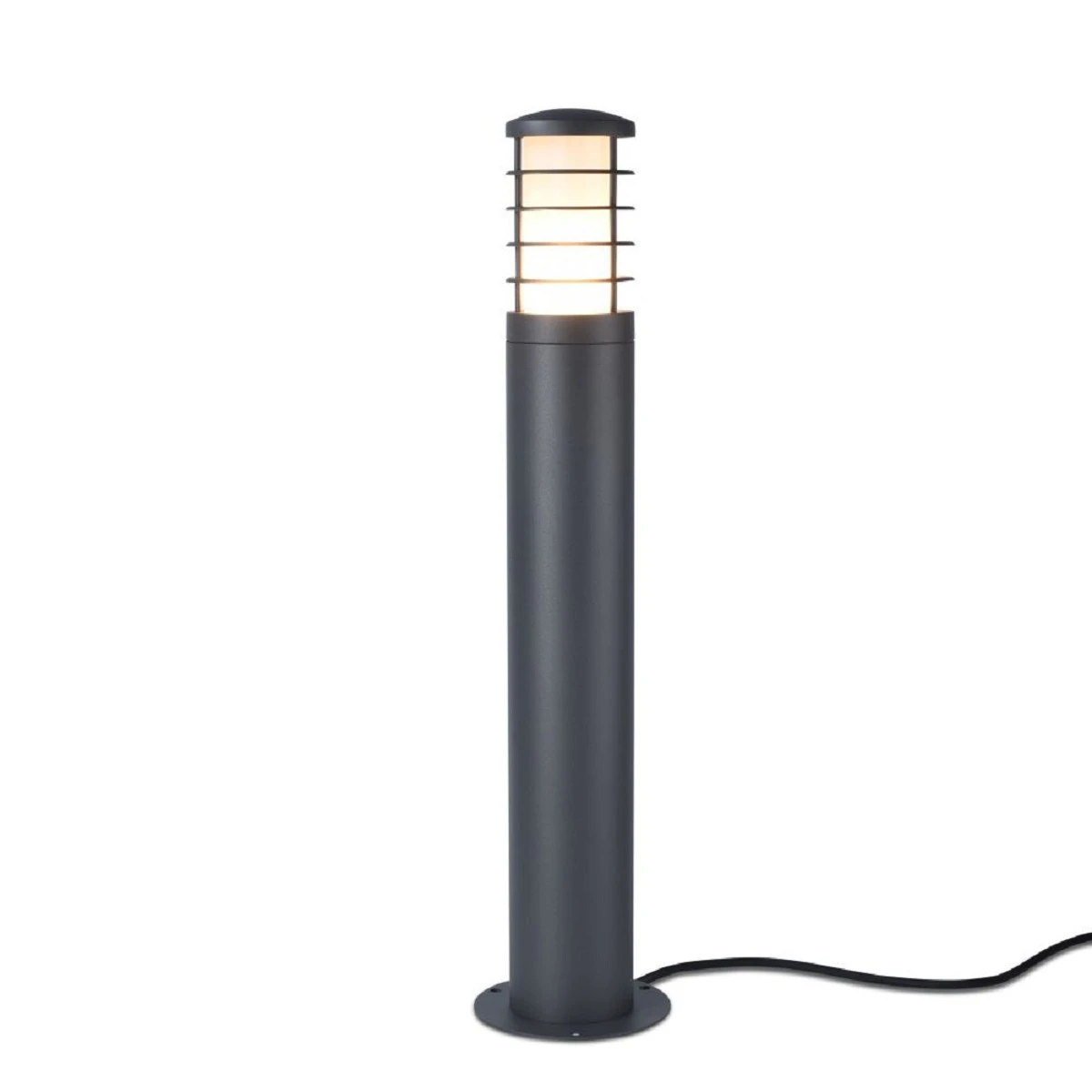

The Stella is a E27 version bollard light for 240v energy-saving LED bulbs up to 20 watts – recommended for
driveway and path lighting, especially if timer-operated for long periods. This minimises energy consumption and lamp replacement.
The Stella may be bolted to paving and slabs or to an optional ground-mount which can be installed in concrete prior to electrical
installation. An optional ground spike is available for installation in planting and lawn areas.
Graphite powder coated aluminium
IP Rating:
IP54
Construction:

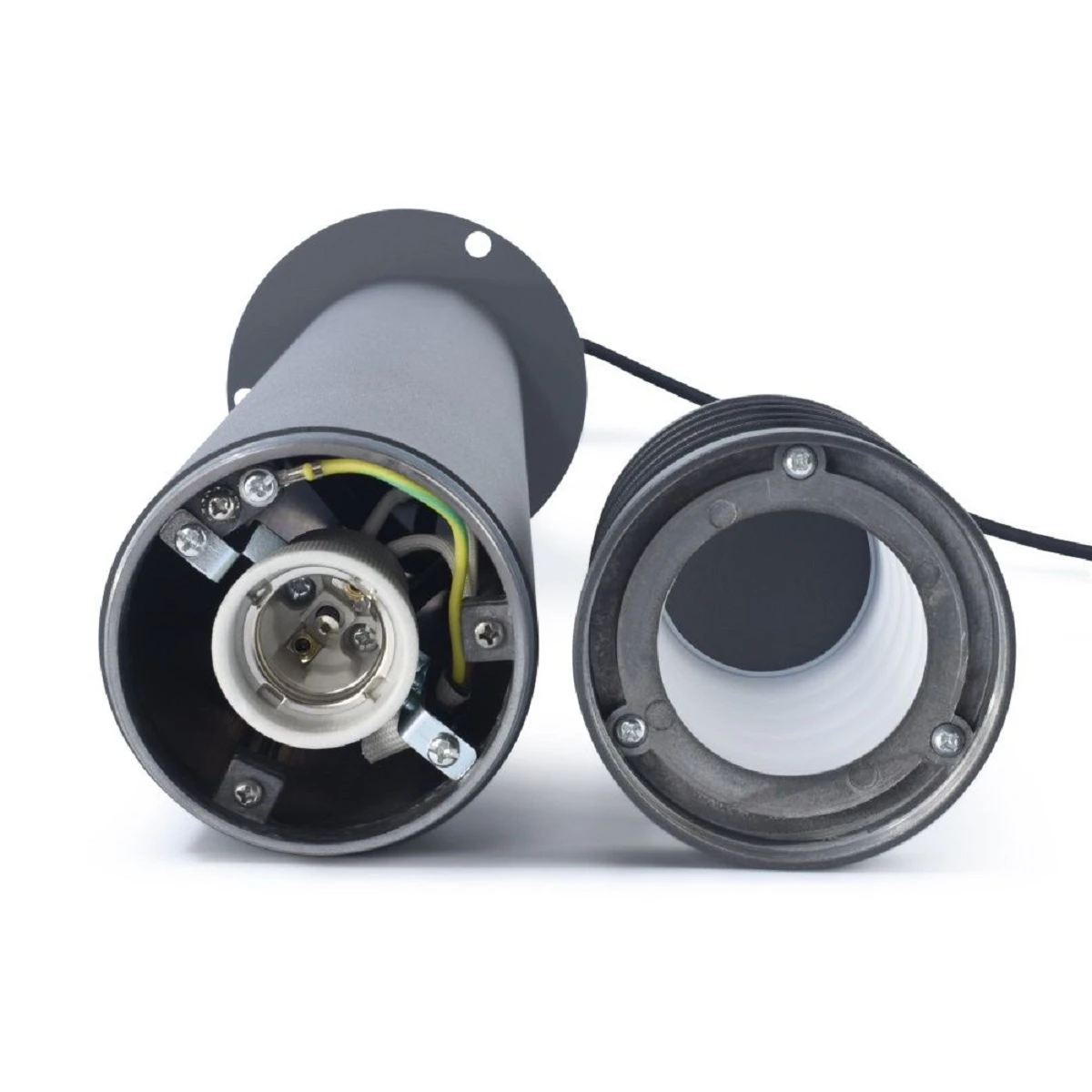

Machined from solid metal tubing Opal glass is framed by top cap, louvres and screw-on base ring which allows the top
to be unscrewed for easy lamp replacement.
Input Voltage:
240v
Lamp Type:
E27 up to 20 watts – Please order bulbs separately.
Installation:

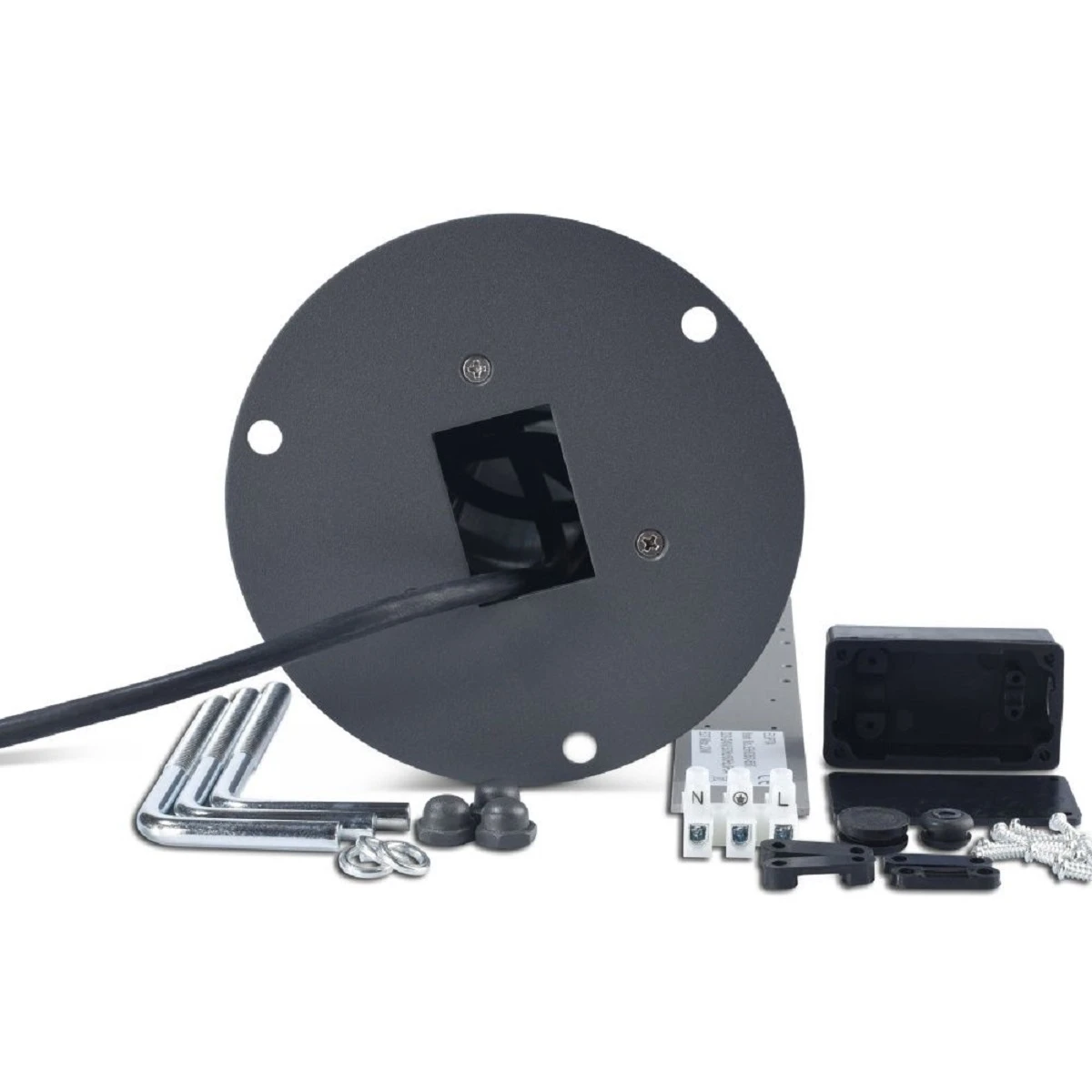

Pre-wired with 2m rubber cable for connection via T9969 underground joint kit: the installer may shorten the fitted cable
to make a weatherproof connection inside the base of the light using a gasketed 65mm conduit box or similar weatherproof
junction box.
Using a single RCD for large numbers of 240v
fittings is not recommended due to the risk of nuisance tripping. We
advise the use of separate RCD protection for each circuit and a maximum
of 12 fittings per RCD. Where a garden lighting installation of more
than 12 spike mount or recessed lights per circuit is proposed, we
suggest the installation of 12v units with transformers, which results
in a significantly higher fault tolerance and reliability in the total
installation.

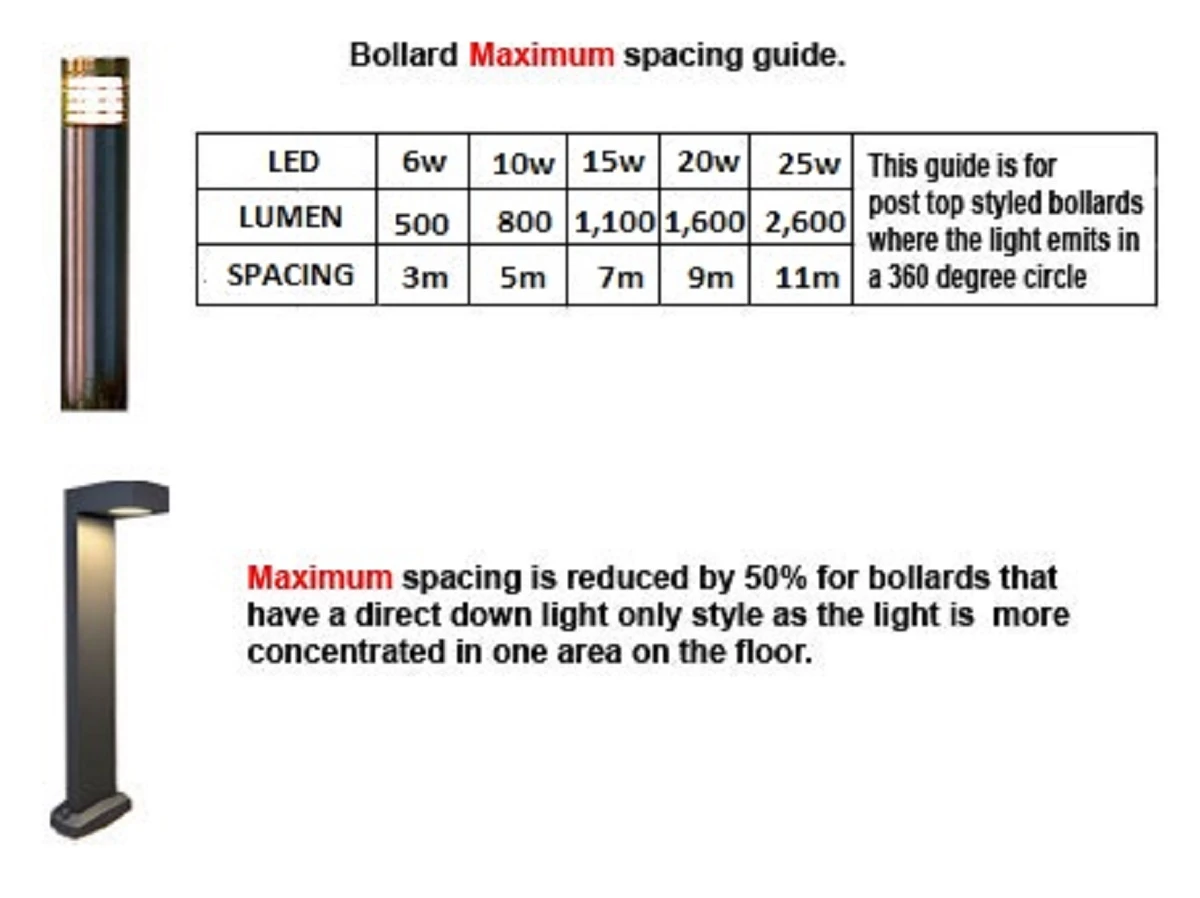

Bollard types and
spacing
