Spike5 – Anthracite 240v IP67 5w 2700k 400 Lumens 38 Degree Beam Angle Spotlight Available In Black

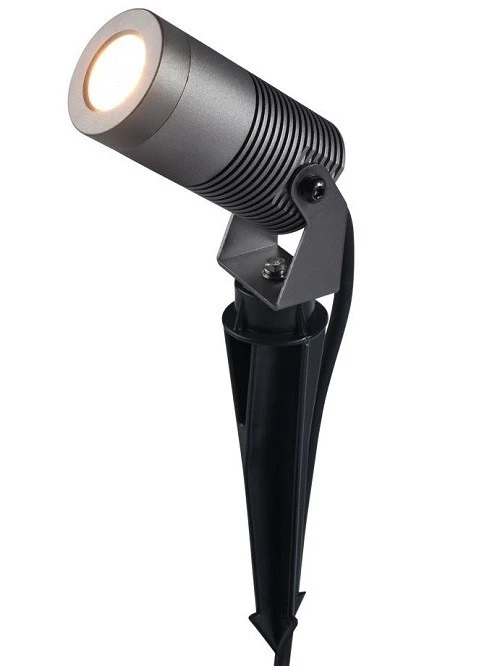

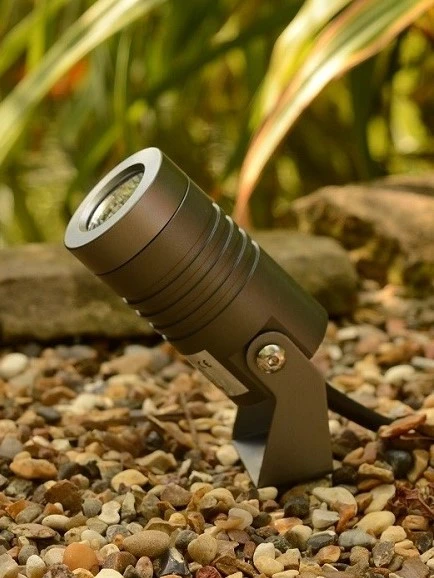

The Elipta Spike5 is an adjustable spike-mount 240v led outdoor spotlight with a black or anthracite anodised aluminium body.

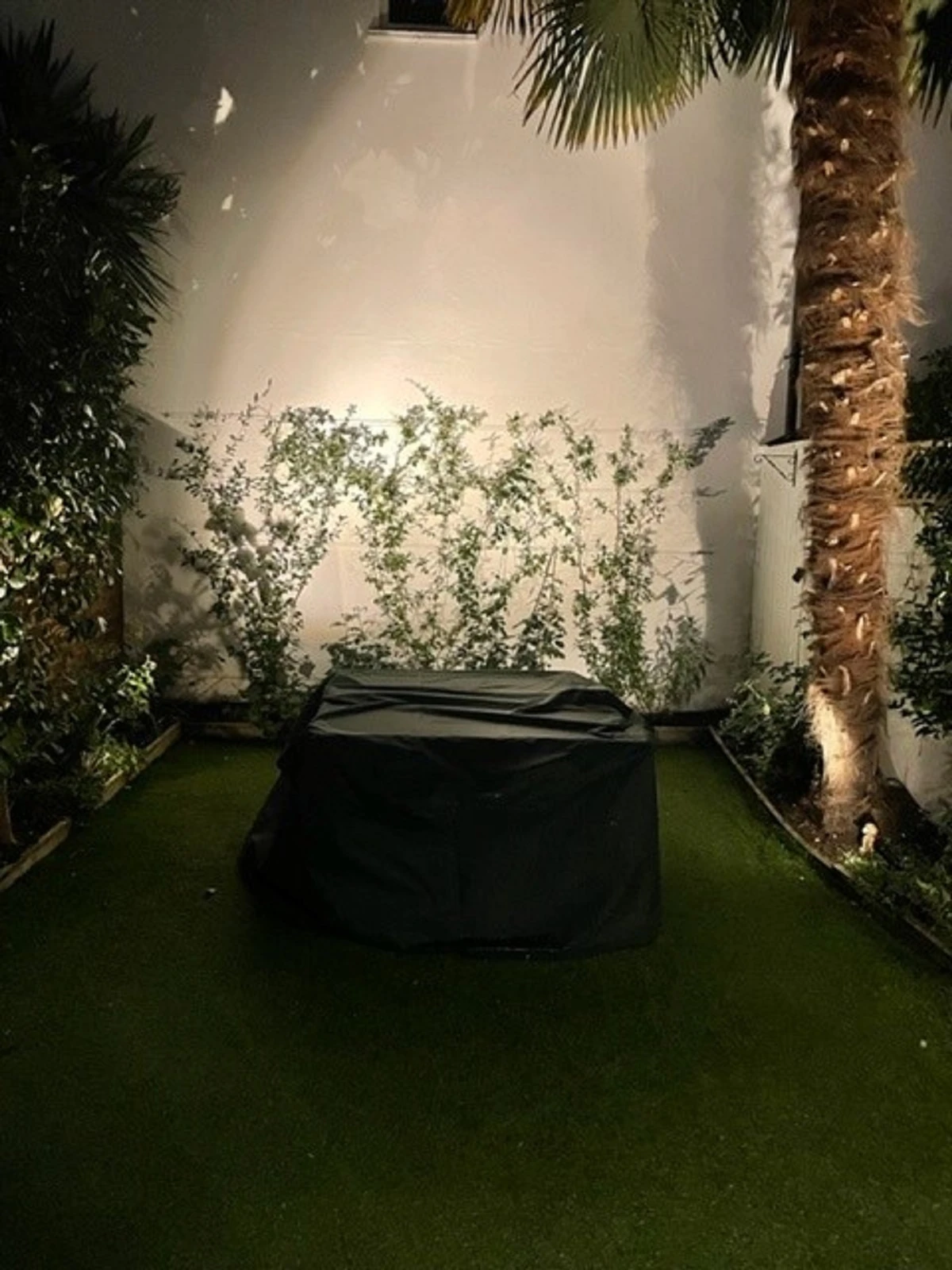

It has a high-efficiency 5w COB led providing light output of 400lm in a focused 38 degree beam for up lighting trees
and focal points.

240v Spike spotlights need their own circuit from an existing or new fuse box. The box must be protected by a residual
current device (RCD) and controlled with a double-pole isolating switch. As a general rule of thumb, the armoured cables
need to be run underground- at least 450mm with weatherproof junction boxes. Use an electrician qualified under ‘Part
P’ building regulations to install any mains electricity outdoors who will certify the work properly.

Lamp Colour (Kelvins)

Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”>

All exterior lighting products on our website have an IP rating which is explained further in our Technical
Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended
application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products
supplied are only as good as the installation as the weakest point is always cable joints. All joints must be
made 100% water tight and this can be done using IP68 inline connectors, waterproof junction boxes which are
then filled with a resin or gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially in clay based soil areas.
