Spartan recessed uplight combines a cool top lens, long lamp life and energy efficiency for up-lighting medium to large trees
from lawns or paving.

Spartan provides a powerful 36° up-lighting beam, using 1x 26 watt COB LED, while maintaining a typical top lens temperature
of under 40 degrees C – so Spartan can be used even in walkover areas to uplight trees with an open canopy and branch
structure from directly below.

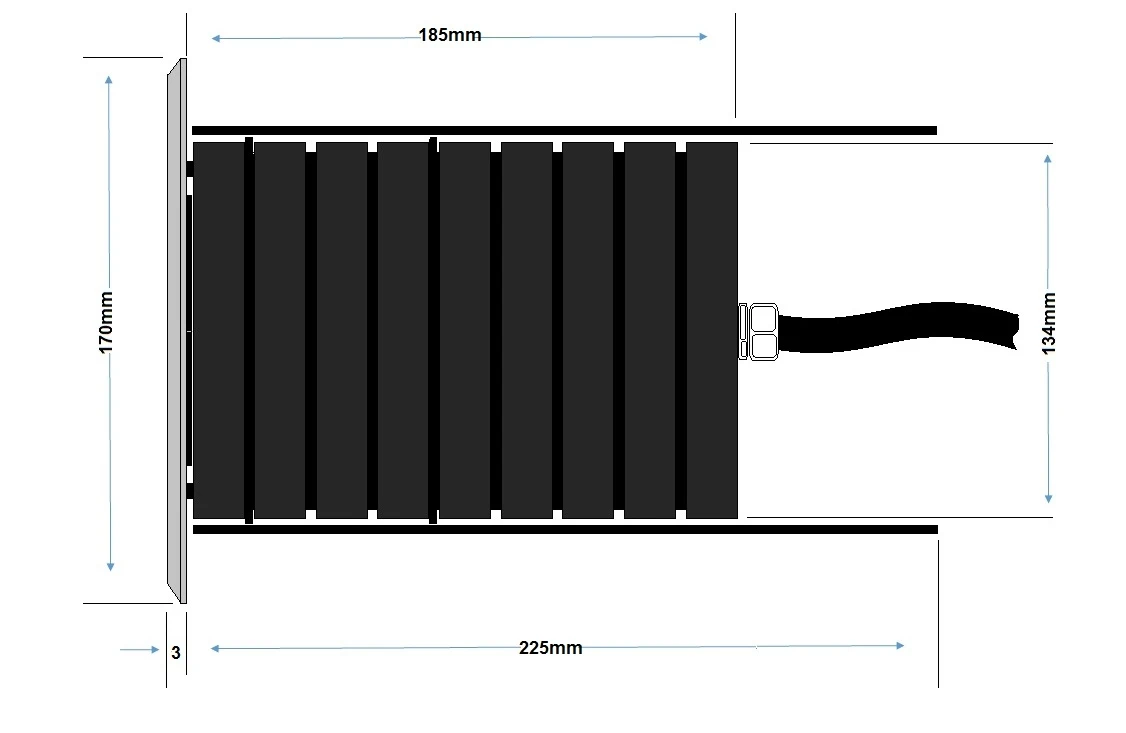

The shallow depth and no need to enter the Spartan fitting for lamp installation or replacement make it quick and easy to
fit unlike its metal halide cousins.  The dark  non-reflective interior means less light refraction through
the lens to give away its position in the landscape.

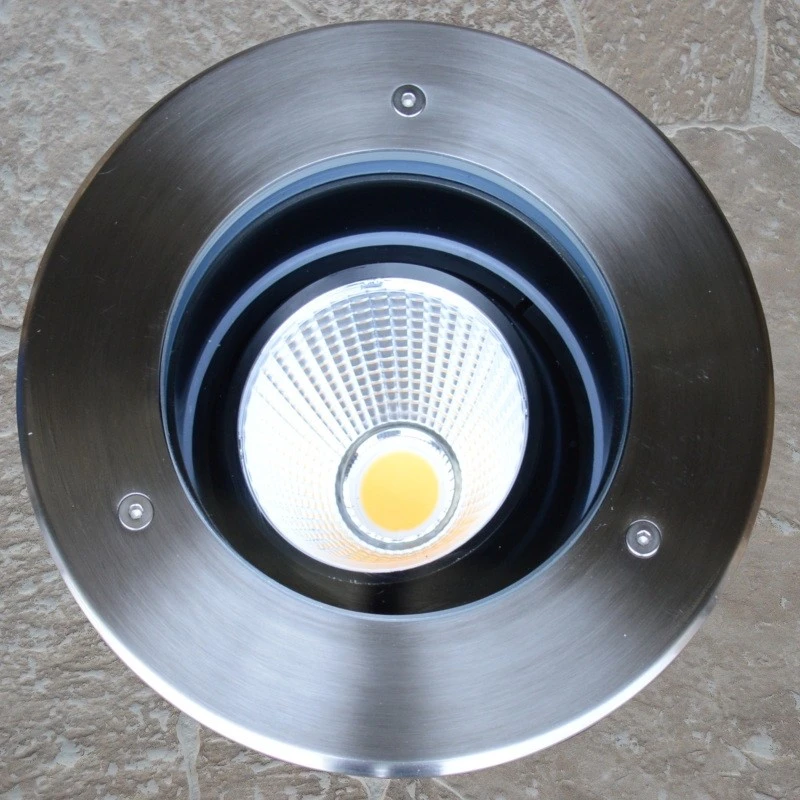

Spartan has a 316 stainless steel lens rim, a cast aluminium body and a polymer sleeve for recessing into the ground.

To facilitate removal of screws for maintenance, apply copper grease to the threads of all screws being fitted for retention
of bezels, grills or other top plates or retaining rings. Copper grease resists degradation due to heat and protects
against difficulty in removing screws, particularly where stainless steel screws are fitted with aluminium parts. It
may also be used on screw threads of screw-off bezels or glare shields. Ensure surplus is cleaned off with a solvent
to prevent staining.

The body of the light is located in the sleeve by an ‘O’ ring so the light doesn’t fall down into the sleeve once you remove the
top,  To adjust the light first remove the stainless steel top plate held in by three screws. Remove the 9 screws below the stainless steel top plate and remove the black aluminium ring held in by these screws and remove
glass lens. You can now adjust the LED lamp reflector to the desired tilt, without removing the fitting from the ground.

Re-assemble the fitting ensuring all gaskets, glass and screws are free of soil and debris.

Direct burial in the ground: prewired with rubber cable and 20mm IP68 gland for connection to mains supply via a separate
underground joint kit (order T9969 separately). Provide 300mm depth of shingle drainage below the uplight: do not use in
waterlogged ground.

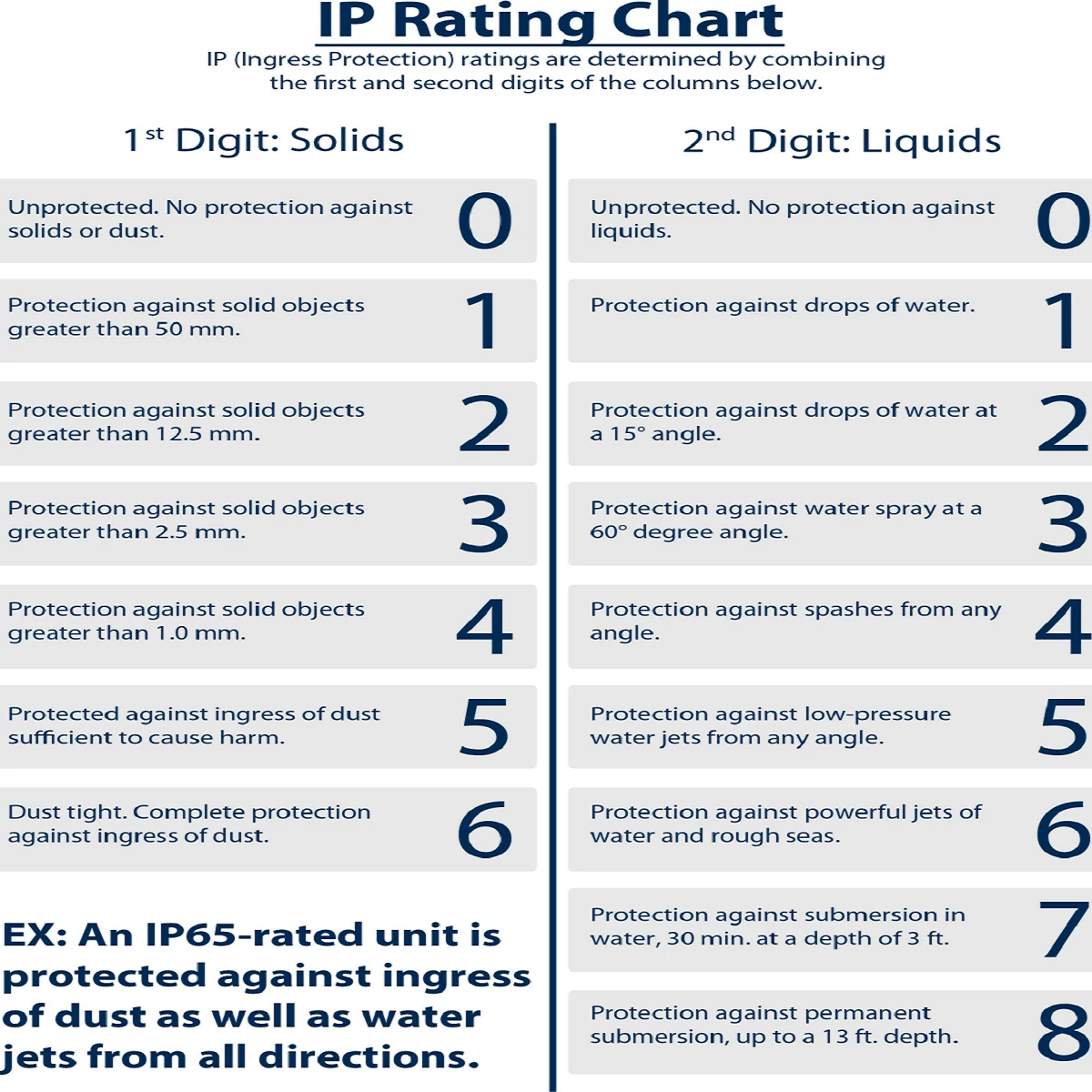

All exterior lighting products on our website have an IP rating which is explained further in our Technical Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended application and is therefore
fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the
installation as the weakest point is always cable joints. All joints must be made 100% watertight and this can be
done using IP68 inline connectors, waterproof junction boxes which are then filled with a resin or gel mix. All joints
where possible should be made above ground for easy access and reduced water ingress. When installing ground buried
lights adequate drainage systems should be put in place especially in clay based soil areas. Also
mains cable should be SWA rubber and not PVC.

All exterior lights must be installed by a certified NIC EIC electrician and ideally signed off by an electrician
with Part P certification.

H05RN-F  3 Core Rubber Sheathed Mains Cable 1.5mm is recommended but do not use PVC flex cable as this can cause poor connections for the cable glands/joints and will lead to capillary action.
