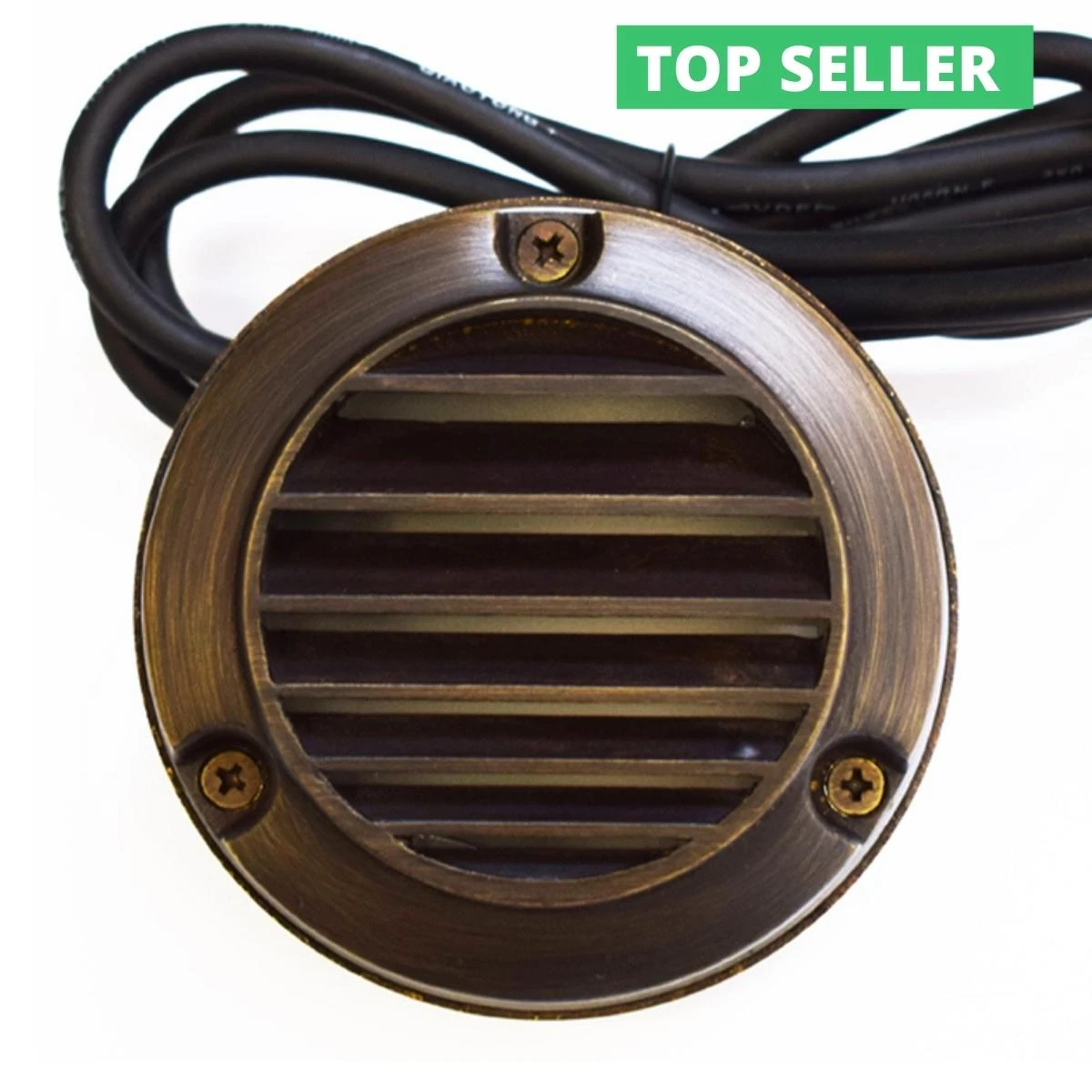

Slatlite 240V Garden Step Light – Solid Brass (Rustic Bronze) – IP54 – G9
This solid brass slatted step light with Rustic Bronze finish is a smart 240v surface mount garden light, ideal
for lighting stepped areas. It can be mounted on walls next to steps, or on the steps themselves. The louvered design
creates a more subtle light than a full spotlight, shining the light downwards at an angle. A mirrored reflector
and frosted glass lens inside diffuse the light outwards evenly and without glare.
The Slatlite is both robust and stylish, with a high IP rating of IP54, and has 3 external screws; to firmly secure the
front to the back. This step light has a G9 fitting. An LED G9 capsule is recommended, and is available as an optional
extra. The bright 240 volt LED G9 in daylight white or warm white (sold separately) saves more energy and has a much
longer life span than a standard halogen.
PLEASE NOTE:
WE RECOMMEND SELECTING THE LED G9 BULBS AS STANDARD FROM THE BOTTOM OF THE PAGE AS OTHER G9 BULBS MAY BE TOO LONG FOR
THIS FITTING.
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS incandescent bulb in the home would
be 2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold
white spectrum.
240v Installation – See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy
access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in
place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.
Mains 240v cable will have less joints than a low voltage installation but care must be taken with the cable runs.
Cabling should be Rubber Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting
installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation
of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total
installation.
