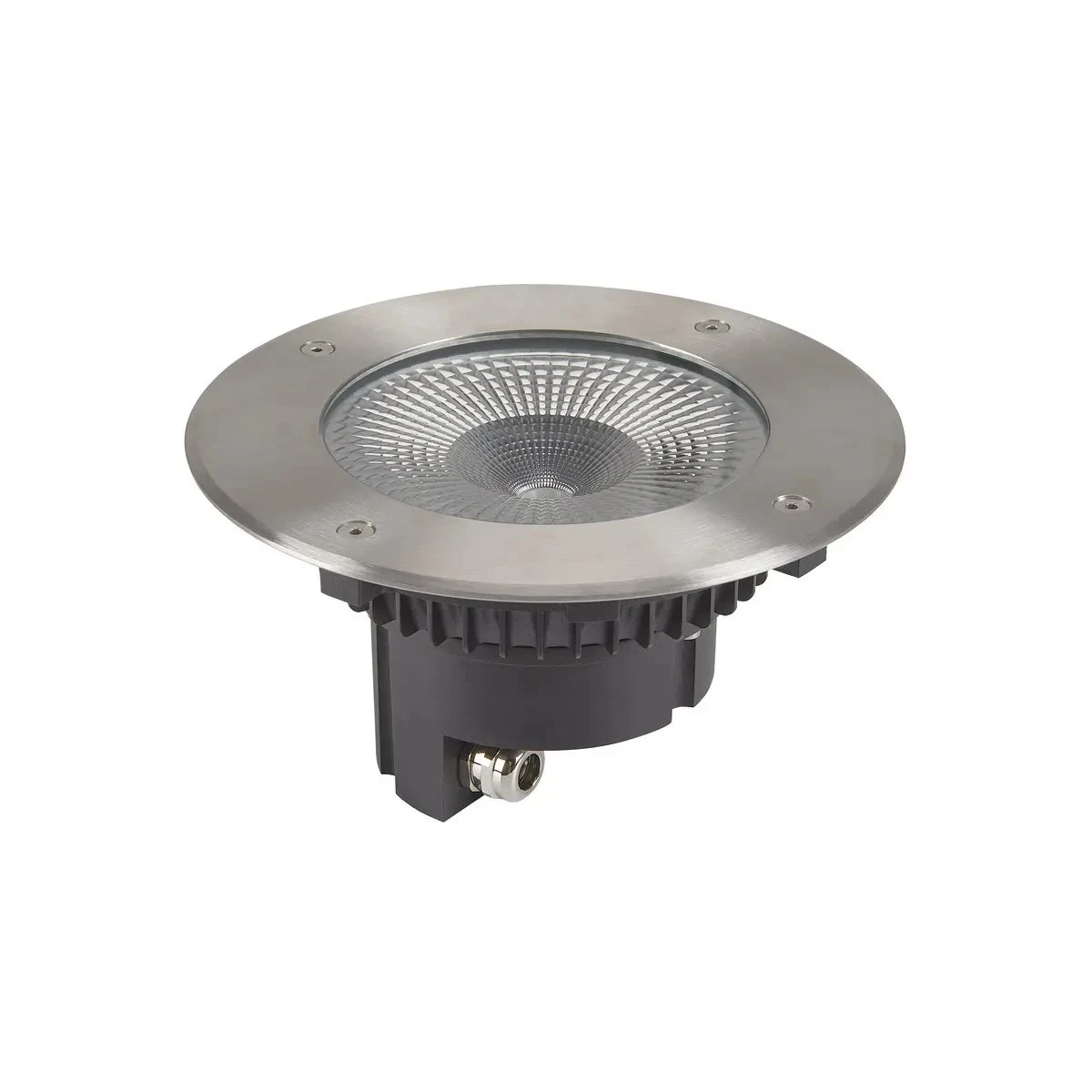

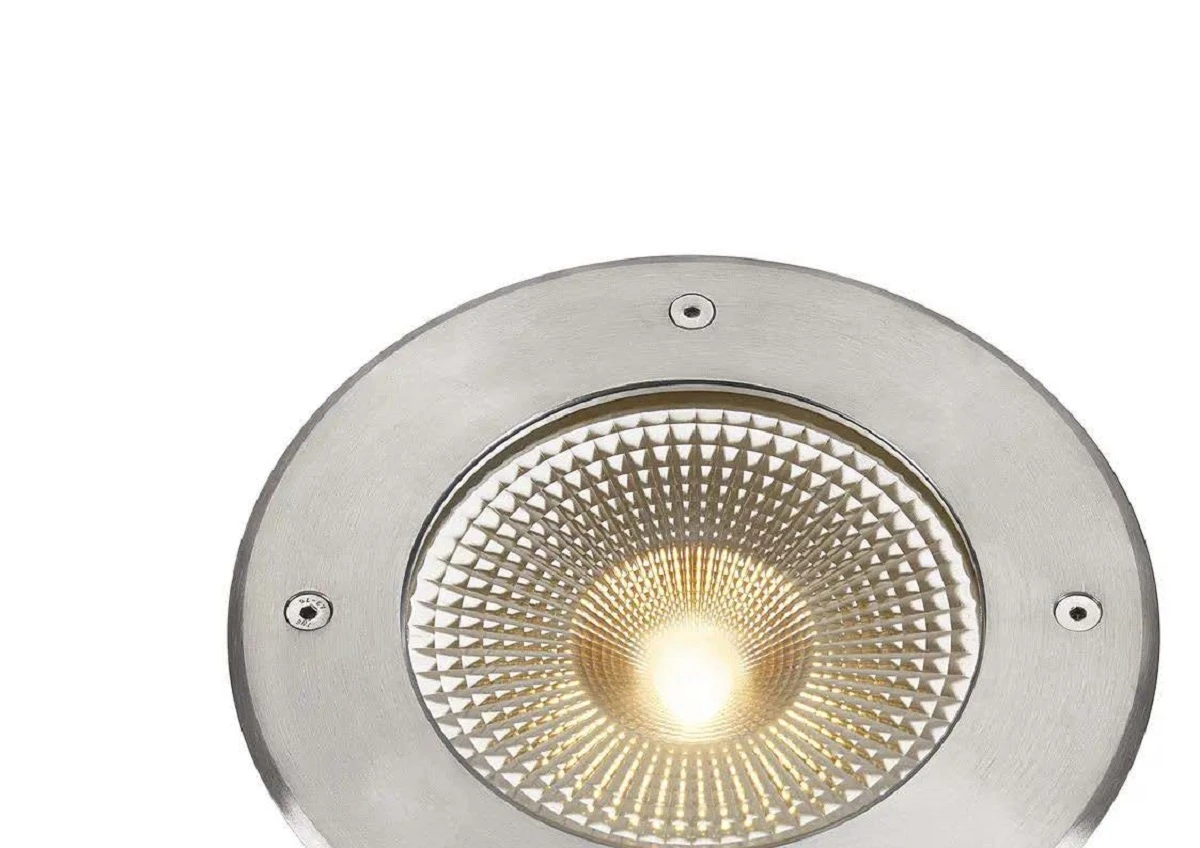

Rocci 200 – Round Recessed Ground Light Stainless Steel Bezel 100-277v 16W 3000K 1530 Lumens IP65 120 Degree Beam

Rocci 200 – available with Round Bezel or Square Bezel

The Rocci is a sturdy stainless steel mains 100v – 277v  50/60Hz /350mA recessed up-light which can withstand up to 0.51kg weight, measuring 200mm diameter. The energy consumption from the integral LED
is 16w.

SLV develops its lights in Germany and guarantees satisfaction throughout consistent quality assurance and uses its own laboratories in Germany and in Asia for the manufacture of their products and why we can offer a 5 year warranty.

The product will arrive from Germany and due to the new Brexit rules the delivery can be up to 7 days on average.  We will endeavour to provide the tracking details to you once they have arrived into the UK.

The anticipated life of the LED module is 30,000 hours.  This module can be replaced but only by
the manufacturer (SLV) or a service technician authorised by them. The colour temperature of the LED is 3000k which is
a warm white and it gives out 1530 lumens which is approximately that of a standard 125w incandescent bulb and has a 120
degree beam angle built into the reflector. It has an IP67 rated protections class for the fitting up to 30 minutes if subjected to waterlogging. Then IP65 if left longer. The glass is clear glass.

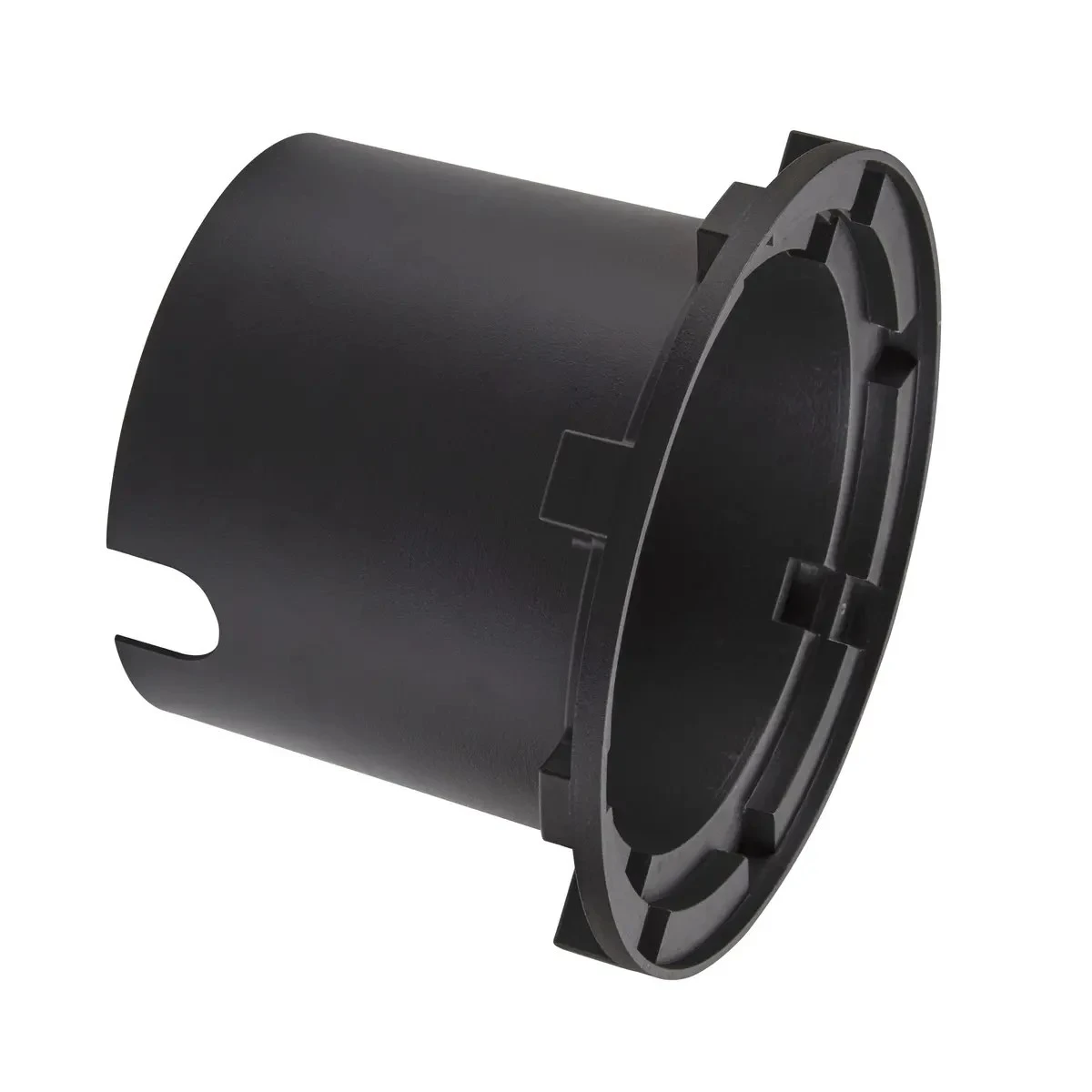

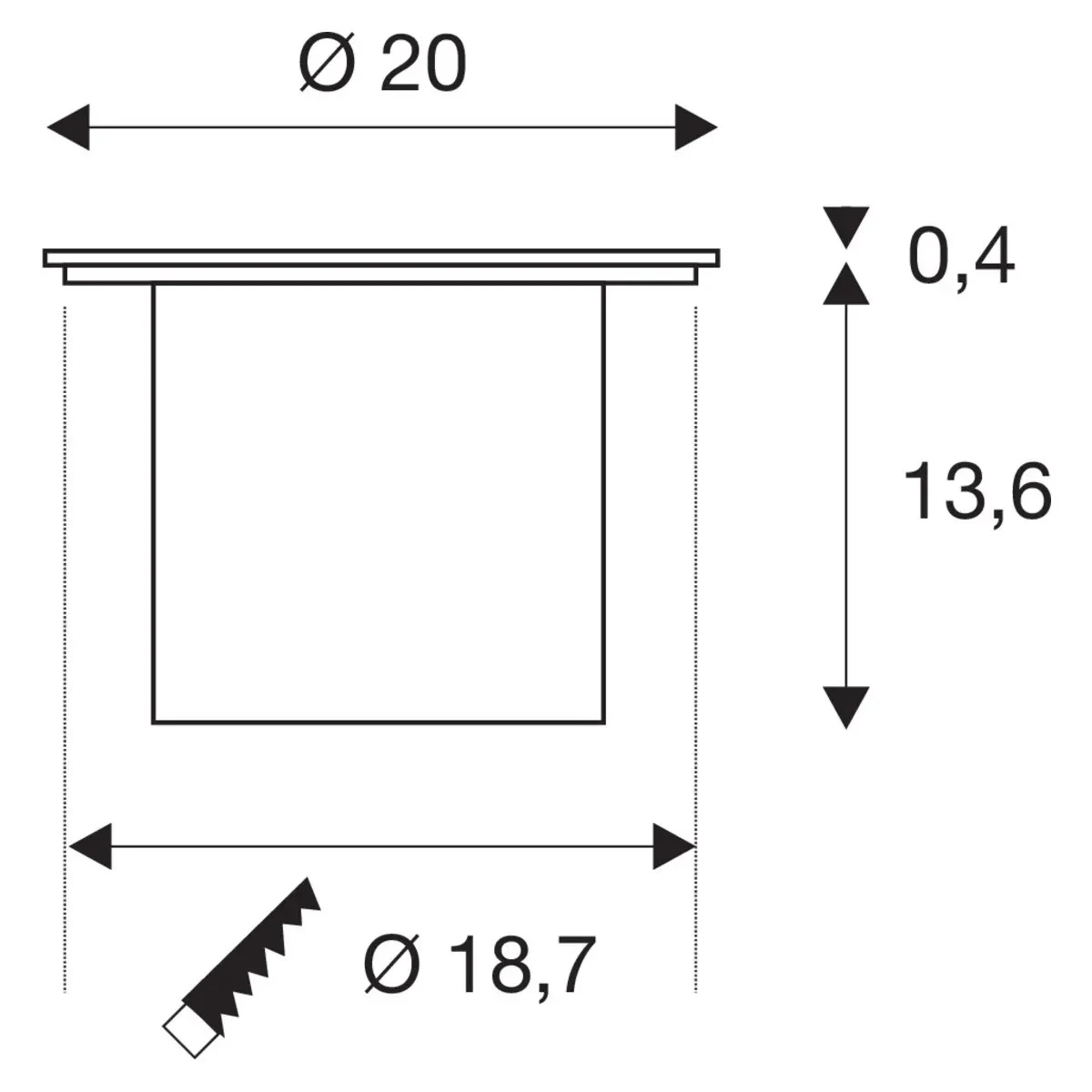

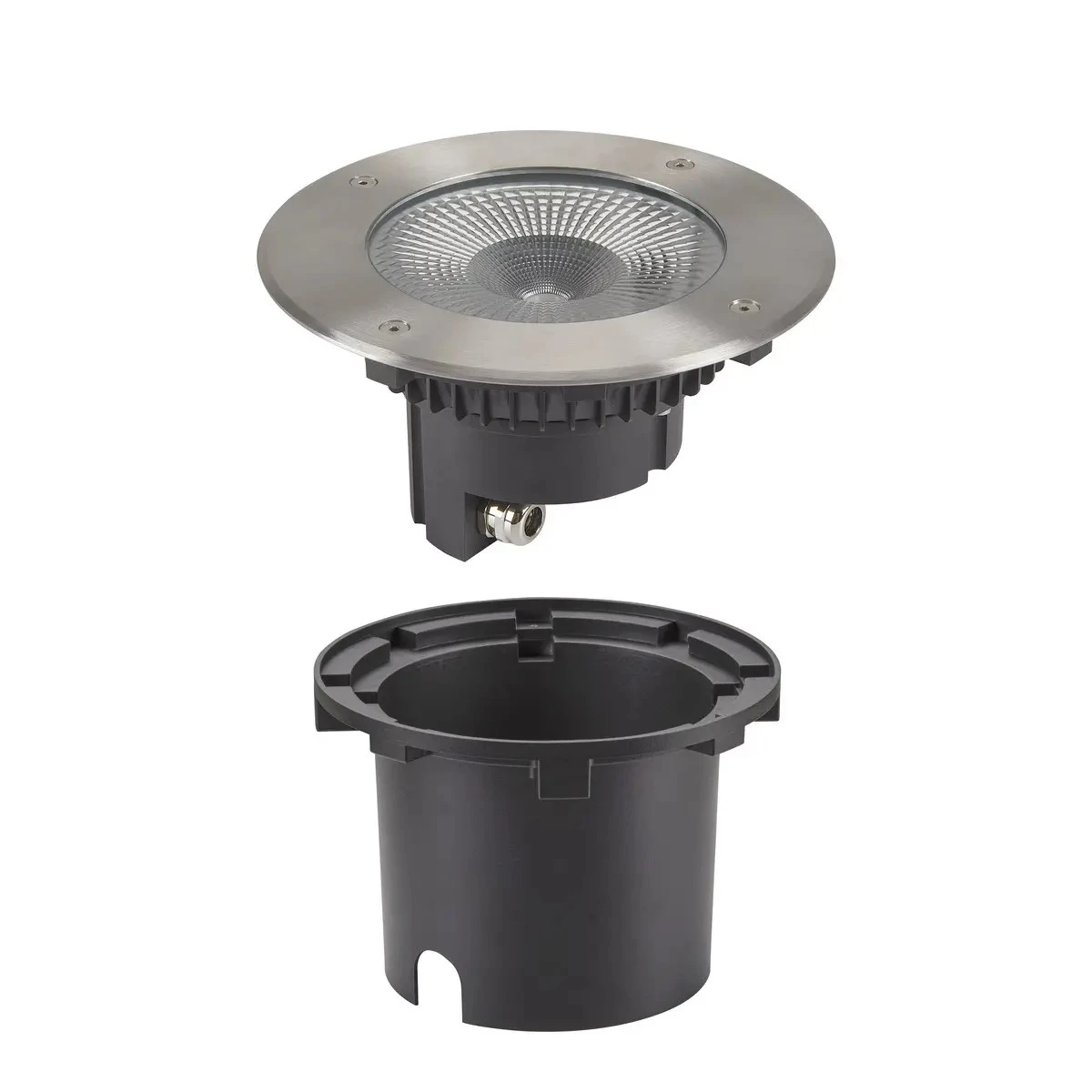

The dimensions are 200mm in diameter for the bezel.  Depth of  136mm  and a cut out of 187mm for the installation sleeve.  The
fitting is housed in a mounting pot for easy assembly and must the fitting must not be installed into the ground without it.

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS incandescent bulb in the home would be 2,700
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.

Installation 220 – 240v

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Mains 240v cable
will have less joints than a low voltage installation but care must be taken with the cable runs. Cabling should be Rubber
Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.

Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise
the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD.
