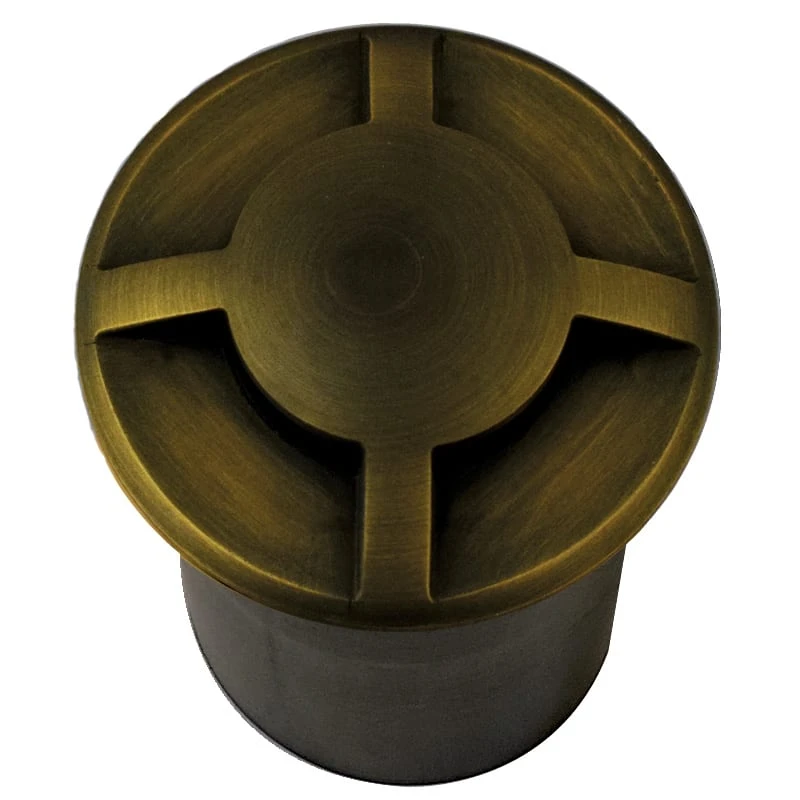

QuadMarka – 240v Rustic Bronze Brass GU10 IP67 Recessed Light 4 Windows 360 Degree Of Light

The robust black plastic sleeve is supplied to protect the copper and assist with installation. The sleeving should be
built into the wall during construction or retrofitted into a drilled out hole. The main part of the light then pushes
into the tube, where it is held firmly in place, leaving only the streamline front dome on show.

The QuadMarka is supplied with approx. 3m of 3 core H05RNF cable. This longer cable length gives the option of a 6m space
between two lights should it be needed, and could cut down the number of cable joins in outdoor lighting installation.
Light can also be spread to a wider area with longer cable length.

Not to be driven over.

Please note: This fitting must be installed with the mounting sleeve and additional rubber seal. If the sleeving and seal is not used, the warranty will be void. Not for use in areas prone to water-logging or flooding.

240v IN-GROUND LIGHTS

240v fittings can be affected by damp conditions, typically when located outdoors. When a fitting is located outside
in the cold air combined with the heat produced by the lamp inside, it is inevitable that condensation will occur,
just as it does on bedroom windows in the home. If too much condensation is produced, this could result in the fitting
tripping, especially in these types of fittings where a drainage hole is not possible. To combat this, we include
silica gel with all  Quadmarka 240v in-ground lights to soak up any excess moisture – these should not be removed
but replaced periodically and fittings checked. If any water is sitting in the fitting, this should be tipped out
and the fitting safely dried out. Condensation can be more prominent when the fitting has been opened on a damp day,
as the damp air will then be trapped inside when re-sealed. Therefore it is recommended that any maintenance, including
changing bulbs, is performed on a dry day. An additional practice to be put in place is to apply Lithium Grease to
the bulb holder / bulb which acts as an additional seal to prevent tripping. Although this prevents tripping, the
fittings will still need to be checked and dried out should water sit inside the fitting. For extra protection, the
Quadmarka can also be filled with Wiska Gel (electrical insulation).
