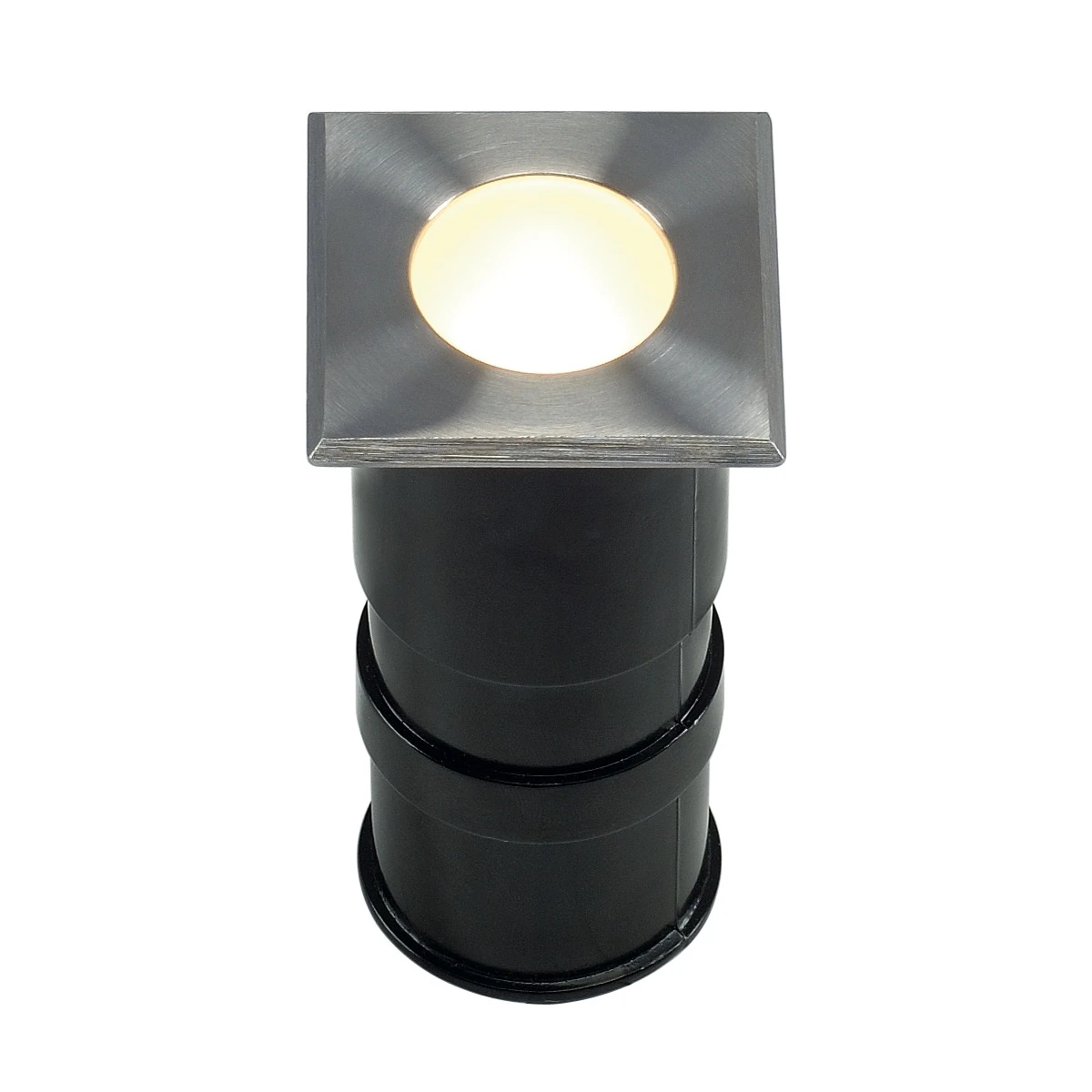

Power Trail-Lite Square – Outdoor Recessed Light – 12v 316 Stainless Steel 1.4w 3000k IP67 Fixed Up Light

Power Trail-Lite Square – 12v 316 Stainless Steel 1.4w 3000k 45 Lumens IP65 Fixed Spotlight – 3000k

The Power Trail-Lite round IP65 is an ideal step and brick light and has a hard wearing 316 stainless steel
construction and glass diffuser, it is built to last and perfect for those small spaces that just need a low level
glow of light.  We recommend that with all in ground installations that a good 200mm of shingle is put underneath
for drainage especially in clay based soils.

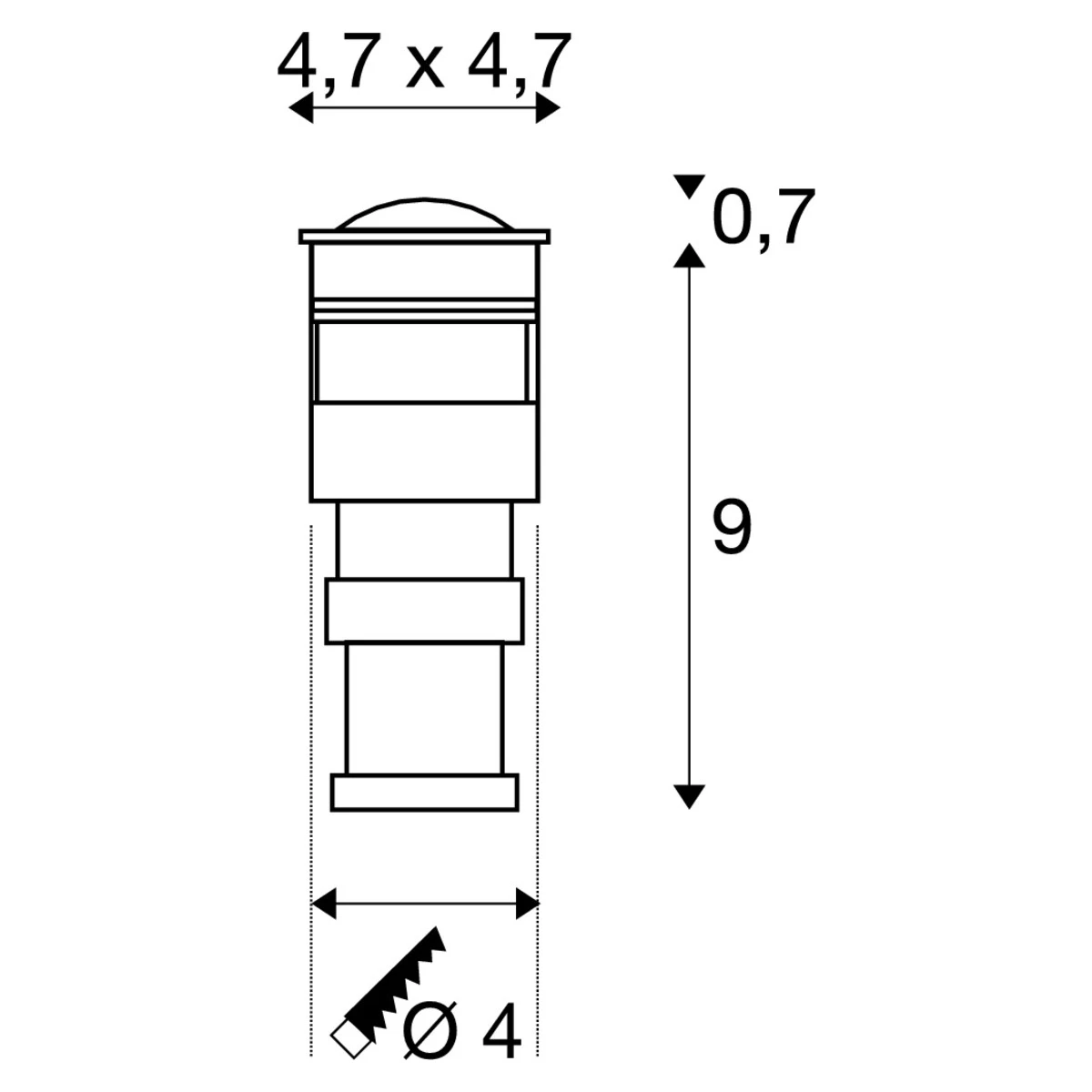

The depth of the fitting is 90mm. Cut out 40mm and square bezel is 47mm x 47mm.

The lumen  output is 45 lumens and colour temperature is  3000k warm white.  The round bezel cool white option has 4000k
colour temperature and code number 10021089 and round bezel warm white 3000k option is code number 228332.

The fitting is 12v and will require a 12v 350mA (milliamp) transformer.  The product is developed in Germany and  can take up to 7 working days.

A budget fitting but very popular and good value for money.

The LED module can be replaced by the manufacturer or qualified service technician authorised by them.

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS incandescent bulb in the home would be 2,700
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.

12v Installation – See Instructions & Data Sheets Tab

Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. Always check the correct type of transformer you need for your fittings.

                                                350mA drivers (transformers) must be wired in Series.
