Polus – 316 Stainless Steel – 24v DC Asymmetric LED Recessed Spotlight IP67 9w 2700k 600 Lumens 45 Degree Beam Angle

Low voltage 24v DC Polus Asymmetric outdoor LED recessed light with a warm white, 600 lumen output. IP67 outdoor LED recessed
lighting with a built-in LED suitable for wall washing, illuminating statues and at the base of trees – where beam control
is a key consideration.

Polus Asymmetric outdoor LED spotlights are designed for lighting small trees and facades from a close position.  The
Polus is a high quality, LED recessed lighting fixture with an asymmetric reflector capable of projecting a medium 45° beam
upwards to light a tree canopy or façade while still providing coverage at the base. Also suitable to use as an outside recessed

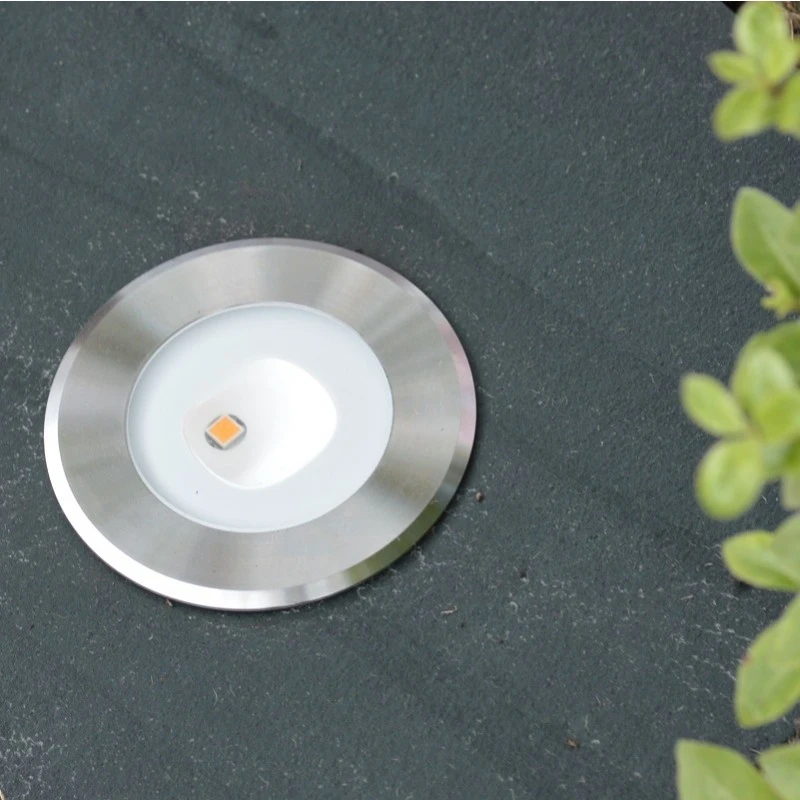

LED light, positioned at the foot of an outside wall, and being particularly effective at guarding against glare and where
the control of the light spread is important. Purchase transformer separately.

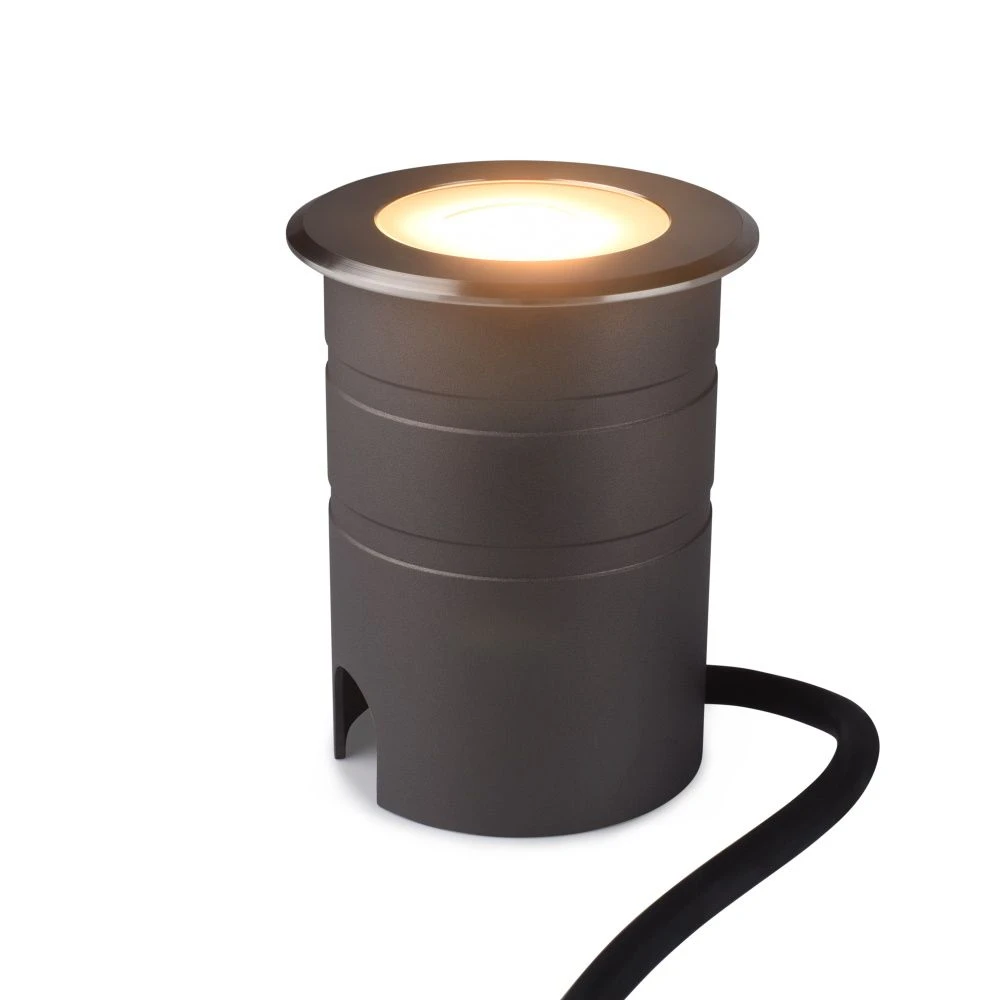

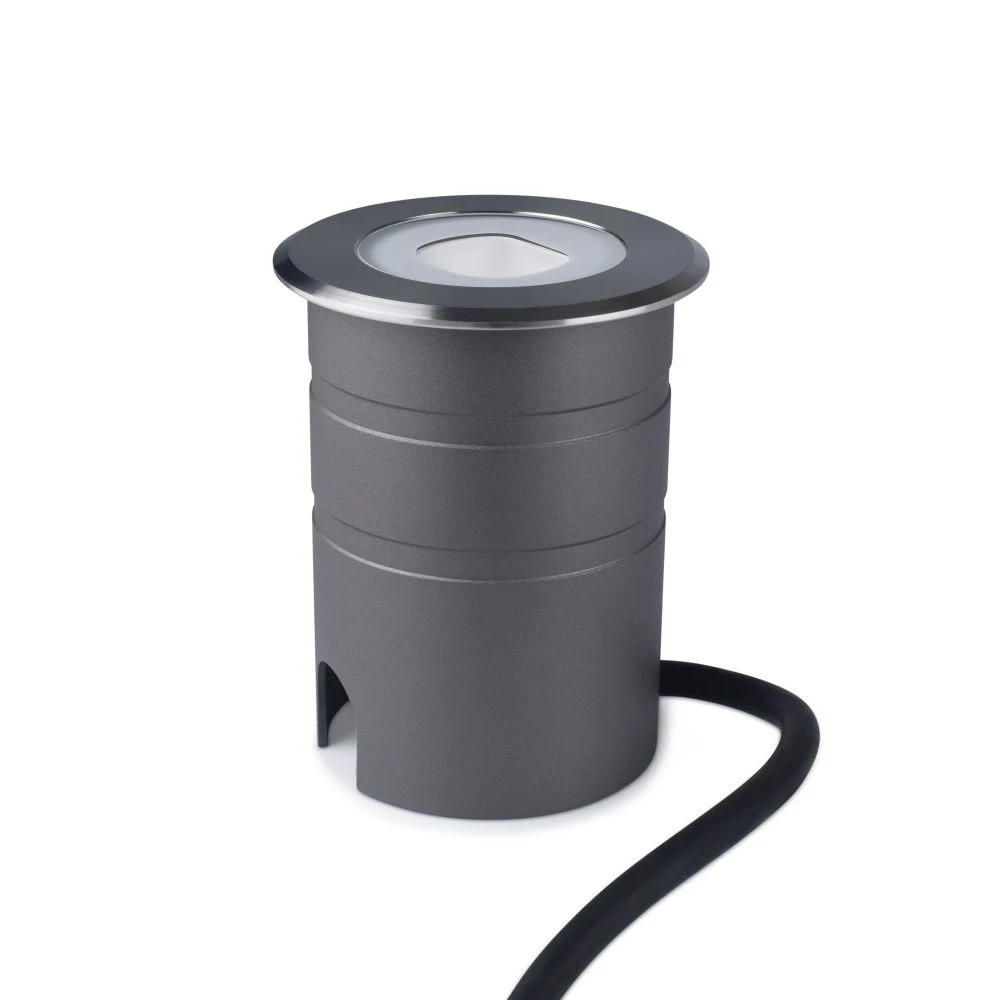

Stainless steel top plate is attached to tubular aluminium body which push fits into the aluminium tube, where it
is held firmly in place by an O-ring, leaving a front plate with no visible fixing screws. 2m cable via rear entry cable.

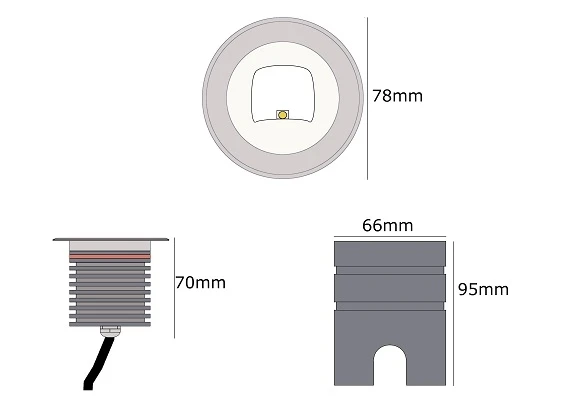

Sleeve height 95mm x 66mm diameter.

Fitting depth 70mm x 78mm diameter bezel.

9w 24v DC constant voltage fitting in 316 Stainless steel, giving out 600 lumens from the 9w warm white 2700k LED.

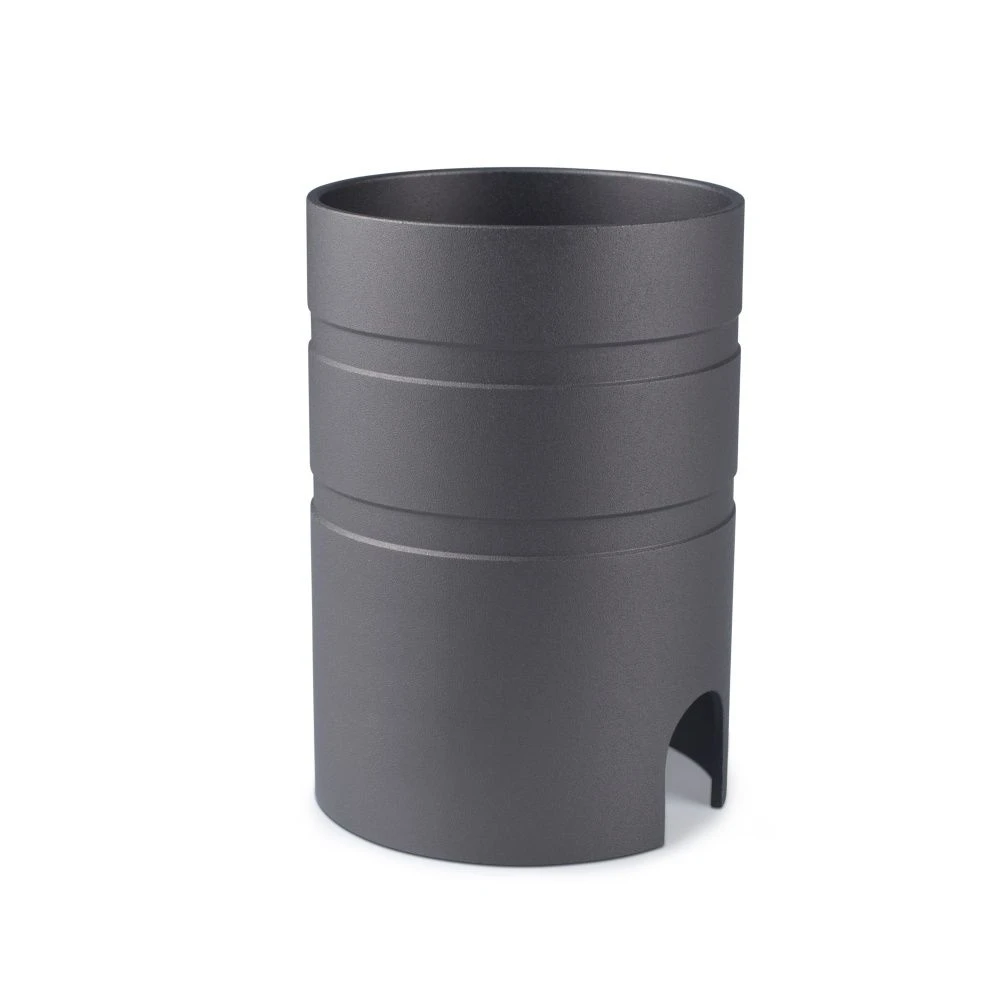

The aluminium sleeve is built into the floor/paving during construction or retrofitted into a hole cut with a coring bit:
the light pushes into the tube, where it is held firmly in place by an O-ring, leaving a front plate with no visible fixing
screws. Suitable drainage should be provided below each fitting to prevent water logging. Connect input cable to cable from transformer using T9962 cable joint or T9963
cable splice kit or T9969 underground joint kit.

12v Installation – See Instructions & Data Sheets Tab

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
