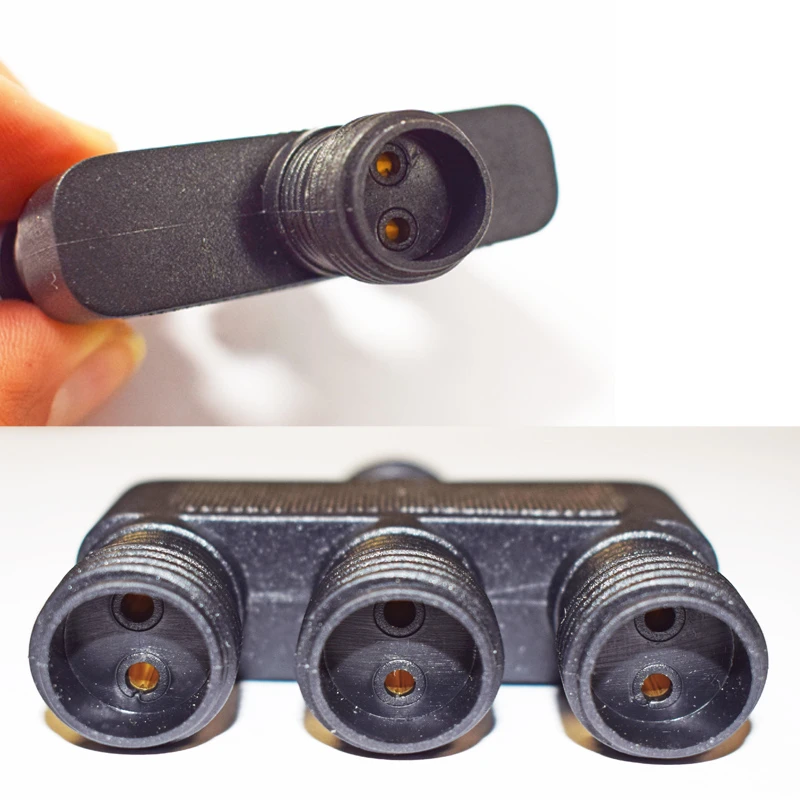

Plug & Play – Versa 3 Way Connector / Splitter

• Output: 12v AC

• Output Cable: 2 core waterproof rubber cable
• Connector: 2 Pin (female) – 1 x input / 3 x output
• IP Rating: IP44
• Included: 3 way splitter & 3 x terminal covers

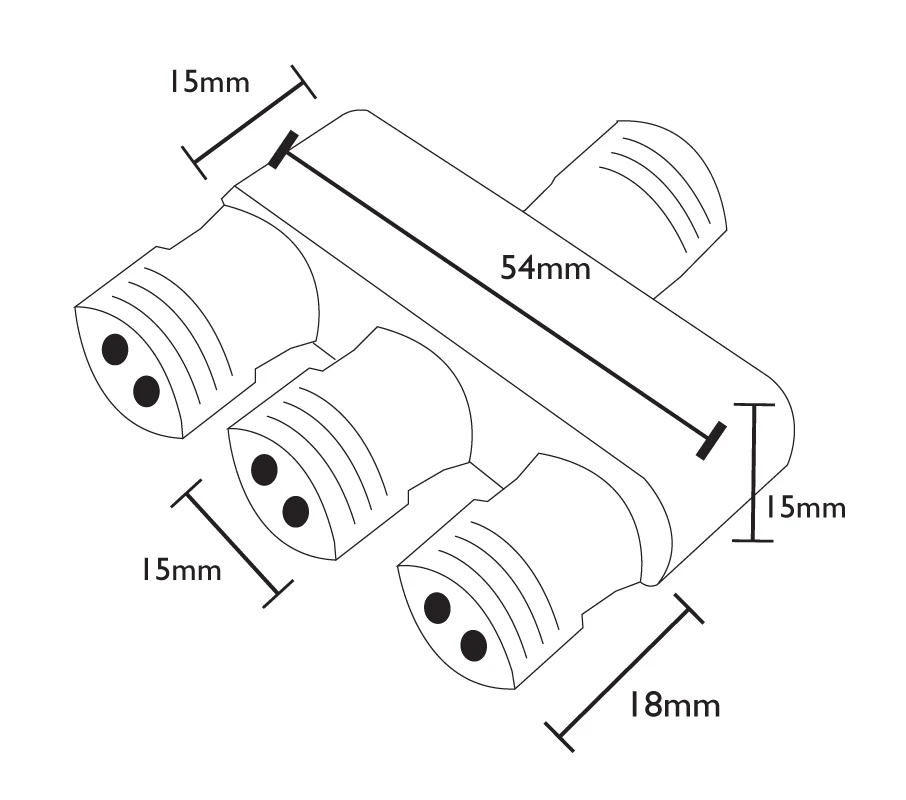

• Dimensions: PINS = 2mm diam. / 6mm centre – centre / CAP = 15mm thread / OVERALL = 54mm (L)
  x 51mm (W) x 15mm (D)

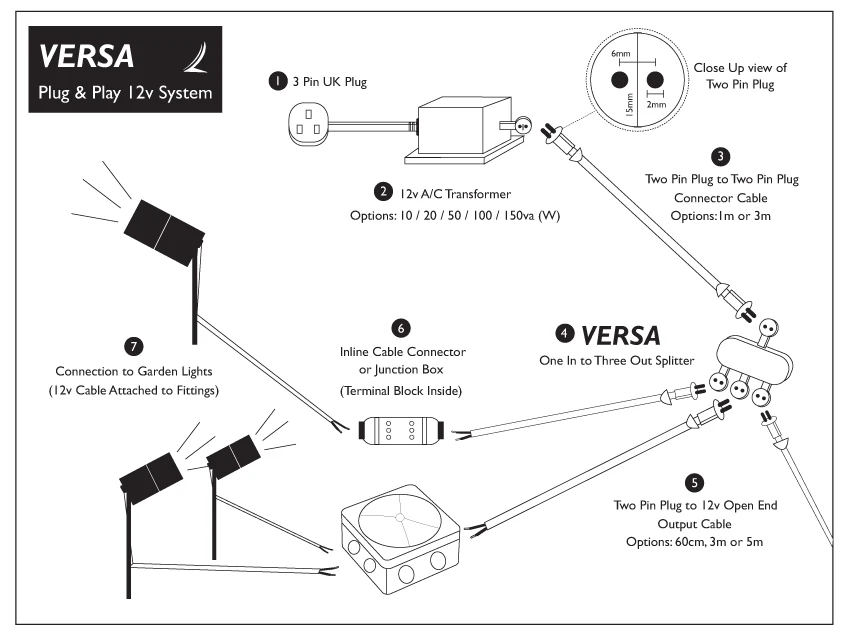

The “VERSA” 3 way adapter / splitter enables a single plug and play connection to be split into 3 directions, either to additional
adapters and output cables or directly to compatible plug and play lighting. Plug and Play simplifies the installation
of 12v garden lighting with no wiring required. Each connection is secured in place with a cap which screws overs the
adapter, ensuring a watertight connection. 3 terminal covers / caps are also provided should not all terminals be used.

Note: A double ended male output cable is required between plug and play Transformers and the 3 way connector (available in 1m or
3m).
