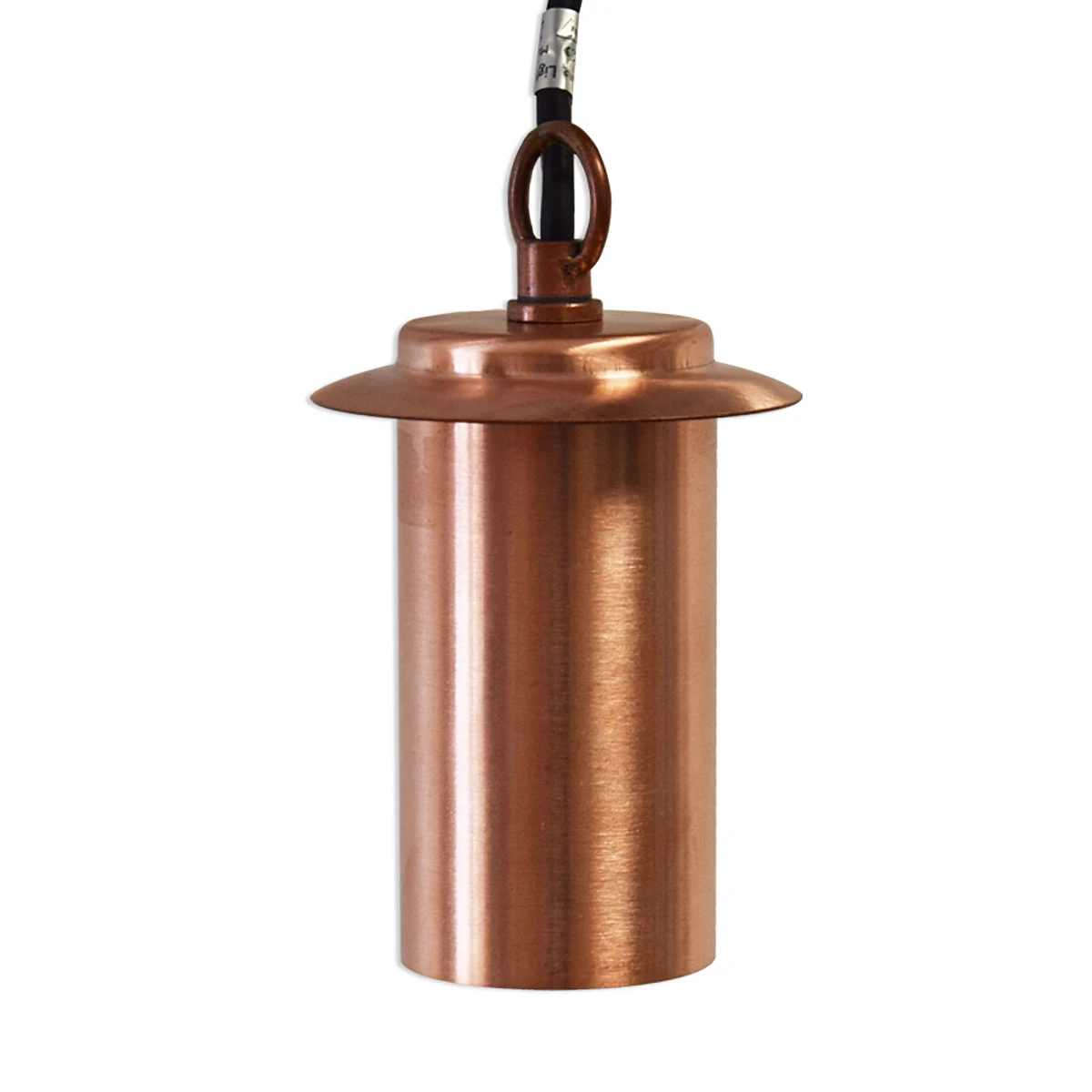

Pergolux – 12v Hanging Light – Natural Copper – Maximum 35w MR16 – IP54 – Plug & Play – 3 Colour Choices

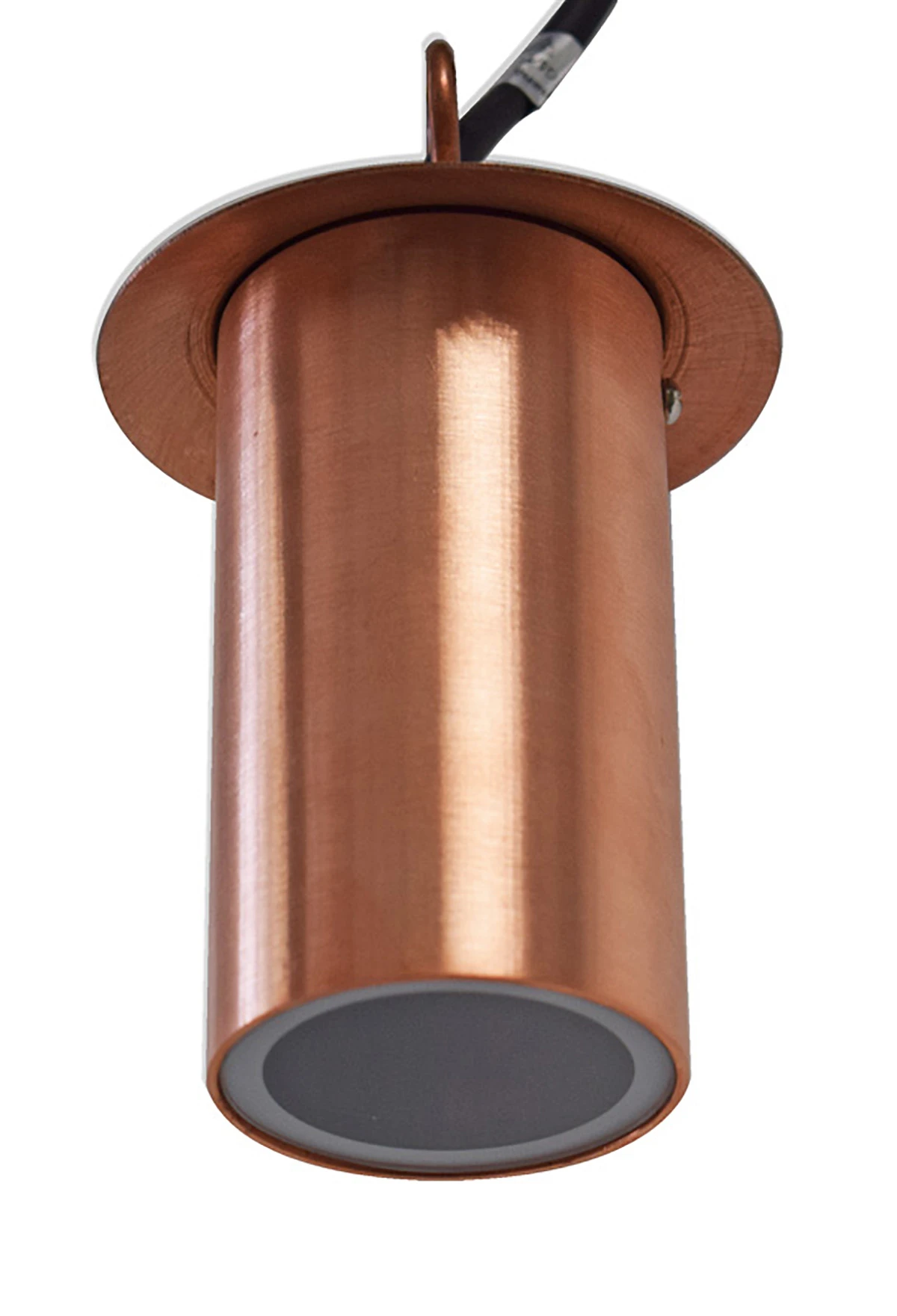

The ‘Pergolux’ is a beautiful plug and play hanging light with a protective clear 60mm tempered glass lens. This fixed
lens at the end of the cylindrical body makes the hanging garden spotlight more weatherproof (IP65) than many others available.
It is therefore ideal for anywhere in the garden where light is required from above. This includes seating areas, tree branches
or BBQ areas. Once illuminated, the hanging spotlight provides a beam that disperses outwards and downwards.

Others finishes  – Satin Silver £40.80-
Copper (Plug & Play) £96.00  Copper
Open Cable £93.60    –
Brown Powder Coated Aluminium. £40.80.

The Pergolux also looks great as an ornamental landscape light during daylight hours. Garden lights in Natural Copper will
weather organically over time to ‘mottle’ and blend in with outdoor materials such as brick, plants and tree bark. After
longer periods of time a ‘verdigris’ effect may be present.

We recommend an LED bulb to reduce running and maintenance costs helped by the bulb’s long lifespan and low wattage.
The LED MR16 can be fitted / replaced easily if ever required by unscrewing the one screw at the top of the cylindrical
body. The ‘Pergolux’ 12v garden light looks fantastic once illuminated, providing a spotlight beam that disperses outwards
and downwards as the light hangs.

For instant colour, a removable dichroic lens will fit inside the light.

Landscape lighting installation is easier with this hanging garden light as a handy 5m of waterproof  cable is supplied.

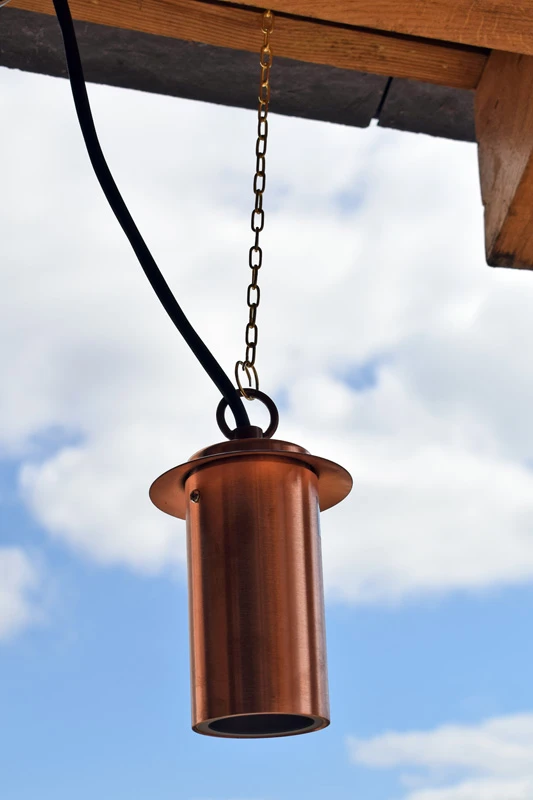

This means less cable joins and more choice on the position of the light fitting. The hanging ring at the top of the
light is usable with a length of chain.

This new Pergolux forms part of the Plug & Play Range. For ease of installation, a 2 pin adaptor plugs directly into a compatible Plug & Play Transformer, or any Versa connectors, meaning no wiring is required.

• Finish: Natural Copper (non lacquered)
• Lamp: MR16 (see above for options)
• Voltage: 12v
• Max. Wattage: 35W
• IP Rating: IP65
• Cable: 12v 2 core 0.75mm² H05RN-F (approx. 5m)
• Dimensions: Length: 140mm (inc ring), Diam. (main body): 60mm, Diam. (top): 90mm
• Also available in Satin Silver Anodised or Brown Powder Coated Aluminium but non plug & play (open cable ) version.

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 6,000 kelvins would be at the very cold white spectrum.

Installation 12v

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement. These Plug and Play fittings should only be used for
small domestic projects due to voltage drop over 5 metres.
