PATTA-I – 7.3w Fixed Round Black 240v IP65 1800-3000k 440 Lumens 38 Degree Beam Angle Recessed Soffit Light
Original price was: $75.92.$53.14Current price is: $53.14.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.
PATTA-I – Fixed Round Black 240v IP65 7.3w 1800-3000k 440 Lumens 38 Degree Beam Angle Recessed Soffit Light
The Patta-I round/square range of LED mains 220 – 240v fittings are the latest in LED outdoor recessed downlights
and perfect for soffit areas, porches and exterior ceiling voids which have a material thickness of up to 20mm. When lighting
is fixed into the soffit boards you will get great lighting effects as the integral warm white Dimmable 1800-3000k LED module will give
out 440 Lumen with a 38 degree beam angle and the total consumption will be 7.3w.
The fitting has an integral Dimmable 1800 – 3000k warm white sealed LED chip giving out 410 lumens and this factory built LED can be
replaced by returning the fitting to our manufacturer or by a service technician authorised by them. The lamp life is
approximately 30,000 hours.
The fitting is IP65 which translated for water ingress is protection against jetting water.

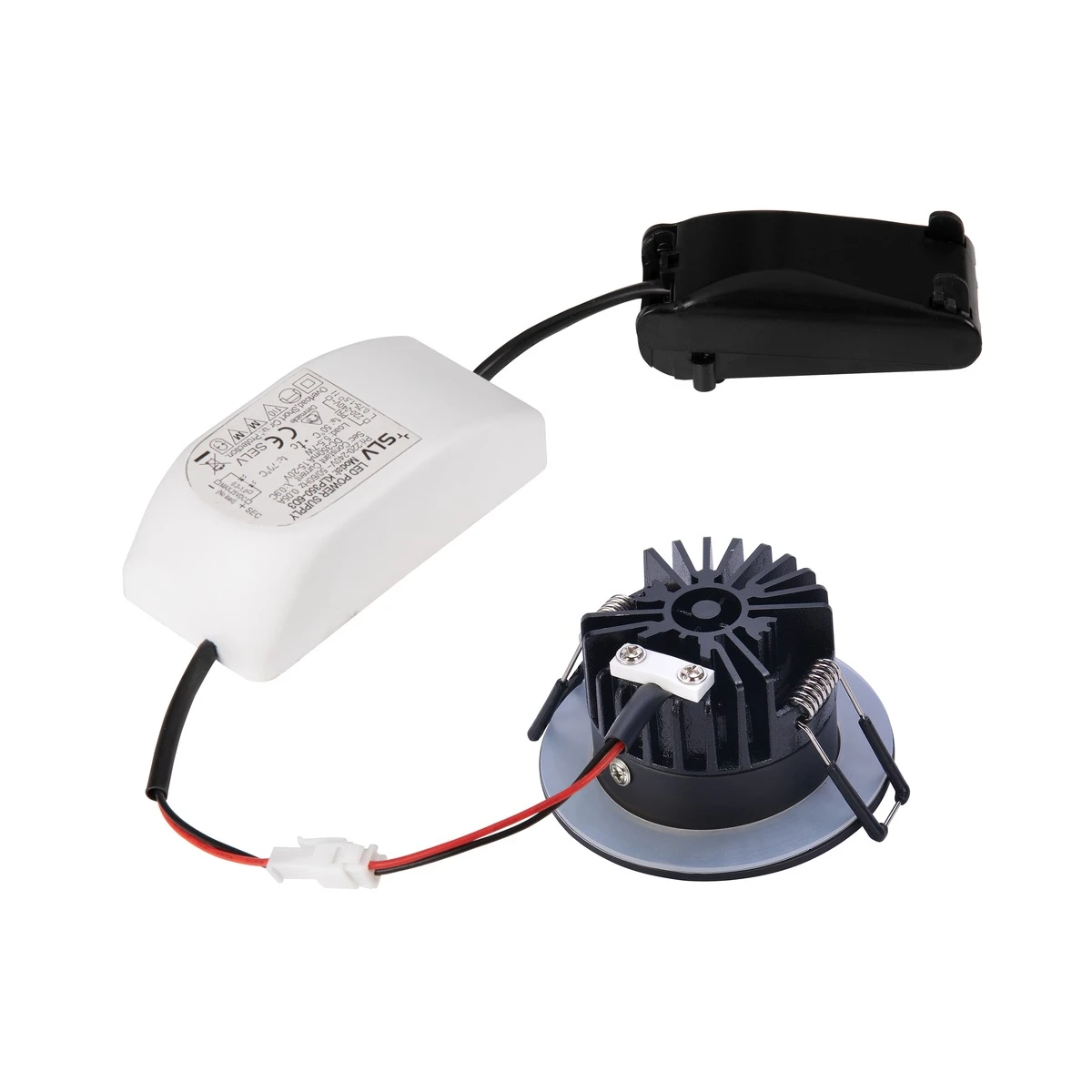

The fitting has a built in 350mA constant current driver and the COB (Chip on board) LED module should last up to 30,000
hours.
It comes in Matt White code number 1002099 and Matt Aluminium code 1002100. There is a square bezel version too. Codes 1002101
Black, 1002102 Matt White and 1002103 Matt Aluminium. .
Wiring regulations would suggest that a ingress protection of IP23 would be sufficient in this location but using a fitting
with a higher IP figure can only ensure extra protection in exposed locations.
Where depth is available they can also be used in an entrance porch linked to a motion detection PIR so they come on only
when required.
Lamp Colour (Kelvins)
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
Installation 220 – 240v
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy
access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in
place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.
Mains 240v cable will have less joints than a low voltage installation but care must be taken with the cable runs.
Cabling should be Rubber Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
| Colour | Black, Silver, White |
|---|---|
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP65 |
| Watts | 7.3W |
| Warranty | 5 Years |
| Voltage Voltage of fitting, Light Bulb or Transformer | 240v |
| Materials | Aluminium |
| Lumens | 440 lm |
| LED | LED Driver included |
| Colour Temperature | 3000k |

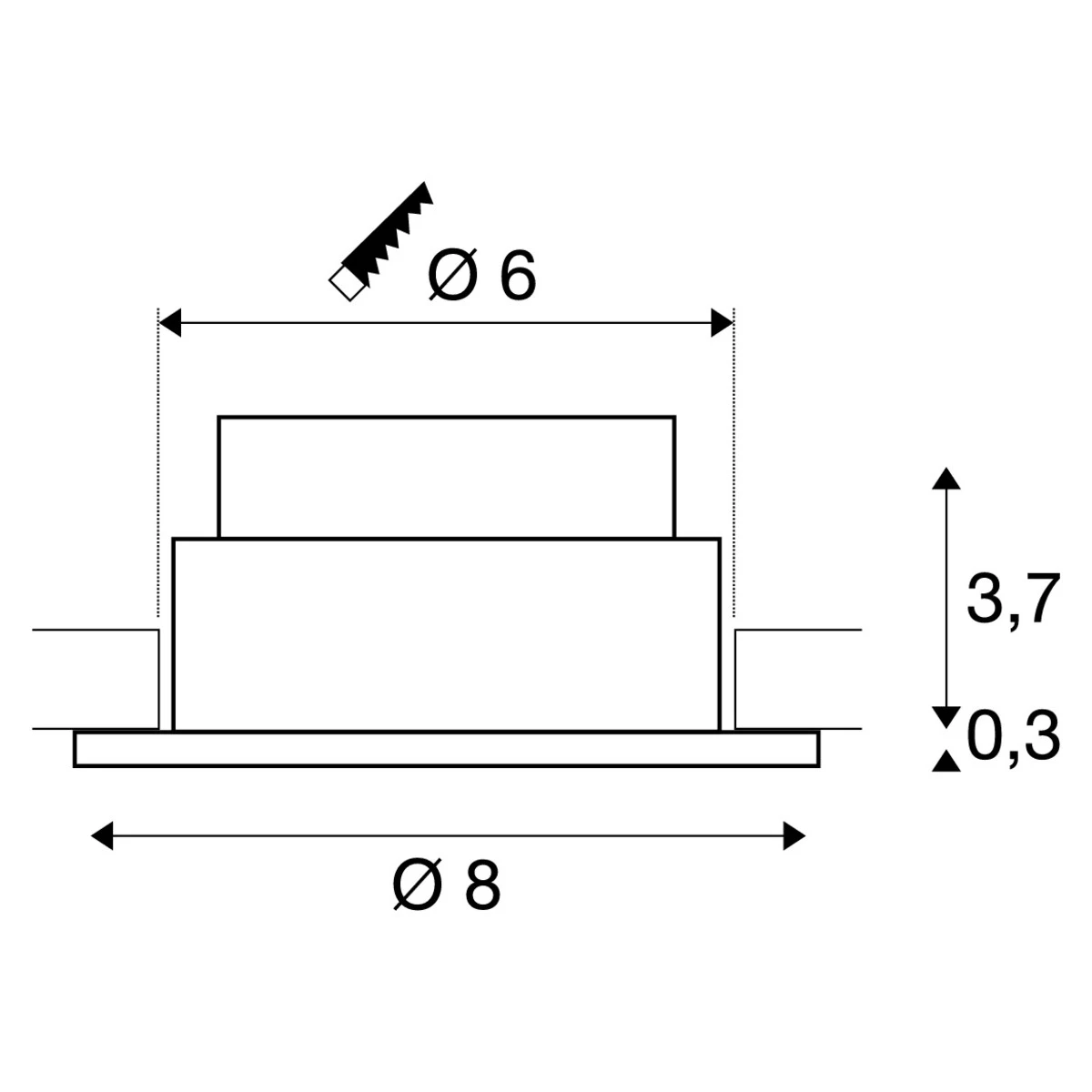

| Installation Depth | 60 mm |
| Bezel | Round Bezel, Square Bezel |
| Dimmable | yes |
| Depth | 3.7cm |
| Cut Out | 60 mm |
| Colour Colour of fitting | Black |
| Bulb Type Bulb type used for fittings | Integral LED |
| Beam Angle | 38 Degree |
| Additional Information | Ceiling material thickness 20mm |
| Width | 8cm |
