PATTA-F – Fixed Round Black 240v IP65 11w 3000k 745 Lumens 38 Degree Beam Angle Recessed Soffit Light
The Patta-F round/square range of LED mains 220 – 240v fittings are the latest in LED outdoor recessed downlights and perfect
for soffit areas, porches and exterior ceiling voids which have a material thickness of up to 20mm. When lighting is
fixed into the soffit boards you will get great lighting effects as the integral warm white 3000k LED module will give
out 745 Lumen with a 38 degree beam angle and the total consumption will be 11w.
The fitting has an integral 3000k warm white sealed LED chip giving out 745 lumens and this factory built LED can be
replaced by returning the fitting to our manufacturer or by a service technician authorised by them. The lamp life is
approximately 40,000 hours.
The fitting is IP65 which translated for water ingress is protection against jetting water.

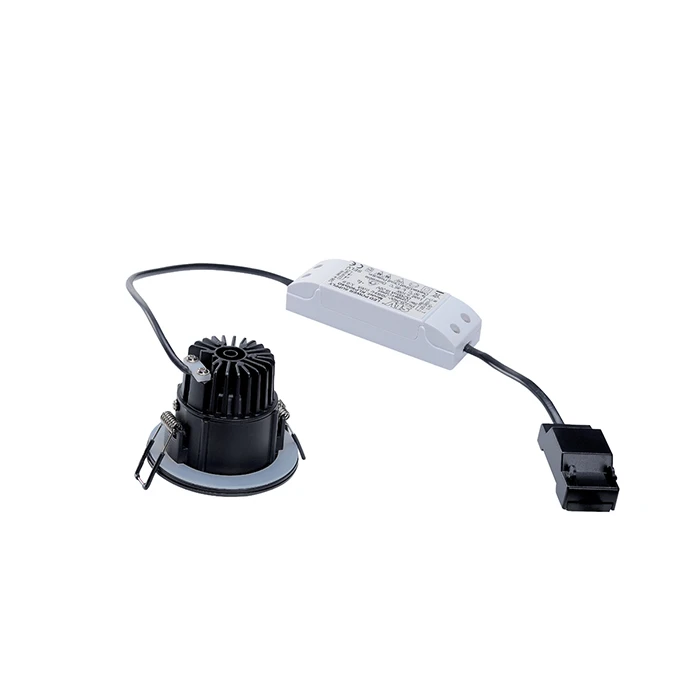

The fitting has a built in 500mA constant current driver and the COB (Chip on board) LED module should last up to 40,000
hours.
It comes in White code number 114441. There is a square bezel version too. Codes 114450
Black and 114451 white .
Wiring regulations would suggest that a ingress protection of IP23 would be sufficient in this location but using a fitting
with a higher IP figure can only ensure extra protection in exposed locations.
Where depth is available they can also be used in an entrance porch linked to a motion detection PIR so they come on only
when required.
Lamp Colour (Kelvins)
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
Installation 220 – 240v (See Instructions & Data Sheets Tab)
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy
access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in
place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.
Mains 240v cable will have less joints than a low voltage installation but care must be taken with the cable runs.
Cabling should be Rubber Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
