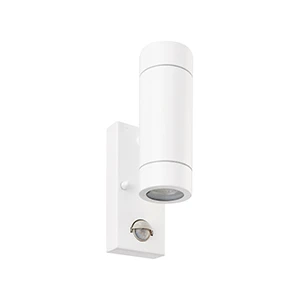

Palin PIR Sensor Outdoor Wall Up/Down Security Light – 240v – Gloss White IP44 GU10
Original price was: $44.23.$30.96Current price is: $30.96.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.
Palin Up/Down 240v – Gloss White IP44 2 x GU10 Security Wall Light With Manual override PIR Sensor
in manual override PIR sensor. The variety of Palin wall lights are one of our long standing and popular high selling exterior security wall lights and one
which compliments the outside of your home.
The mains 240v fitting has a clear glass lens and you can use 2 x GU10 LED bulbs up to a maximum wattage of 7w per LED
bulb.
The PIR sensor sits at the base of the wall mount and has a detection angle of 110 degrees. The timer can be set
from as little as 5 seconds to a maximum of 5 minutes.
The sensor will be activated once it is dark and will switch the light on when it detects someone within it’s range.
Comes in choice of twin wall fitting code 75440 or single wall light code 75442 as well as other colour finishes in black
and Stainless steel codes 75430, 75431, 75435 and 75433
NOT SUITABLE FOR COASTAL ENVIRONMENTS
- Complete with built in PIR
- 110° detection angle, 8m maximum range with a 5 sec – 5 min timer function
- 10 lux – 2000 lux
- Powder coated white stainless steel & clear glass
- Constructed from stainless steel (304)
- IP44
- Proj: 108mm H: 210mm W: 70mm
- Class 1
- 2 Years Warranty
- Weight: 0.8 Kg
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would
be 2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very
cold white spectrum. Getting the right colour temperature of a lamp does matter as the warm colour wavelength
helps to soften the tone of the area and gives a warm soft relaxed feel and ideal for colourful flower beds
and rockery areas especially with wooden bark and at the other end of the scale a 4,000 to 5,000 kelvin lamp
colour would be used against a light background such as white walls or to accentuate grey blueish foliage
in shrubs and small trees. When you buy a new, energy efficient bulb, keep your application and colour
scheme in mind and make sure to buy the bulb with a colour temperature to match.
Installation – See attached downloads
fitting, carefully note the position of each set of wires.
Note that the switch is turned off before installation.
pegs. Carefully pierce a small hole in the rubber gasket in the centre of the mounting box to allow the cable
to pass through.
Thread the cable through the hole, ensuring the drain hole is at the base of the mounting box.
Fix the mounting box to the wall using the screws and plugs supplied (B). Ensure the wall is capable of holding
the weight of the product. Take care to avoid damaging any concealed wiring and pipes. The correct fixings should
be used for brick or cavity walls.
• Wire as detailed Wiring diagram in attached download.
Fit the product back on to the mounting box and refit washers (D) and dome nuts (C), tighten dome nuts to secure.
Fit the bulbs.
Replace fuse or circuit breaker and switch on. Your light is now ready for use.
| Colour | Black, Silver, White |
|---|---|
| Product Type | Single Wall Light, Twin Wall light |
| Sensor | PIR Motion Sensor (passive infra red) |
| Bulb Type Bulb type used for fittings | GU10 |
| Colour Colour of fitting | White |
| Height | 210mm |
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP44 |
| Materials | Stainless Steel |
| Projection | 108mm |
| Voltage Voltage of fitting, Light Bulb or Transformer | 240v |
| Warranty | 2 Years |
| Width | 70mm |
