Palin – Outdoor Twin Adjustable Wall Light – 240v – Black Powder Coated IP44 2 X 7w GU10 LED Bulbs

Original price was: $44.46.Current price is: $31.12.

SKU: ZXH0Z 1704329639 Category: Outdoor Wall Lights

Free and fast shipping worldwide
Experience the Best Quality
Online assistance, always at your service.
Shop with confidence, we guarantee quality.

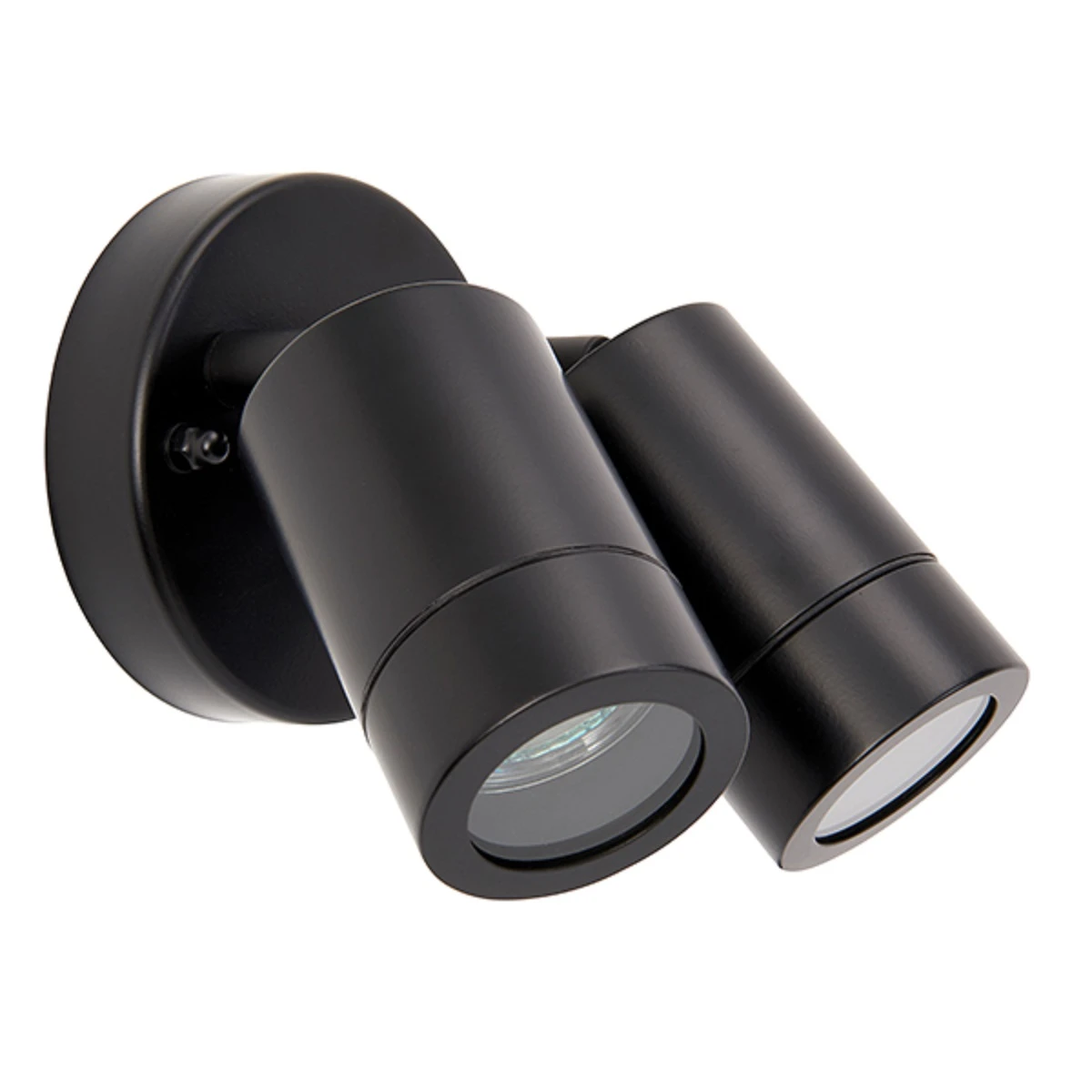

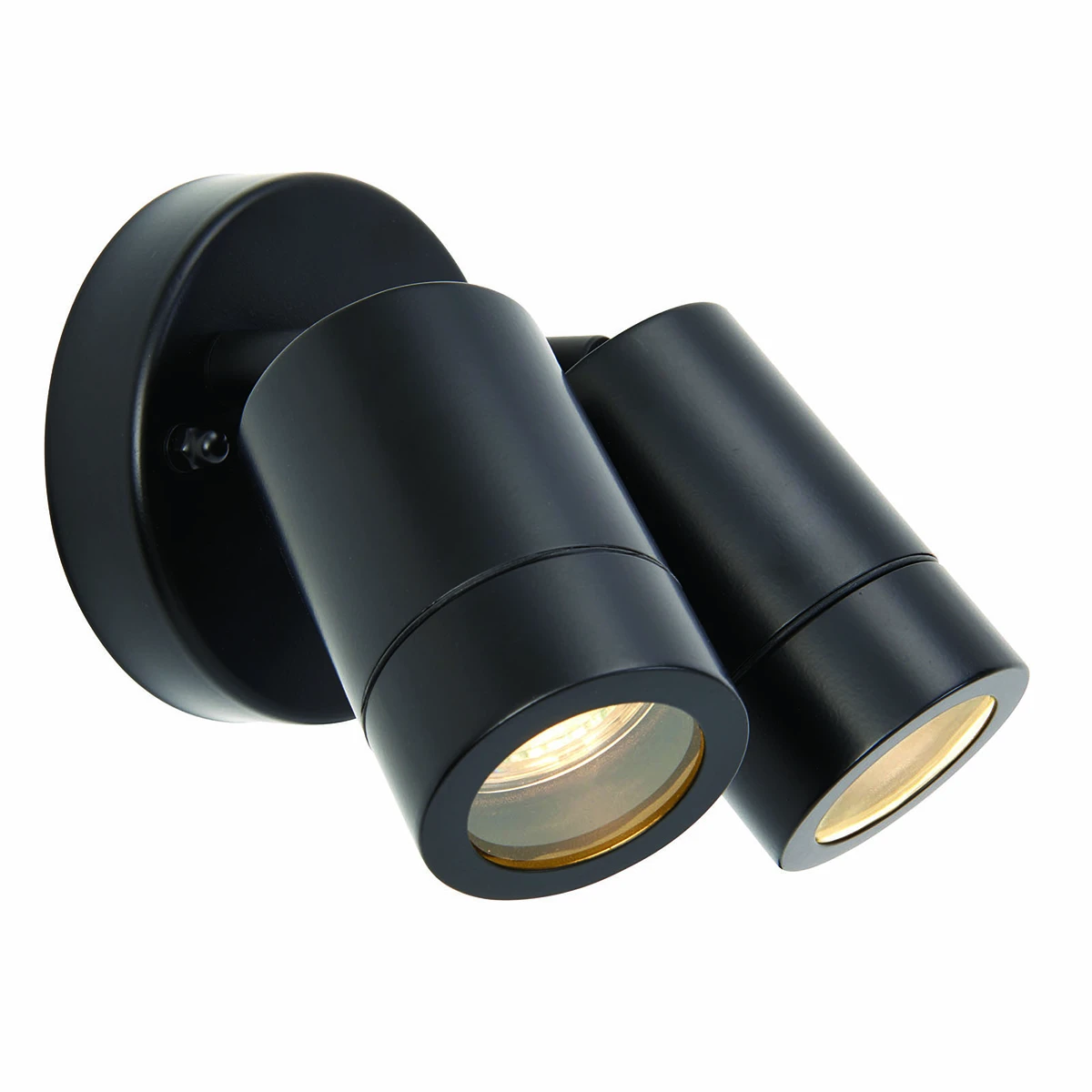

Palin Twin Up/Down Light 240v – Black Powder Coated IP44 GU10 Uses Maximum 2 x 7w GU10 LED Bulbs

The Palin Twin up/down light is an outdoor adjustable & dimmable two light spotlight from the Palin range with a sleek, matt black finish, offering a
stunning designer look at an affordable price. Other colour options are available in white and Stainless Steel.

Fully adjustable
Dimmable
220 degree rotation and 90 degree tilt
Matt black & clear glass
Constructed from stainless steel (304) & glass
2 x 7W LED GU10 (bulb not included)
IP44
Proj: 165mm W: 220mm H: 113mm
Class 1
2YR Warranty
Weight: 0.8 Kg

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.

Installation – See attached Instructions & Data Sheets Tab

Existing ﬁttings must be completely removed before installation of a new product. Before removing the existing ﬁtting,
carefully note the position of each set of wires.

Note that the switch is turned off before installation.

Ensure that the screws and cable entry points are sealed to maintain the IP rating of the product.

Remove mounting box (A) from the product by removing dome nuts (C) and washers (D). Pull terminal block off of retaining
pegs. Carefully pierce a small hole in the rubber gasket in the centre of the mounting box to allow the cable to pass
through.

Thread the cable through the hole, ensuring the drain hole is at the base of the mounting box.

Fix the mounting box to the wall using the screws and plugs supplied (B). Ensure the wall is capable of holding the weight
of the product. Take care to avoid damaging any concealed wiring and pipes. The correct fixings should be used for brick
or cavity walls.

Seal the screw fixings to maintain the IP rating of the fitting.

• Wire as detailed Wiring diagram in attached download.

it the product back on to the mounting box and refit washers (D) and dome nuts (C), tighten dome nuts to secure.

Fit the product back on to the mounting box and refit washers (D) and dome nuts (C), tighten dome nuts to secure.

Fit the bulbs.

Replace fuse or circuit breaker and switch on. Your light is now ready for use.

We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber sheathed cable. The
mains supply cable must have a minimum cross section area of 1.0mm2 . Cables must be protected using suitable conduit or
plastic trunking.

Bulb Type Bulb type used for fittings	GU10
Colour Colour of fitting	Black
IP Rating Ingress Protection - a two digit code representing water resistance.	IP44
Materials	Stainless Steel
Max Wattage	7W
Voltage Voltage of fitting, Light Bulb or Transformer	240v
Warranty	2 Years
