Navigator Mono – Deck Light 12v DC – Copper 2700k 0.5w IP65 – Outdoor Recessed Light

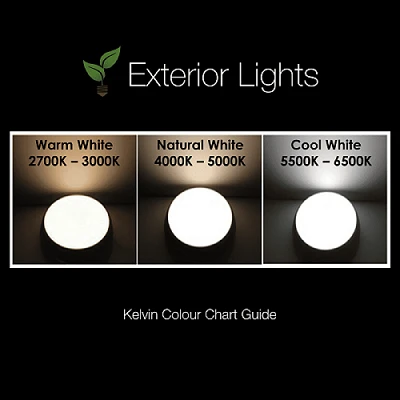

The E3221WWNC is a warm white LED deck and recessed light which consumes a tiny amount of power and stays cool to the touch, adding

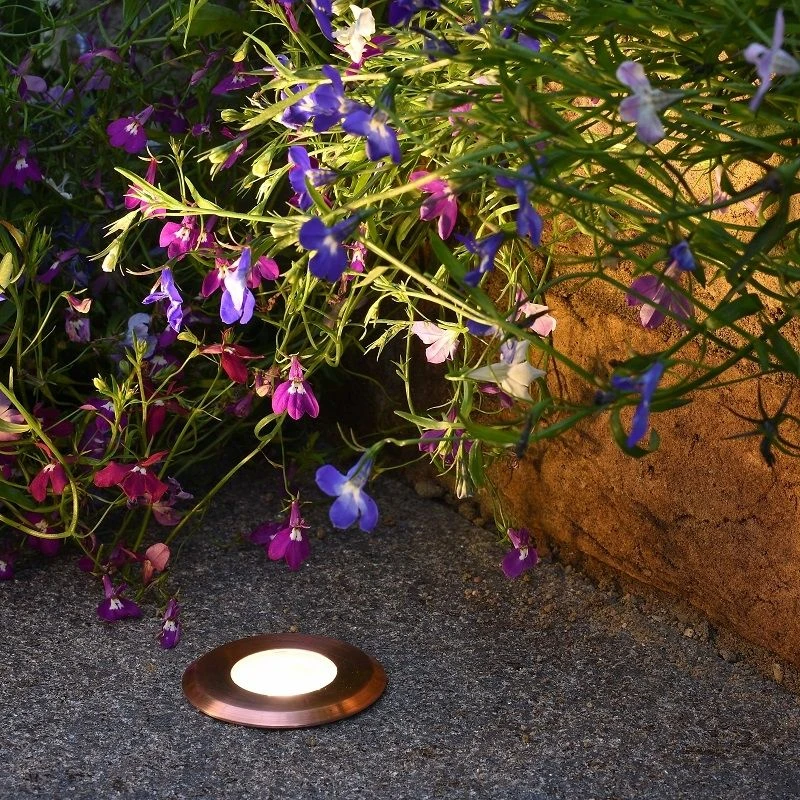

a stylish modern element to a garden lighting scheme. Navigator Mono are used to mark out the shape of a deck, patio
or terrace, to outline paths and light small steps. To outline a deck or patio space with a distinctive shape, start
at the corners of the decking or paving and space lights about 0.8 – 1.2 metres apart. Also available in cool white code E3221WNN and in 316 Stainless Steel codes E3211WWN and E3211WNN.

Natural copper weathers to a mottled brown finish which blends well with red brick and timber, especially darker hardwood
decking.

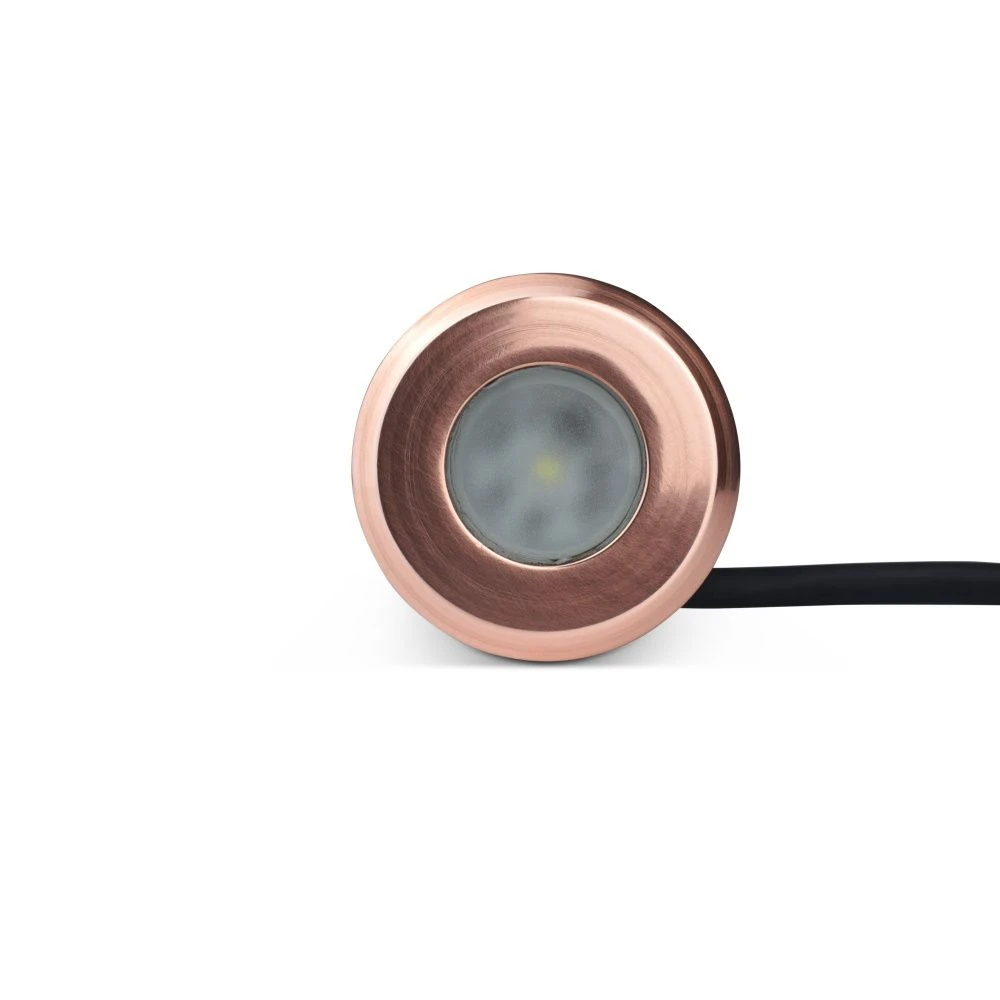

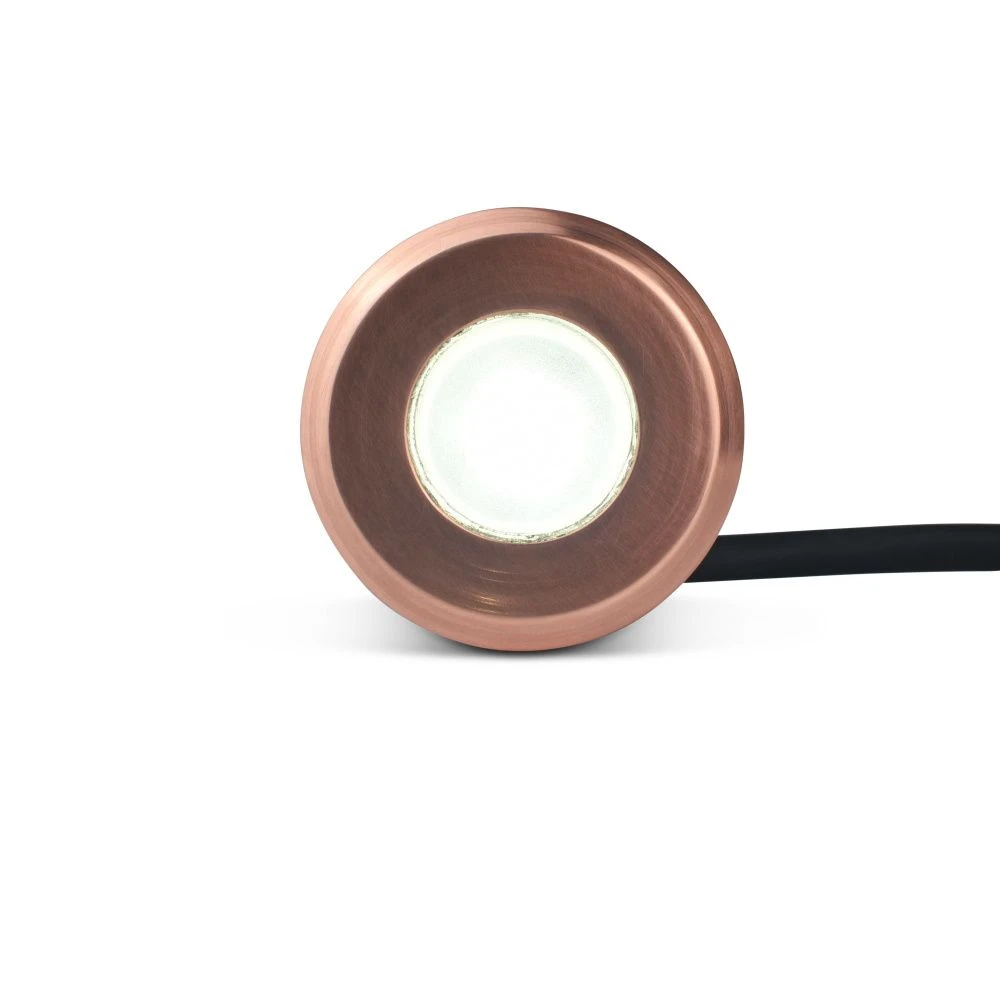

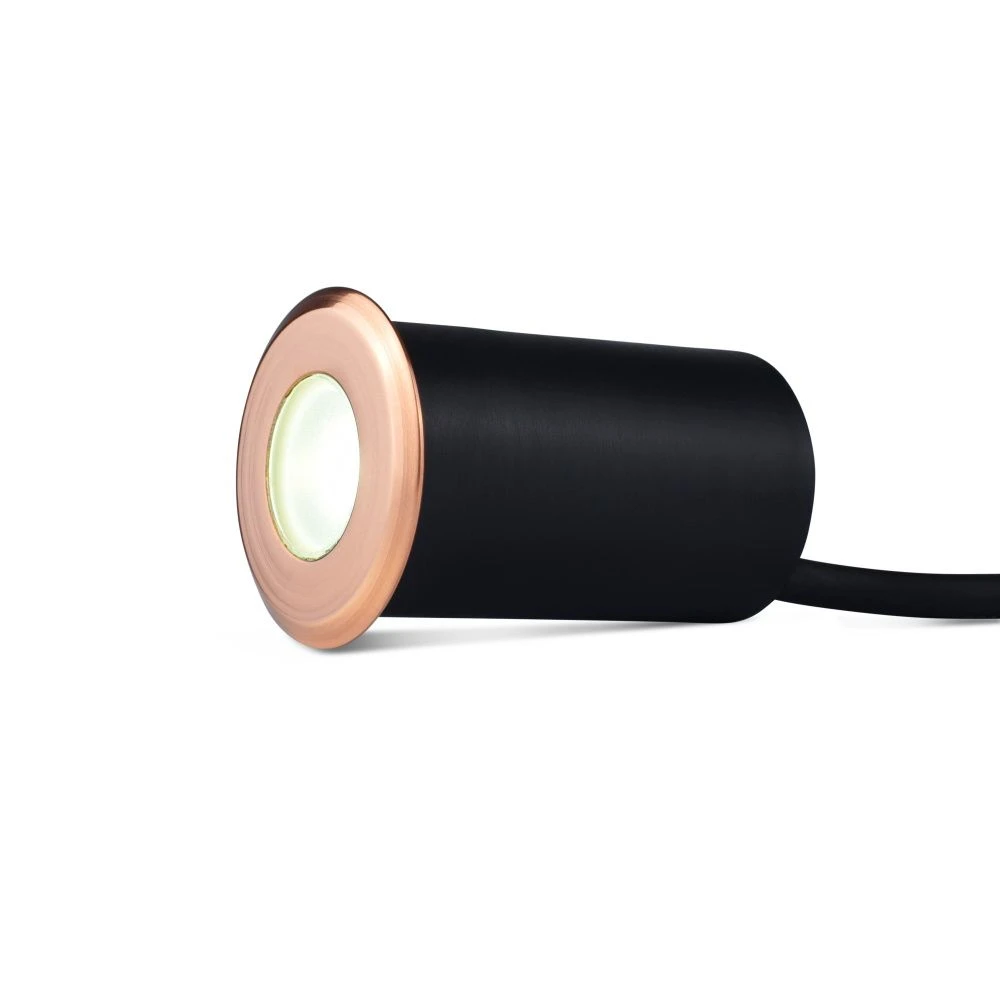

Each light contains long life high-output LED resin-encapsulated behind a frosted glass lens in a stainless steel bezel.

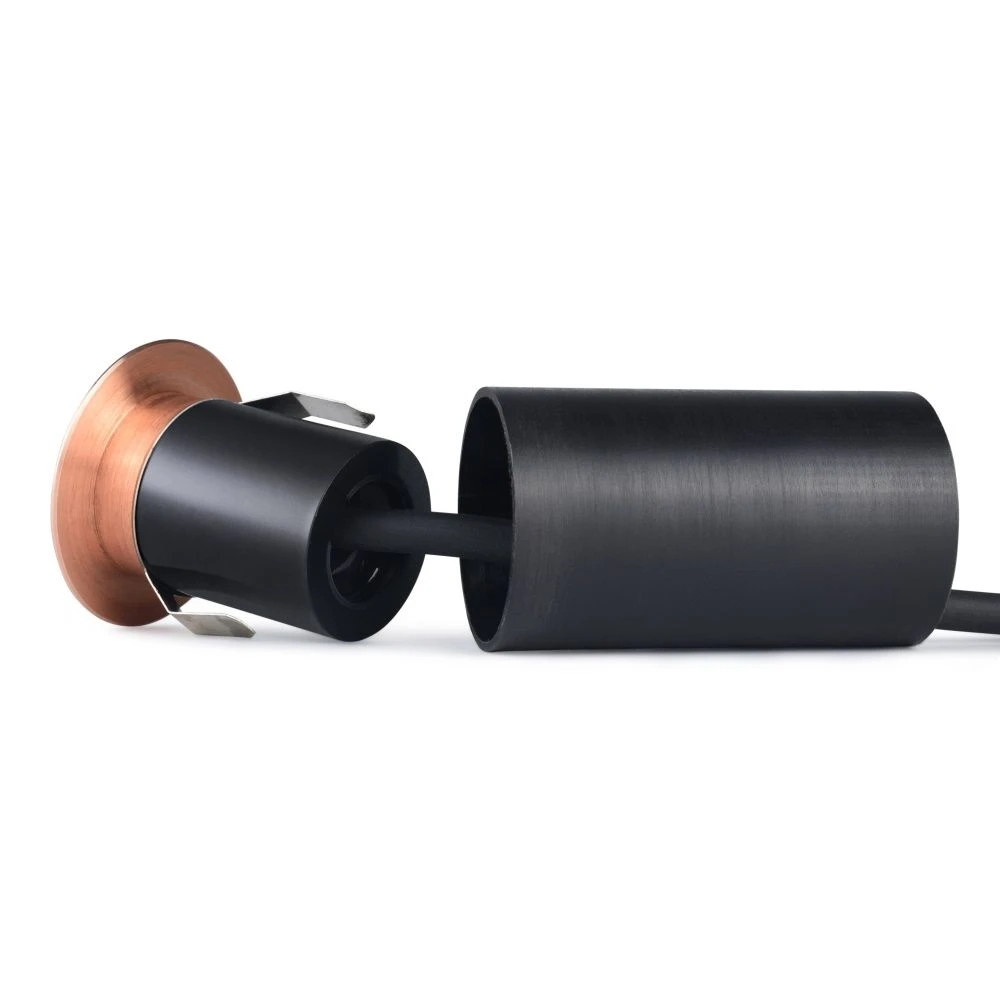

The case has a spring mount which locates the light in a sleeve used to prepare positions in concrete, paving or walls.  Comes
supplied with 1m H05RN two core cable.  They can be recessed without the sleeve in decking, sleeper walls and other
materials using a 38mm wood drill bit.

12v 0.5w: NAVIGATORS should be powered by 12v dc power supply. Do not use an electronic transformer to power Navigator LED
lights. If powering from a 12v ac wire-wound transformer, ensure transformer is loaded to at least 60% of nominal rating.

Navigator lights can be arranged in custom layouts using cable joint kits and 1.5mm cable, which is more flexible than kit-type
products. Connect to the end of a low voltage cable using T9962 cable joint kit; for splicing into a run of cable use
T9963 cable splice kit.

Please note that the B9403N DC 15w transformer will only accommodate up to 8 of these fittings.

                                            12v Installation – See Instructions & Data Sheets Tab

Choosing the style of a product is only part of the equation you must also think of where that product will be used and

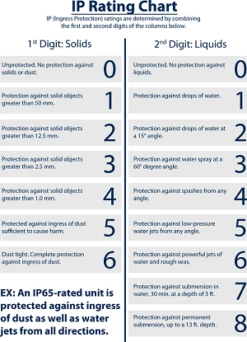

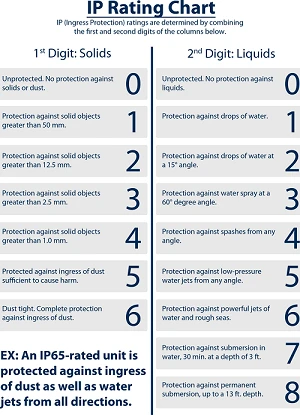

how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix.
