Navigator Mono – Deck Light 12v DC – 316 Stainless Steel 2700k 0.5w IP65 – Outdoor Recessed Light
Original price was: $51.00.$35.70Current price is: $35.70.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.
Navigator Mono 12v DC 316 Stainless Steel Recessed Deck Light 2700k 0.5w 60 Lumens IP65
adding a stylish modern element to a garden lighting scheme. Navigator Mono are used to mark out the shape of a deck, patio
or terrace, to outline paths and light small steps. To outline a deck or patio space with a distinctive shape, start at the
corners of the decking or paving and space lights about 0.8 – 1.2 metres apart. Also available in
cool white code E3211WNN and Copper codes E3221WWNC and E3221WNN.
Each light contains long life high-output LED resin-encapsulated behind a frosted glass lens in a stainless steel bezel.

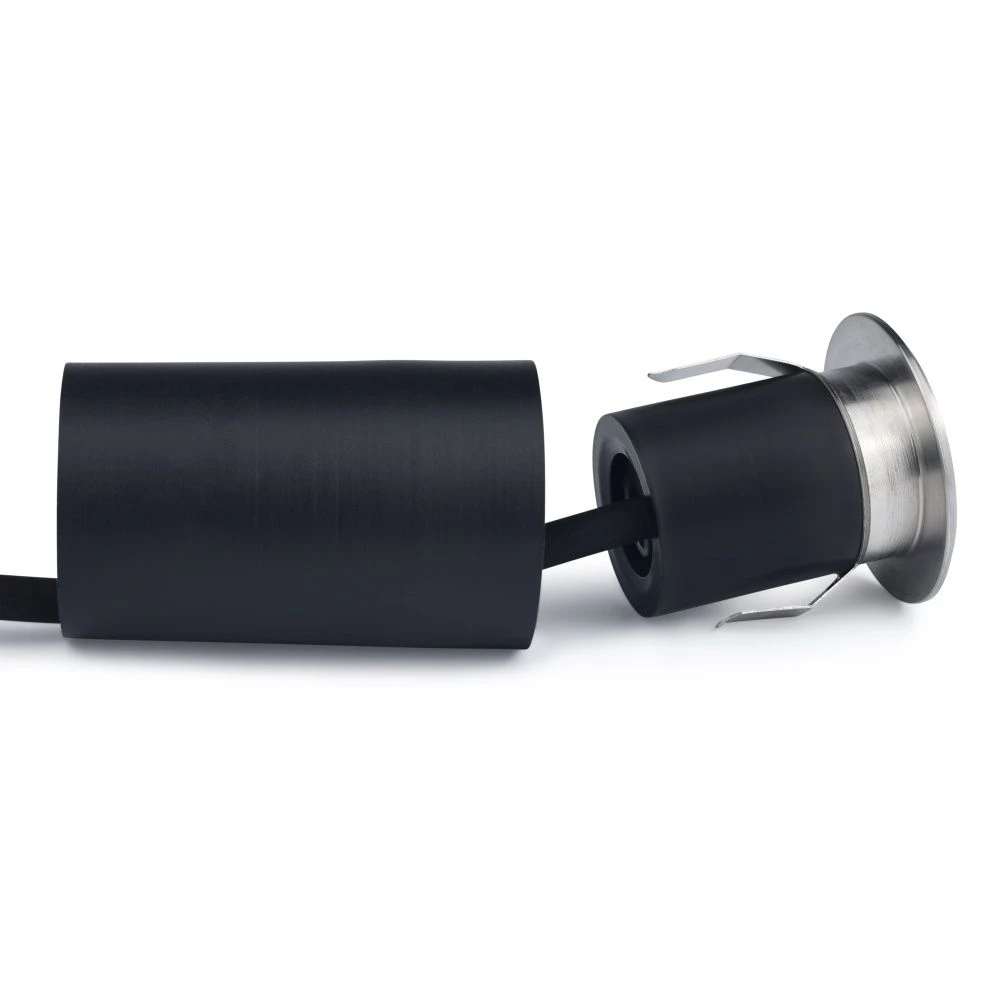

The case has a spring mount which locates the light in a sleeve used to prepare positions in concrete, paving or walls. Comes
supplied with 1m H05RN two core cable. They can be recessed without the sleeve in decking, sleeper walls and other materials
using a 38mm wood drill bit.
LED lights. If powering from a 12v ac wire-wound transformer, ensure transformer is loaded to at least 60% of nominal
rating.
products. Connect to the end of a low voltage cable using T9962 cable joint kit; for splicing into a run of cable use
T9963 cable splice kit.
Installation 12v – See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix.
We would advise parallel wiring for this installation
| Colour | Brown, Silver |
|---|---|

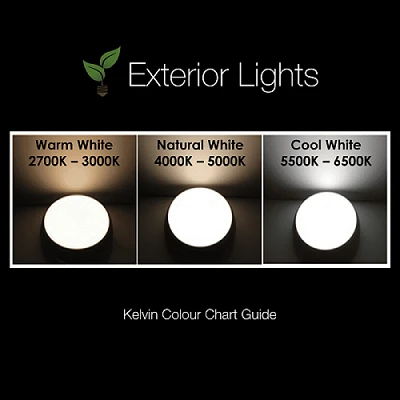

| Colour Temperature | 2700K, 4000k |
| Bezel | Diameter 50mm |
| Bulb Type Bulb type used for fittings | Integral LED |
| Cabling | 1m 2 core HO5RN-F rubber cable |
| Colour Colour of fitting | Silver |
| Cut Out | 41 mm |
| Installation Depth | 70 mm |

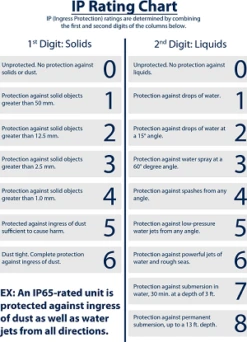

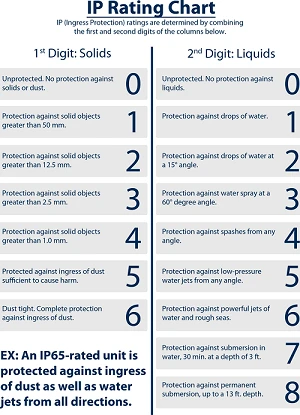

| IP Rating Ingress Protection - a two digit code representing water resistance. | IP65 |
| Length | 47 mm |
| Lumens | 60 lm |
| Materials | Stainless Steel |
| Voltage Voltage of fitting, Light Bulb or Transformer | 12v |
| Warranty | 2 Years |
| Watts | 0.5W |
