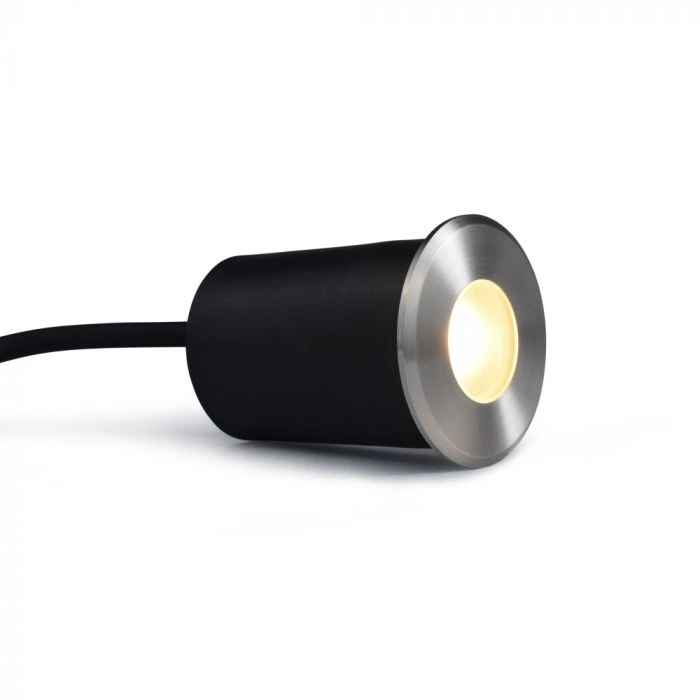

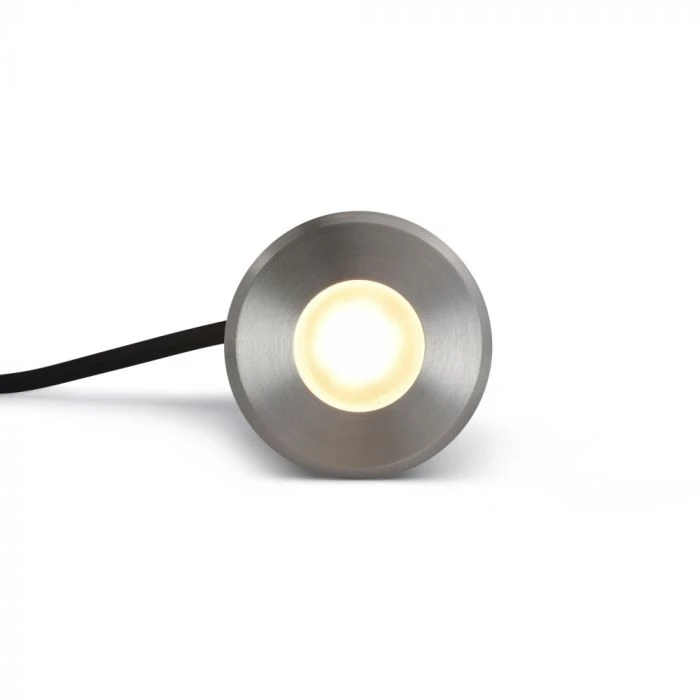

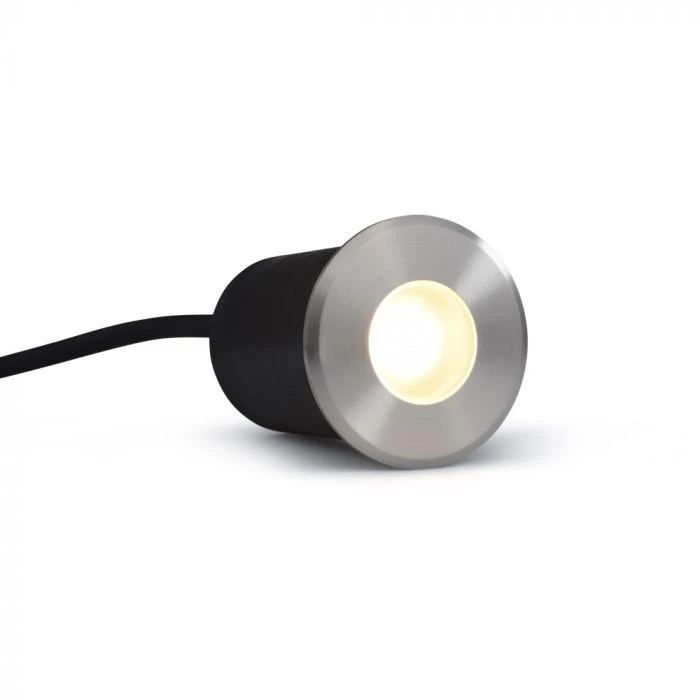

Navigator Maxor 12v DC 316 Stainless Steel Recessed Deck Light 2700k 1w 101 Lumens IP65
The Navigator Maxor is the largest recessed LED light in a family of three sizes used to outline a deck or paving, light steps
or provide cool up-lighting from the Navigator range of products.
The E3311WW is a low energy, warm white LED deck and recessed light which consumes a small amount of power and stays cool to
the touch. The warm white LED produces a wide 80° beam diffused by the 28mm diameter frosted lens to provide soft lighting

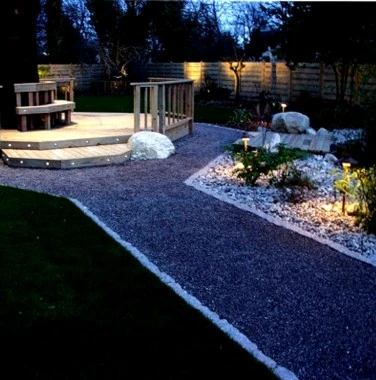

compatible with the colour of halogen garden lighting. Navigator Maxors are used either to mark out the shape of a deck,

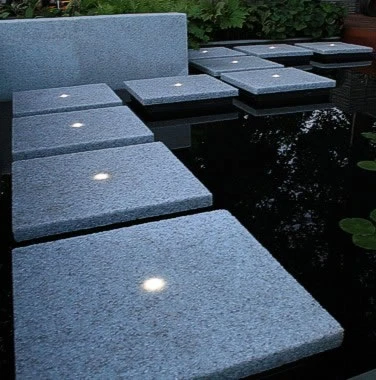

patio or terrace, to outline paths and to light steps. To outline a deck or patio space with a distinctive shape, start
at the corners of the decking or paving and space LED recessed garden lights at about 1 – 1.5m apart.
12v uses 1.5w and should be powered by a 12v dc power supply. Do not use an electronic transformer to power Navigator LED
lights. If powering from a 12v ac wire-wound transformer, ensure transformer is loaded to at least 75% of nominal rating.
length. Illumination is provided from an integral single 1w 101 lumen warm white (2700K) LED, diffused by a 28mm diameter

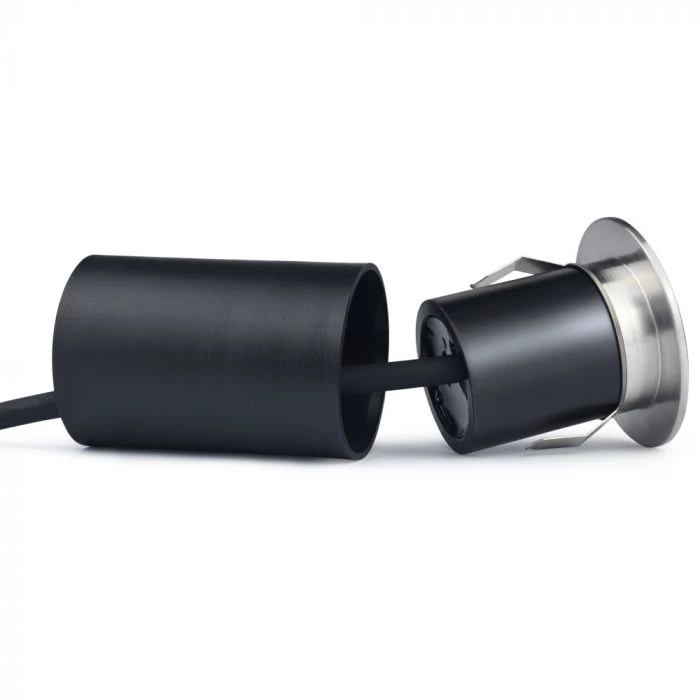

frosted lens. Comes supplied with 1m H05RN two core cable and plastic sleeve. Plastic sleeve externally measures 48mm diameter
by 70mm in length.
12v Installation – See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix.
