Morti PIR Sensor – Outdoor Security Wall Light – 240v – Anthracite 10w 4000k IP44

Morti PIR Light 240v – Anthracite 10w 4000k 620 Lumens IP44 Security Wall Light

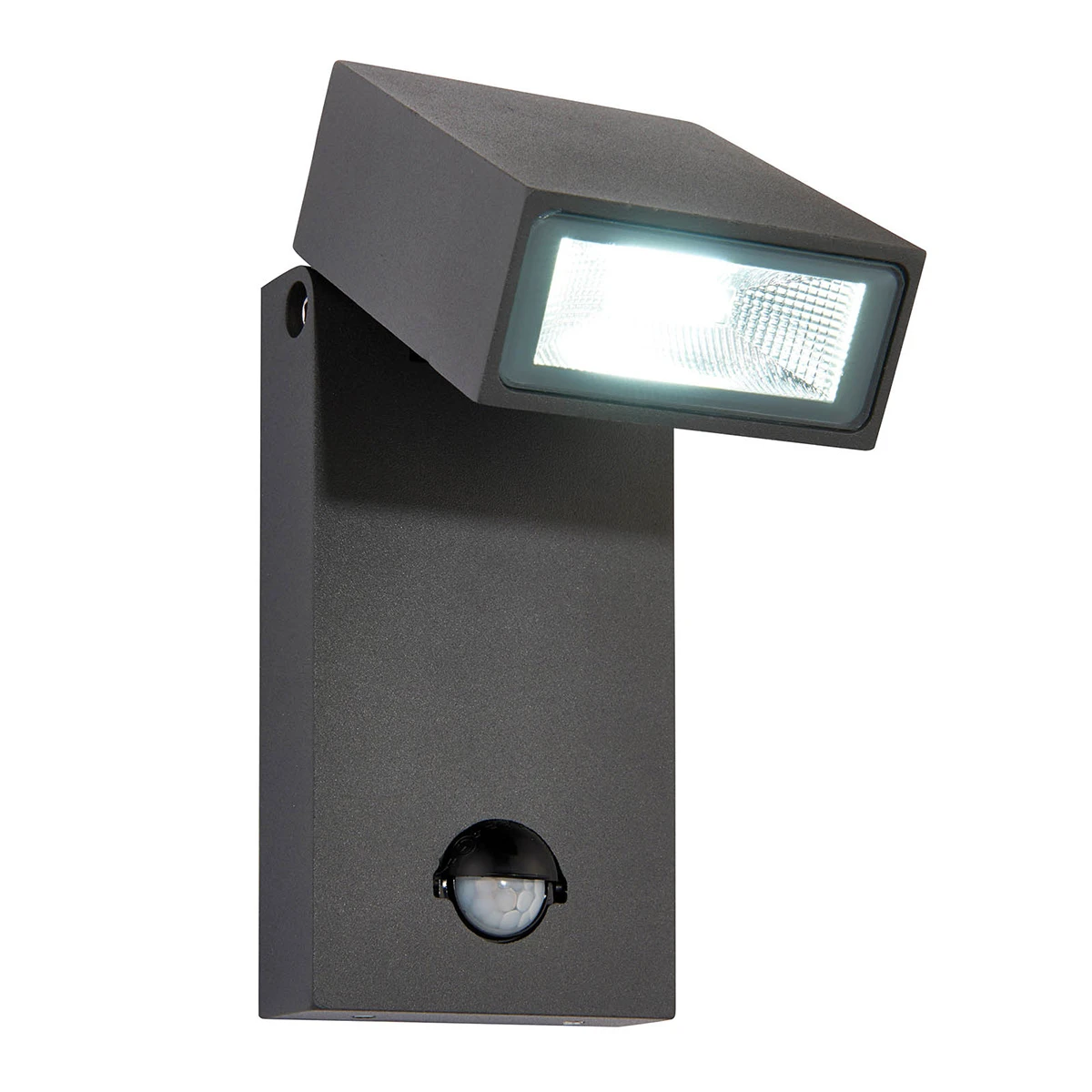

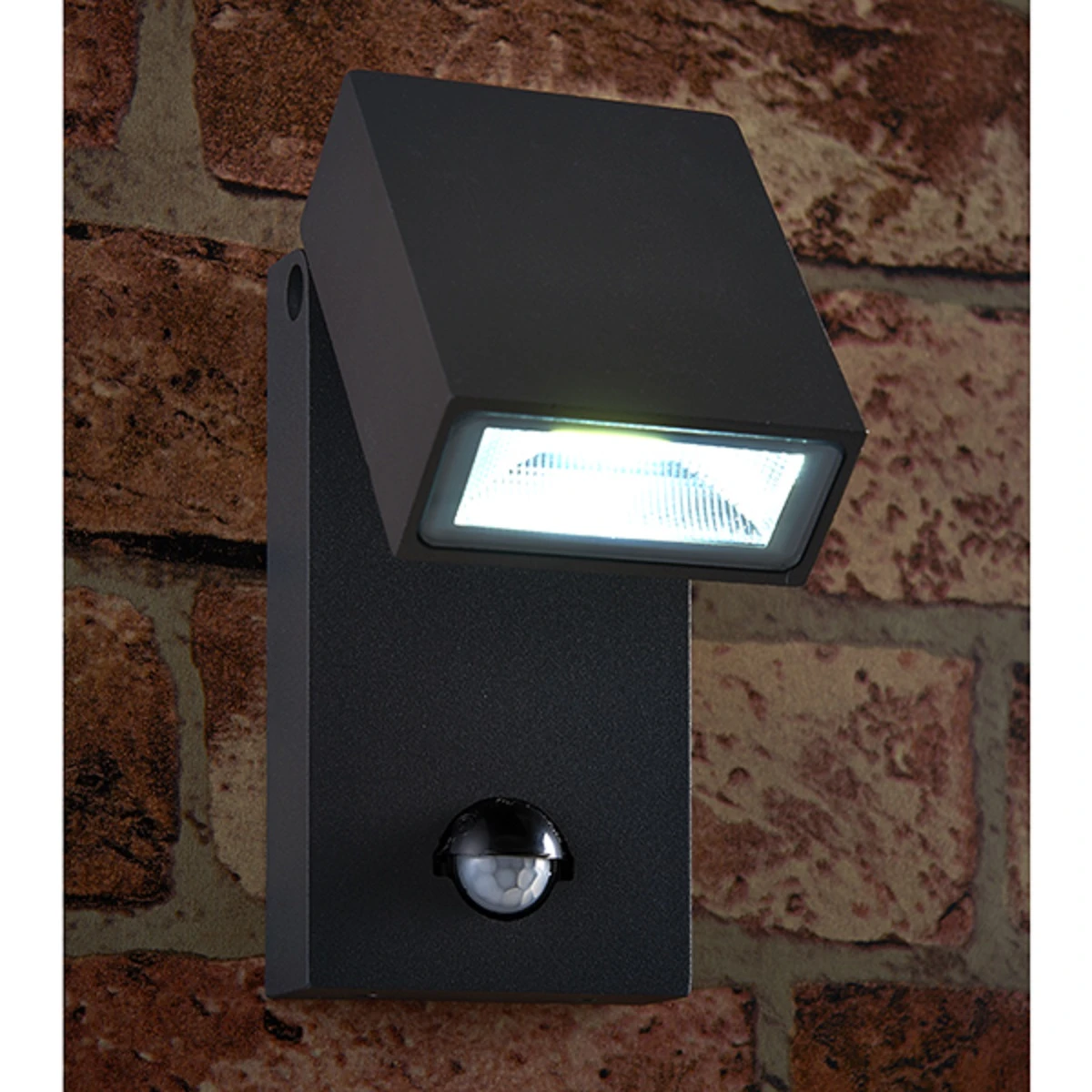

The Morti PIR is a premium die cast aluminium LED wall light which features an adjustable head and PIR sensor. This fitting provides a high light output, comes complete with LED driver and is finished in textured anthracite grey paint.

• Fully adjustable
• 90 degree tilt
• Complete with built in Photocell & PIR
• Fully Adjustable 10 – 2000 lux, 120° detection angle, 8m maximum range with a 10 sec – 5 min timer function
• Textured dark matt anthracite & clear glass
• Constructed from die cast aluminium alloy & glass
• Complete with LED driver
• 10W LED module (COB) Cool White (Included)
• K: 4000 Lm: 620 Lm/W: 62

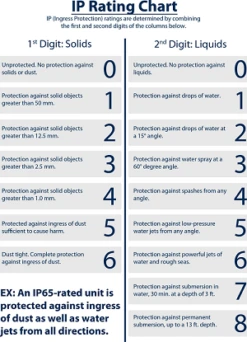

• IP44
• Proj: 64mm H: 151mm W: 85mm
• Class 1
• 2+1YR Extended Warranty
• Weight: 0.7 Kg

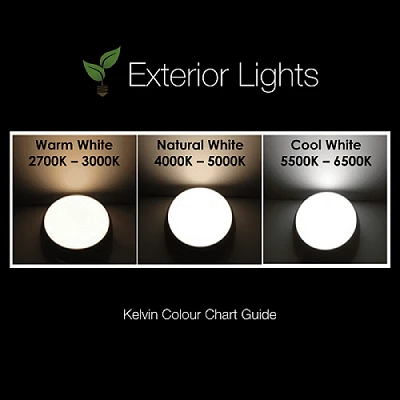

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.

Installation – See attached Instructions & Data Sheet

This product is only suitable for connection to a 240V~50Hz supply. It is recommended that this light is installed by a qualified
electrician in accordance with current IEE Wiring Regulations and local Building Regulations. The light fitting should
be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature circuit breaker). This light has an
IP44 (splash proof) rating suitable for use outdoors. For optimum detection range a mounting height of 1.8M to 2.5M metres
is recommended. Do not mount where the PIR can be activated by heat sources such as central heating vents, animals, traffic
etc. Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm2 (not supplied)
to selected site, ensuring it is adequately protected through the full length of the cable run, it must come out of the
mounting surface in line with the entry to the fitting. Except where installed in a conduit or duct , which provides
equivalent protection against mechanical damage, a cable buried in the ground shall incorporate an earthed armour or
metal sheath or both, suitable for use as a protective conductor, or be of insulated concentric construction. Buried
cables shall be marked by cable covers or a suitable marking tape. Buried conduits and ducts shall be suitably identified.
Buried cables, conduits and ducts shall be at a sufficient depth to avoid being damaged by any reasonably foreseeable
disturbance of the ground. This product contains breakable parts – be careful during handling and maintenance to avoid
breakage. The bulb, body and lid cover can become hot in use. Switch off and allow 10 minutes to cool before cleaning
(using a dry cloth only – do not use liquid or abrasive cleaners). If any part of the bulb housing is broken or cracked
then it must be replaced immediately to preserve the water ingress protection, please consult your retailer.
