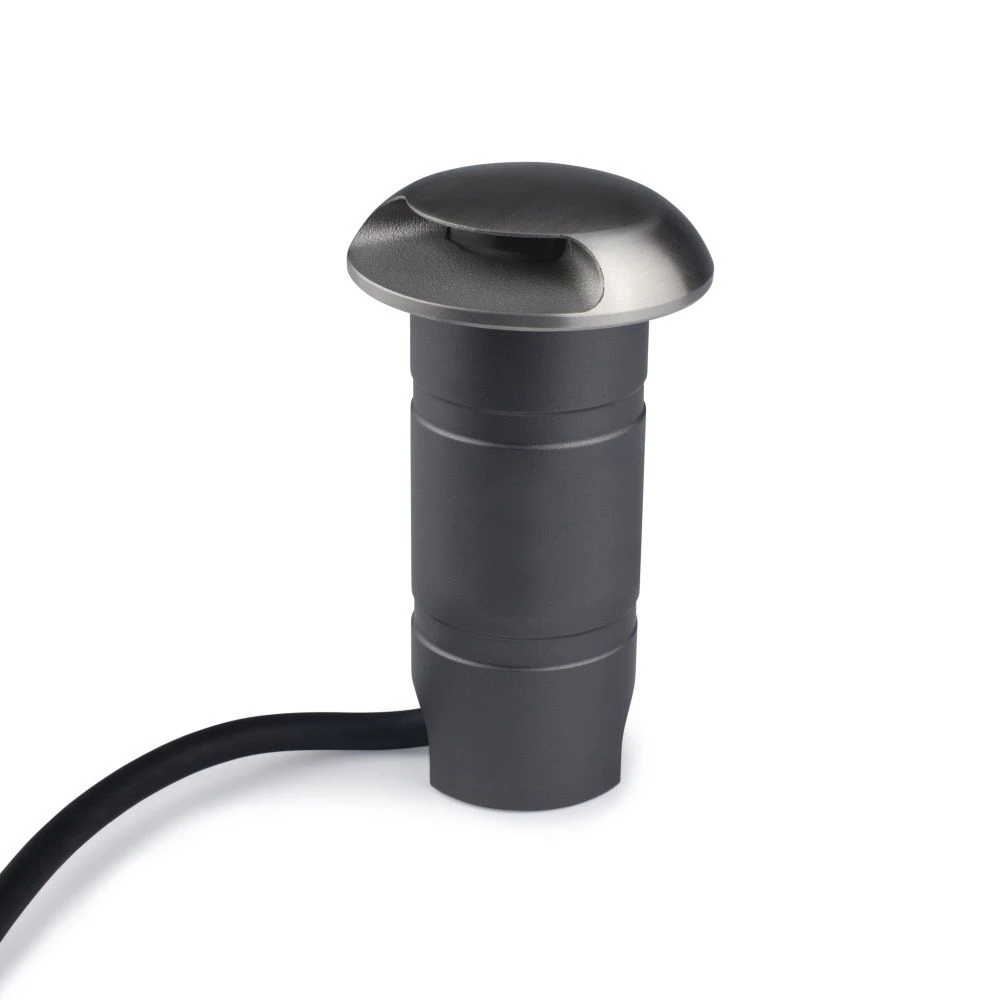

Micro Waymarker LED Recessed Light 90° -12/24v DC-3w-100lm-2700K-IP67- 316 Stainless Steel

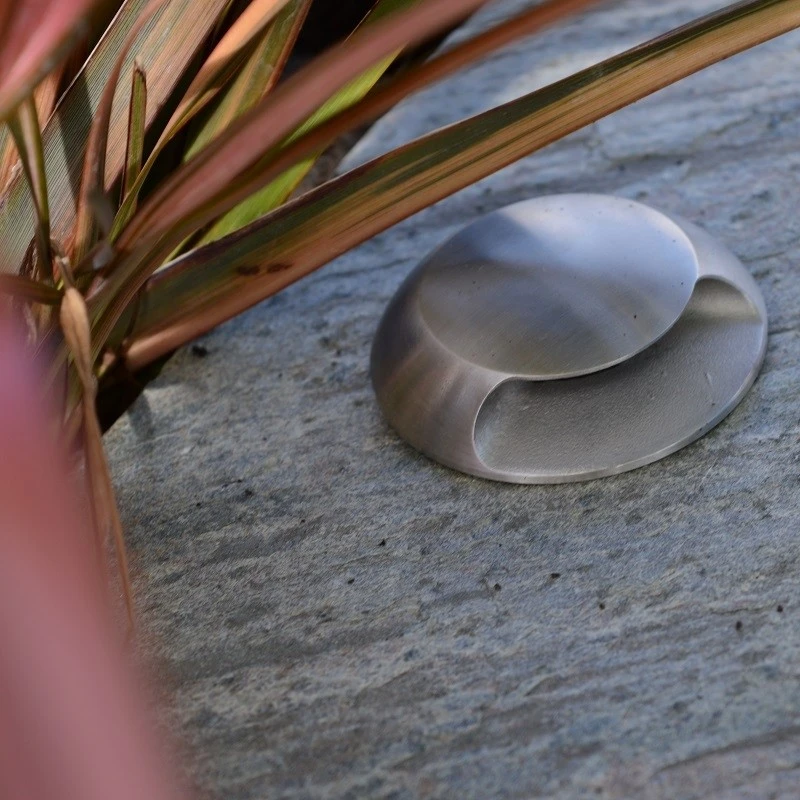

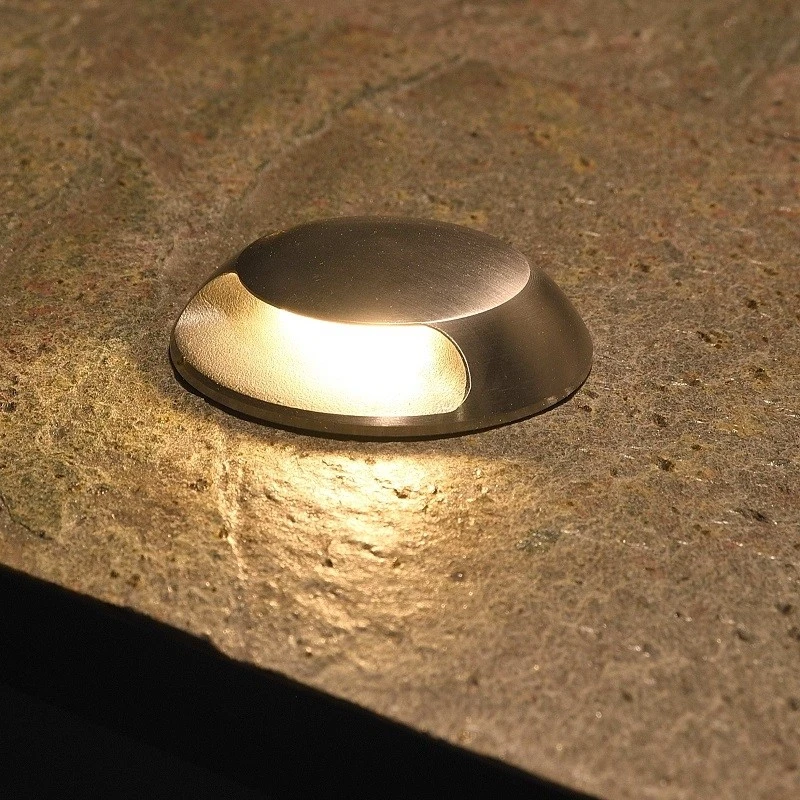

window. It is useful where you want to cast light across a path or drive edge without casting light backwards onto planting
or other finishes behind. The Micro Waymarker is an outdoor LED light with a flush glass lens, fitted to the top of

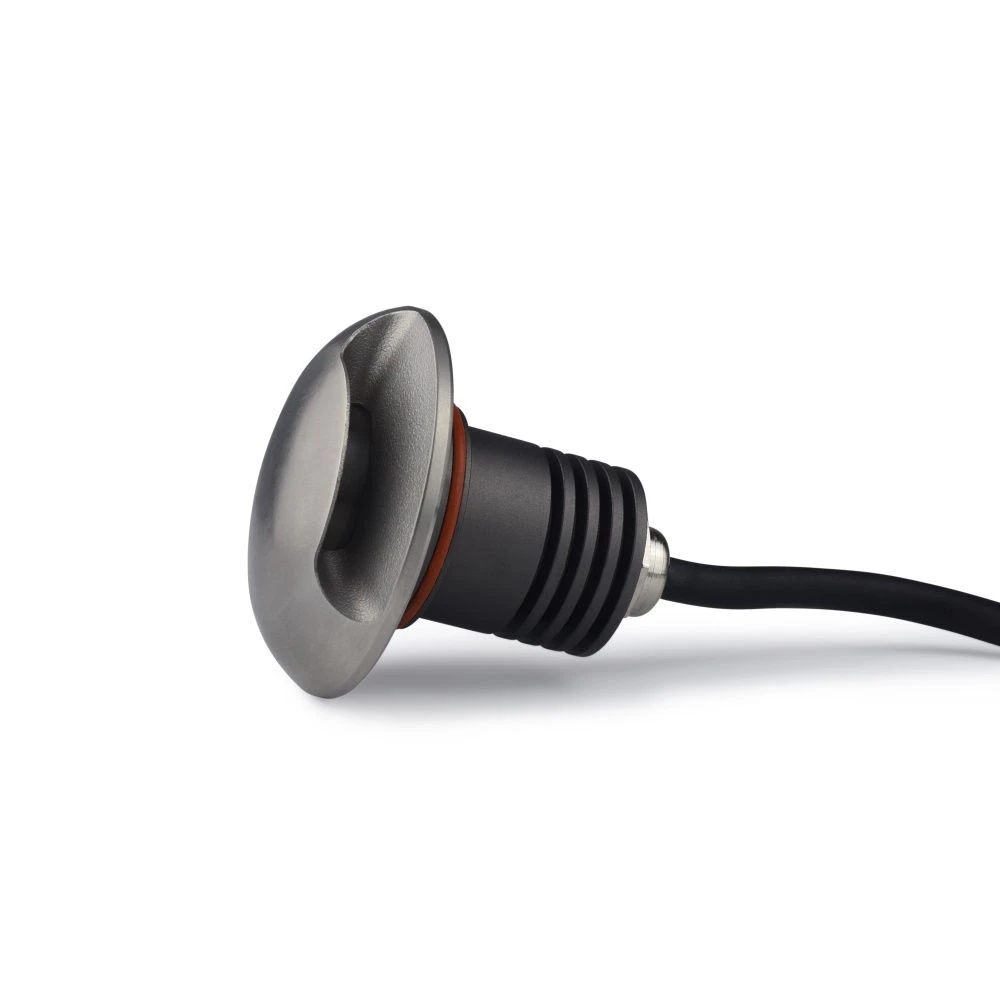

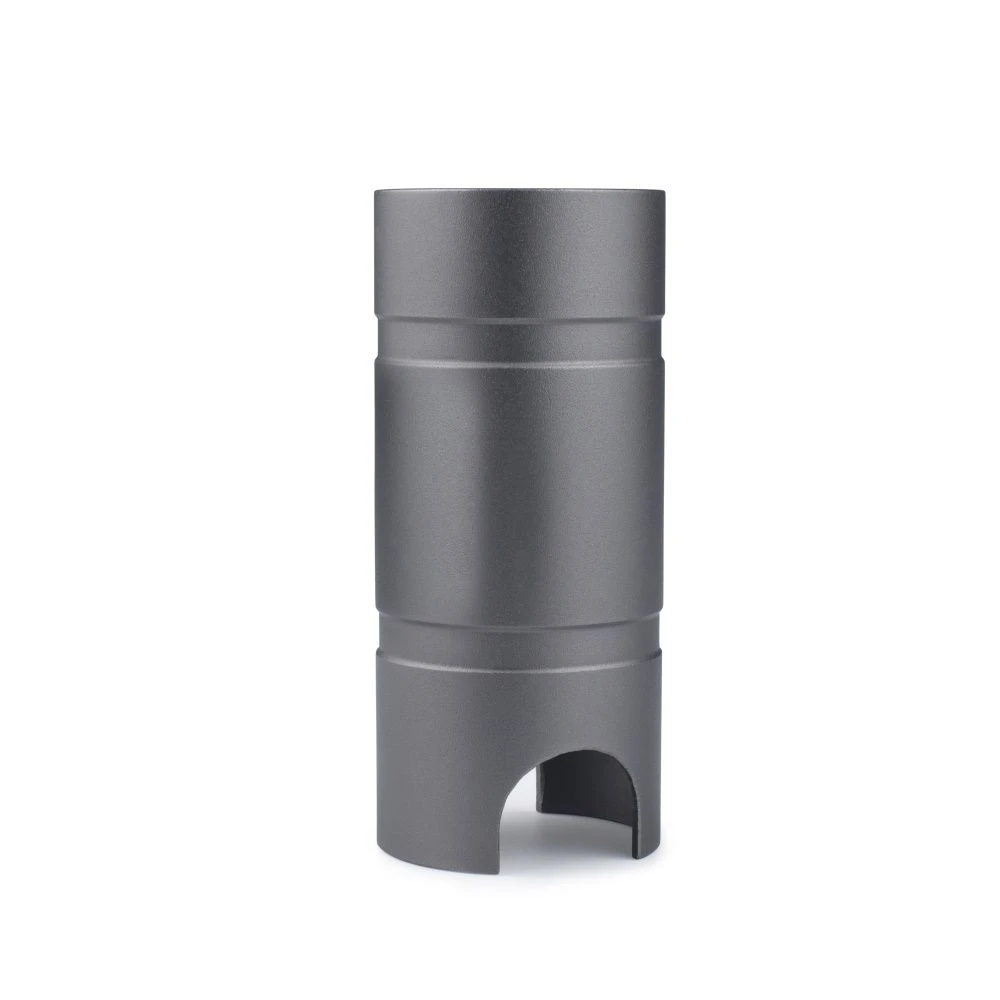

the dome, preventing debris from settling and blocking the light output The light is located by an “O” ring on the body into
a sleeve tube so that no external screw fixings are visible. It may also be used as a deck light.
firmly in place by an O-ring, leaving a front plate with no visible fixing screws. It as a 1.5m 2 core cable.
The top bezel plate is 316 grade stainless steel.

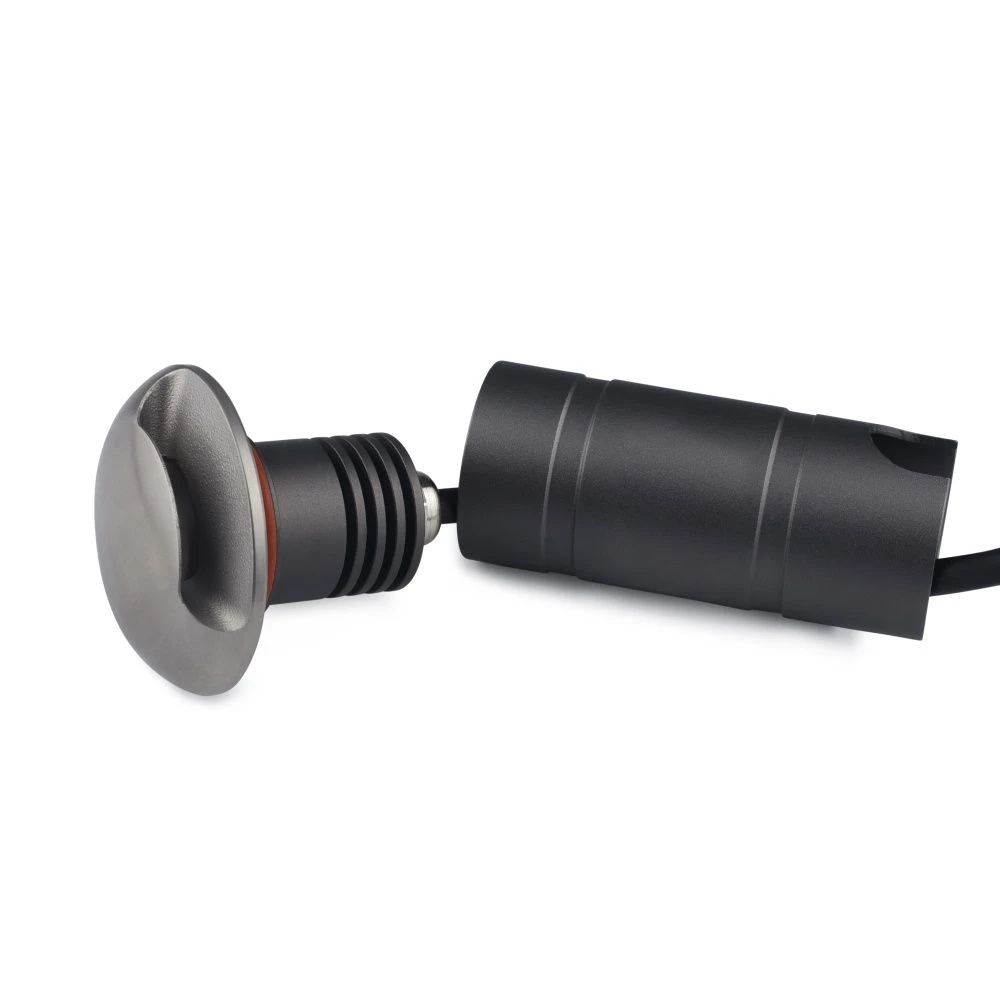

the light pushes into the tube, where it is held firmly in place by an O-ring, leaving a front plate with no visible
fixing screws. Suitable drainage should be provided below each fitting to prevent water logging. Micro Waymarkers should not be installed in ground subject to water logging. Connect
input cable to cable from transformer using T9962 cable joint or T9963 cable splice kit or T9969 underground joint kit
Damage due to incorrect installation practices. Responsibility for 3rd party cost: indirect or consequential loss.
Installation 12v
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then filled with a re-enterable liquid gel mix.
