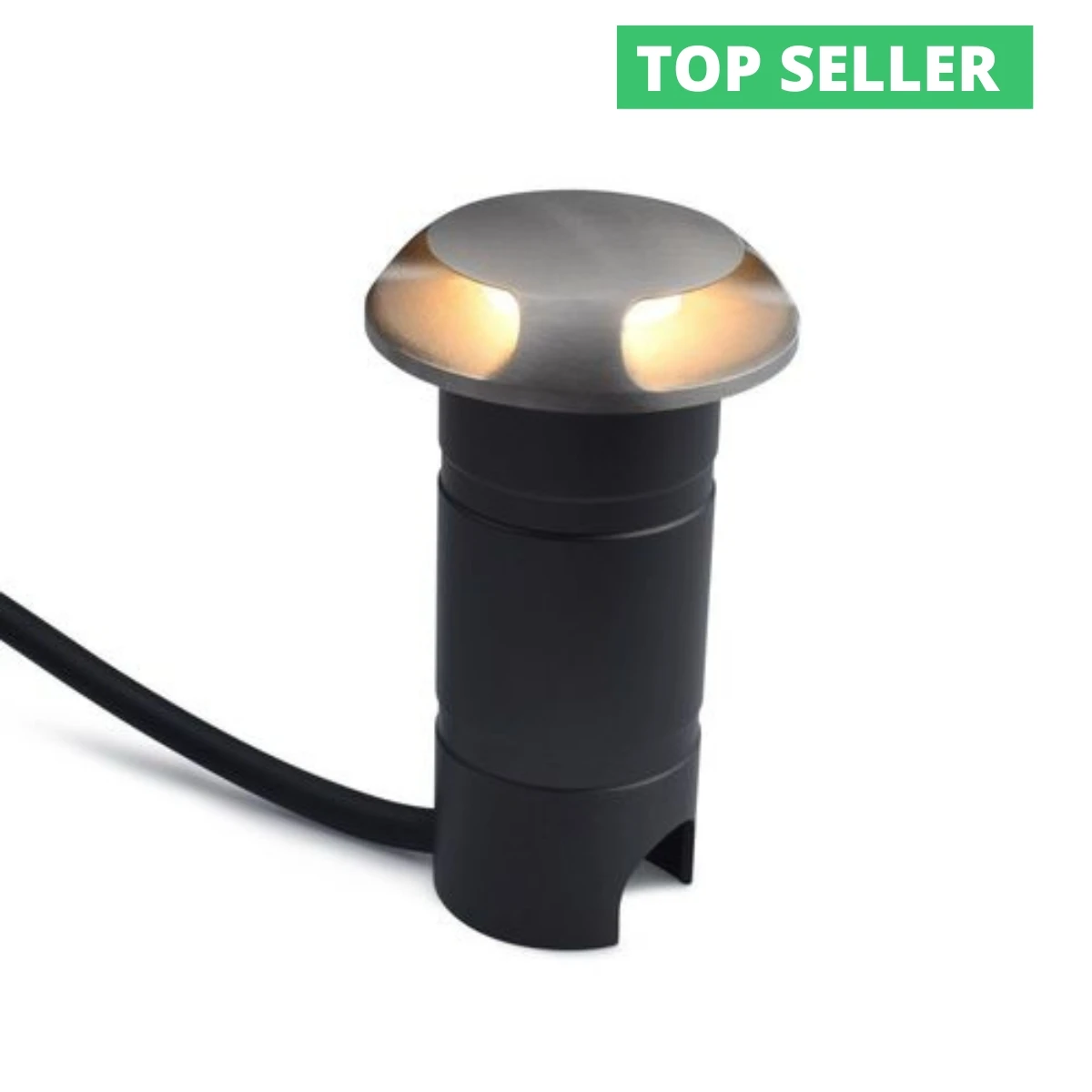

Micro Waymarker 360-12/24v DC-3w-100lm-2700K-IP67-Stainless Steel

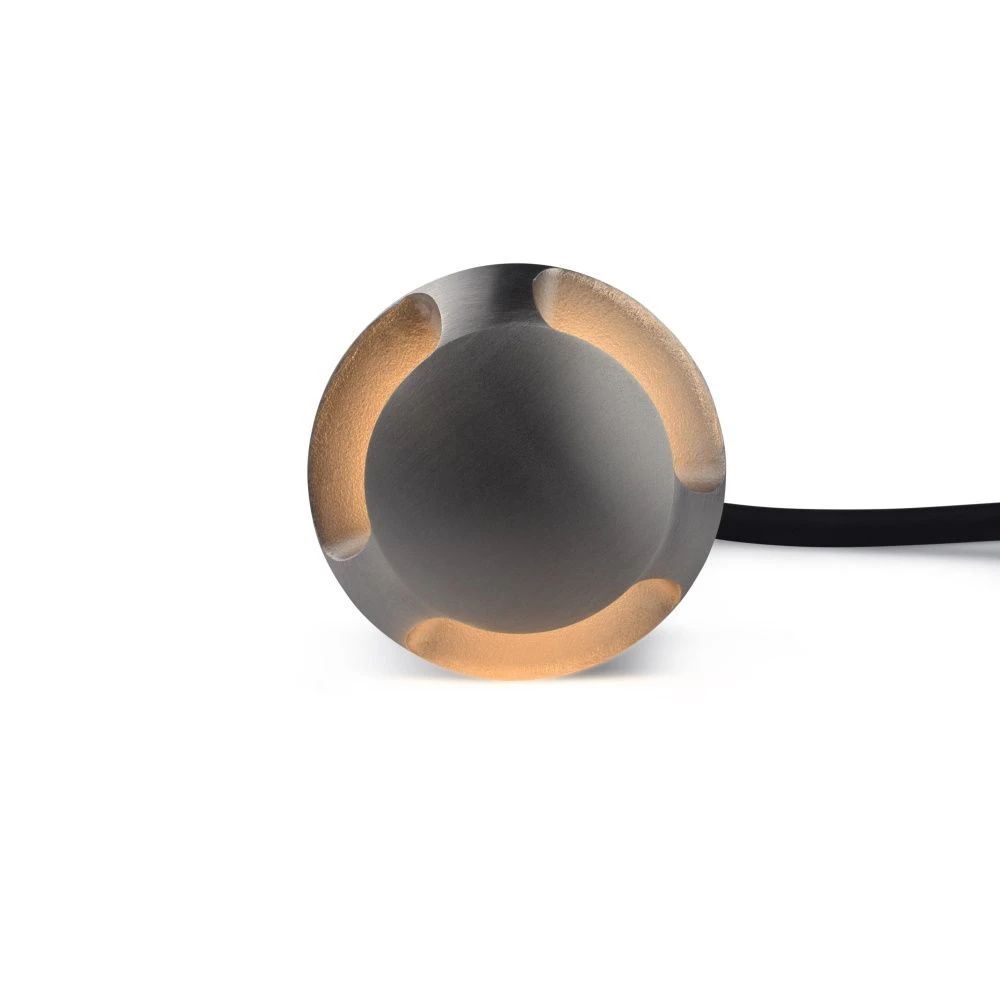

The Micro Waymarker 360 is compatible with both 12v and 24v DC powersupplies.  360° light output from 3 windows allows
you to softly light the path or driveway and the planting bed or lawn behind. The Micro Waymarker has a glass lens that is
raised to the top of the dome, preventing debris from settling and blocking the lightoutput The light is located by an “O”
ring on the body into a sleeve tube so that no external screw fixings are visible. It may also be used as a deck light.

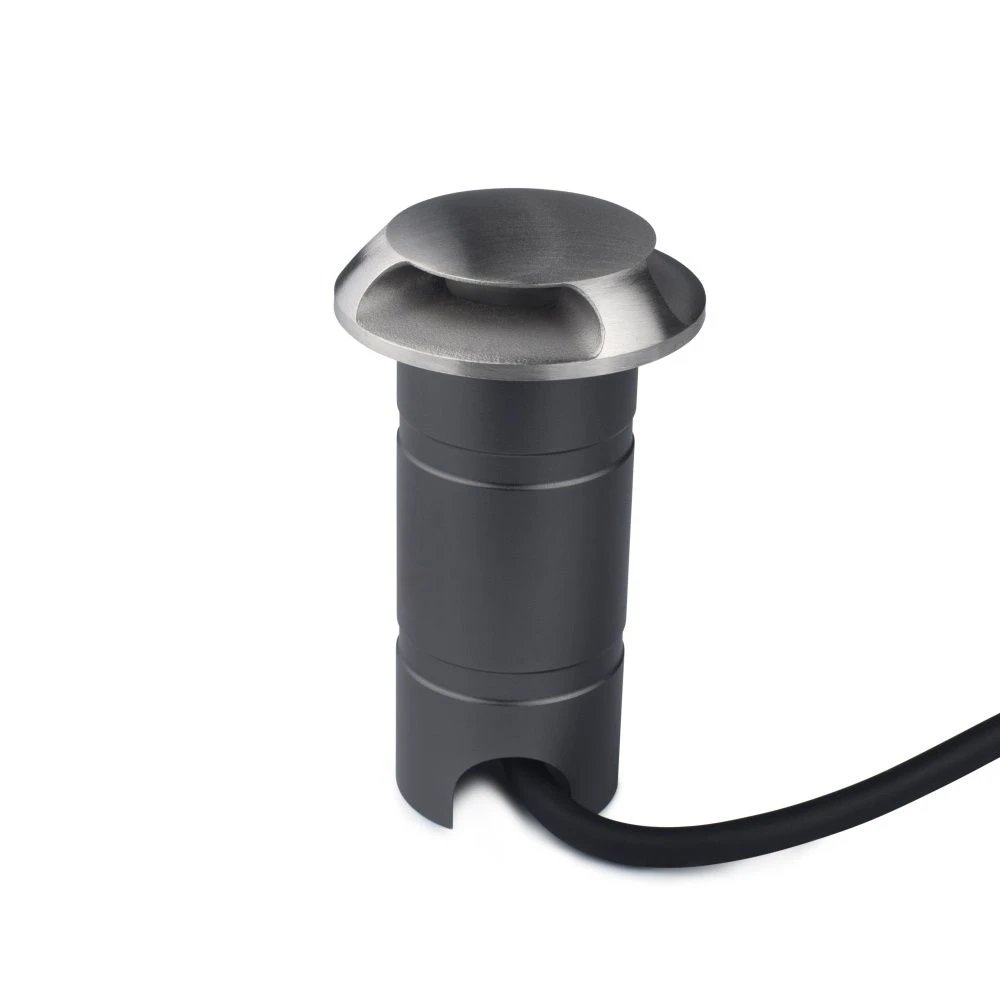

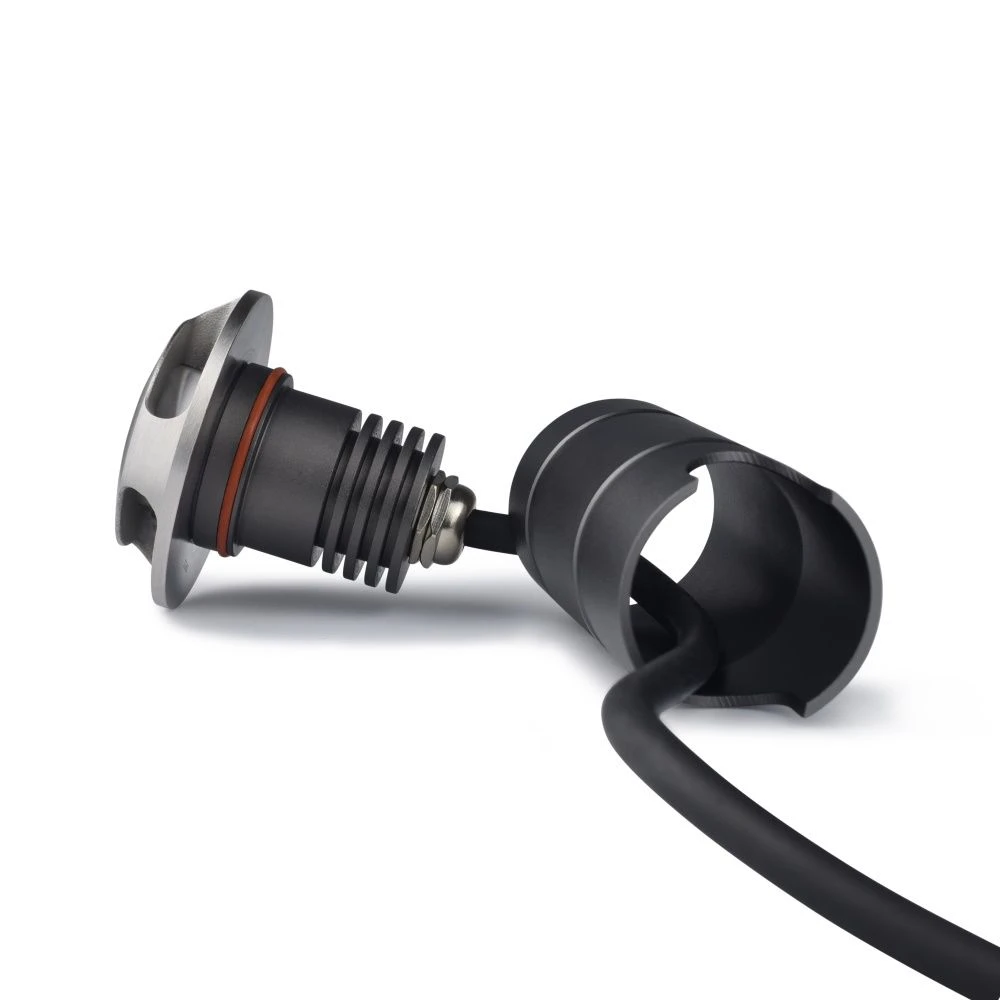

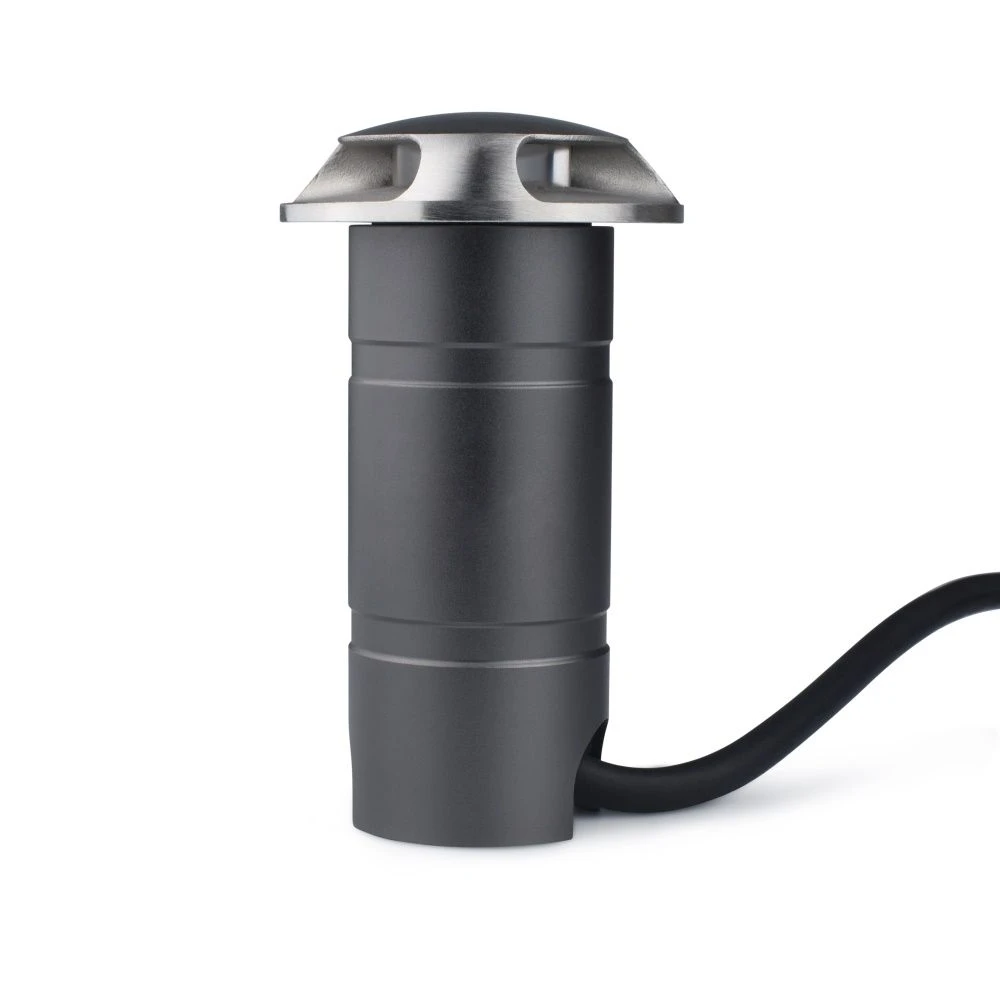

The fitting is constructed from a tubular aluminium body which push fits into an aluminium sleeve (tube) where it is held firmly in place by an O-ring, leaving a front plate with no visible fixing screws.  It as a 1.5m 2 core cable.  The top bezel plate is 316 grade stainless steel.

They have been tested to withstand up to 750kg of weight.

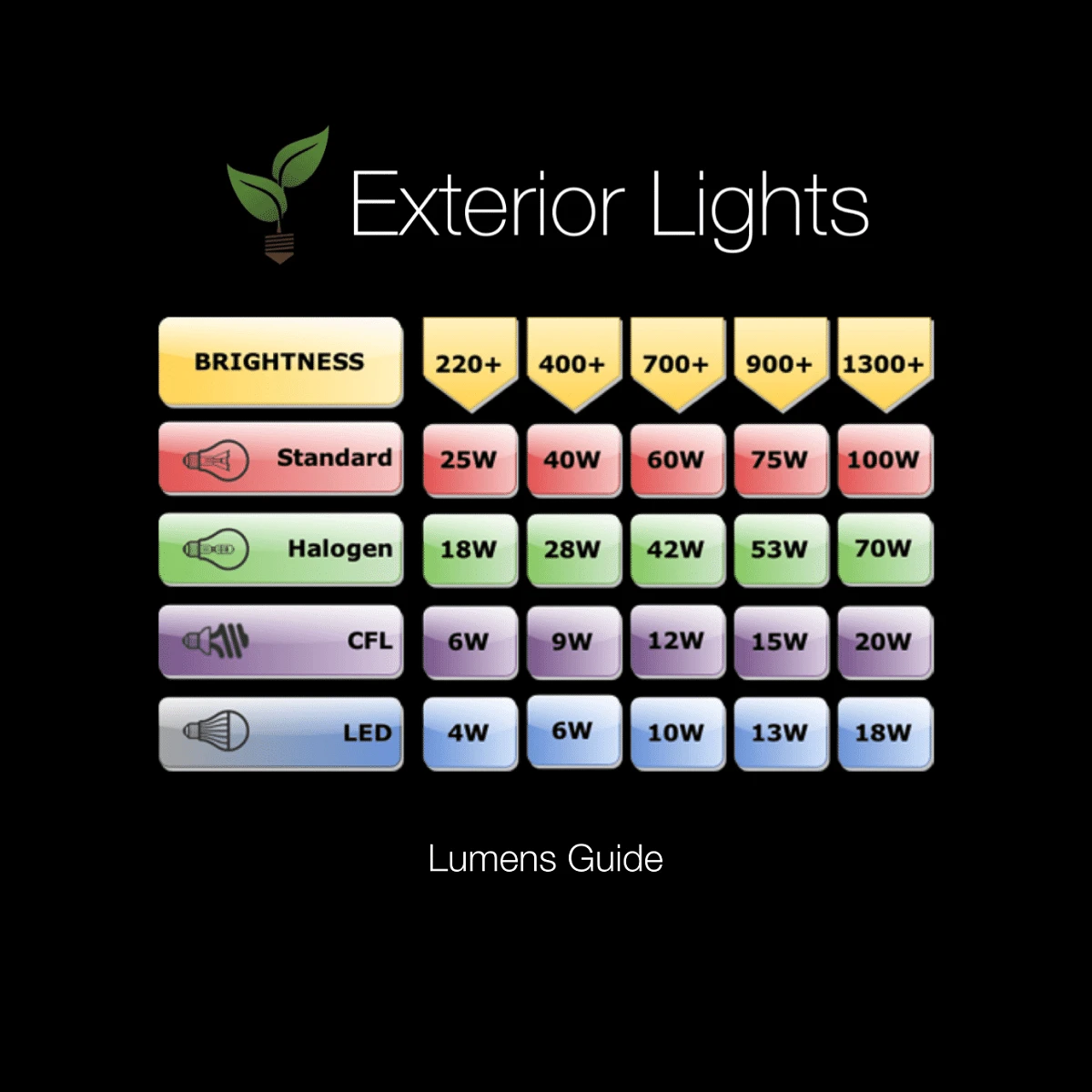

3w warm white LED colour temperature 2700k giving out 100 lumens.

The life span of the LED is approximately 50,000 hours.

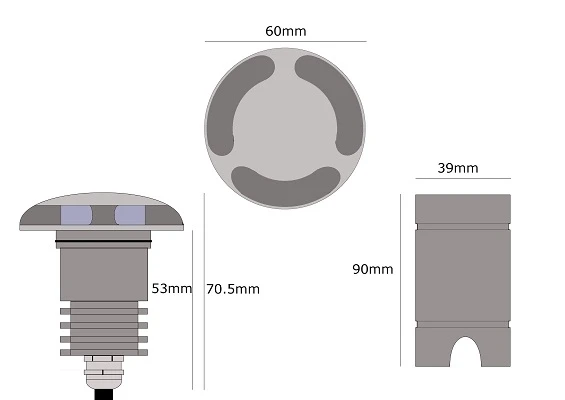

Sleeve depth 90mm x 39mm diameter.

Length of fitting 53mm with overall length including domed bezel 70.5mm.

Diameter 60mm.

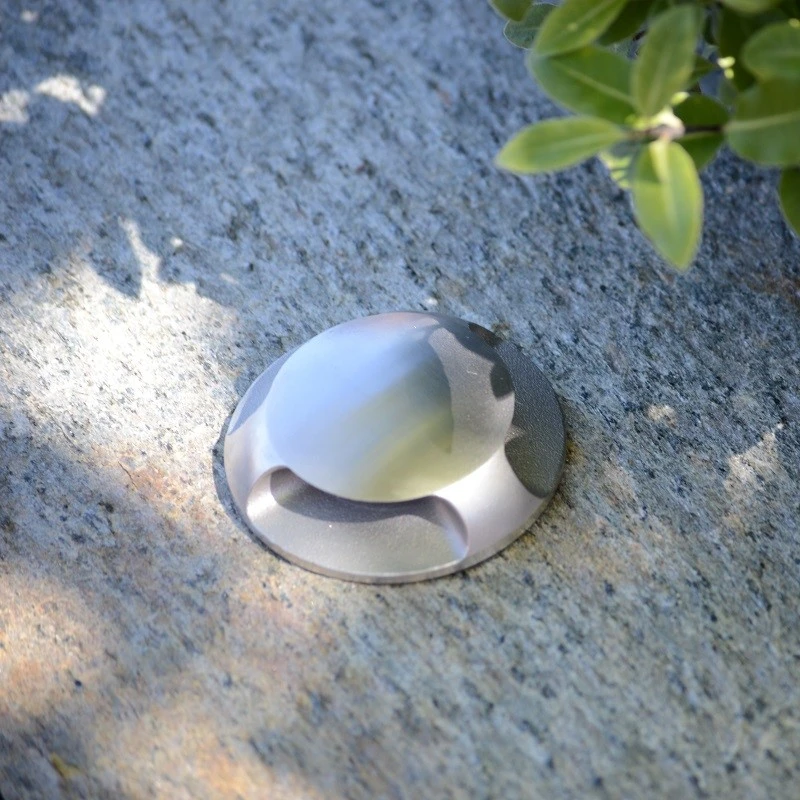

They sit proud above ground by 16mm

The aluminium sleeve is built into the floor/paving during construction or retrofitted into a hole cut with a coring bit:
the light pushes into the tube, where it is held firmly in place by an o-ring, leaving a front plate with no visible fixing
screws. Suitable drainage should be provided below each fitting to prevent water logging. Micro Waymarkers should not be
installed in ground subject to water logging. Connect input cable to cable from transformer using T9962 cable joint or T9963
cable splice kit or T9969 underground joint kit

Installation 12v/24v

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how

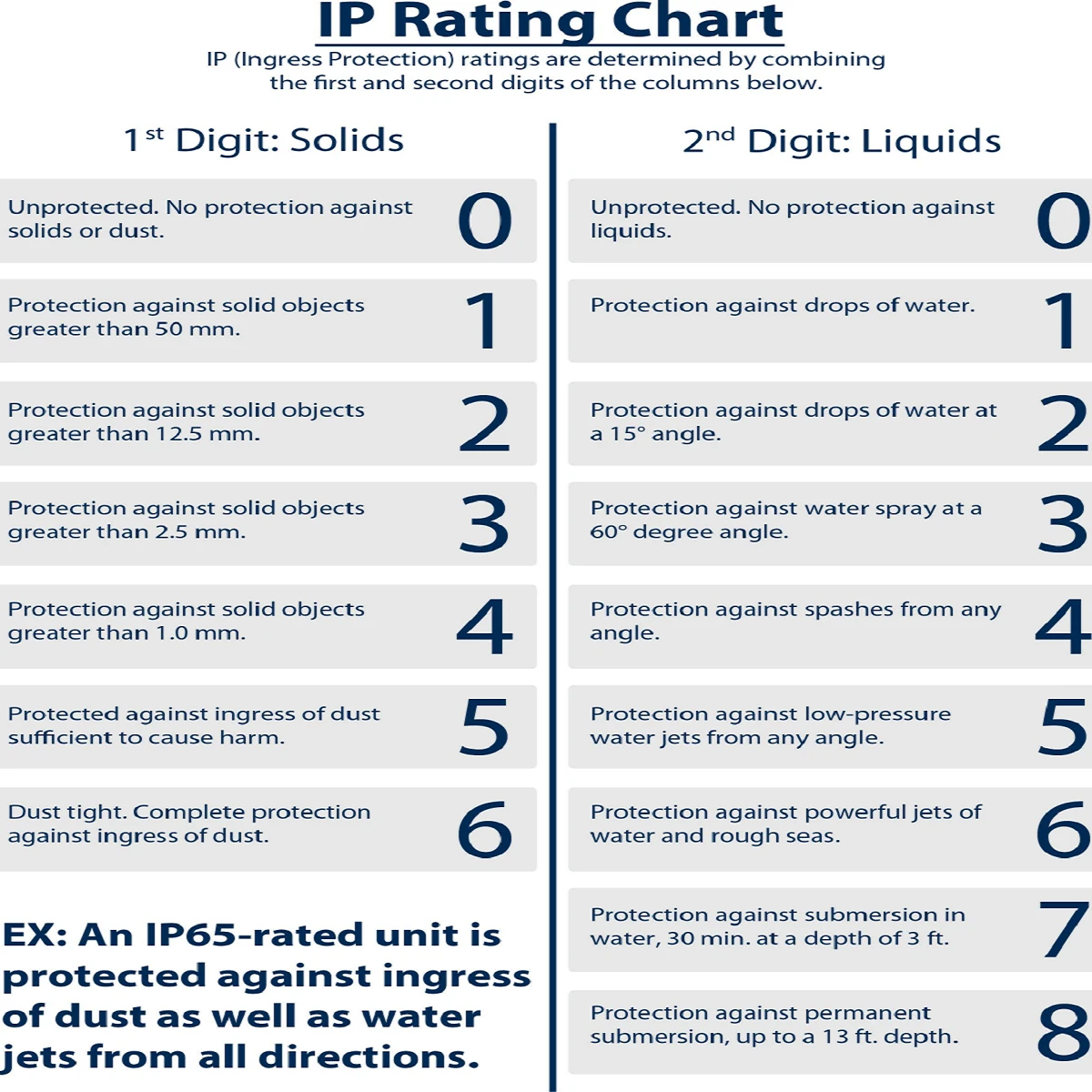

it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
