Micro Deck Light 12/24v DC 2w 80lm 120 Degree 2700K IP67 316 Stainless Steel

Micro Deck Light 12/24v DC 2w 80lm 120° 2700K IP67 316 Stainless Steel

Micro deck light is a warm white LED recessed deck light which consumes a tiny amount of power and stays cool to the touch.
The 2w LED produces a wide 120° beam diffused by the 16mm diameter frosted glass lens.

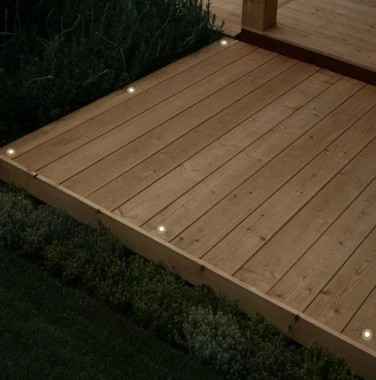

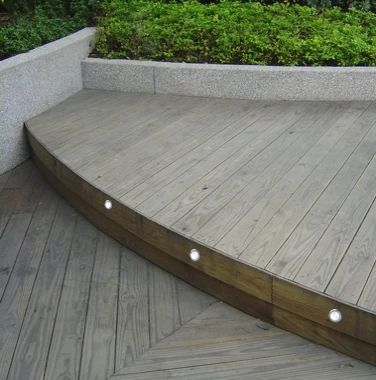

Ideal for mounting in decks and patios for up-lighting low walls and hedges. The Micro Deck has excellent wide coverage and
provides even illumination right down to the base of the wall or hedge.

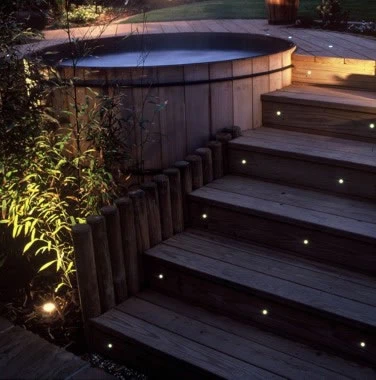

It can also be used for cross-lighting steps, but please be aware that this tiny light is surprisingly bright, so we advise
caution where glare may be an issue.

Recommended spacing between lights is 60cm – 1 metre.

Recommended distance from wall / hedge is 5cm – 20cm.

Sleeve 56mm height x 25mm diameter.

Length of fitting 43.5mm x 28mm bezel.

Each light contains a long life high output LED resin-encapsulated behind a frosted glass lens in a stainless steel case.  The case has a spring mount which locates the light in a sleeve used to prepare positions in concrete, paving or walls.  Comes supplied with 2m H05RN two core cable.  They can be recessed without the sleeve in decking sleeper walls and other materials using a 20mm wood drill bit.

It has a 3 year warranty however the exclusions include damage by machinery, animals or the use of incorrect cleaning materials. Damage due to incorrect installation practices. Responsibility for 3rd party cost: indirect or consequential loss.

12v Installation – See Instructions & Data Sheets Tab

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
