Lunar Black 12v MR16 IP68 Maximum Wattage 3w Per Fitting 5 LED Spot Kit – Plug & Play Cables & Driver IP44
Original price was: $216.60.$97.99Current price is: $97.99.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.
Lunar 5 LED Spot Kit 12v
with a 3w led lamp. It has a clear lens, a 5m cable with IP44 Plug & Play connector and a clip-on glare shield for lighting
small focal points, or for use as an underwater spotlight in fountains and waterfalls. This 5-spot kit comprises 5 spotlights,
5 Ground Mounting spikes,5 MR16 3w warm white led lamps with a 36 degree beam angle, a 12va transformer rated to supply the
5 led lamps and a 5 way connector which fits to the transformer output and allows for connection of the five spotlight cables. As
mounting requirements may vary, if you wish to use a mounting base, extension pole or a tube bracket to allow mounting
on fountain head pipes please order separately. Lunar is designed for easy installation with the minimum
of tools with the Patilo range of Plug & Play transformers, connectors, extension cables and junction boxes.

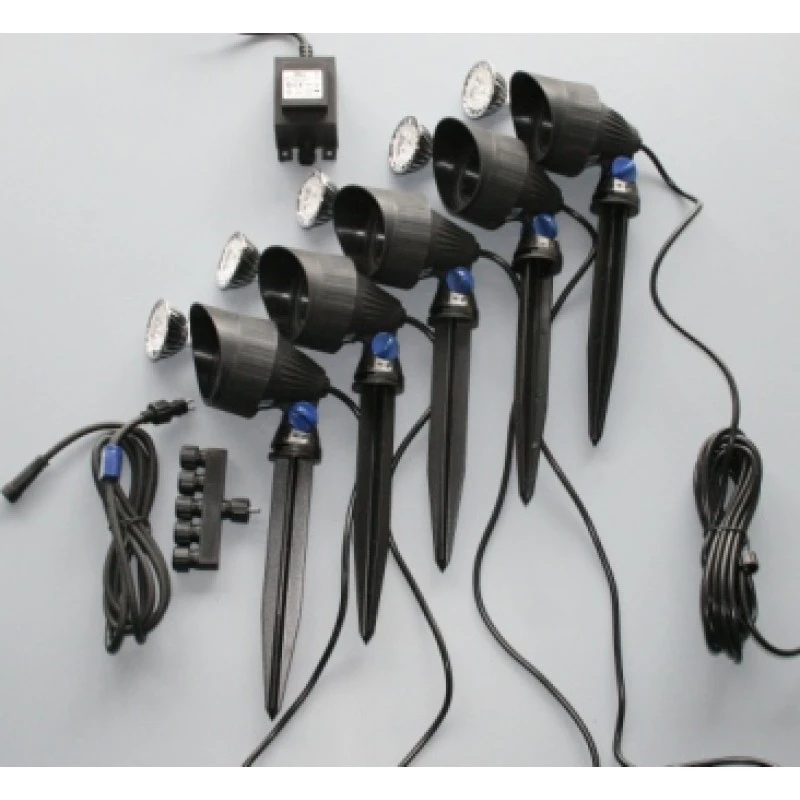

| Kit contents | Five Lunar spotlights c/w glare shield & 5m cable with Plug & Play connector Five Ground Mounting Spikes Five MR16 3w warm white led lamps One 20w Plug & Play transformer rated to supply 5 x 3w led lamps One 5 way Plug & Play connector |
| IP rating | Spotlights: IP68 with IP44 cable connector. Transformer & cable connector: IP44 |
| Construction | Plastic body with clip-on glare shield and adjustable knuckle joint: order mounting separately |
| Input | 12v AC: requires power from the 20w Patilo Plug & Play transformer supplied |
| Light source | MR16 3w warm white 3000K led lamp: power consumption 4w each |
| Installation | 5m input cable with male IP44 2-pin input connector to plug into the Plug & Play connector: an IP68 connection |
|
| GLAGS80 – Glare shield GLEP – Extension Pole GLMB – Mounting base GLTB – Tube bracket GLWB – Wide mounting base GLWM – Wall mount |
12v Installation See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy
access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in
place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.
Care must be taken with the cable runs and not to install transformers more than 30 metres away from the furthest
fitting to avoid any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary
action over time especially with UV degradation. Always check the correct type of transformer you need for your fittings.
We recommend wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they
should always be wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and
play junction boxes, connectors and extension cables using a 2-pin plug arrangement. These Plug and Play fittings
should only be used for small domestic projects due to voltage drop over 5 metres.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
| Number of spot lights | 3 LED Spot Kit, 5 LED Spot kit, One |
|---|---|
| Bulb Type Bulb type used for fittings | MR16 |
| Colour Colour of fitting | Black |
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP68 |
| Materials | Plastic |
| Voltage Voltage of fitting, Light Bulb or Transformer | 12v |
| Warranty | 2 Years |
