Lumilux – 12v – Plug & Play 316 Stainless Steel 12w 3000k 340 Lumens IP68 30 Degree Beam Fixed Round Recessed Light

Lumilux – 12v – Plug & Play 316 Stainless Steel 12w 3000k 340 Lumens IP68 30 Degree Beam Fixed Round Recessed Light

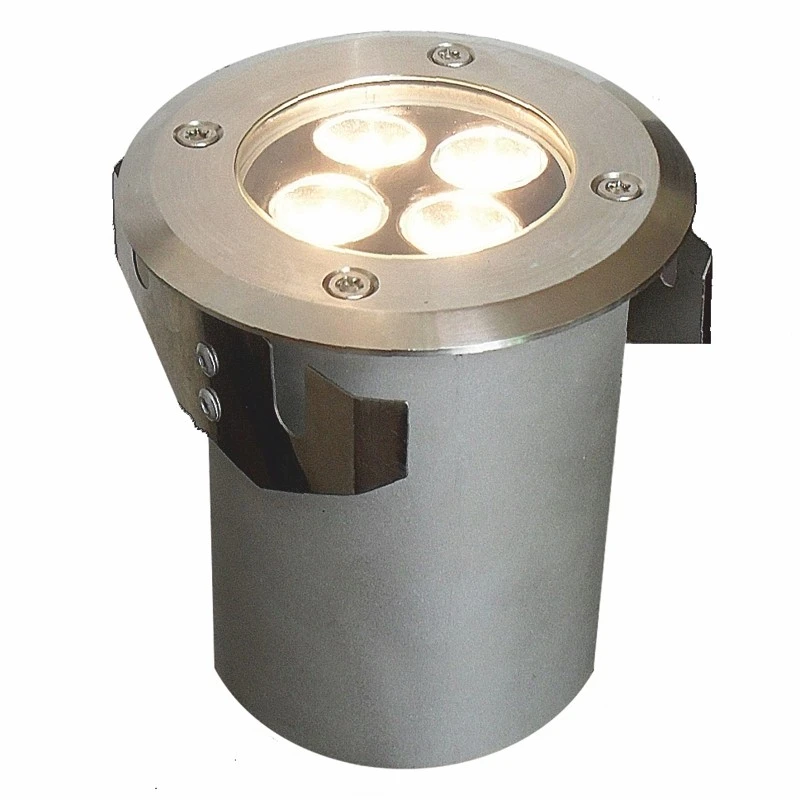

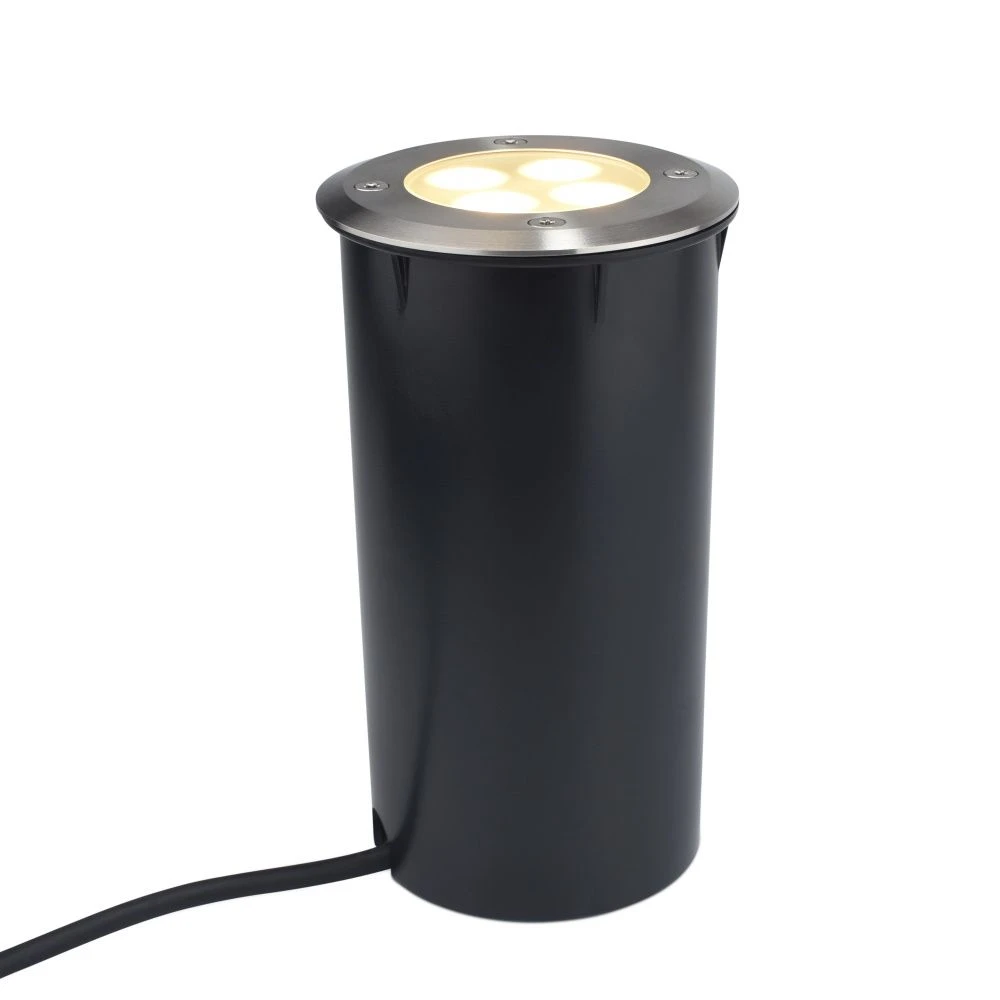

The Lumilux recessed uplight has a chamfered 316 stainless steel top with a brushed finish and comes with four  warm white LED’s providing light output equivalent to a 35w halogen lamp. It has a frosted lens and provides a focused 30
degree beam for uplighting small trees and grazing facades or walls. Lumilux is designed for easy installation with the minimum
of tools with the Patilo range of Plug&Play transformers, connectors, extension cables and junction boxes.

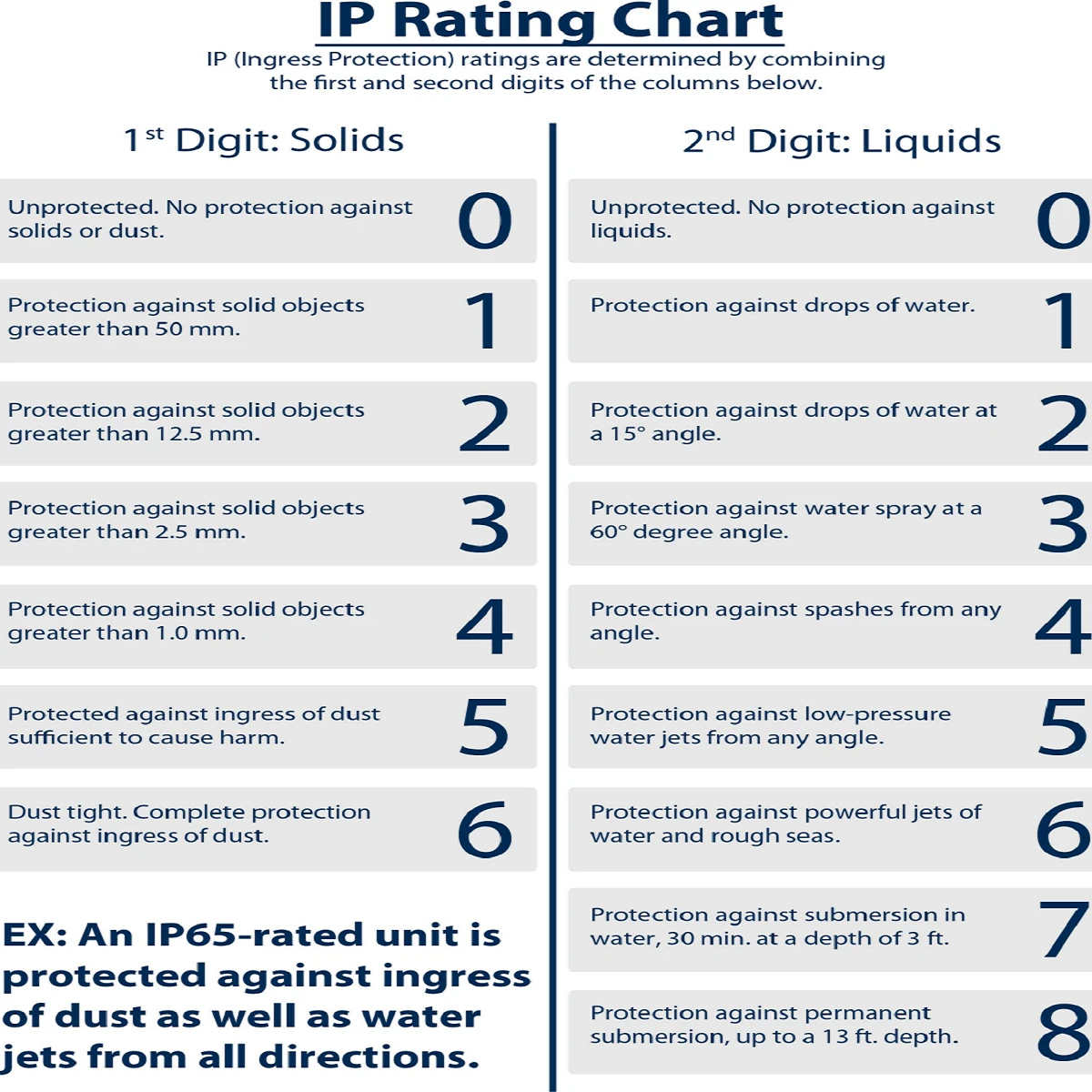

The IP rating is IP68 with IP44 cable connector.

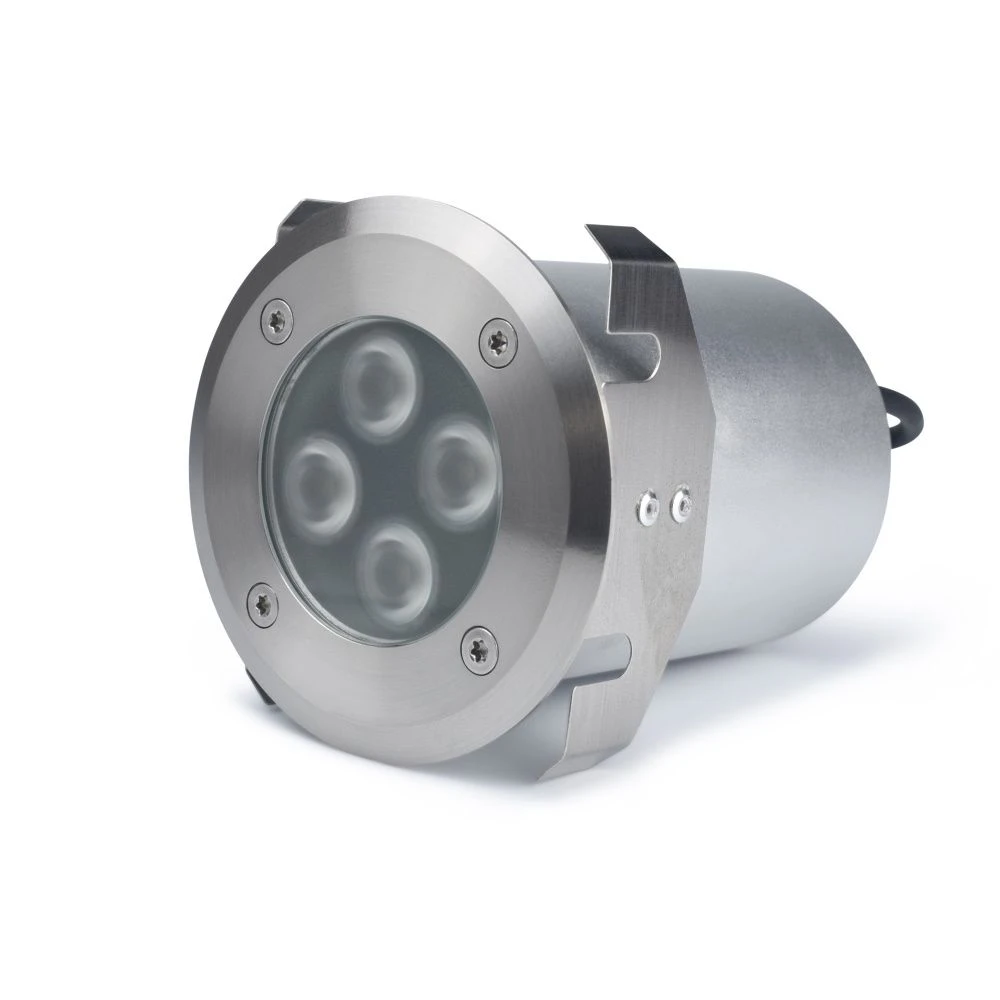

Construction – is of an Aluminium body with spring locating clips, plastic mounting sleeve and chamfered 316 stainless steel top with brushed finish
secured by 4 torx screws.

Input – 12v AC 11.5w max: requires power from a Patilo Plug&Play transformer.

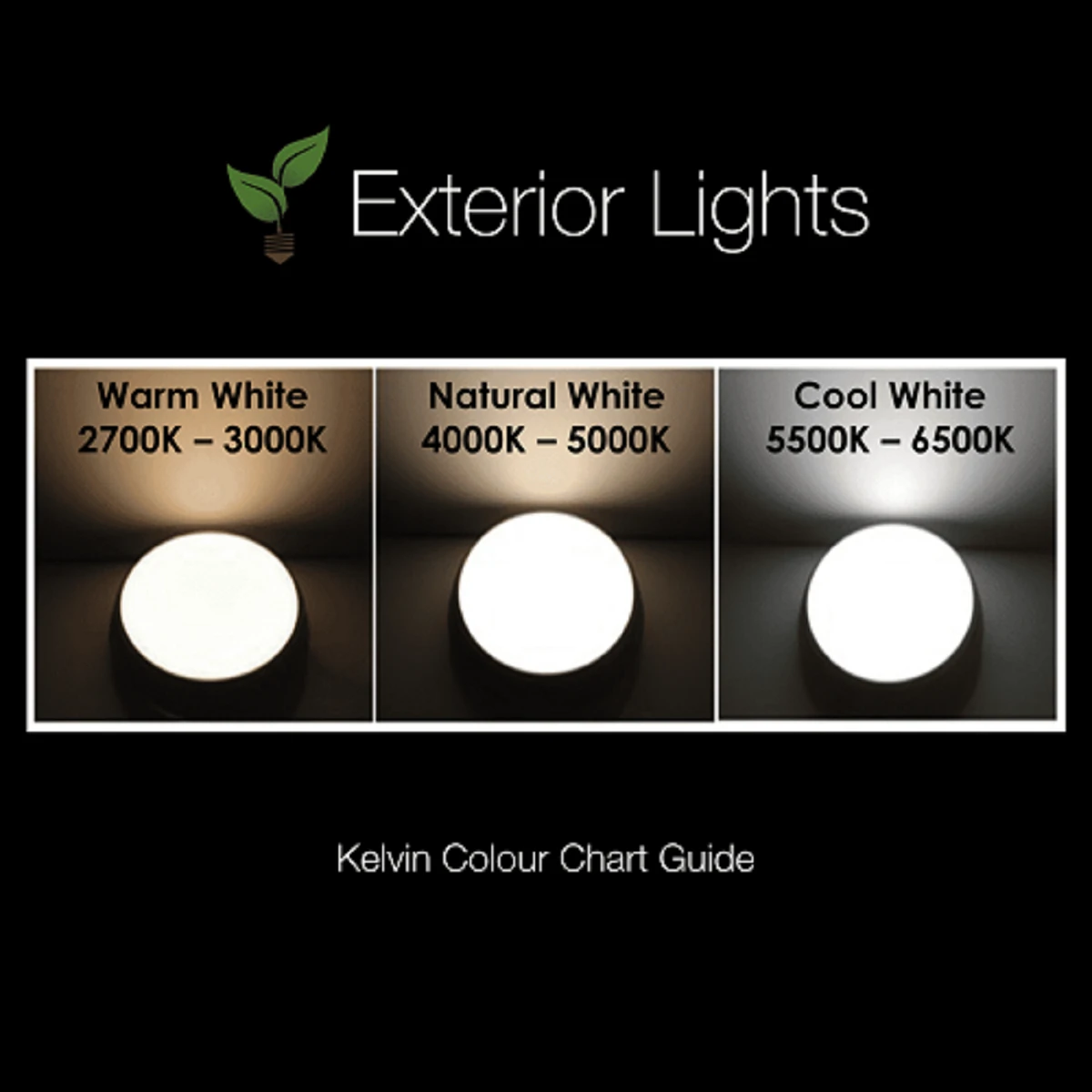

Light source – Four warm white 3000K CREE LED’s

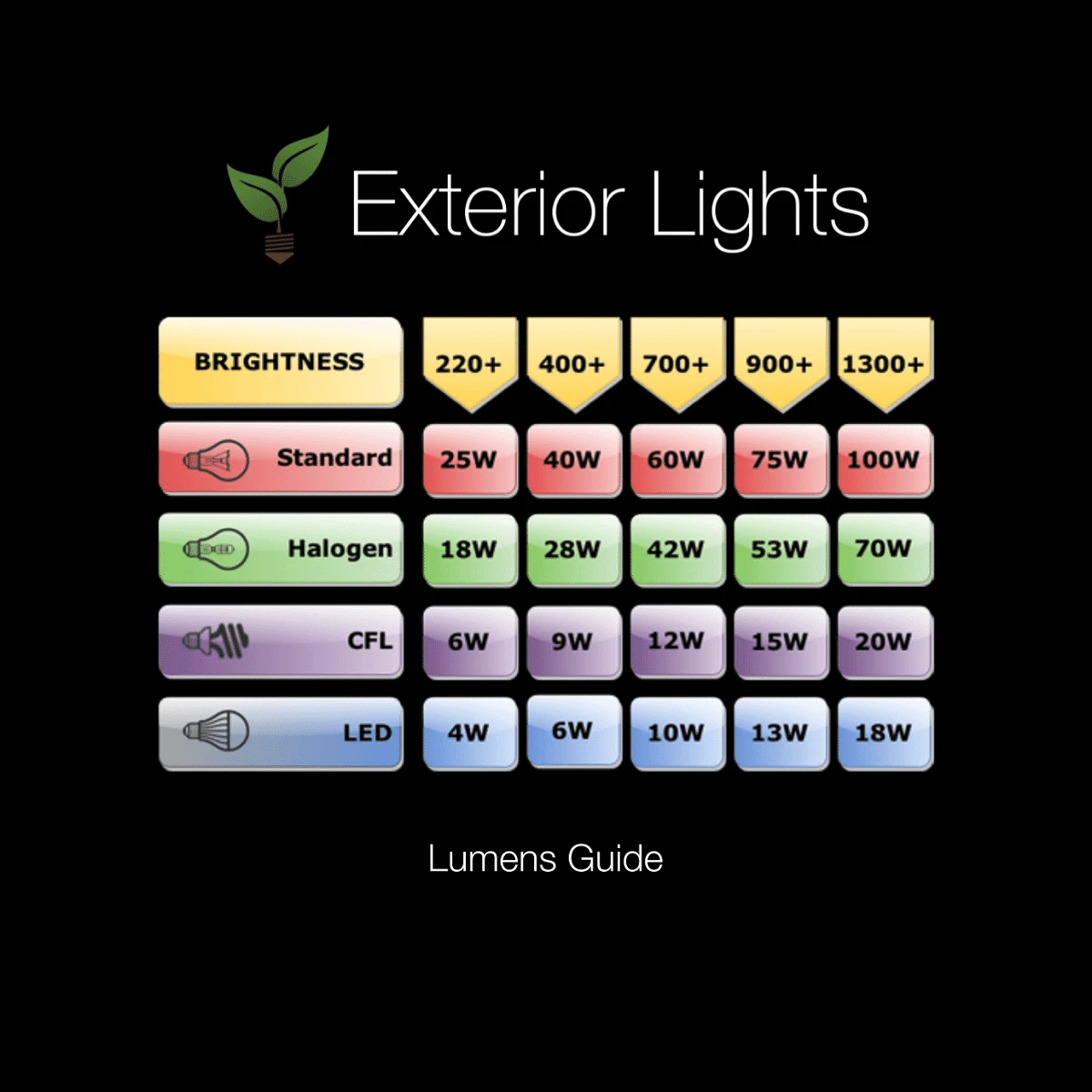

Light output – 340 lumens (EQUIVALENT TO 35W HALOGEN LAMP)

Beam angle – 30 degrees

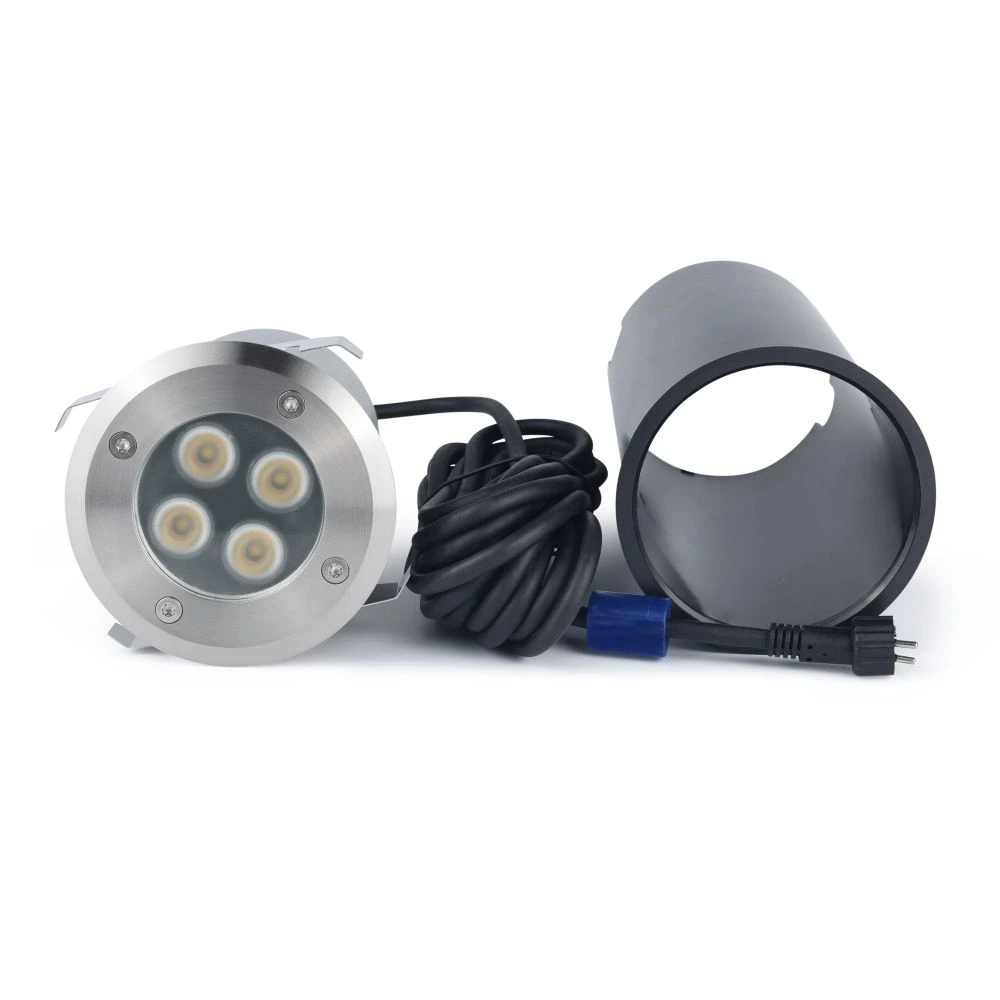

Installation – 5m input cable with male IP44 2-pin input connector to plug into a Plug&Play transformer, extension cable, connector
or junction box : an IP68 connection may be achieved by using either the GLWJB IP68 junction box or GLWCC waterproof

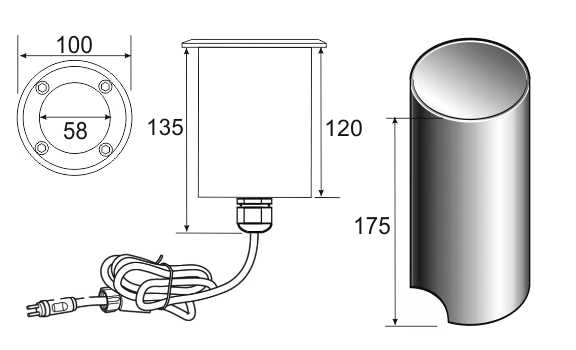

cable connector. Spring clip locates in a 85-95mm hole drilled in decking and paving or the plastic mounting sleeve supplied
for installation in soil or masonry.

Accessories – For use with the Patilo range of Plug&Play transformers, connectors, extension cables and junction boxes.

Installation 12v

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Care must be taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes, connectors and extension cables using a 2-pin plug arrangement. These Plug and Play fittings should only be used for small domestic projects due to voltage drop over 5 metres.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
