Litecast LED Wall Washer Kit – Daylight White Dconnect 24v Plug & Play

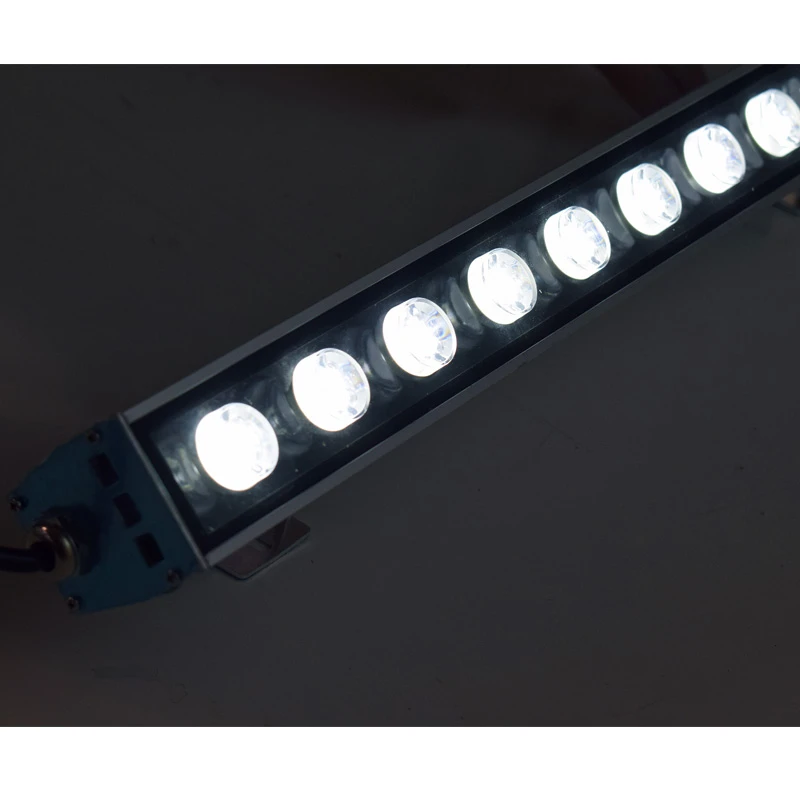

The Litecast is part of the DConnect Plug & Play Range. This LED Coloured Wall Washer has 12 bright 1w LED units (12w)
in a weatherproof and durable aluminium housing. A PMMA (acrylic) lens protects the 12 LED units. Once illuminated, the impressive
bright light works fantastically as an LED Wall Washer, but is equally as effective as an uplighter or downlighter. The LEDs
are impressively bright, with well over 100 lumens per watt! The warm white 2700k has been discontinued.
If pointing vertically, the light diffuses over at least 4 metres. Importantly, the angle of the Litecast adjusts to suit
the lighting effect you desire. There are two adjustable foot brackets that fix to any flat surface. These ‘feet’ slide
along the base of the light by loosening the stainless steel screws. Also, aluminium Ground Spikes are available for
in-ground mounting (select above).

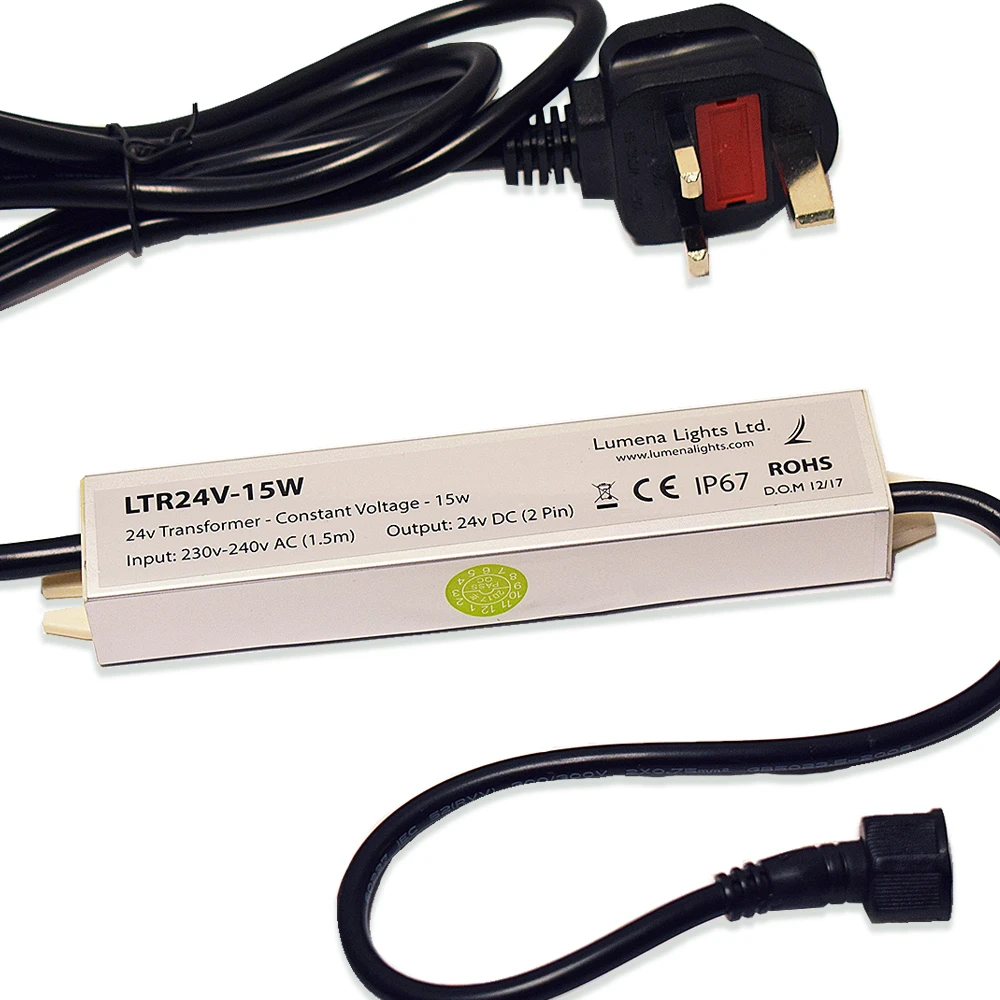

The Litecast is supplied with a a detachable 24v Constant Voltage LED Driver – 15 Watts. A 3 pin UK plug attaches to 1.5m
of fixed 3 core rubber waterproof input cable ensuring easy installation with no wiring. The 240v AC mains input then
converts to 24v DC output via the transformer. The output cable has a ‘D-Connector’ plug & play male 2 pin adaptor
for easy installation. Ideally the transformers should be installed above ground on a suitable post or wall via the easy
to use surface mount clips.
Additional DConnect Extension Cables also available as an accessory to enable a more remote placing of the driver, further
away from the fitting (1m, 3m or 5m).
Embrace Coloured Light in the Garden for an Elegant Paradise with a choice of Red LED, Blue LED or Green LED.
The Litecast is supplied with a detachable 24v DC Transformer – 15 Watts.
Daylight White 6000K – 6500K

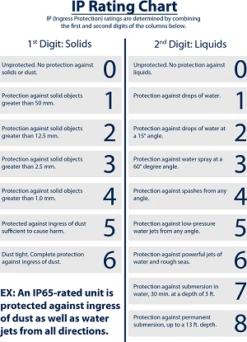

IP65. Supplied with 15w 24v DC transformer (IP67). and 200mm cable. The plug type is DConnect Plug & Play – 2 pin (female).
Length of fittiing: 500mm
