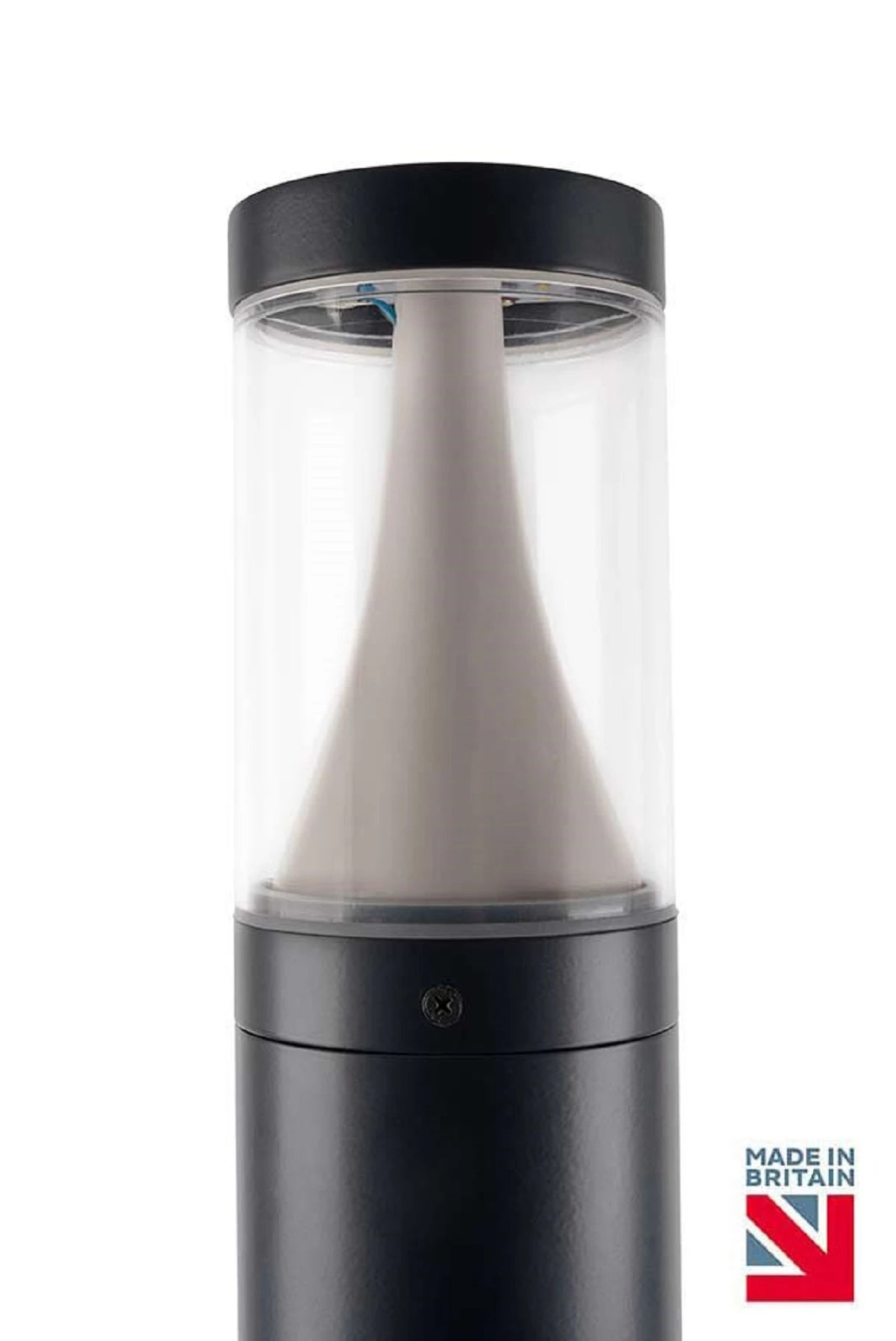

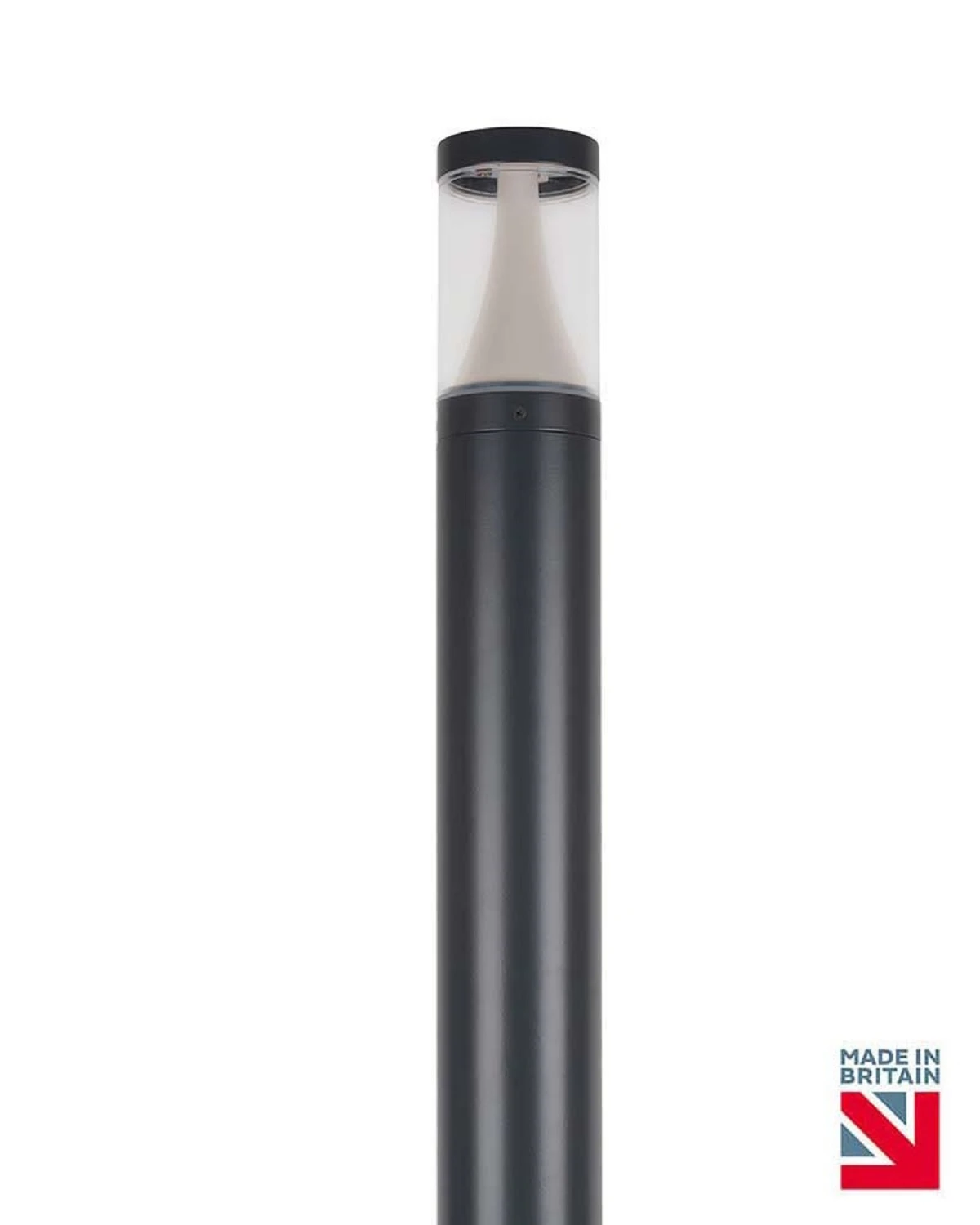

Lingfield – 10w Slim Architectural Bollard Graphite Grey Aluminium 1m Tall IP65 240v IK10 With Several Options

The Lingfield is one of a range of British Manufactured Kent Named Commercial Bollards. The Lingfield is available in three colour temperatures , 6000k, 4000k and 3000k. It stands 1m tall and the diameter is 100mm.  This  5w LED bollard is a slim, architectural path marker bollard offering both aesthetic appeal and high performance illumination.

The Lingfield is IP65/IK10 rated and manufactured from extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive stainless steel fixings. Finished in pure polyester powder Graphite Grey (RAL 7024) paint.

The Lingfield  10w bollard gives out 1,320 lumens from the 6000k and 4000k colour temperature and 1,117 lumens with the warm white 3000k colour temperature.

They are manufactured to order and cannot be returned.  The timeframe for manufacturing to delivery is approximately 7 working days. Please check with us when you wish to place an order so we can check production for you to verify the timescale.

Options available include 300mm deep bolt-on root and mini photocell.

The Osram LED has a lifespan of 100,000 hours and can be replaced.

Ideal for specifying for Car Parks, Parks and Gardens, Walkways, Security, Amenity and Prestigious grounds.

Features & benefits

• LED rating  1,320lm (6000K & 4000K).
• LED rating 1,117lm (3000K).
• Luminaire flux 1,135lm (6000K & 4000K).
• Luminaire flux 960lm (3000K).
• Total wattage 10W.
• 6000K (CW), 4000K (NW) and 3000K (WW) colour temperature.
• -20 to +40°C operating temperature (Emergency 0 to +40°C).

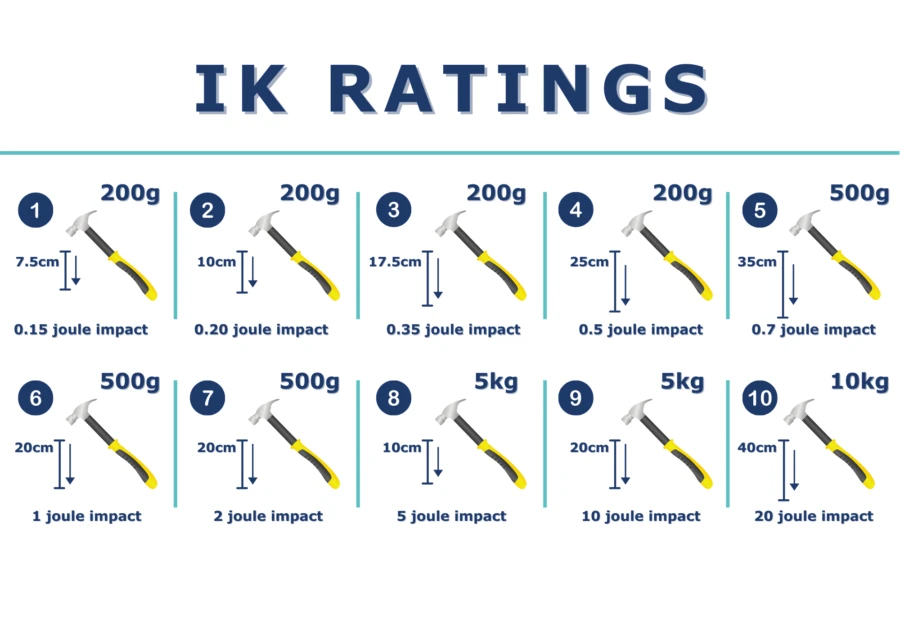

• IP65/IK10 rated.
• LED life span > 100,000hrs.
• Standard Weight 3.5Kg.
• Osram LED and Osram Driver.

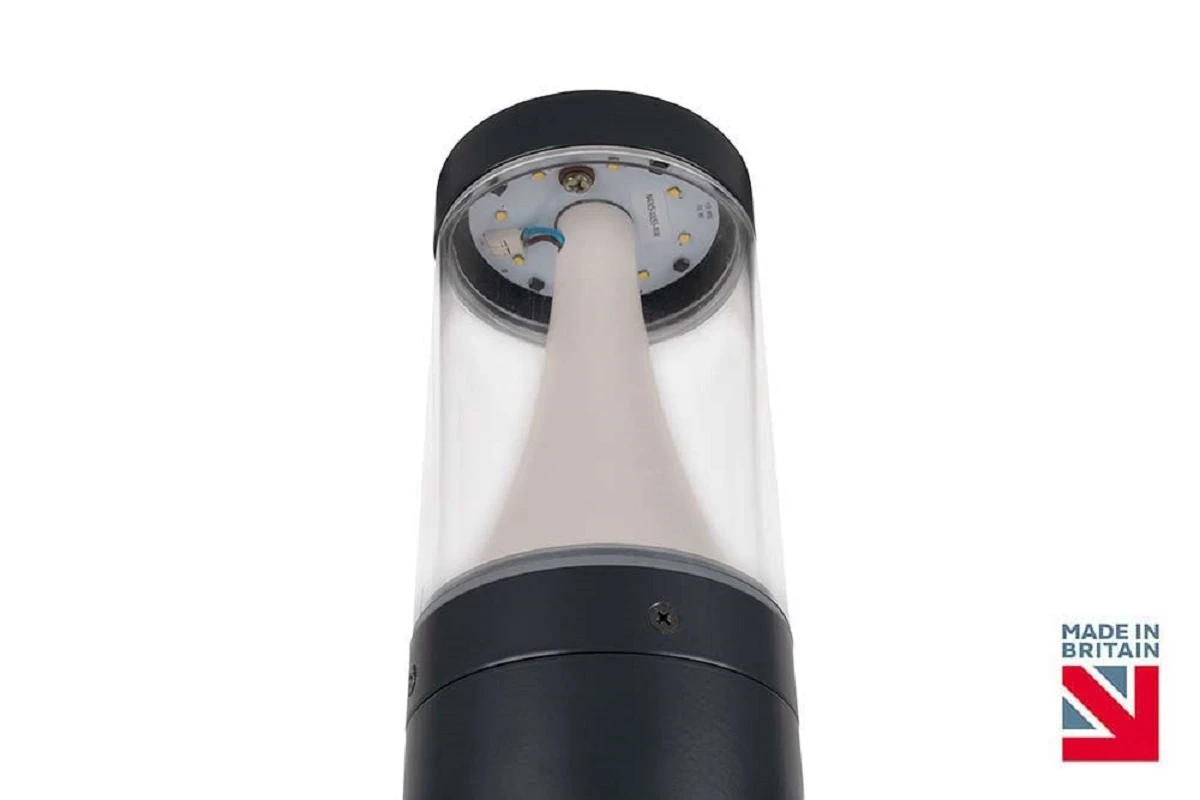

• Easy access to LED and Driver via a removable head and  access door.
• Tamper proof fixings for increased vandal resistance.
• Manufactured from extruded die cast aluminium with strong UV stabilised polycarbonate lens.
• Finished in pure polyester powder coated Graphite Grey (RAL 7024) paint.

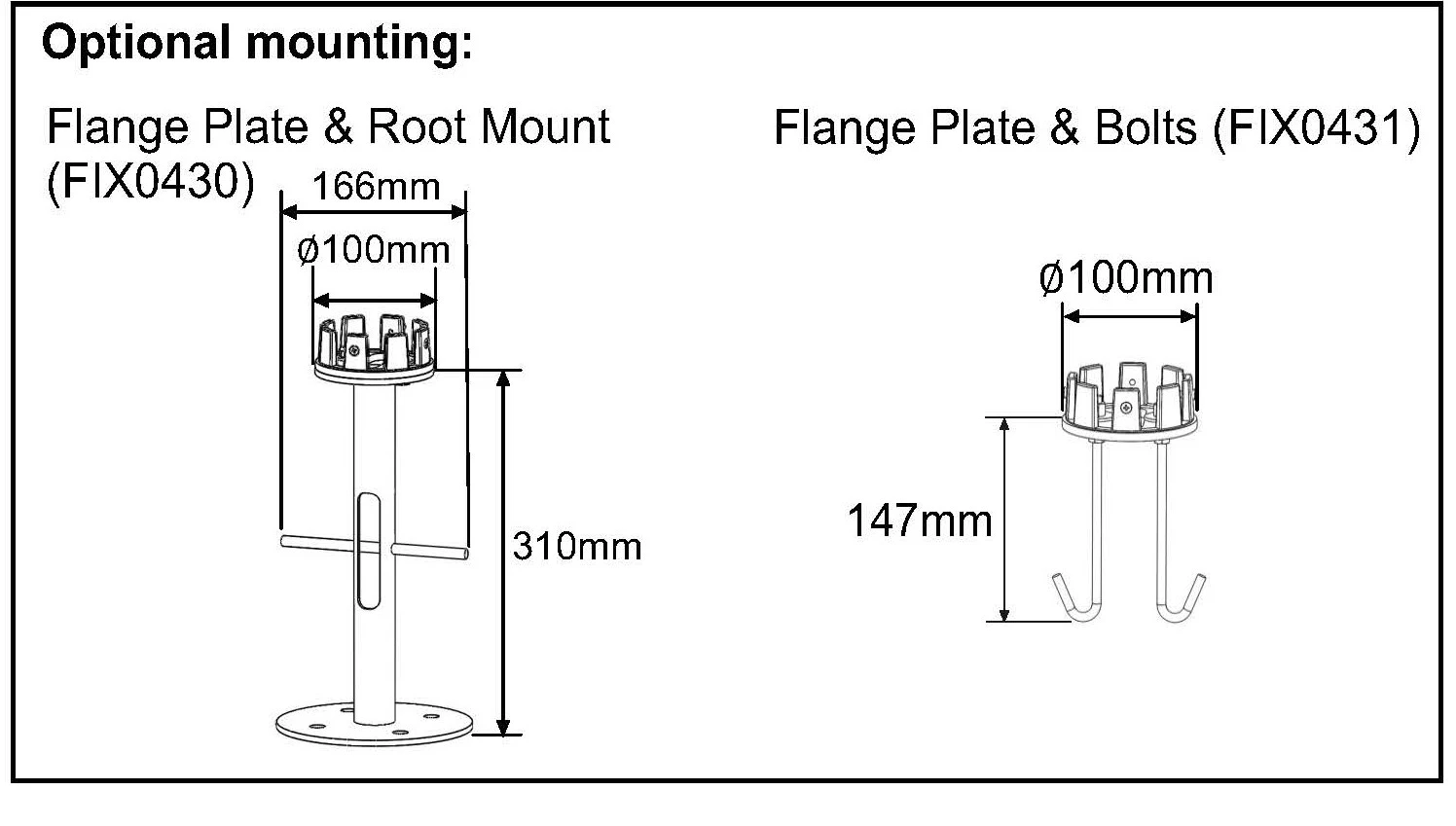

The bolt on root mount is 300mm deep with a 200mm through bolt at the bottom
