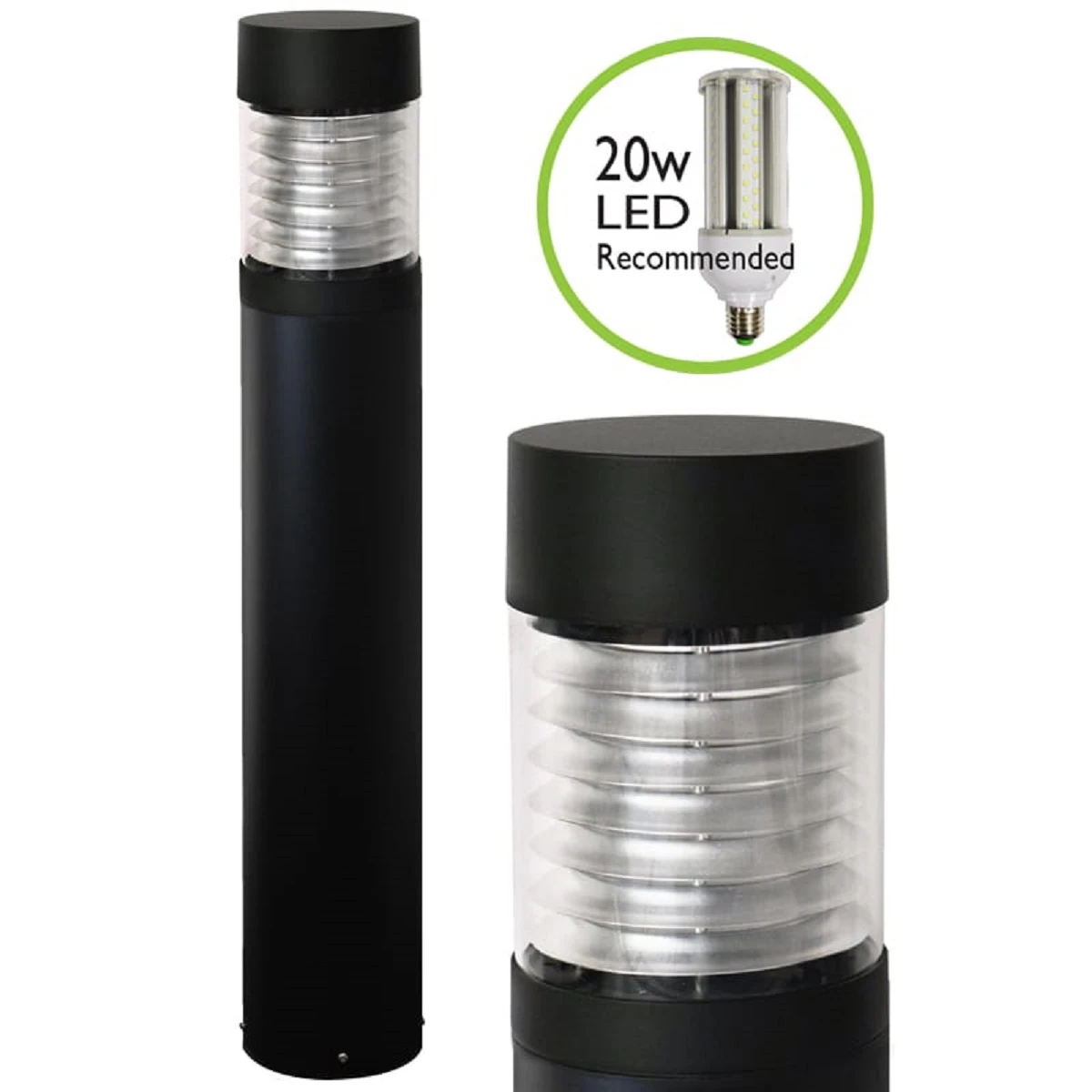

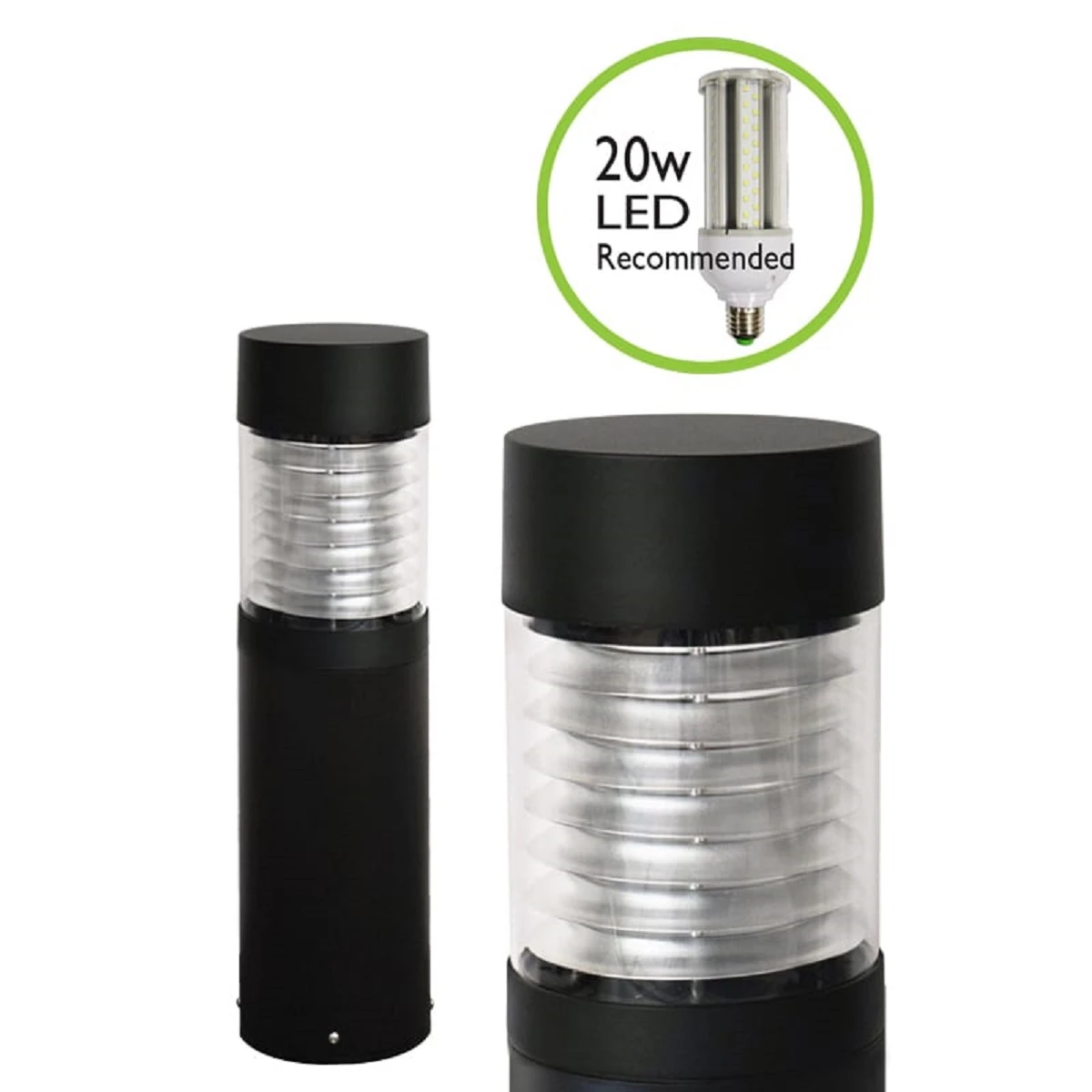

LEDifice Commercial LED Bollard Light – 0.4m, 0.6m, 0.8m, 1m – Black. Choice Of 4 Height & 3 Head Options & Choice of 2 LED Lamp Colours
The ‘LEDifice’ is a professional and robust commercial illuminated bollard. It has a specially designed taller head in order
to accommodate high output LED bulbs. The LEDifice is perfect for installations that need a high level of light. Ideal

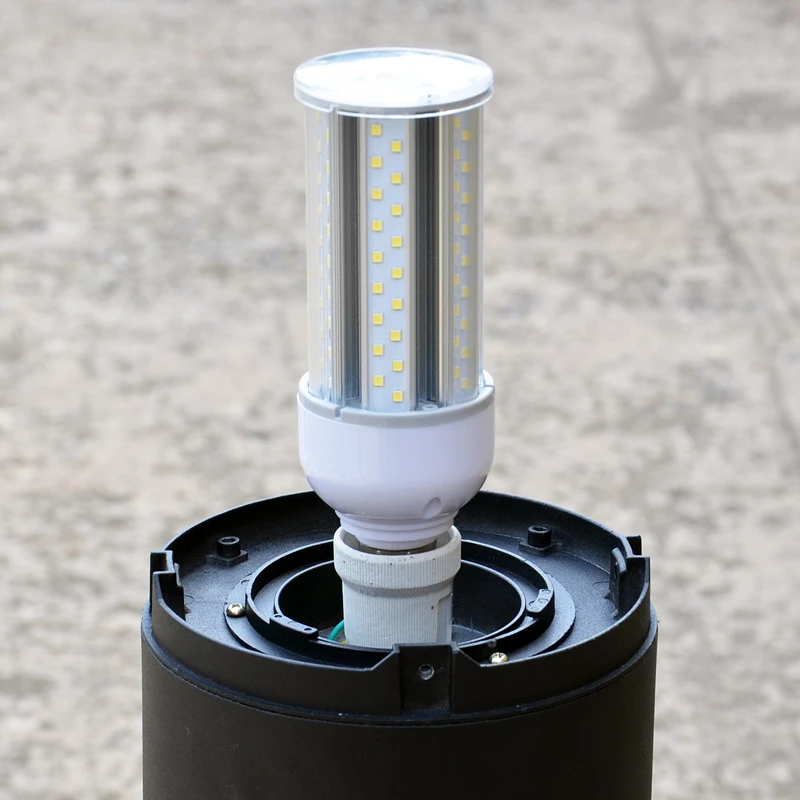

as amenity lighting for larger, commercial or public areas such as car parks or buildings. We recommend the included
20W LED Corn Bulb for optimum brightness. 5 year warranty.
The clear, high quality UV stop PC diffuser surrounding the centre section of the head, enables an even all-round light dispersal.
This also adds protection to the bulb installed. Silver aluminium louvres act as anti-glare shields and give further
internal protection. The bollard head and cylinder are 2.5mm thick heavy duty die-cast aluminium. All screws are stainless
steel, resulting in a completely rustproof and non-corrosive model.
In a graphite black finish, a choice of height is available (400mm, 600mm, 800mm or 1000mm) – a height

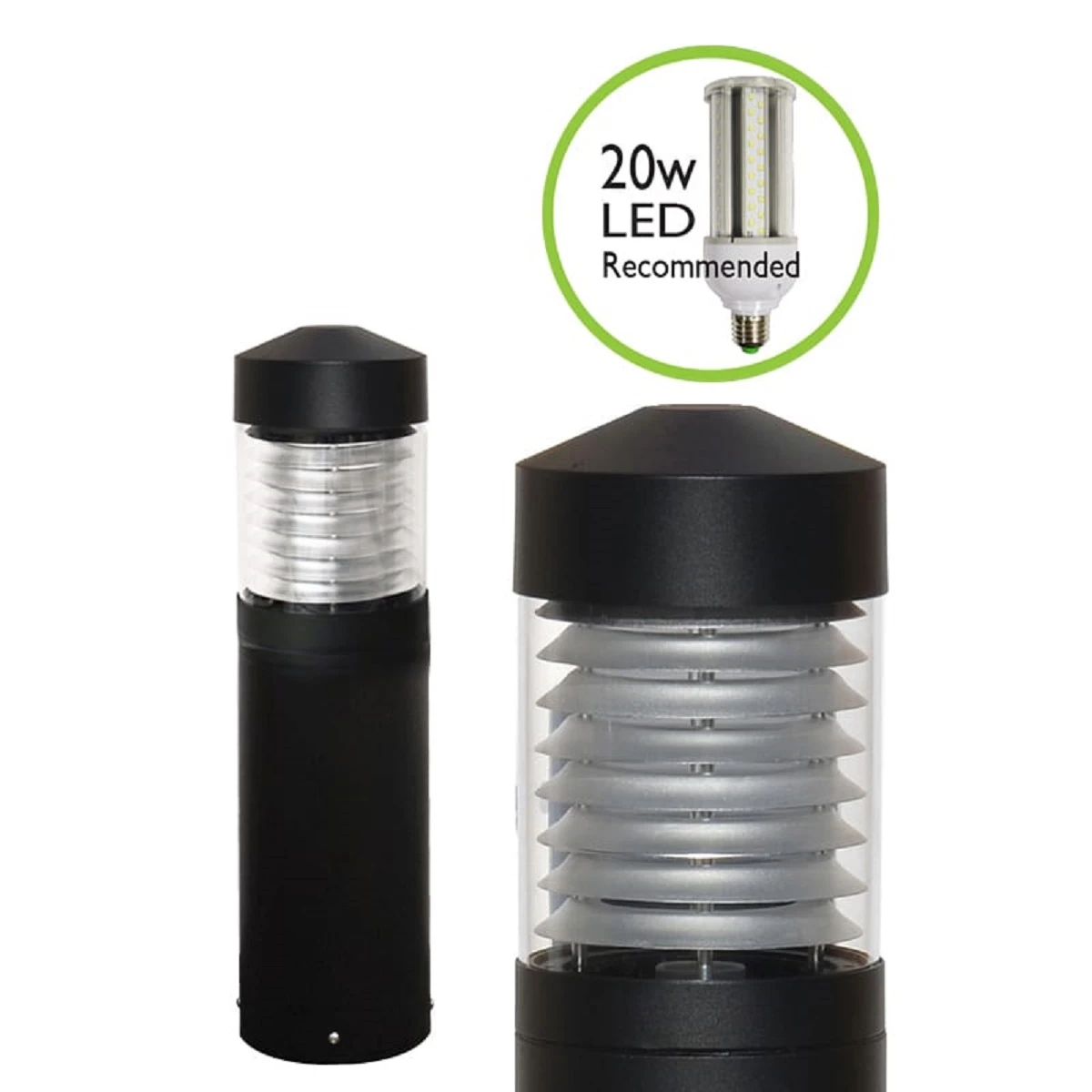

suitable for every application such as driveways, paths and sectioned areas. There are also 3 styles of head to choose
from: ‘domed’, ‘pillar’ or ‘flat’ top. It also has an IK10 Rating for the body and IK08-09 for the Head (excluding the lens which is IK06 rated. IK ratings
are levels of impact. IK10 being the highest.
The head and 2.5mm thick extruded aluminium cylinder of the bollard are heavy duty die-cast aluminium, and all screws are
stainless steel. This results in a completely rustproof and non-corrosive model.
Each bollard is supplied complete with a removable internal mounting base as standard, which can be attached to 4 x expanding
anchor bolts supplied with this fitting, or you can purchase root mounting J-Bolts to go into wet concrete. Alternatively,
a Professional Root Mounting System is available consisting of a longer tube that mounts 400mm in to the ground.
NOTE: The overall bollard height may be up to 7cm taller than the standard height due to the larger bollard head. This
varies depending on which tubular body is installed.
How far apart should the bollards be installed?
The distance between each bollard depends on bulb light output, the area, and amount of light required.
These guidelines are based on our recommended bulbs providing a constant light between each fitting:
- 20W LED Corn Bulb (DAYLIGHT WHITE) – 6m to 8m apart
- 20W LED Corn Bulb WARM WHITE) – 5m to 7m apart
Bollard types and spacing
Installation 220 – 240v
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and reduced water ingress especially in clay-based soil areas. Mains 240v cable will have less joints than a low voltage installation but care must be taken with the cable runs. Cabling should be Rubber Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
