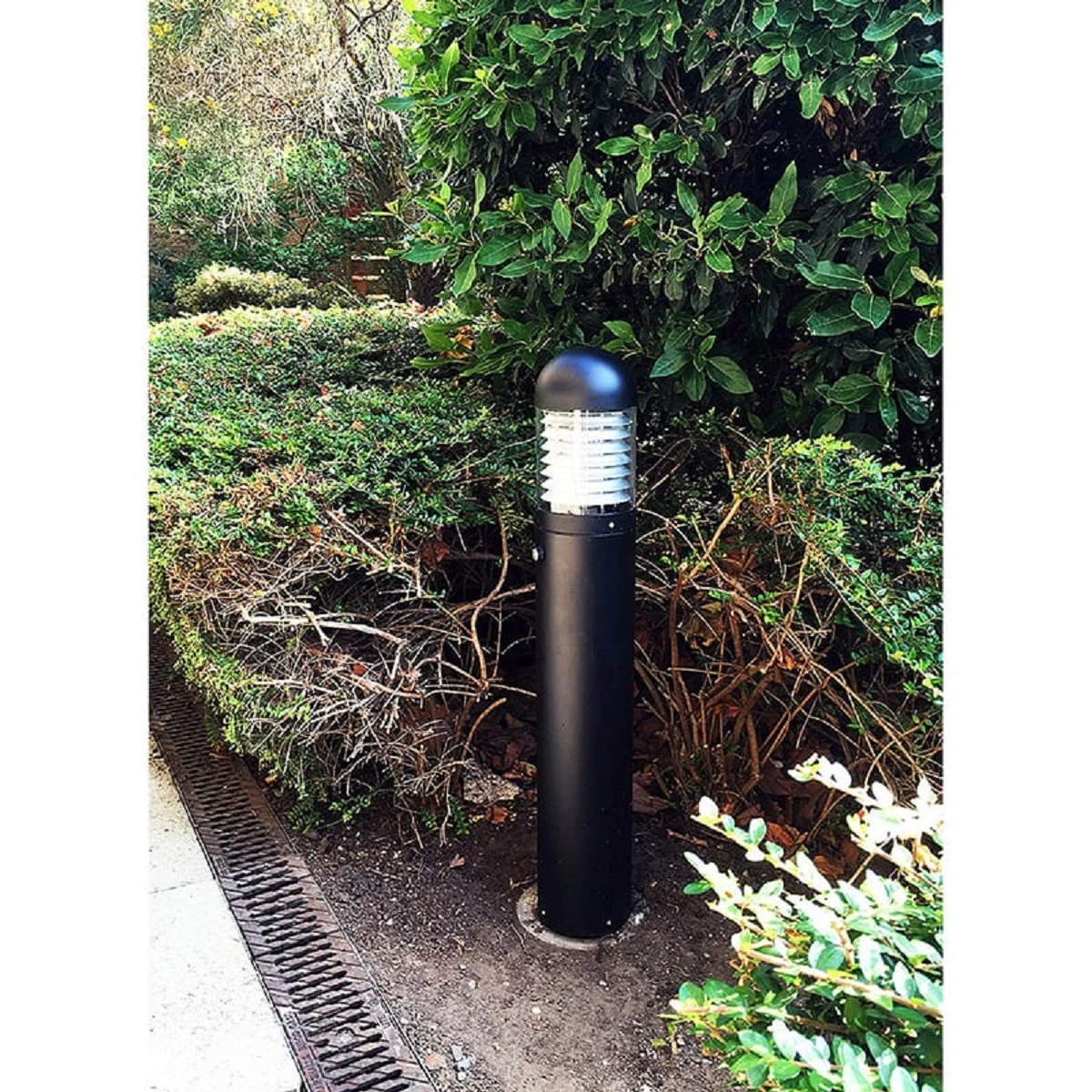

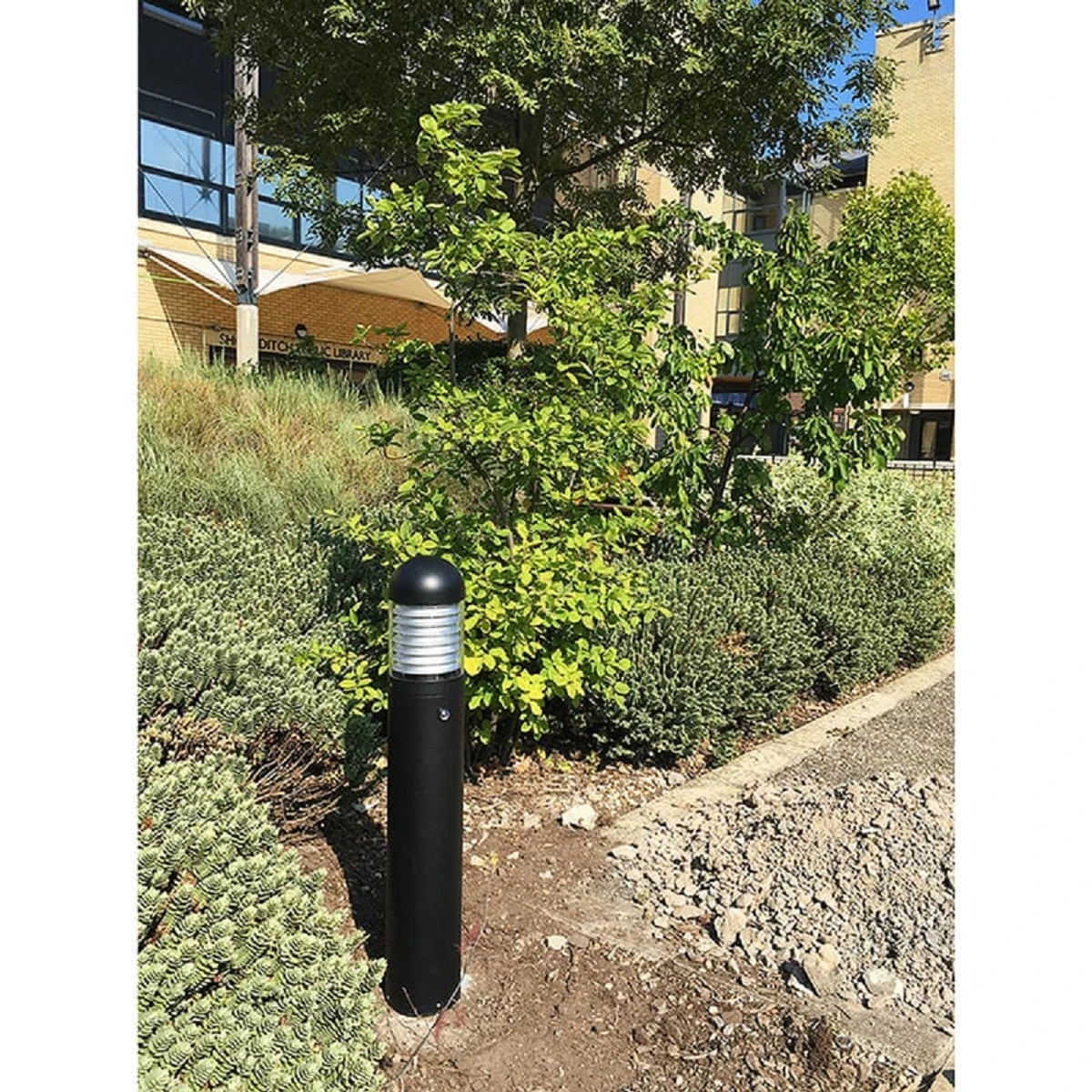

LEDifice – Aluminium Black IP65 E27 240v Surface Bollard + Photocell – Choice Of 4 Heights & 3 Head Options & Lamp

The ‘LEDifice’ is a professional and robust commercial illuminated bollard. It has a specially designed taller head in order
to accommodate high output LED bulbs. The LEDifice is perfect for installations that need a high level of light. Ideal
as amenity bollard lighting for larger, commercial or public areas such as car parks or buildings.  We include a replaceable

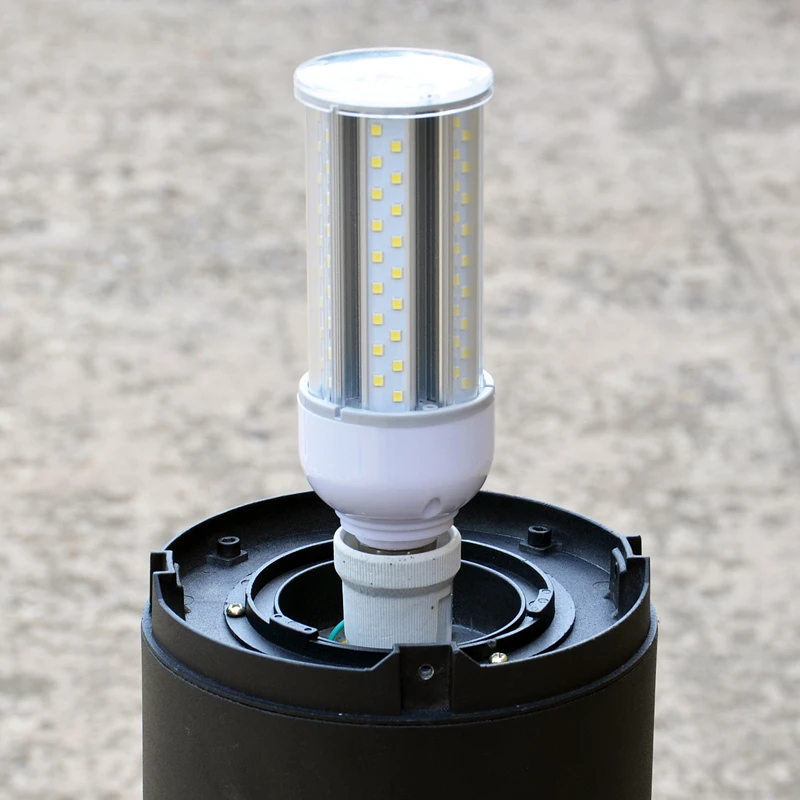

20W LED Corn Bulb for optimum brightness.  The bollard comes with a 5 year warranty.

Importantly, the inbuilt photocell dusk to dawn sensor automatically turns the bollard light on
when it detects dark, and off again when  light. There is no need to remember to switch the fitting on and off manually. This
means less product maintenance. The E27 / ES bulb holder accommodates almost any LED bulb. Using LEDs is a very effective
way to reduce energy bills.

The head and 2.5mm thick extruded cylinder of the bollard are heavy duty die-cast aluminium. All screws are stainless steel,
resulting in a completely rustproof and non-corrosive model.

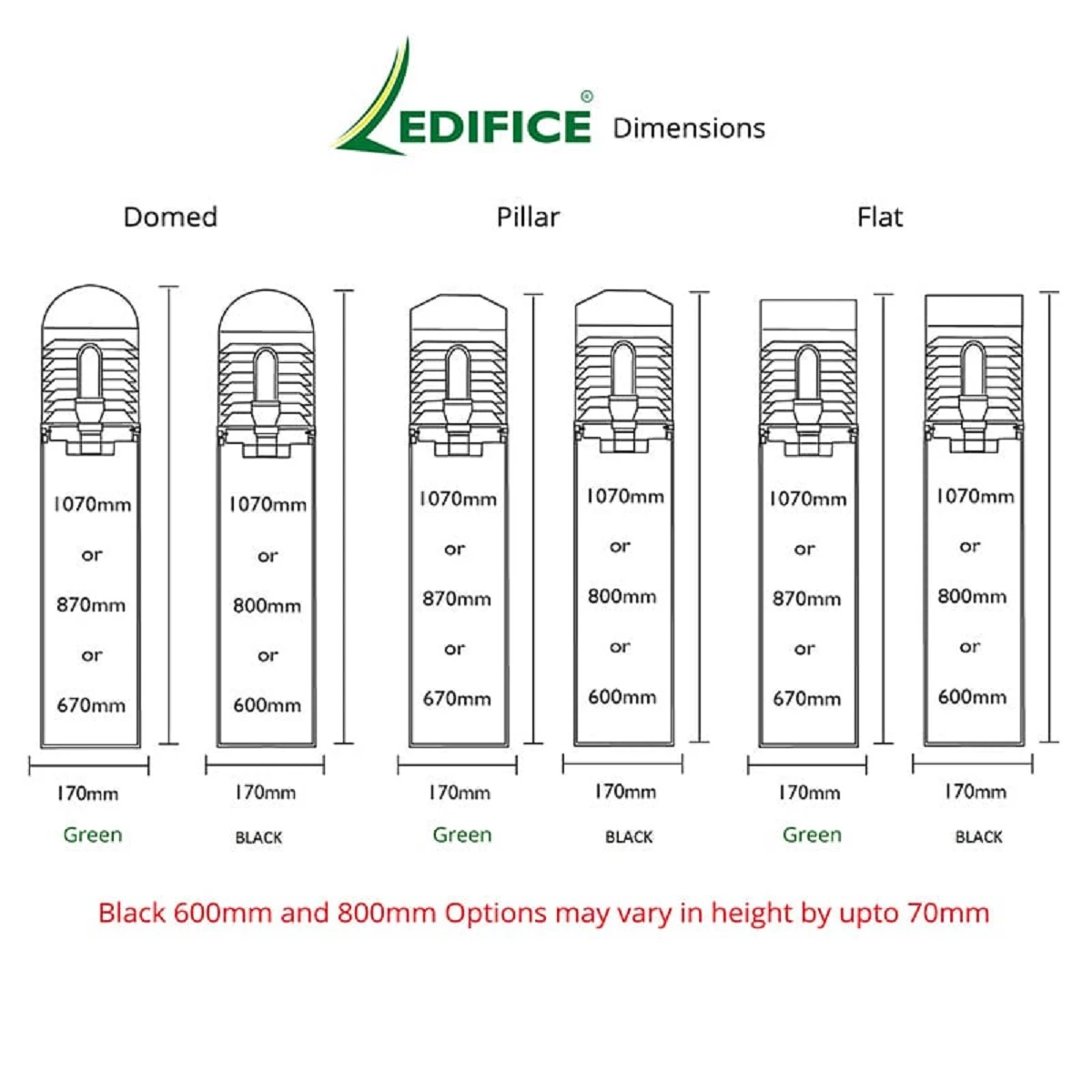

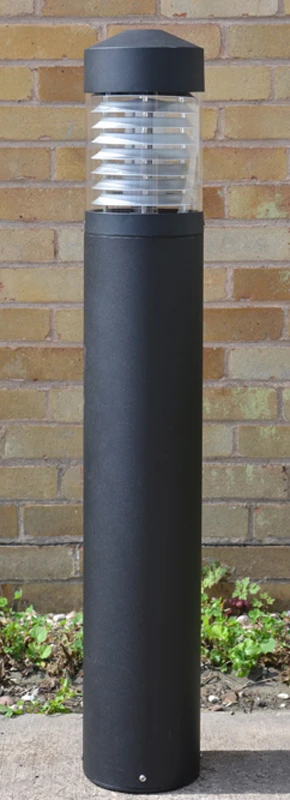

A graphite black finish is available as well as a choice of height (400mm, 600mm, 800mm or 1000mm).
Ideal for driveways and paths, there are also 3 styles of head: ‘domed’, ‘pillar’ or ‘flat’ top. It also has an IK10 Rating for the body and IK08-09 for the Head (excluding the lens which is IK06 rated. IK ratings are
levels of impact.  IK10 being the highest.

Each bollard is supplied complete with a removable internal mounting base as standard, which can be attached to 4 x expanding
anchor bolts supplied with this fitting,  or you can purchase root mounting J-Bolts to go into wet concrete. Alternatively, a Professional Root Mounting System
is available consisting of a longer tube that mounts 400mm in to the ground.

NOTE: The overall bollard height may be up to 7cm taller than the standard height due to the larger bollard head. This
may vary depending on which tubular body is installed.

How far apart should the bollards be installed?

The distance between each bollard depends on bulb light output, the area, and amount of light required.

These guidelines are based on our recommended bulbs providing a constant light between each fitting:

• 20W LED Corn Bulb (DAYLIGHT WHITE)  –  6m to 8m apart
• 20W LED Corn Bulb WARM WHITE)  –  5m to 7m apart
