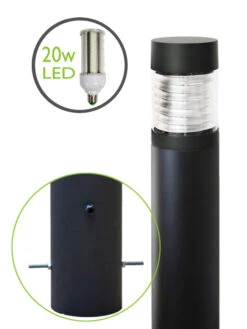

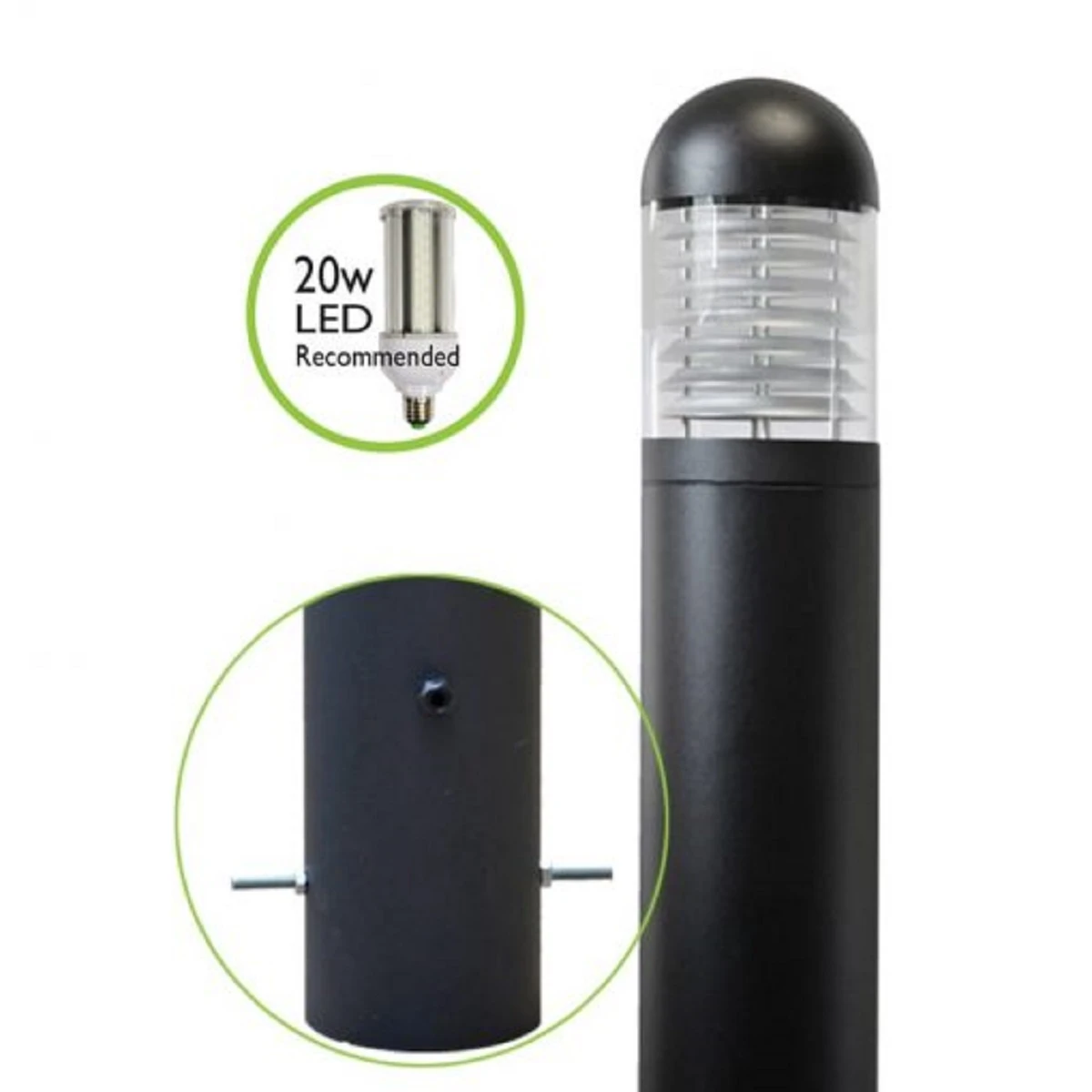

LEDifice Aluminium Black IP65 E27 240v Root Mounted Bollard – Choice Of 3 Height & 3 Head Options & LED Lamp

The ‘LEDifice’ is a professional, commercial LED root mount bollard light. It has a specially designed taller head in order
to accommodate high output LED bulbs. The LEDifice is perfect for installations that need a high level of light. Ideal
as amenity lighting for larger, commercial or public areas such as car parks or buildings. We include a replaceable
20W LED Corn Bulb for optimum brightness.

The Professional ‘In-Ground’ Root Mount System gives extra security and stability. The tubular
bodies of Root mount bollards are different to standard types. Extended tubes allow at least 400mm to be concreted in-ground, without
losing any height above ground. A strong mounting bar inside the tubular body acts as an anchor when
set into concrete. There is an optional secure cable outlet. This allows easy wiring after the bollard is fixed in place.

The clear, high quality UV stop PC diffuser surrounding the centre section of the head, enables an even all-round light dispersal.
This also adds protection to the bulb installed. Silver aluminium louvres act as anti-glare shields and give further
internal protection. The bollard head and cylinder are 2.5mm thick heavy duty die-cast aluminium. All screws are stainless
steel, resulting in a completely rustproof and non-corrosive model.

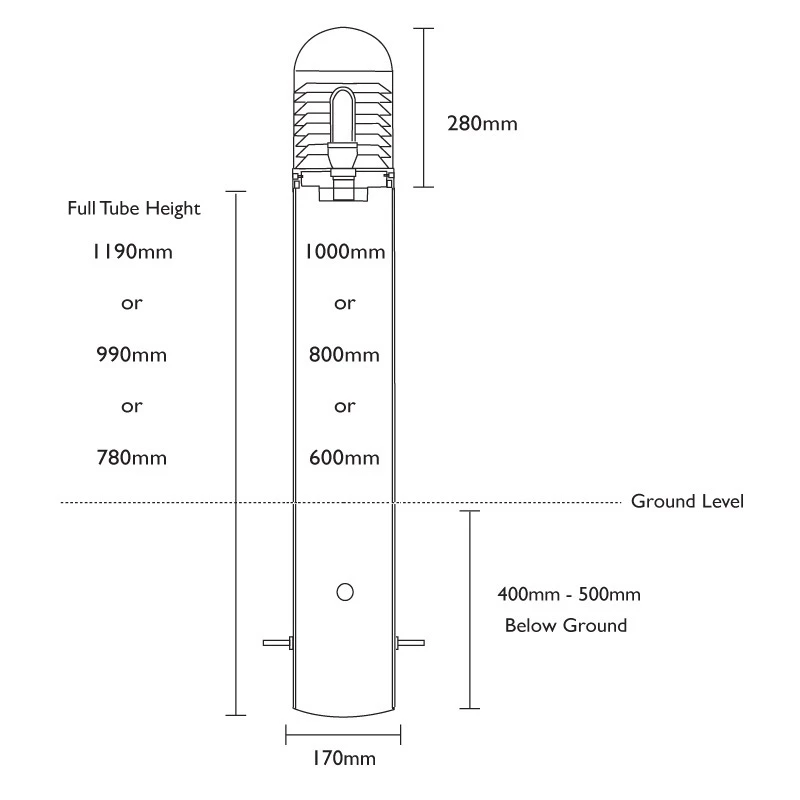

In a graphite black finish, a choice of height is available (600mm, 800mm or 1000mm) – a height suitable
for every application such as driveways, paths and sectioned areas. There are also 3 styles of head to choose from: ‘domed’,
‘pillar’ or ‘flat’ top. It also has an IK10 Rating for the body and IK08-09 for the Head (excluding the lens which is IK06 rated.  IK ratings
are levels of impact.  IK10 being the highest.

NOTE: The overall bollard height may be up to 7cm taller than the standard height due to the larger bollard head. This
may vary depending on which tubular body is installed.

How far apart should the bollards be installed?

The distance between each bollard depends on bulb light output, the area, and amount of light required.

These guidelines are based on our recommended bulbs providing a constant light between each fitting:

• 20W LED Corn Bulb (DAYLIGHT WHITE)  –  6m to 8m apart
• 20W LED Corn Bulb WARM WHITE)  –  5m to 7m apart
