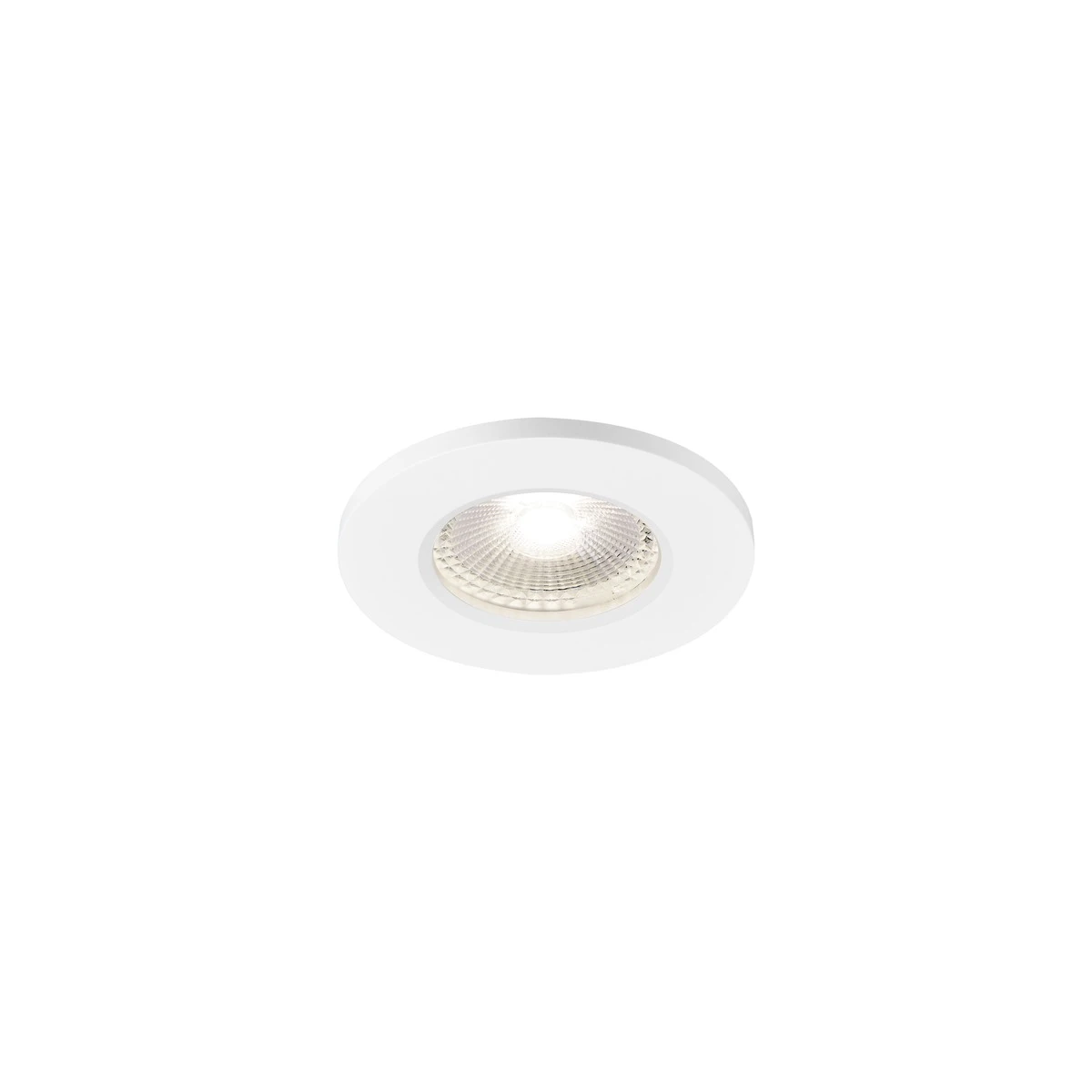

Kamuela Eco – Fixed Round White 240v IP65 6.5w 4000k 400 Lumens 38 Degree Beam Angle Recessed Soffit Light – Fire Resistant and choice of warm white or cool white
The Kamuela round range of LED mains 220 – 240v fittings are the latest in LED outdoor recessed downlights and perfect
for soffit areas, porches and exterior ceiling voids which have a material thickness of up to 40mm. When lighting is fixed
into the soffit boards you will get great lighting effects as the integral cool white Dimmable 4000k LED module will give
out 400 Lumen with a 38 degree beam angle and the total consumption will be 6.5w.
The fitting is made of aluminium and plastic and fire resistant for at least 90 minutes. It also has a dimmable constant
current driver integrated into the unit and can be connected directly to mains 220- 240v.
A unique and very well priced product from our German supplier – SLV.
The fitting has an integral Dimmable 4000k cool white sealed LED chip giving out 400 lumens and this factory built LED
can be replaced by returning the fitting to our manufacturer or by a service technician authorised by them. The lamp
life is approximately 25,000 hours.
It also comes in Black code number 1001017 and in a Warm White 3000k LED Colour Temperature in Black code number 1001015 and in White code number 1001016.
Wiring regulations would suggest that a ingress protection of IP23 would be sufficient in this location but using a fitting
with a higher IP figure can only ensure extra protection in exposed locations.
For the installation into Soffits, due to the driver being IP20, the driver has to be installed into an isolated ceiling or into a waterproof IP box! As noted in the Operating manual IP20 has no protection against water. The fitting itself is IP65 and fine for outdoor use.
Where depth is available they can also be used in an entrance porch linked to a motion detection PIR so they come on only
when required.
Lamp Colour (Kelvins)
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
Installation 220 – 240v (See Instructions & Data Sheets Tab)
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy
access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in
place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.
Mains 240v cable will have less joints than a low voltage installation but care must be taken with the cable runs.
Cabling should be Rubber Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
