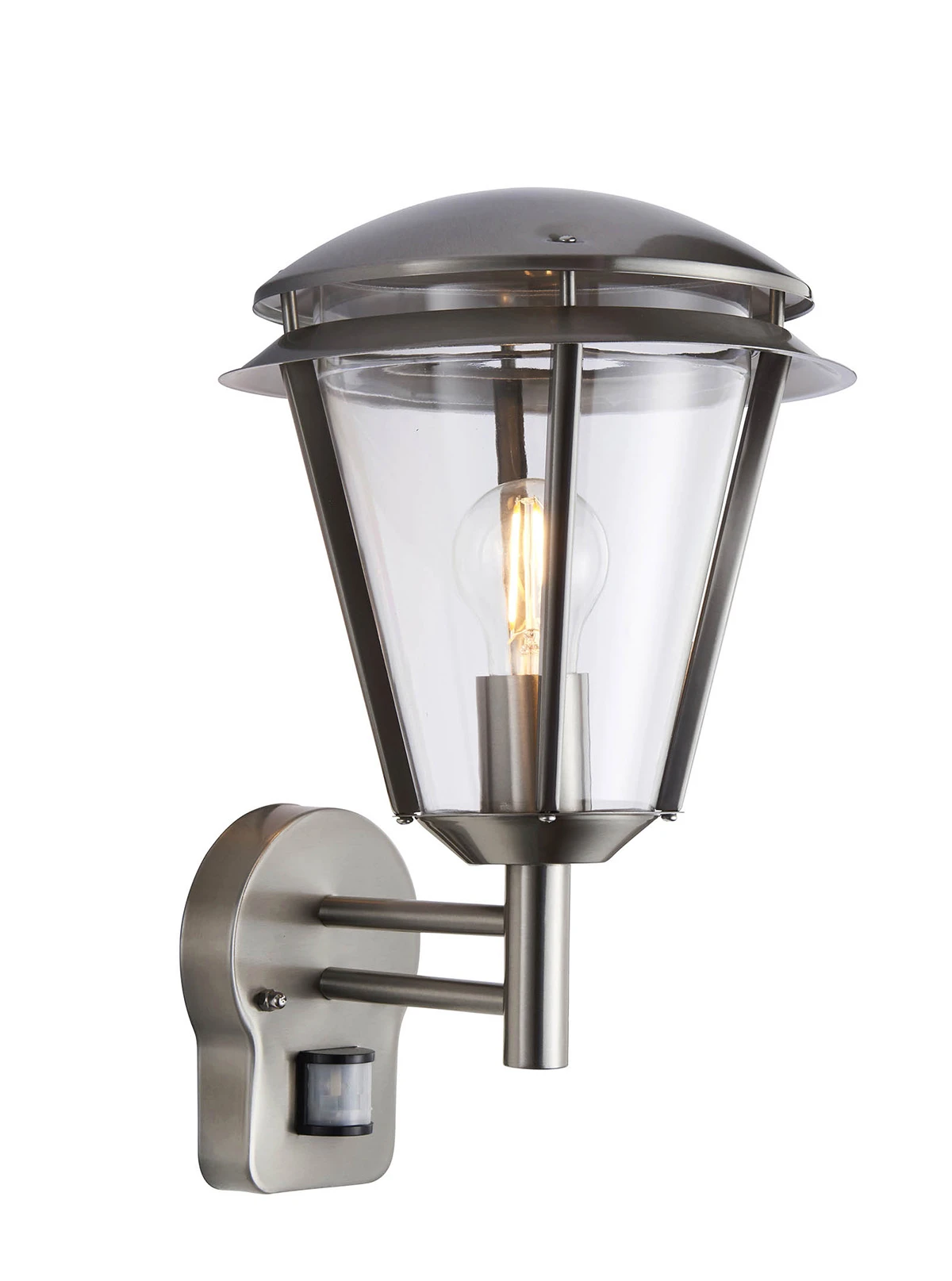

Inova PIR Sensor – Outdoor Lantern Wall Light – 240v – Brushed 304 Stainless Steel E27 IP44

 Inova PIR 240v – Brushed 304 Stainless Steel E27 Max 60w IP44 Security Wall Light With PIR Sensor

The Inova PIR is a modern exterior wall light which is finished in Brushed 304 Stainless Steel finish, and is ideal for use in both domestic and
commercial application. The addition of a PIR sensor means it is activated on movement making it suitable for lighting paths
and doorways and for use as a security light. Also available in Matt Black code 49946.

• Complete with built in PIR
• 110° detection angle, 8m maximum range with a 5 sec – 5 min timer function
• Brushed 304 Stainless Steel & clear pc
• Constructed from stainless steel (304) & polycarbonate
• 60W E27 GLS (bulb not included)

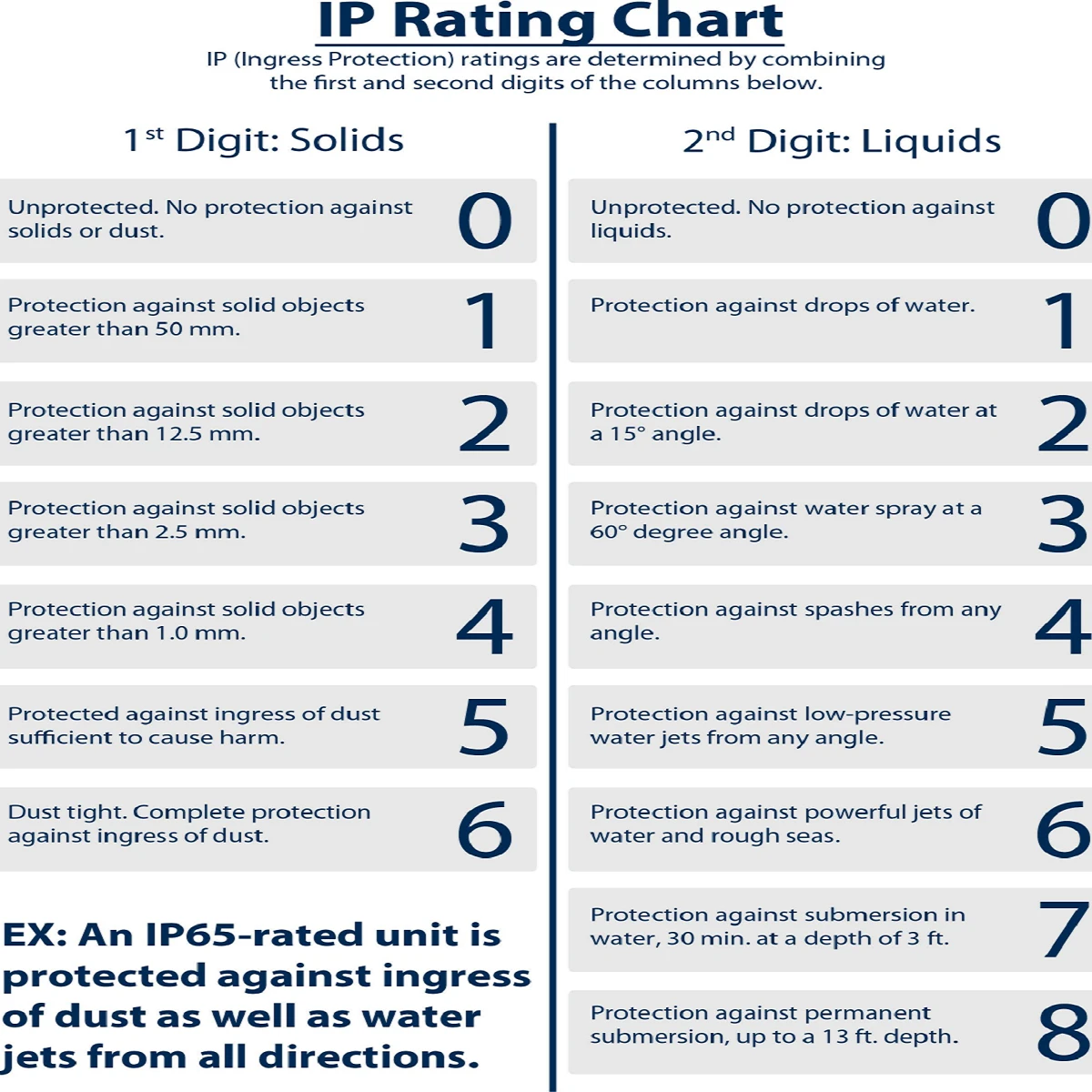

• IP44
• Proj: 255mm H: 380mm W: 240mm
• Class 1
• 2YR Warranty
• Weight: 1.2 Kg

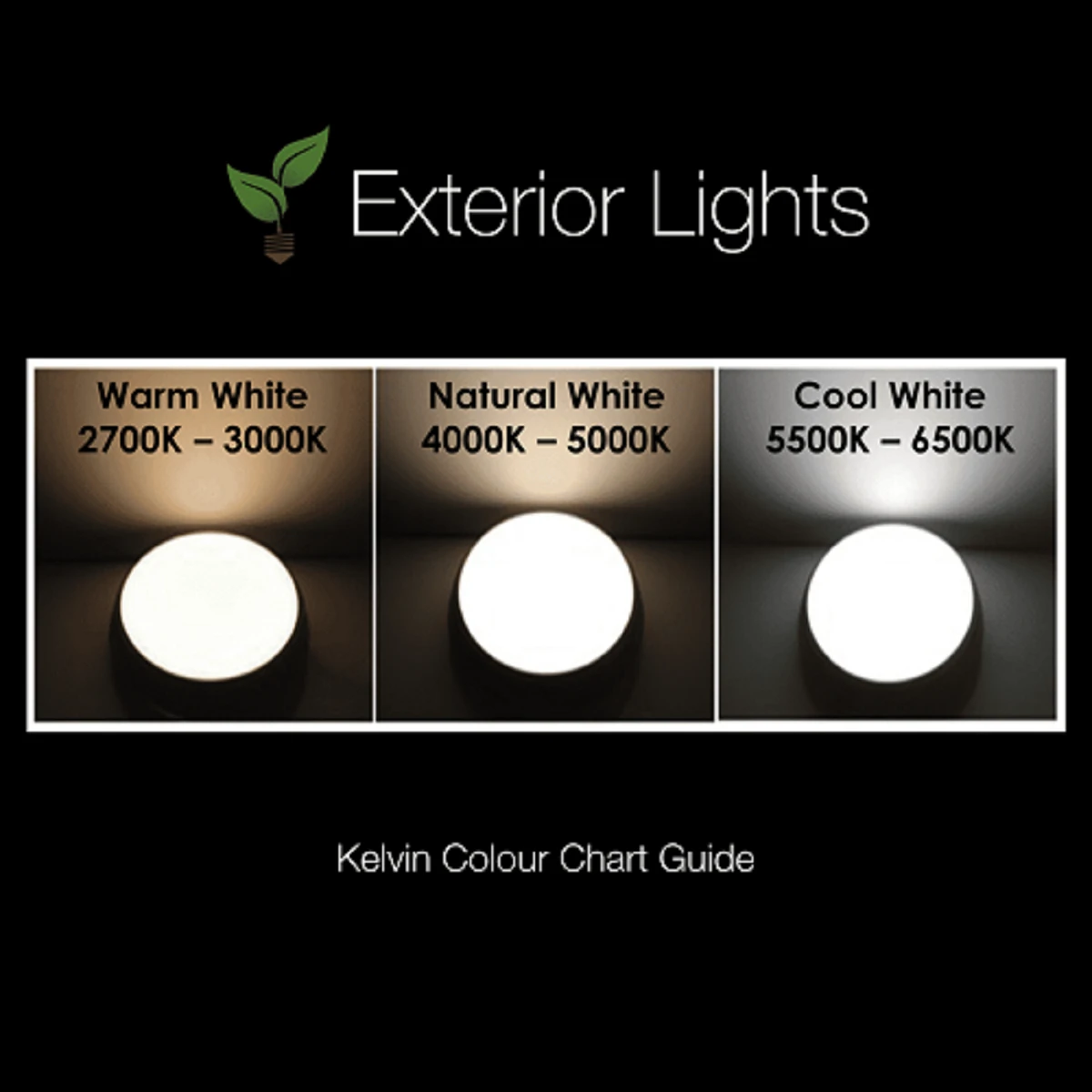

                                                                                                     Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum

Installation  – See Download for pdf instructions

Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting,
carefully note the position of each set of wires.

 Remove mounting box (A) from product by removing dome nuts (C) and washers (D). Carefully pierce a small hole in
the rubber gasket in the centre of the mounting box to allow the cable to pass through. Thread the cable through
the hole, ensuring the drain hole is at the base of the mounting box.

Fix the mounting box to the wall using the screws and plugs supplied (B). Ensure the wall is capable of holding the weight
of the product. Take care to avoid damaging any concealed wiring and pipes. The correct fixings should be used for
brick or cavity walls. Seal the screw fixings to maintain the IP rating of the fitting.

Having correctly identified the wiring from your existing light fitting, pull the wire through the hole and connect to
the connection block inside the product.

Ensure that the cable is not snagged and seal to maintain the IP rating of the product. Fit the product back on the mounting
box and refit washers (D) and dome nuts (C) tighten dome nuts to secure. Replace fuse or circuit breaker and switch
on. Your light is now ready for use.

The unit must be installed in a vertical position, and fitted 1.8m above ground. The PIR sensor can be adjusted, allowing
the detection distance to be altered to suit the location. The detection angle is set at 110 degrees. The duration
that the lamp stays on can also be altered from 5 seconds – 5 minutes. Use a small screwdriver to adjust the ‘Time’
and ‘Sens’ screws. When adjusting the sensitivity (detection distance) in daylight it will be necessary to cover
the sensor to simulate night time.
