Ikon Pro 12v DC – 35mm Kit IP67 0.75w CCT 6500K/Blue – Recessed – 304 Polished Stainless Steel

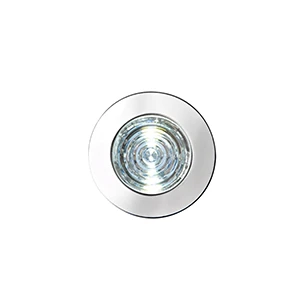

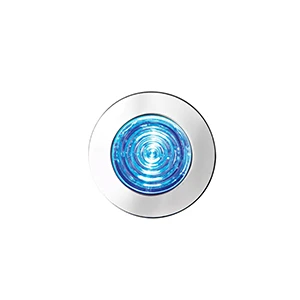

This Ikon PRO recessed LED decking kit come in 6500K or blue. Using the unique design of removable and interchangeable
heads to change colour, you simply lift the LED head out of the connector, turn the head 180° and reinsert into the loom.
Designed to be fitted and wired during the decking build stage without the heads, the supplied rubber caps protect the
fitting from the elements until the decking is complete. Available in a variety of sizes and colours.

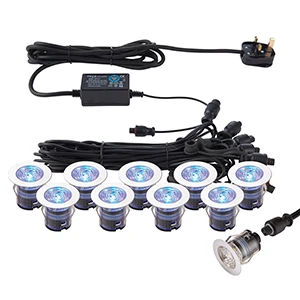

The kit comprises of 10 x 0.75w 35mm LED deck lights with a 15w 12v DC Constant voltage power supply.  The LED’s are
super bright SMD (Surface Mounted Diode’s),

It comes with a 5m extension cable, 2 x 5 way looms and a 3 pin UK plug.

Each loom is 1.5m long to connect to the next deck light.

• Suitable for indoor or outdoor use
• Polished stainless steel & clear pc
• Constructed from stainless steel (304) & polycarbonate
• Super bright SMD LED technology
• Innovative new fitting method
• Improved lens design
• Complete with 15w 12v Constant voltage LED driver
• 10 x 0.75W LED module (SMD 4014) CCT (Included)
• K: 6500/20000 Lm: 280 Lm/W: 37
• IP67
• Proj: 1mm Dia: 35mm
• Minimum installation depth 80mm
• Cable length: 3m
• Class 3
• Cut hole Dia: 25mm
• 2+3YR Extended Warranty
• Weight: 1Kg
• Lamp Life approximately 25,000 hours

Kit includes: 10 x 0.75W LED heads, 15W Driver, 5m Extension cable, 2 x 5 way looms & 3 Pin Plug

Fitting the Ikon Pro

Step 1 – Drill hole to the correct size

Step 2 – From below, push the wiring loom through the hole (without head)

Step 3 – Place weather protective cap onto the socket

Once the decking in complete

Step 4 – Place the LED heads onto the loom

Step 5 – Let the cap fall through the hole & firmly push the head into place. Repeat for all heads

Step 6 – Push the plug in and switch on to test
