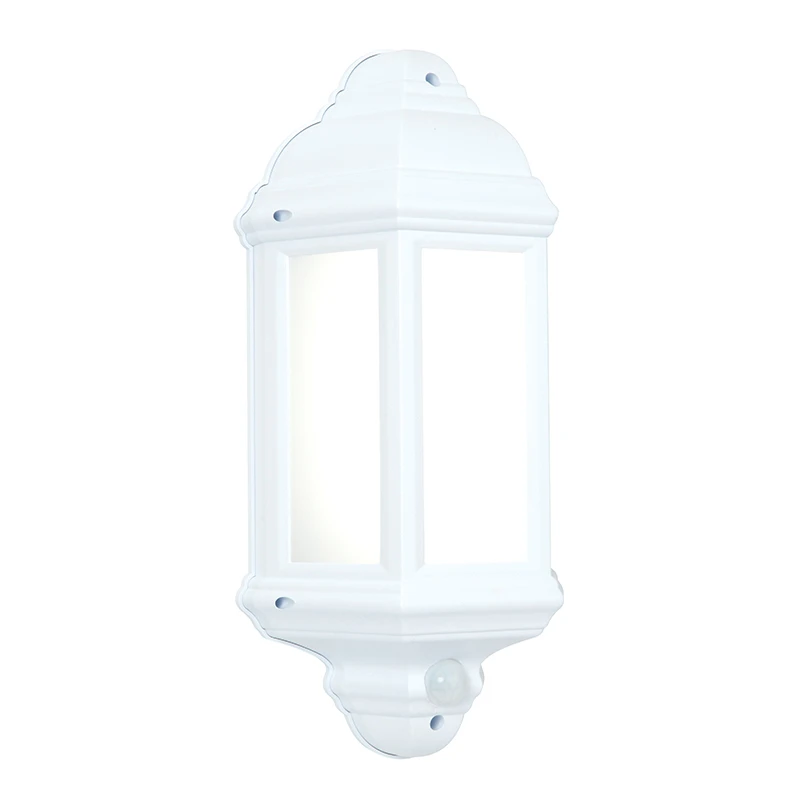

Halbury PIR Sensor – Outdoor Wall Lantern Light – 240v – Matt White Polycarbonate 7W 500 Lumens IP44

Halbury PIR Lantern 240v – Matt White Polycarbonate 7w 4200k 500 Lumens IP44 Security Wall Light With PIR Sensor

The Halbury is a practical yet stylish wall light. Suitable for outdoor use and with a matt white finish it offers a traditional
lantern look. This integral 7w cool white LED version giving out 500 lumens also has PIR technology so is activated by movement, making it ideal for pathways and doorways
and as extra security. Also available in Matt Black code number 54553

• Complete with built in PIR
• 20 lux on, 2000 lux off. 130° detection angle, 8m maximum range with a 5 second to 5 min timer function
• Matt white textured & frosted pc
• Constructed from polycarbonate
• Includes push fit terminal for quick and easy installation
• Complete with LED driver
• 7W LED module (SMD 5630) Cool White (Included)
• K: 4200 Lm: 500 Lm/W: 71

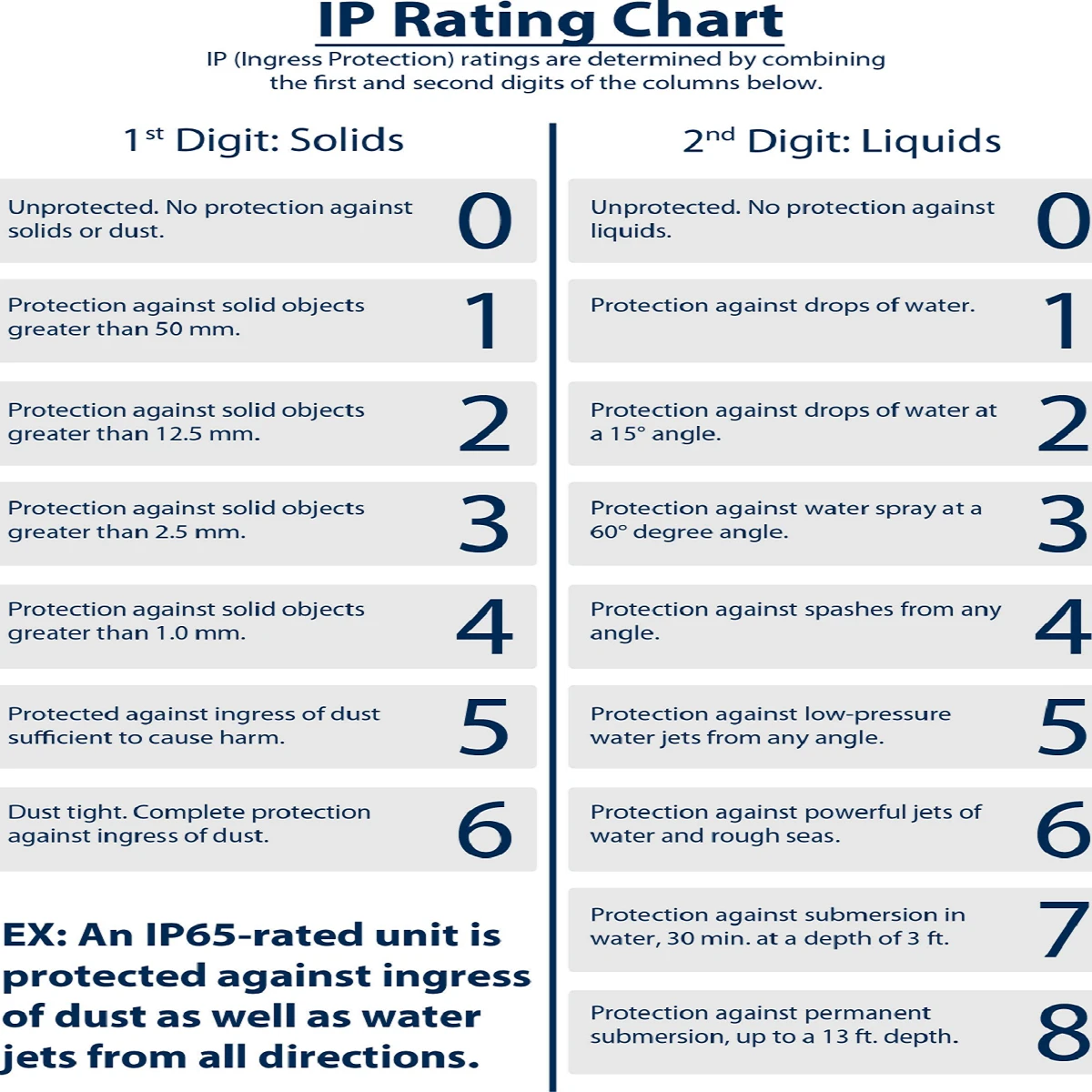

• IP44
• Proj: 98.1mm H: 365.5mm W: 180mm
• Class 2
• 2+1YR Extended Warranty
• Weight: 0.6 Kg

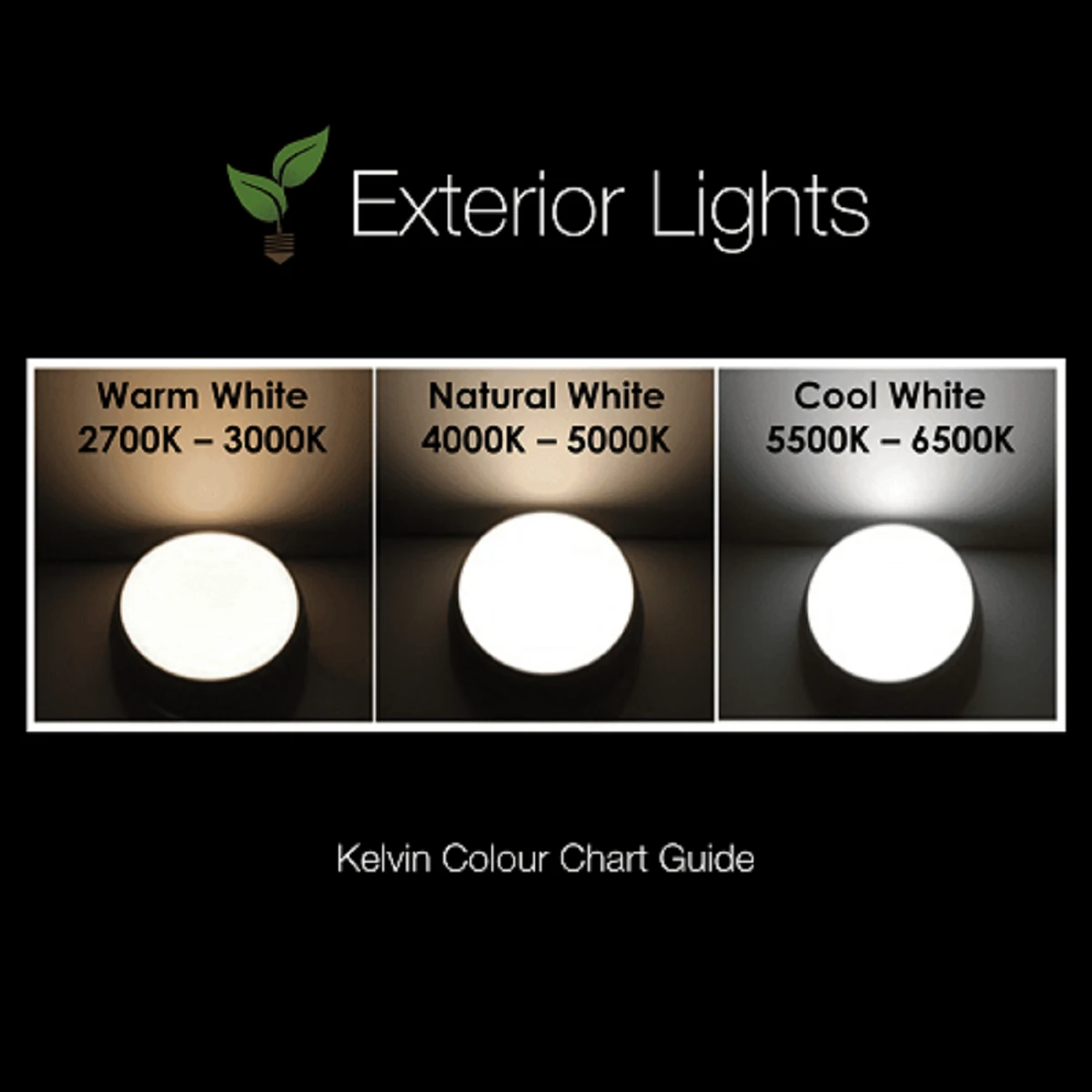

Lamp Colour (Kelvins)



The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.

Installation  – See Download for pdf instructions

Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting,
carefully note the position of each set of wires.

• The help of an assistant is recommended when installing this fitting.

• Remove 6 securing screws to separate shade from the wall back. PIR sensor connection cable can be disconnected to make the installation easier (see Fig.1).

• Using the wall back as a template, mark the position of the mounting holes. Drill holes and fit supplied wall
plugs (suitable for masonry only – for other surfaces use appropriate fixings). Feed the incoming mains supply cable
through the grommet entry hole. Fix the wall back to the wall using the supplied screws (See Fig. 2).

This product is double insulated and must not be earthed. If there are any incoming earth cables, they must be joined together
and well insulated with good quality insulation tape. This is to ensure earth continuity throughout your property. Remove
the cover from the mains terminals and having correctly identified the wiring from your existing light fitting, connect
to the quick fit connection block.

Refit the shade, Reconnect PIR sensor cable if necessary.  Replace fuse or circuit breaker and switch on. Your
light is now ready for use.

Make sure the fitting is correctly oriented in a vertical position and fitted 1.8m – 2.5m above the ground.

The PIR sensor can be adjusted using the LUX and TIME screws, allowing the detection distance to be altered to suit the location.
The detection angle is set at 130 degrees and the detection distance is 8m. The PIR will start activating when the light
level drops to 20 LUX and will continue to activate until the light level rises to 2000 LUX. When adjusting the sensitivity
(detection distance) in daylight it will be necessary to cover the sensor to simulate night time. When the PIR is activated
the light will remain lit for  a maximum of 5 minutes. The minimum is 5 seconds.

The LED bulb in this product are non replaceable.
