Halbury PIR Lantern – Outdoor Wall Light 240v – Matt Black Polycarbonate 7w 4200k 500 Lumens IP44 Security Light

Halbury PIR Lantern 240v – Matt Black Polycarbonate 7w 4200k 500 Lumens IP44 Security Wall Light With PIR Sensor

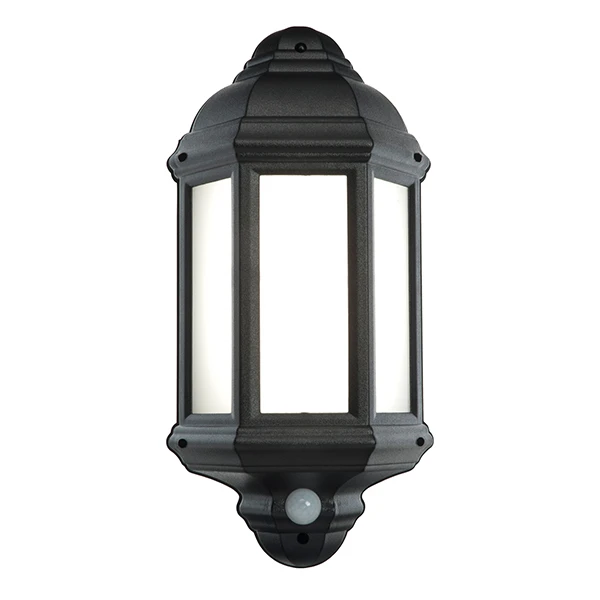

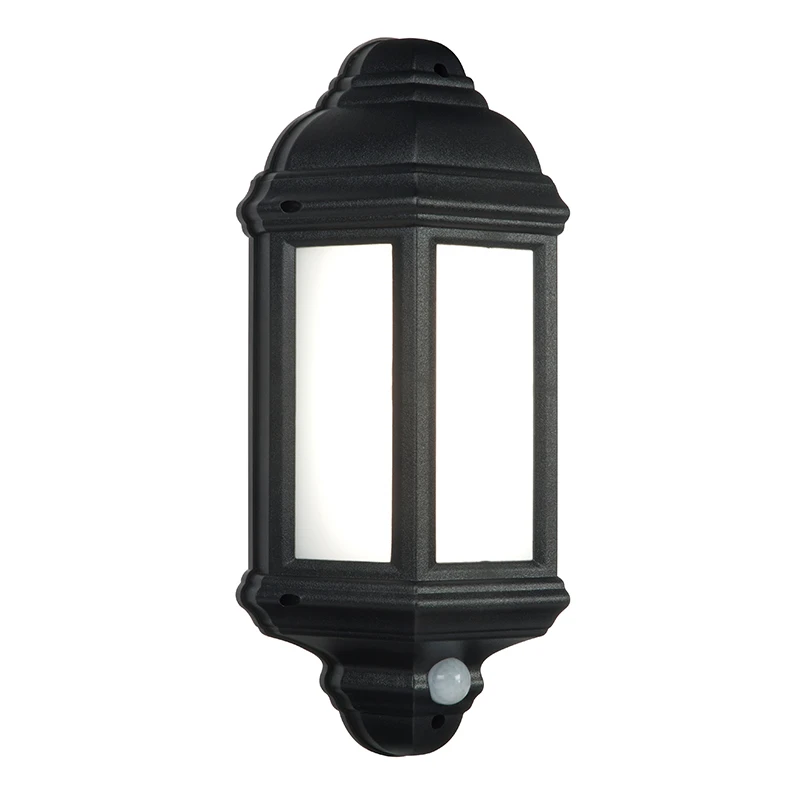

The Halbury is a practical yet stylish wall light. Suitable for outdoor use and with a Matt Black finish it offers a traditional
lantern look. This integral 7w cool white LED version giving out 500 lumens also has PIR technology so is activated by movement,
making it ideal for pathways and doorways and as extra security. Also available in Matt White code number 54554

• Complete with built in PIR
• 20 lux on, 2000 lux off. 130° detection angle, 8m maximum range with a 5 second to 5 min timer function
• Matt Black textured & frosted pc
• Constructed from polycarbonate
• Includes push fit terminal for quick and easy installation
• Complete with LED driver
• 7W LED module (SMD 5630) Cool White (Included)

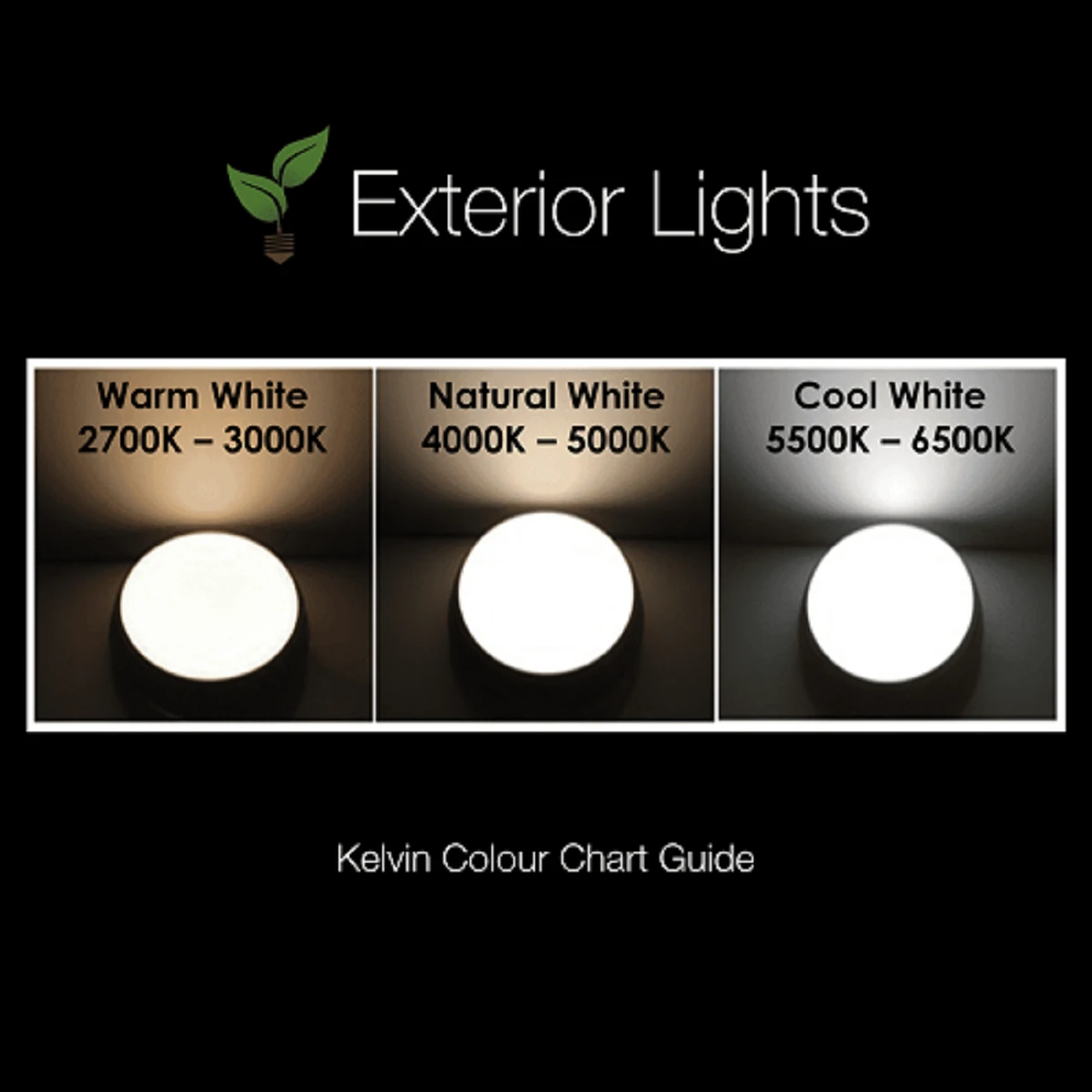

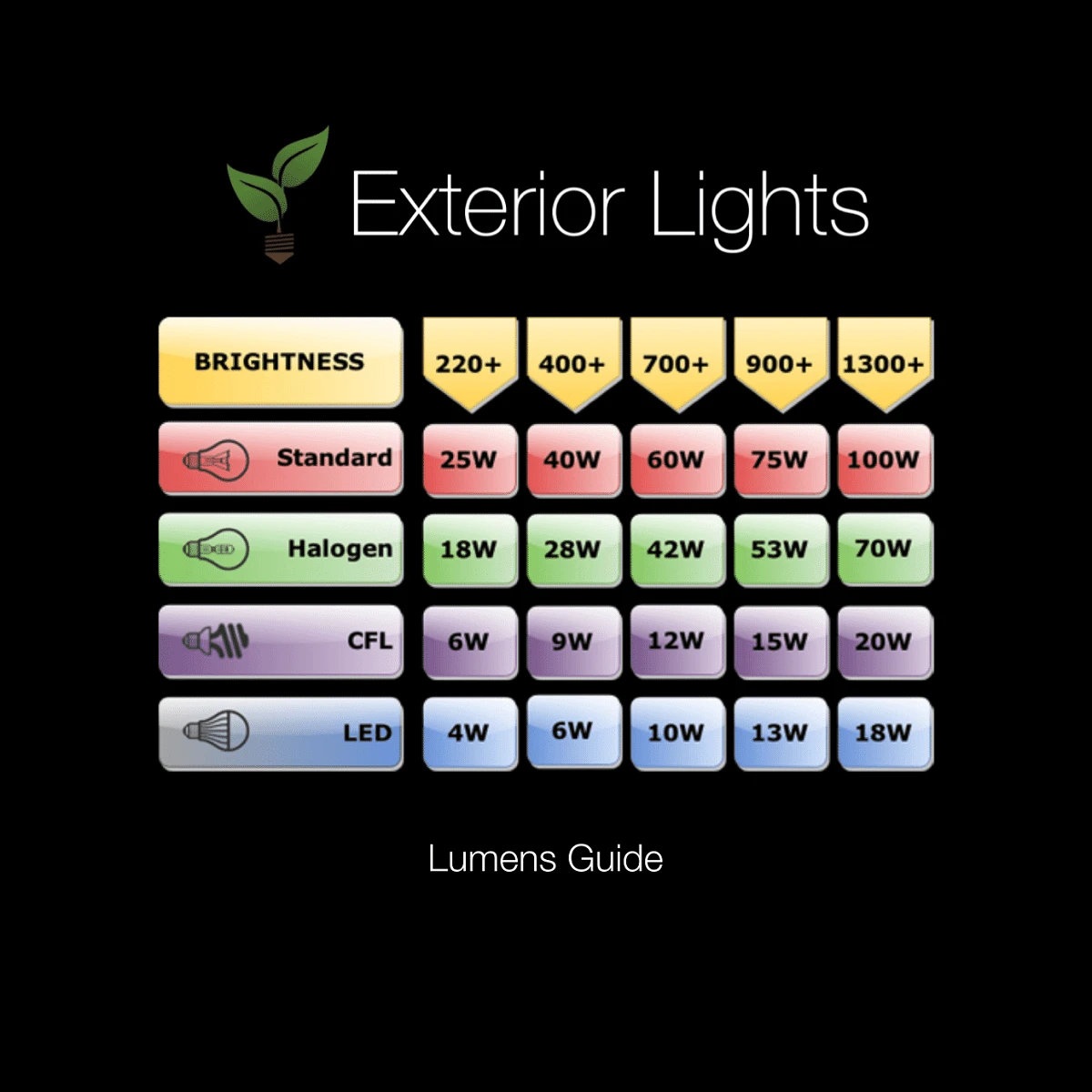

• K: 4200 Lm: 500 Lm/W: 71
• IP44
• Proj: 98.1mm H: 365.5mm W: 180mm
• Class 2
• 2+1YR Extended Warranty
• Weight: 0.6 Kg

   Installation  – See Download for pdf instructions

Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting,
carefully note the position of each set of wires.

• The help of an assistant is recommended when installing this fitting.

• Remove 6 securing screws to separate shade from the wall back. PIR sensor connection cable can be disconnected
to make the installation easier (see Fig.1).

• Using the wall back as a template, mark the position of the mounting holes. Drill holes and fit supplied wall
plugs (suitable for masonry only – for other surfaces use appropriate fixings). Feed the incoming mains supply cable
through the grommet entry hole. Fix the wall back to the wall using the supplied screws (See Fig. 2).

This product is double insulated and must not be earthed. If there are any incoming earth cables, they must be joined
together and well insulated with good quality insulation tape. This is to ensure earth continuity throughout your

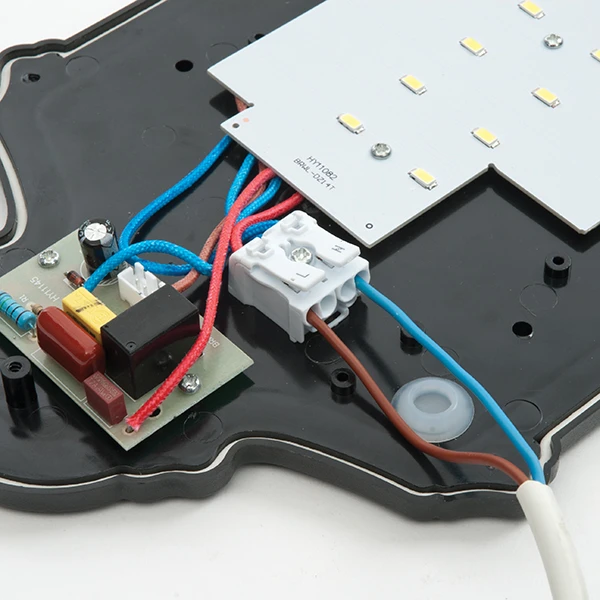

property. Remove the cover from the mains terminals and having correctly identified the wiring from your existing
light fitting, connect to the quick fit connection block.

Refit the shade, Reconnect PIR sensor cable if necessary.  Replace fuse or circuit breaker and switch
on. Your light is now ready for use.

Make sure the fitting is correctly oriented in a vertical position and fitted 1.8m – 2.5m above the ground.

The PIR sensor can be adjusted using the LUX and TIME screws, allowing the detection distance to be altered to suit
the location.

The detection angle is set at 130 degrees and the detection distance is 8m. The PIR will start activating when the
light level drops to 20 LUX and will continue to activate until the light level rises to 2000 LUX. When adjusting
the sensitivity (detection distance) in daylight it will be necessary to cover the sensor to simulate night time.
When the PIR is activated the light will remain lit for  a maximum of 5 minutes. The minimum is 5 seconds.

The LED bulb in this product are non replaceable.
