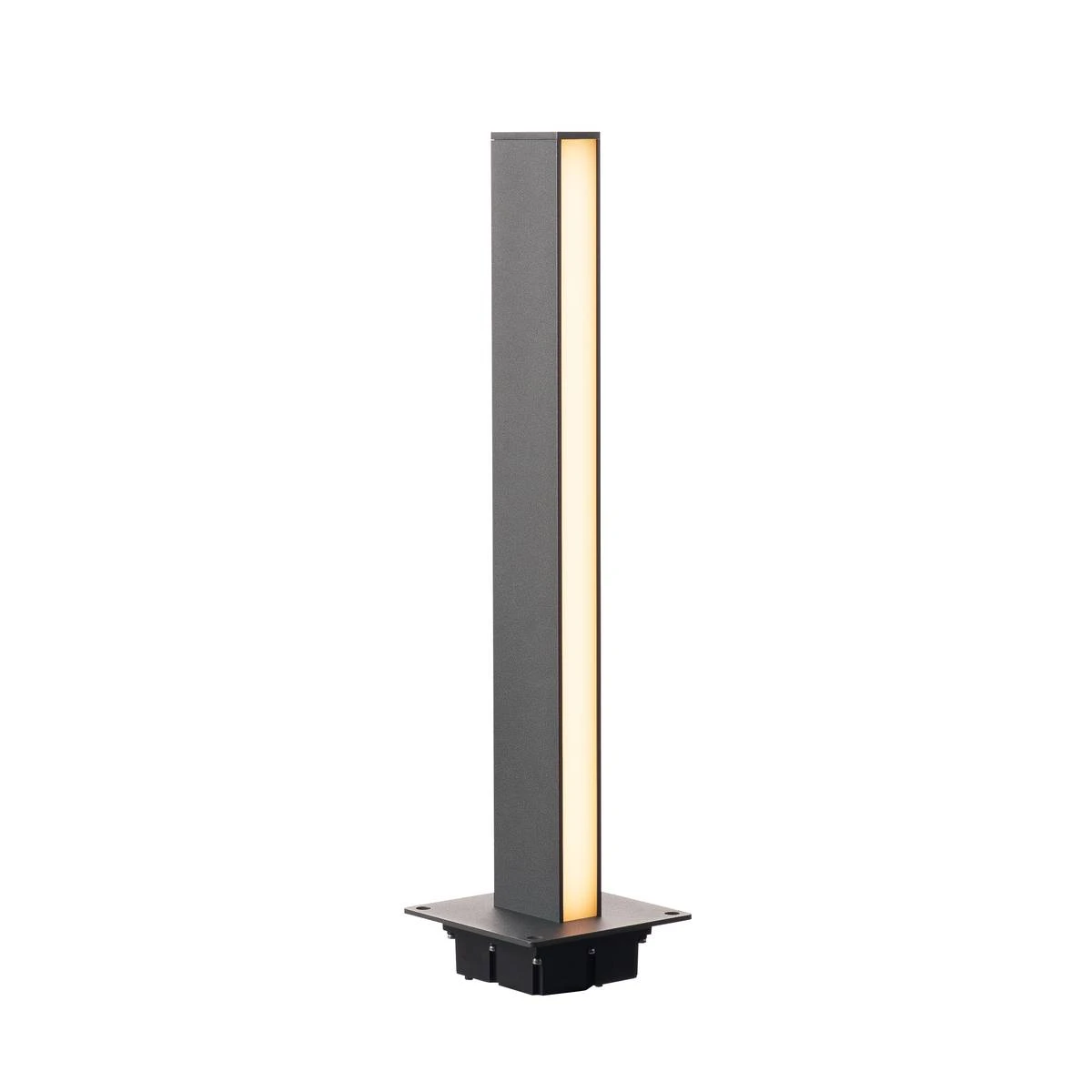

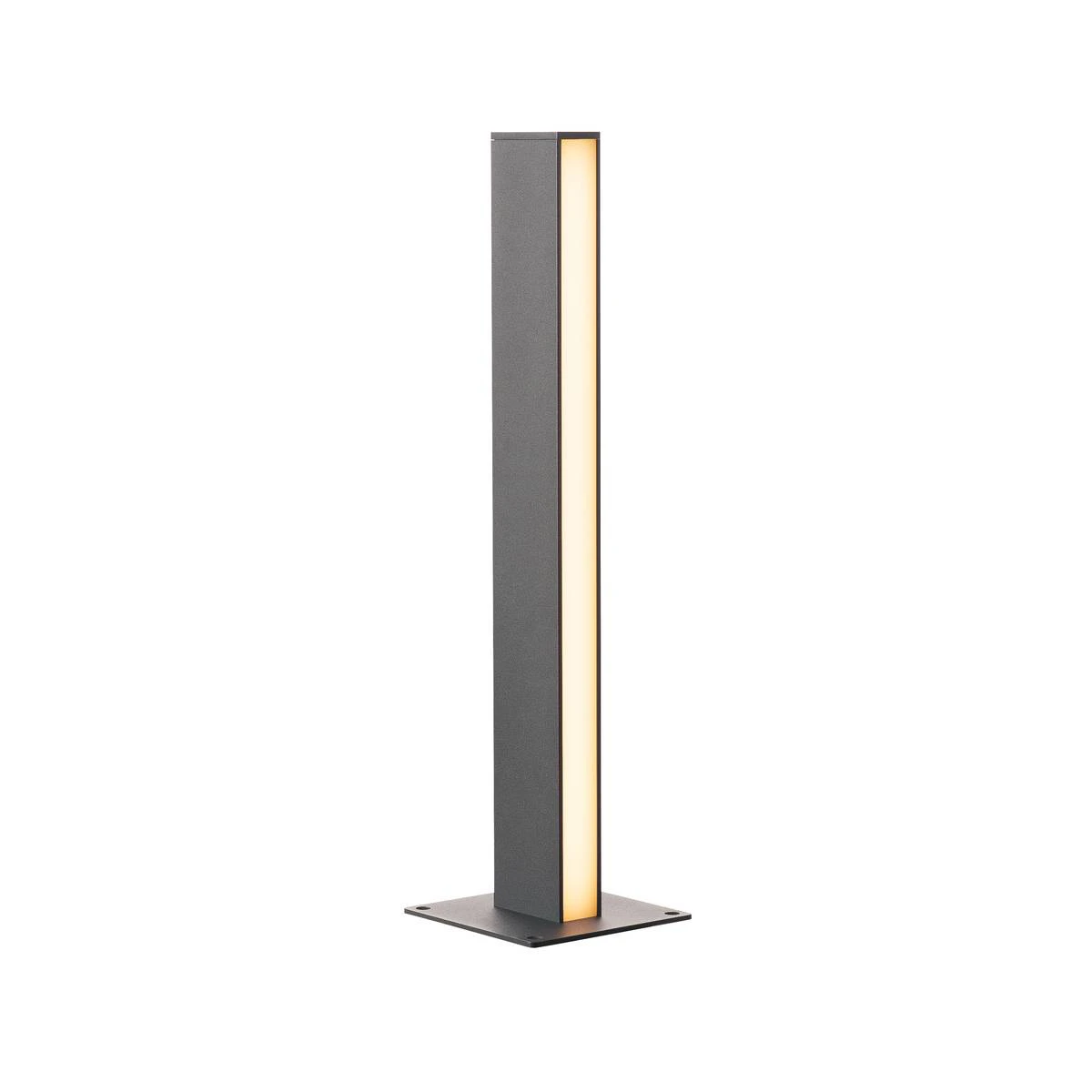

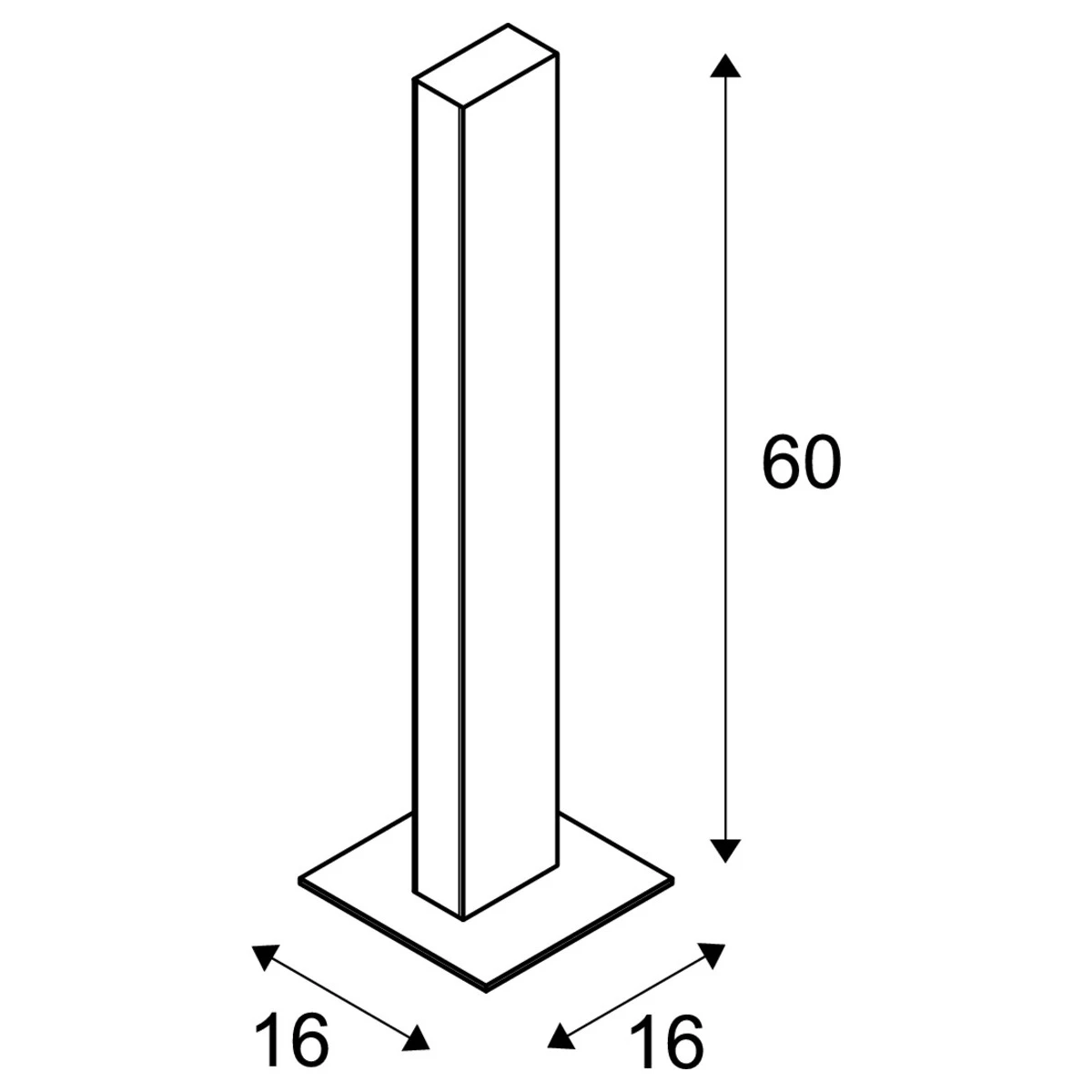

H-Pol Twin – Anthracite IP55 35w 3000k 220-240v 1400 Lumens 66cm Height – Two Sided Path Light – 2 Heights

Bollard types and spacing

Bollard lights are available in a variety of styles, finish and lamp options. You need to think about how the light will
be used for example a small garden pathway, the main driveway or to illuminate steps etc.  If you are within 20
km of the coast you should think about using the Wooden, Copper, Iron, Brass or Marine Grade 316 Stainless Steel. Some
bollards have built in LED modules which generally offer lower levels of light (lumens) than a standard LED GU10
lamp. Also, it is likely the LED module is a sealed unit and an integral part of the bollard which cannot be replaced
if it fails meaning you will have to purchase a complete new bollard. There are bollards that use GU10 LED lamps and

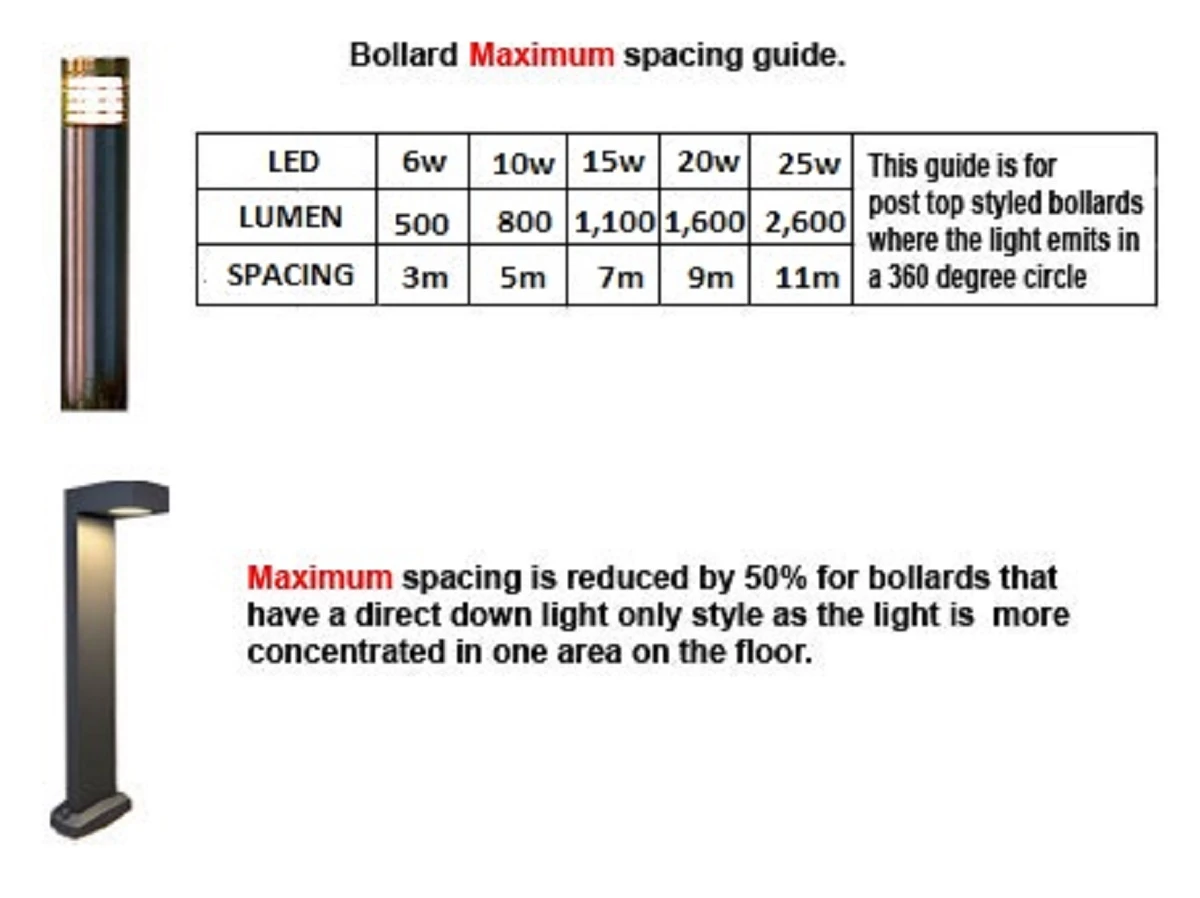

E27 base LED lamps. The spacing of bollards will depend on the type of bollard, louvre design, height and lamp output
etc but a general rule of thumb would be no less than 3 metres and no more than 12 metres apart. The shorter distance
would be for garden pathways and the longer distance for long driveways.

Installation 220 – 240v

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Mains 240v cable
will have less joints than a low voltage installation but care must be taken with the cable runs. Cabling should be Rubber
Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
