Gimble Out – 240v – 316L Stainless Steel IP67 350 Degree Adjustable Recessed Spotlight 13w 3000k 1000 Lumens

Gimble Out – 240v – 316L Stainless Steel IP67 350 Degree Adjustable Recessed Spotlight 13w 3000k 1000 Lumens

The Gimble out is an adjustable recessed up-light in mains 220 – 240v.  It has an integral 13w warm white 3000k LED module which can be replaced by the manufacturer or one of their approved service technicians.  The LED lamp life is approximately 35,000 hours. The LED gives out 1000 lumens which equates to an 80w incandescent lamp.

This fitting is ideal to create a lofted wall wash of light from any angle on the ground.  With its amazing 350 degree horizontal rotation it can be adjusted to light at a  variety of angles.  It has a 90 degree tilt and a 36 degree medium beam angle.  It’s fine for
a variety of installations for up lighting ornamental statues, trees and from the base of walls at the edge of driveways or pathways.

It is made of 316L marine grade Stainless Steel so ideal for coastal areas.

The top section lifts up to give the 350 degree rotation of light and 90 degree of tilt..  The height of the domed head is 9cm. It can be used flat too,

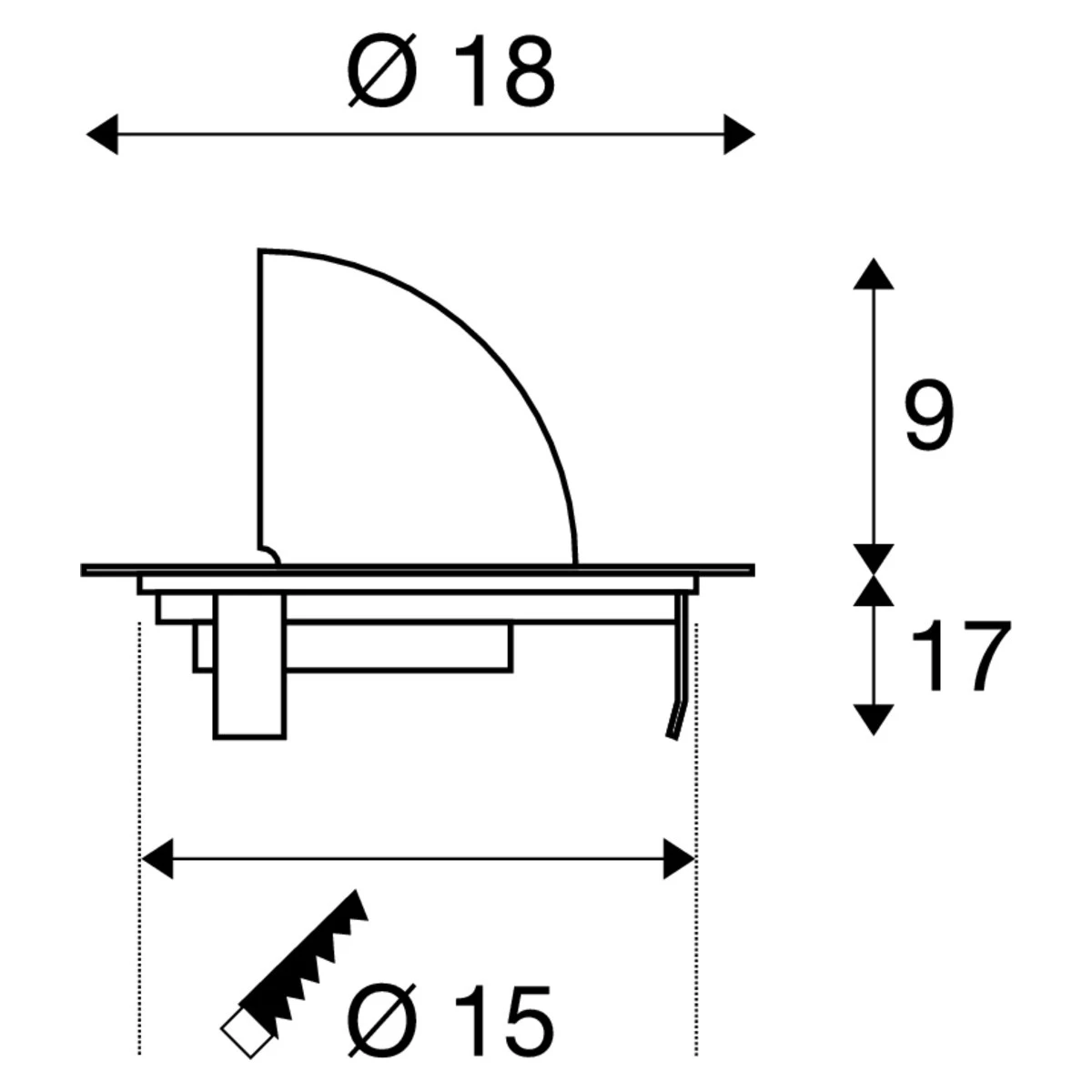

Cut out 15cm. Installation depth 17cm and diameter is 18cm. .

We recommend you use approximately 20cm of shingle or gravel underneath the fitting for drainage especially in areas of clay
soil.

A NIC EIC electrical contractor should be used to ensure a 100% water tight installation. There are resin kits, magic gel and heat shrink kits available from us to help make the perfect waterproof joint.

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how it will be installed. All exterior lighting products on our web site have a IP rating which is explained further in our Technical Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the installation as the weakest point is always cable joints. All joint must be made 100% water tight and this can be done using heat shrink kits, waterproof junction boxes which are then filled with a resin mix or magic gel. All joints where possible should be made above ground for easy access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially in clay based soil areas.   Mains 240v cable will have less joints than a low voltage installation but care must be taken with the cable runs.
