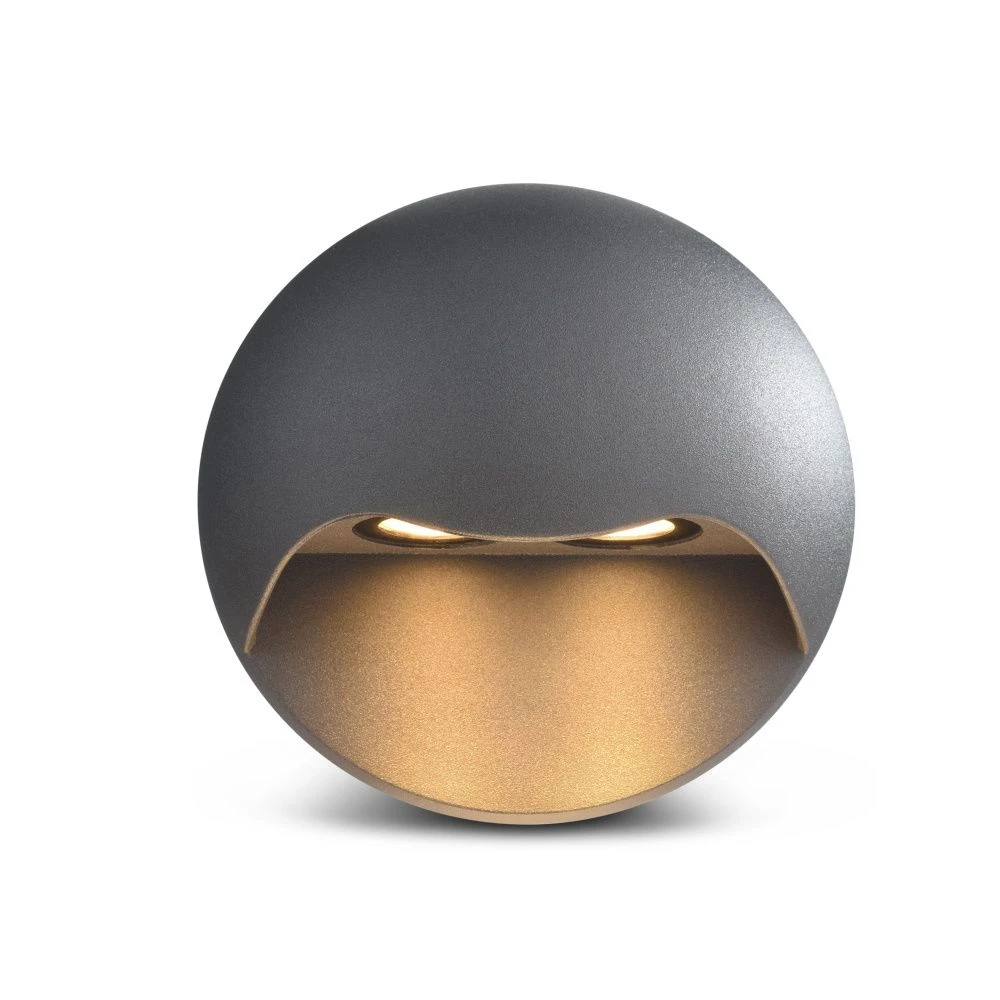

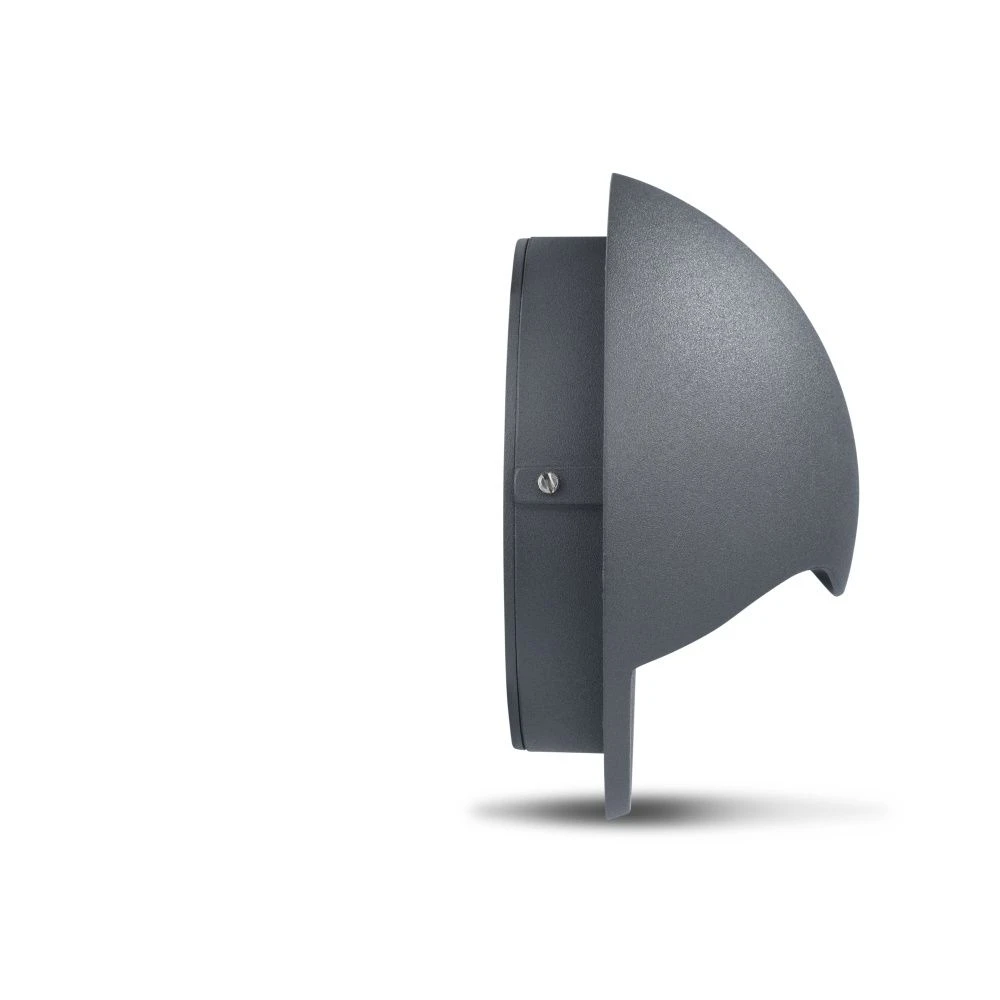

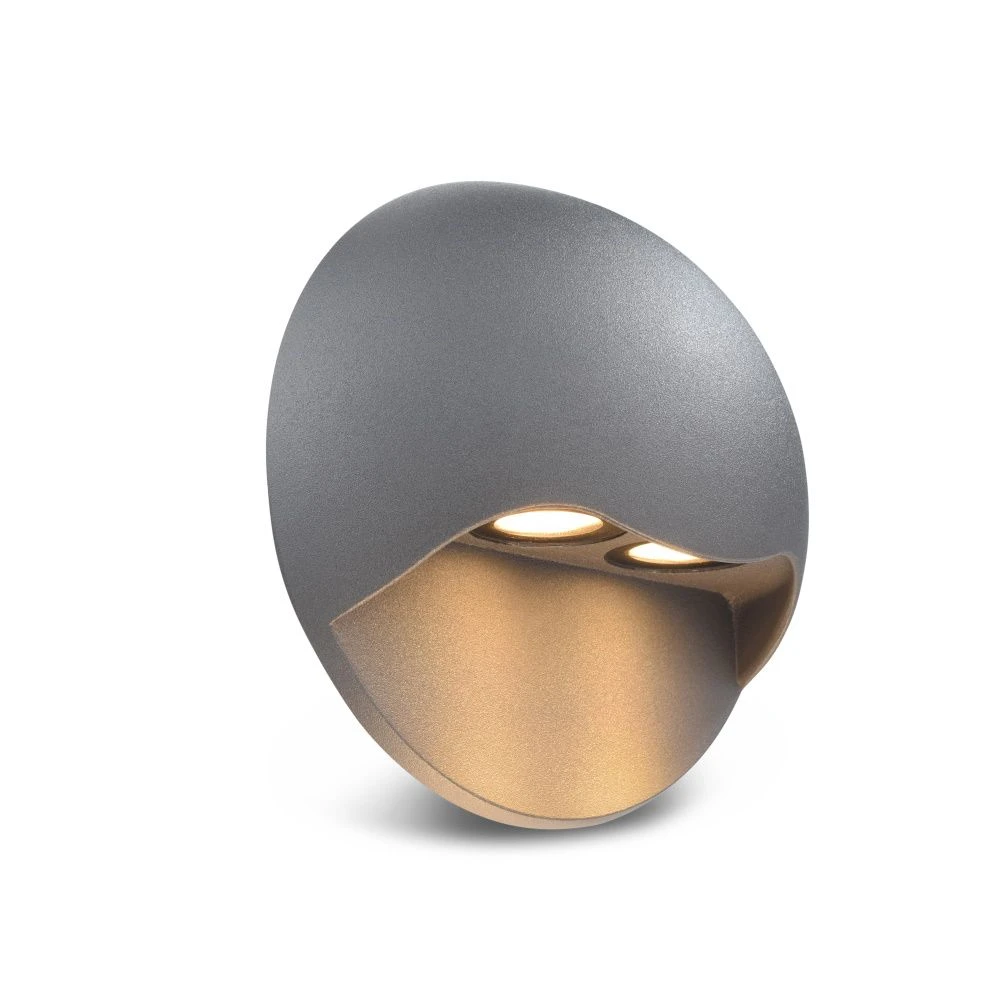

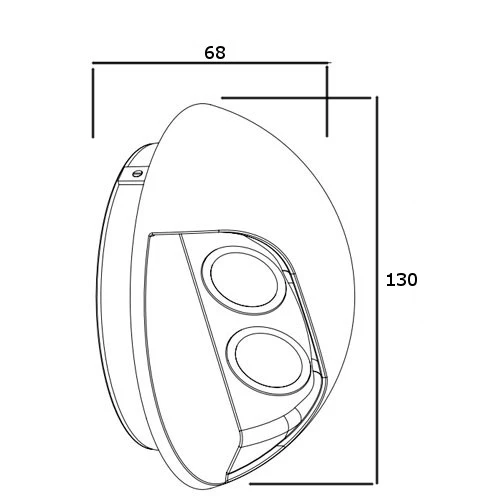

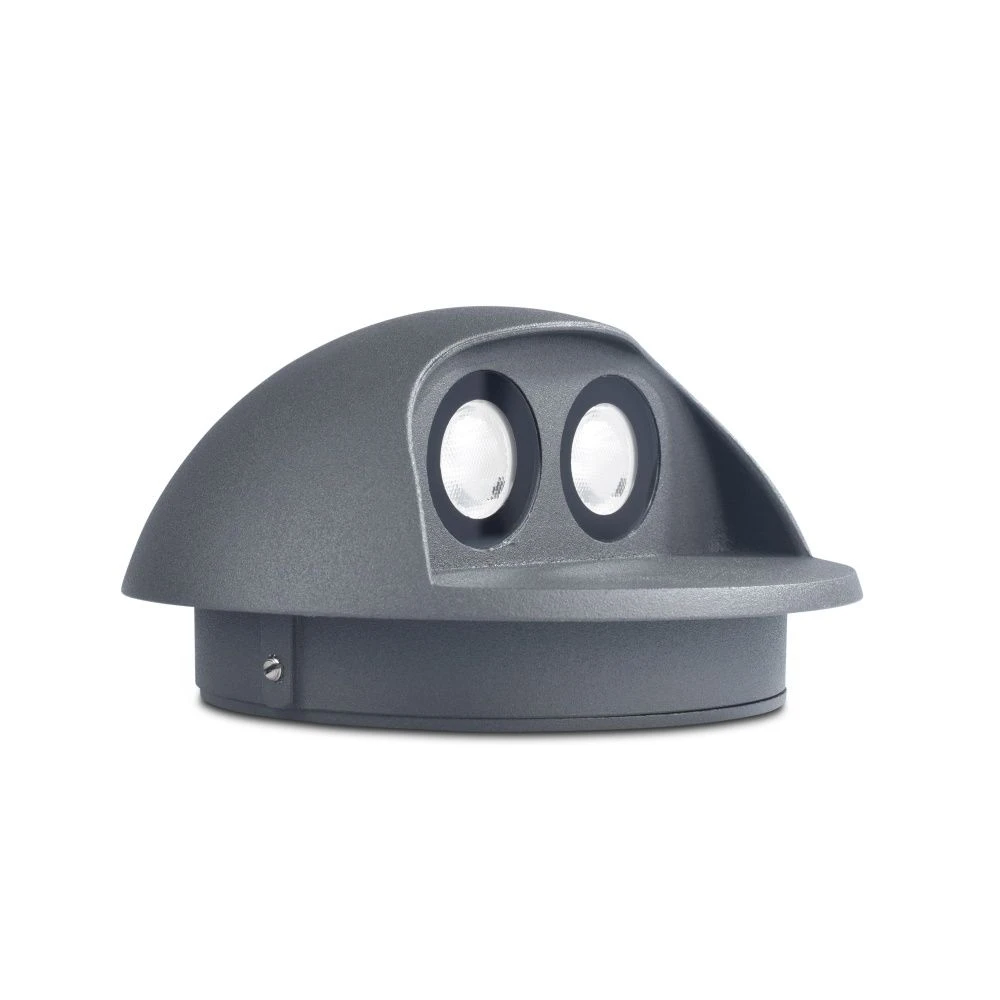

Gemini Wall Light – Graphite Grey – Warm White 3000k – Graphite IP54 – 240v – 261 Lumens

Gemini Wall Light – Warm White 3000k – Graphite IP54 – 240v

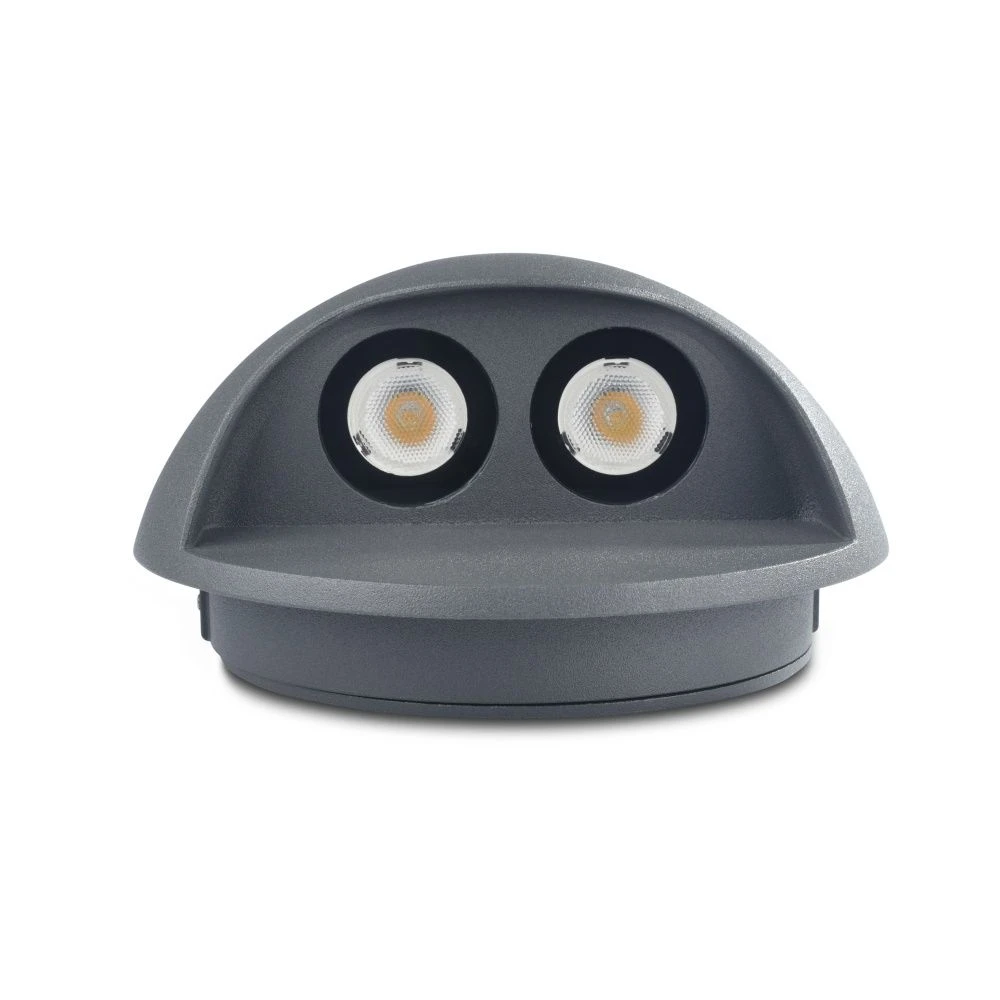

The Gemini 240v Wall light with a modern powder coated Black finish and 2 x 3w warm white LEDs give you a 28º beam of light,
great for downlighting over a bench or raised planters along walls. The Gemini can also be used to give you glare free lighting
on steps with high flanking walls.

Colour/Finish:

Graphite powder coated aluminium complements natural stone and slate materials.  Also available in Black code EH2573-LED

Construction:

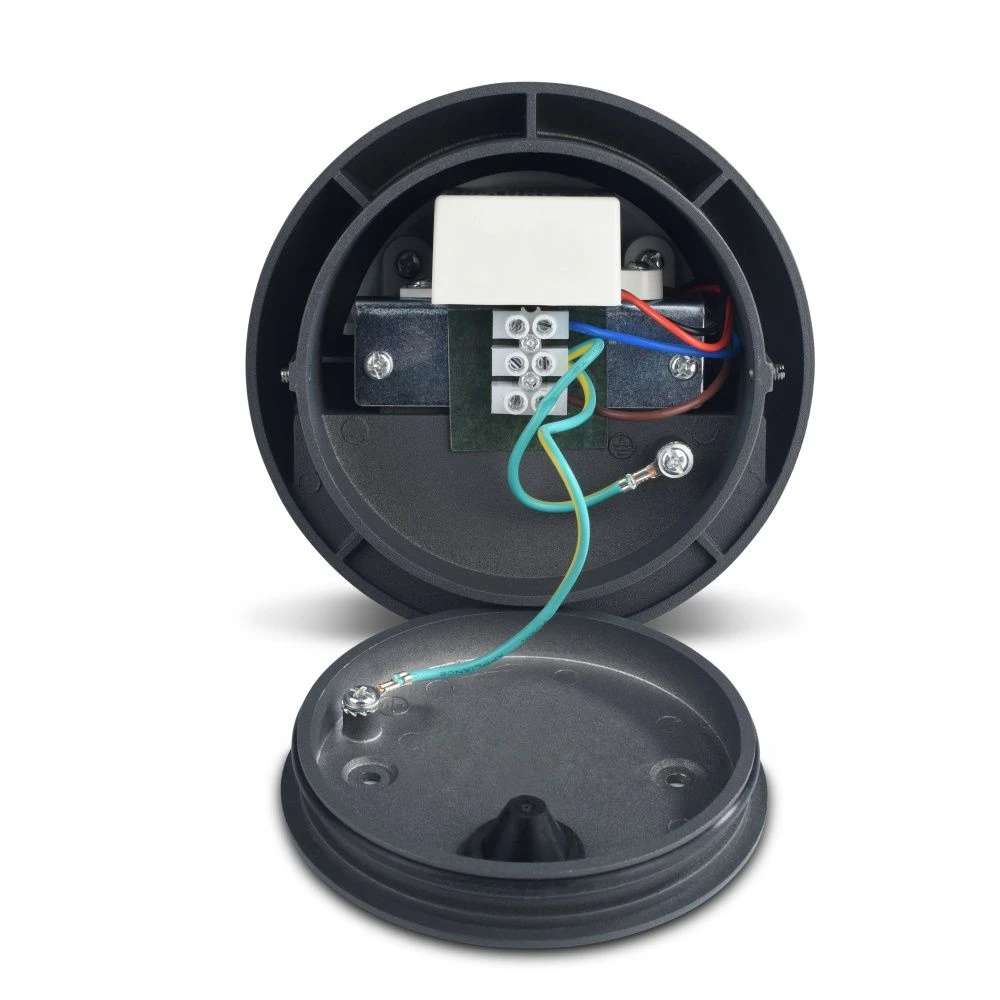

Die-cast aluminium with pre-treatment for outdoor use. Built in LED and PSU.

Input Voltage:  240v Light Output: 261
Lumens : 3000k Approximately the same as a 30w halogen lamp Installation:

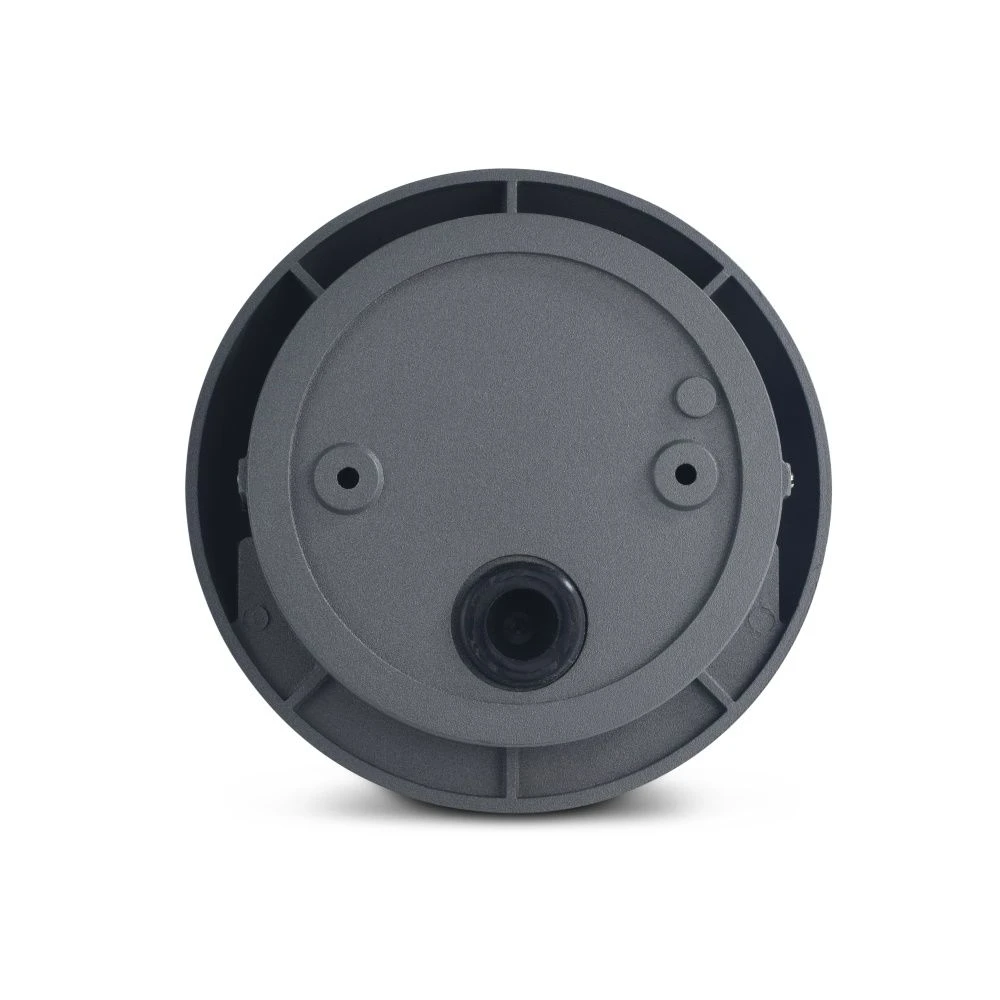

Screw back plate onto wall, post or Besa box. Seal wall fixing holes with silicon sealant. Mount spotlight base onto back
plate with grub screw fixings.

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.  Mains 240v cable
will have less joints than a low voltage installation but care must be taken with the cable runs. Cabling should be Rubber
Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.

All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.

Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Always put outdoor lighting on it’s own RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation.
